All stock codes associated to this product
VPLCH350, 13VPLCH350, 027242878006

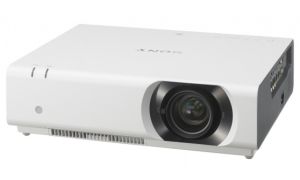

VPL-CH350
4,000 lumens WUXGA Basic Installation projector
Overview
A great fit for demanding middle and large classrooms and meeting rooms where cost is critical
The VPL-CH350 delivers an outstanding brightness of 4000 lumens and ultra high-quality images with WUXGA resolution. Sony 3LCD BrightEra panel technology provides higher picture quality, substantially brighter images, higher efficiency, consistent colour stability and longer durability. It also delivers installation flexibility, environment-friendly features, and a low total cost of ownership, in a stylish design that blends into any decor. The lens shift/zoom capability and the image correction features easily allow users to fit any image onto the screen, even from an offset projection angle.
Additionally, the projector is economically designed for optimum energy efficiency, thanks to its energy saving features and has all the features and functionality that you would expect from Sony, particularly in terms of installation, projection, usability and maintenance.
Features
High resolution WUXGA image
The VPL-CH350 delivers an amazing resolution of WUXGA (1920 x 1200). Extremely clear and detailed high-quality images are projected, even on a large screen. The VPL-CH350 is the ultimate tool for projecting images in a range of applications requiring exceptional detail.
High image quality 3LCD BrightEra natural and vivid colour images with high brightness of 4000 lumens
Thanks to the optical system projecting three basic colours constantly, the projector offers excellent light efficiency, which ensures colourful and bright images. Sony's BrightEra panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms.
Fine lens shift: +/- 5%, Horizontal: +/- 4%
The VPL-CH350s lens shift range adjustment means that the projector can be positioned picture-perfect and horizontally offset to avoid any minor ceiling obstacles.
1.5:1 to 2.2:1 throw ratio
The VPL-CH350 offers a 1.5:1 to 2.2:1 throw ratio that can accommodate most large classrooms or large meeting rooms current replacement installation.
Blend-in design
The VPL-CH350 has a low-profile chassis, so it appears to blend into the ceiling or wall on which it is mounted.
Advanced energy-saving features
Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Picture Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.
Technical Specifications
Please be aware that the features/specifications can differ from country to country
Display system
| Display system |
3 LCD system |
Display device
| Size of effective display area |
0.64 (16.3 mm) 3, Aspect ratio: 16:10 |
| Number of pixels |
6,912,000 (1920 1200 3) pixels |
| Aspect ratio |
16: 10 |
Projection lens
| Zoom |
Manual (Ratio: Approx. x 1.45) |
| Focus |
Manual |
| Lens shift |
Manual (Vertical: +/- 5%, Horizontal: +/- 4%) |
| Throw Ratio |
1.5:1 to 2.2:1 |
Light source
| Light source |
Ultra high pressure mercury lamp 250 W type |
Recommended lamp replacement time
| Recommended lamp replacement time |
3000 H / 4000 H / 5000 H (Lamp mode: High / Standard / Low) |
Screen size
| Screen size |
40 to 300 (1.02 m to 7.62 m)(measured diagonally) |
Light output (Mode: High / Standard / Low)
| Light output (Mode: High / Standard / Low) |
4000 lm / 3200 lm / 2600 lm |
Color light output (Mode: High / Standard / Low)
| Color light output (Mode: High / Standard / Low) |
4000 lm / 3200 lm / 2600 lm |
Contrast ratio (full white / full black)
| Contrast ratio (full white / full black) |
2500: 1 |
Displayable scanning frequency
| Horizontal |
19 kHz to 92 kHz |
| Vertical |
48 Hz to 92 Hz |
Display resolution
| Computer signal input |
Maximum display resolution: 1920 1200 dots *1 / Panel display resolution: 1920 1200 dots |
| Video signal input |
480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p |
Colour system
| Colour system |
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N |
Keystone correction
| Keystone correction |
Vertical: Max. +/- 30 degrees, Horizontal: Max. +/- 20 degrees |
OSD language
| OSD language |
24-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Indonesian, Finnish, Hungarian, Greek) |
INPUT OUTPUT (Computer/Video/Control)
| INPUT A |
RGB / YPbPr input connector: Mini D-sub 15 pin female, Audio input connector: Stereo mini jack |
| INPUT B / INPUT C |
HDMI input connector: HDMI 19-pin, HDCP support |
| S-VIDEO IN |
S-video input connector: Mini DIN 4-pin |
| VIDEO IN |
Video input connector: Phono jack |
| OUTPUT |
Monitor output connector*2: Mini D-sub 15-pin (female), Audio output connector*2: Stereo mini jack |
| REMOTE |
D-sub 9-pin (male) |
| LAN |
RJ45,10BASE-T/100BASE-TX |
| USB |
Type-A, Type-B |
| MICROPHONE IN |
Mini jack |
Speaker
Operating temperature (Operating humidity)
| Operating temperature (Operating humidity) |
0C to 40C / 32F to 104F (20% to 80%; no condensation) |
Storage temperature (Storage humidity)
| Storage temperature (Storage humidity) |
-20C to +60C / -4F to +140F (20% to 80%; no condensation) |
Power requirements
| Power requirements |
AC 100 V to 240 V, 3.6 A to 1.6 A, 50/60 Hz |
Power consumption (Lamp mode: High / Standard / Low)
| AC 100 V to 120 V |
353 W / 285 W / 265 W |
| AC 220 V to 240 V |
334 W / 272 W / 254 W |
Standby mode power consumption (Standby mode: Standard / Low)
| AC 100 V to 120 V |
4.7 W / 0.3 W |
| AC 220 V to 240 V |
4.9 W / 0.5 W |
Heat dissipation
| AC 100 V to 120 V |
1204 BTU |
| AC 220 V to 240 V |
1139 BTU |
Outside dimensions (W H D)
| Outside dimensions (W H D) |
Approx. 406 113 D 330.5 mm (15 31/32 4 7/16 13 in) (without protrusions) |
Mass
| Mass |
Approx. 5.7 kg / 12 lb |
Supplied accessories
| Supplied accessories |
RM-PJ8 Remote Commander (1), Lithium battery: CR2025 (1), AC Power Cord (1), Lens cap (1), Quick Reference Manual (1), Operating Instructions (CD-ROM) (1), Presentation Station for Network Presentation application (CDROM) (1) |
Notes
| Notes |
*1 Available for VESA Reduced Blanking signal.
*2 From INPUT A. |
