All stock codes associated to this product
V11H622053

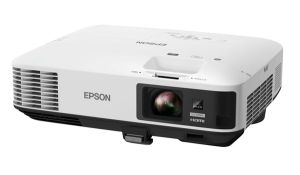

Epson EB-1970W
Corporate Portable Multimedia Projectors
The Ultimate Desktop Projection Solution for any Meeting Space
Overview
The Epson EB-1970W projector provides brilliant colour and amazing image quality with up to 5,000 lumens of colour brightness and up to 5,000 lumens of white brightness. This powerful product also features Faroudja DCDi video processing to ensure your image always looks its best. The EB-1970W also features a newly developed lens with a greater sharpness and focus level. Wide-ranging connectivity including two HDMI inputs, MHL, and Control I/O. Rich functionality such as Auto Power ON, Focus Help, Split Screen, USB Display and Lamp Regulation allow for a quicker, smarter user experience. Whether theyre used in the boardroom, or your living room, the Epson EB-1970W delivers bright, vivid images that will captivate any audience.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Crisp Clear Resolution Featuring WXGA (1280 x 800)
- Versatile Connectivity Easily integrate with any system with HDMI and MHL
- Wireless Functionality Wi-Fi
- Epson iProjection Wirelessly display and control content from your iPhone , iPad , iPod touch and Android devices
- USB Display Function Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Faroudja DCDi® Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.

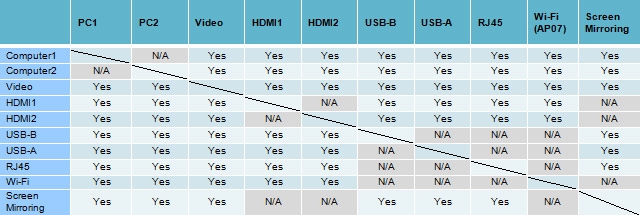

Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
MHL — The latest in connectivity
Turn your projector into a smart display with instant access to movies, games and more:
Works with MHL-enabled smartphones and tablets
Use the projector remote to control MHL-enabled devices
Supports Full HD 1080p video and 7.1 audio
Simultaneously charge your MHL-enabled device when it’s plugged into the projector
iProjection
Display and control content from your iPhone®, iPad® or iPod® touch with the Epson iProjection App and any nearby wireless or networked Epson projector. Whether projecting a PowerPoint presentation loaded to the iProjection App or a photo slideshow from your iPad, Epson’s iProjection gives you the wireless freedom you’ve come to expect from your mobile device. This App is easy to use and navigate with intuitive menu options that make it simple to bring your iOS content to the big screen.
Multi PC Projection
The Multi PC Projection feature allows a network of up to 50 devices to be connected to a single projector. A new addition to Multi PC Projection sees smart devices such as iOS and Android Devices being able to join the network. Another additional feature has been built into the EB-1900 Series allows a PC to act as a Moderator, who can then select up to 4 of the connected devices and project their screens from the projector. The addition of a Moderator helps to maintain control and prevents tampering with the projected screen.
USB Display Function and USB Memory Slide Show
The EB-1965 can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device*, making it possible to give presentations without the need for a PC.
Advanced Networking
With the EB-1900 Series, it’s possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (via RJ45 connection) or via the 802.11b/g/n wireless module which is included in the box for the EB-1970W/1975W/1985WU.

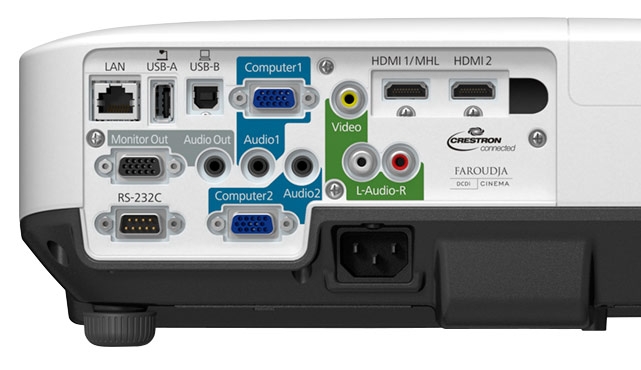

Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-1970W |
| PRODUCT CODE |
V11H622053 |
|
WHAT'S IN THE BOX
|
|
| |
EB-1970W Projector, 1.8m Computer Cable, 1.8m power cable, Remote Control, Batteries, Projector Software, Manual |
|
TECHNOLOGY
|
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.76-inch with MLA |
|
OPTICAL
|
|
| Zoom |
1-1.6 (Optical Zoom) |
| Screen Size |
30" to 300" [0.86m to 8.95 m] (Zoom: Wide)
30" to 300" [1.45m to 14.79 m] (Zoom: Tele) |
| Projection Distance |
120" screen 3.56 - 5.89 m |
| Throw Ratio |
1.38 (Zoom: Wide), 2.28 (Zoom: Tele) |
| Projection Lens F Number |
1.5-2.0 |
| Projection Lens Focal Length |
23mm - 38.4mm |
| Focus Method |
Manual Focus |
| Offset |
10:1 |
|
|
|
| Colour Light Output |
5,000 Lumens |
| White Light Output |
5,000 Lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
280 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
|
CONNECTIVITY
|
|
| Input: Video |
1 x RCA (Yellow) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
1 x USB Type A |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
2 x HDMI (1 x MHL) |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, 1 x RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
1 x RJ45 (100Mbps) |
| Wireless Connectivity |
Included |
| WiDI/Miracast |
No |
| Output: Video |
1 x D-sub 15 pin (black moulding) |
| Output: Audio |
1 x Stereo mini jack |
| Speaker Output |
16W |
|
ADVANCED FEATURES
|
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
Yes |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
Yes |
| Instant Off |
Yes |
| Auto Power On |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Padlock & Security Cable Hole
Kensington -style lock provision
Wireless LAN Unit Lock
Password protect function |
| Colour Modes |
Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard, DICOM.SIM |
| GENERAL |
|
| Dimensions D x W x H |
291 x 377 x 110 mm |
| Weight |
4.5kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal/Eco: 411/316W |
| Power Consumption: Standby |
0.34W (communication off) |
| Noise Level |
Normal/Eco: 39/31dB |
| |
| * Which ever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
Lamp ELPLP77 |
V13H010L77 |
| |
Air Filter ELPAF41 |
V13H134A41 |
| |
Quick Wireless Key ELPAP09 |
V12H005M09 |
| |
Ceiling Mount ELPMB23 |
V12H003B23 |
| |
Extension Pole 668-918 mm |
V12H003P13 |
| |
Extension Pole 918-1,168 mm |
V12H003P14 |
| |
Soft Carrying Case ELPKS68 |
V12H001K68 |
| |
Floor Standing Tripod Screen |
V12H002S2Y |
