Quad-Strength Graphic Power
Seven native PCI Express 3.0 x16 slots mean Z10PE-D8 WS is equipped for immense graphics-processing power, so its perfect for use in professional fields such as mechanical, architectural, interior design, aeronautics, audio and video design. The ample graphics potential also opens Z10PE-D8 WS to run even the most demanding PC games in full detail so its great for work or play.
Supreme Power Solutions
ASUS Z10PE-D8 WS couples innovative thinking with premium components to deliver industry-leading power efficiency. Carefully engineered with Beat Thermal Chokes II made of highly conductive and efficient design for minimal-loss power delivery and integrated Dr. MOS MOSFET that both saves space and reduces operating temperatures. For the latest workstation motherboard, ASUS introduce the industry's most durable 12K solid capacitors, and exclusive ASUS ProCool power connectors. Z10PE-D8 WS is built to stay cool under pressure and boosts performance, power efficiency and product longevity into extreme levels!
12K Solid Capacitors
ProCool Power Connector
Beat Thermal Choke
Dr. MOS
Dual CPU overclocking for incredible performance

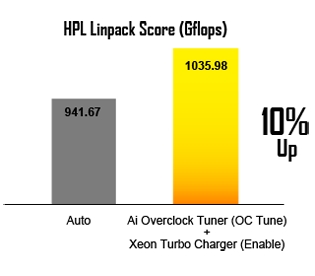

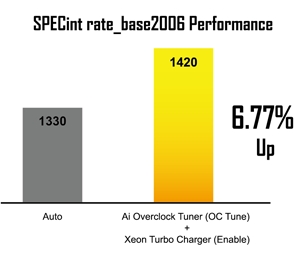

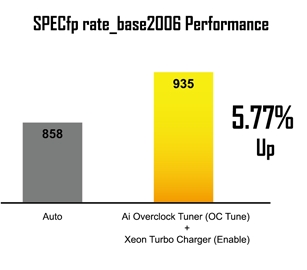

Z10PE-D8 WS breaks performance barriers by giving you the capability to overclock dual CPUs. Ai Overclock Tuner and Xeon Turbo Charger in the BIOS are dedicated to boosting the CPUs overclocking performance by up to 10% to reach incredible CPU High Performance Linpack (HPL) scores and improves SPEC CPU 2006 benchmark results by up to 6.77%.
HPL Linkpack Test Configuration:
MB:Z10PE-D8 WS / CPU : Intel Xeon E5-2699 V3/DRAM: Samsung 16GB DDR4-2133 RDIMM*8 /O.S: Windows 8.1_64
SPEC CPUTM 2006 Test Configuration:
MB:Z10PE-D8 WS / CPU : Intel Xeon E5-2699 V3/DRAM: Samsung 16GB DDR4-2133 RDIMM*8 /O.S:REHL64-bit 6.5 Kernel
Q-Code Logger one-touch checker

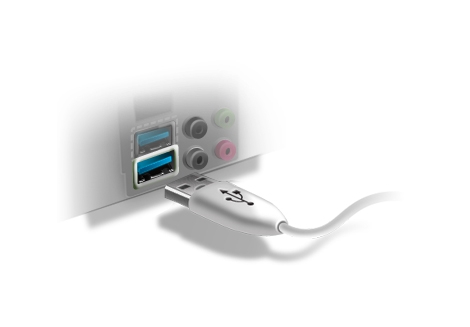

Q-Code logger is your one-touch checker that lets users easily check system status at any time. Plug a flash drive into adjacent USB port, press the motherboard's dedicated Q-Code logger button and all ASUS Q-Code event logs for the current live session will be copied to the drive even with the system off.

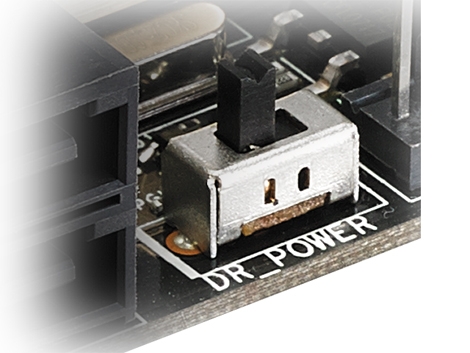

Dr. Power for intelligent PSU detection
As the Z10PE-D8 WS is meant for professional users who rely on non-stop operation, stable power delivery is critical. Real time power supply health detection helps prevent sudden system shutdown and provides hassle-free notifications should power delivery be insufficient. Additionally, LED messages on the board clearly indicate any relevant power issues in the event your system fails to boot.
Ultra-fast transfer speed

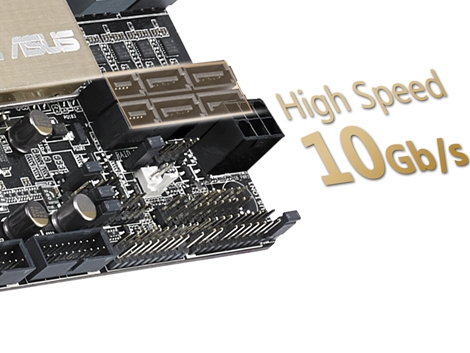

Evolve your storage speed with SATA Express
SATA Express provides up to 10Gbit/s data-transfer speeds from two PCIE 2.0 lanes, resolving the higher bandwidth request in the near future. The current SSDs consume up to 550MB/s, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard and ensures that you and your system won't get left behind.

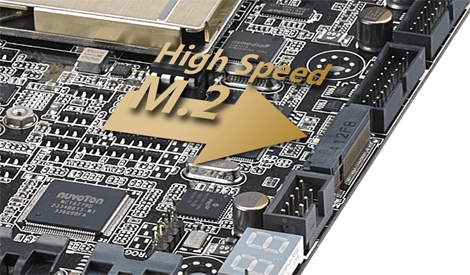

Speed up your system with M.2
With four native PCI Express 3.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds and up to 22110 NGFF. It is the perfect choice for an operating system drive, making your whole PC work that much faster.

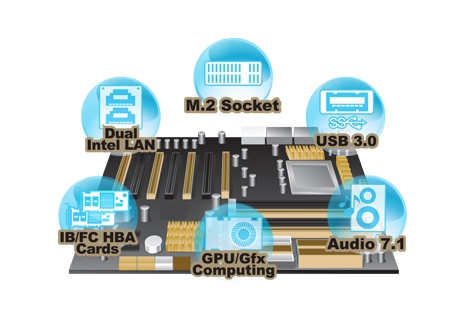

Total Feature Enhancement with Complete I/O

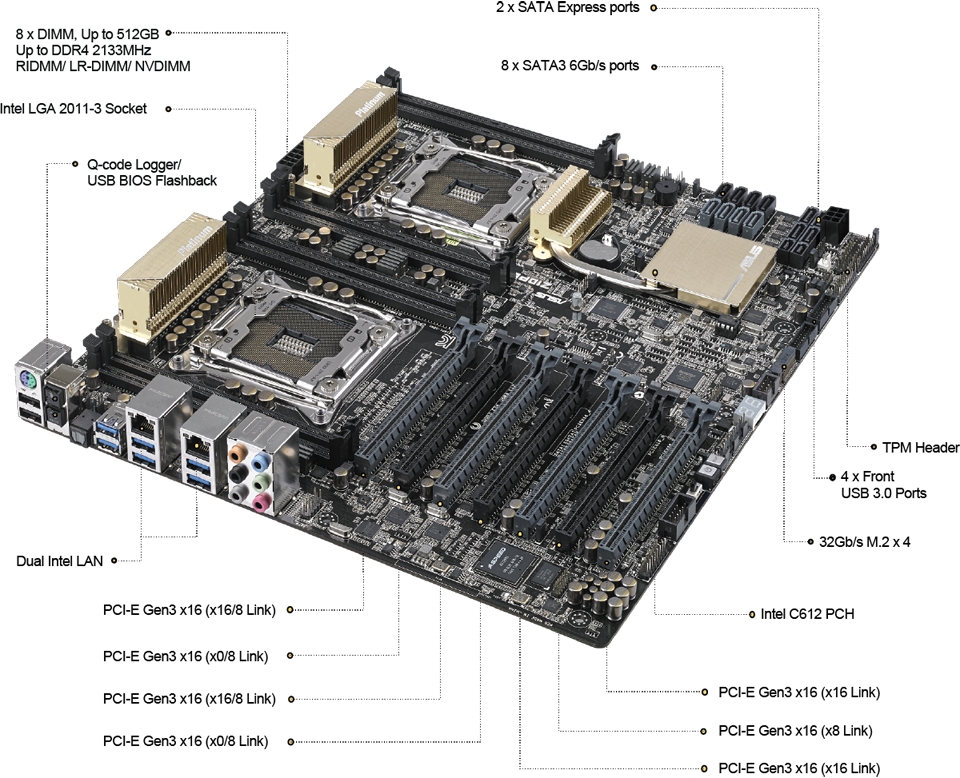

Z10PE-D8 WS packs advanced features onto a standard Enterprise Electronics Bay (EEB) form factor to deliver superior flexibility and performance, with dual Intel Xeon E5-2600 v3 sockets, eight DDR4 DIMM slots, and seven PCI Express 3.0 x16 slots. Z10PE-D8 WS also has ten USB 3.0 ports, eight SATA 6Gbit/s and two of the latest SATA Express connectors so youll benefit from data transfers of up to 16Gbit/s! It also offers superb multimedia, with 7.1-channel DTS-HD Master Audio output.
Faster charging with USB Charger+
USB Charger+ charges USB devices up to three times (3X) faster than traditional USB sockets. Use it to juice up your smart devices even when the PC is asleep, hibernating or powered off a brilliant convenience! * Charging speed may vary by product.
CPU, Chipset and Graphics features
Intel Xeon E5-2600 V3 processor family for the LGA 2011 socket
The motherboard supports the latest Intel Xeon E5-2600 v3 processor family with dual LGA 2011-3 sockets. Memory and PCI Express controllers are integrated alongside quad-channel 8-DIMM DDR4 memory and 80 PCI Express 3.0 lanes. This provides great graphics performance with superior energy efficiency.
Intel C612 Express Chipset
The Intel C612 Chipset is the latest single-chipset design that supports Intel Xeon E5-2600 v3 processors for dual LGA 2011-3 sockets. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the C612 comes with 8 x SATA 6Gbit/s ports and 2 x SATA Express ports for faster data retrieval, doubling the bandwidth of current bus systems.
4-Way SLI and Quad-GPU CrossFireX Support
Both SLI and CrossfireX architectures work flawlessly on the new Z10PE-D8 WS motherboard, with PCI Express slots designed to accommodate the power of up to four graphics cards. Whether for professional graphics work, heavy duty multimedia or dedicated gaming, more than ample graphics power can be applied whenever needed.
Specifications
- CPU
Build in Intel Socket 2011-3 Processors
* Refer to www.asus.com for CPU support list
Intel Socket 2011-3 for Intel Xeon processor E5-2600 v3 product family
- Chipset
Intel C612 PCH
- Memory
8 x DIMM, Max. 512GB, DDR4 2133/1866/1600/1333 MHz RDIMM, LR-DIMM, NVDIMM Memory
Quad Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Graphic
ASpeed AST2400 32MB
VGA port*1
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
- Multi-GPU Support
Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
- Expansion Slots
4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *2
2 x PCIe 3.0/2.0 x16 (dual x16) *2
1 x PCIe 3.0/2.0 x16 (dual x8) *2
- Storage
Intel C612 chipset :
4 x SATA 6Gb/s port(s), gray, *3
4 x SATA 6Gb/s port(s), black, *3,
1 x SATA Express port, , *4
1 x M.2 Socket 3, *5
Support Raid 0, 1, 5, 10
ASMedia SATA Express controller :
1 x SATA Express port, black, compatible with 2 x SATA 6.0 Gb/s ports
- LAN
Intel I210-AT, 2 x Gigabit LAN Controller(s)
- Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Absolute Pitch 192khz/24bit true BD lossless sound
- USB Ports
IntelC612 Chipset :
4 x USB 3.0/2.0 port(s) (4 at back panel, )
IntelC612 Chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
ASMedia USB 3.0 controller :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
- Workstation Feature
7 x PCIe x 16 slot(s)
ASWM Enterprise
ASUS Dr. Power
12K hours Capacitors
ProCool Power Connector
Q-Code Logger
USB BIOS Flashback
ASUS PIKE SAS upgrade kit(Optional)
ASMB8-iKVM Remote Management Tool(Optional)
- Special Features
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 2 Phase DRAM Power Design
ASUS Exclusive Features :
- Front Panel USB 3.0 Support
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-Slot
- ASUS Q-DIMM
- Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
2 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
2 x USB 2.0 *6
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x Q-Code Logger button
1 x 8-channel Audio I/O
- Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3
1 x TPM connector(s)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
2 x CPU Fan connector(s) (2 x 4 -pin)
7 x Chassis Fan connector(s) (7 x 4 -pin)
1 x S/PDIF out header(s)
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x RAID key header(s)
1 x VGA connector(s)
1 x AUX panel header(s)
1 x SMBus header(s)
1 x System panel(s)
1 x TPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Dr.Power switch(es)
1 x Serial Port header
1 x ASMB8-iKVM connector
1 x 6-pin EATX 12V_3 Power connector
- Accessories
User's manual
I/O Shield
1 x COM port cable(s)
12 x SATA 6Gb/s cable(s)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x 2-port USB 2.0 module(s)
1 x VGA bracket(s)
- BIOS
128 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 2.6.1, ACPI 3.0, ASUS EZ Flash Utility, ASUS CrashFree Technology
- Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
DriversASUS UtilitiesASUS Update
- Operating System
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 Enterprise R2 SP1 64-bit
Windows 8.1 32/64-bit
Windows 8 32/64-bit
Windows 7 32/64-bit
- Form Factor
EEB Form Factor
12 inch x 13 inch ( 30.5 cm x 33.02 cm )
- Management Solution
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
- Note
*1 with bracket
*2 This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details
*3 4 x gray from SATA controller, 4 x black from sSATA controller
*4 Compatible with 2 x SATA 6.0 Gb/s ports from SATA controller
*5 M.2 Socket 3 supports M Key and type 2260/2280/22110 storage devices
*6 1 supports USB BIOS Flashback, 1 supports Q-Code Logger
