All stock codes associated to this product
P1914S, 884116125785
Looking sharp and clear for work and play.
Enhance your productivity and liven up your entertainment with sharp screen quality, adjustable viewing features and excellent connectivity options.
- Flexible viewing and connectivity options: Fully adjustable stand and a comprehensive set of analog and digital ports and cables.
- Sharp screen clarity: 1280 x 1024 SXGA resolution with an ultra-wide 178/178 viewing angle.
- Environment-conscious and reliable: Built to comply with the latest environmental and regulatory standards, and protected by a Premium Panel Guarantee1 and 3 years Advanced ExchangeService2.
Overview
Flexible viewing features
The DellTM 19 Monitor P1914S adjusts to fit your style, whether you are at work or home:

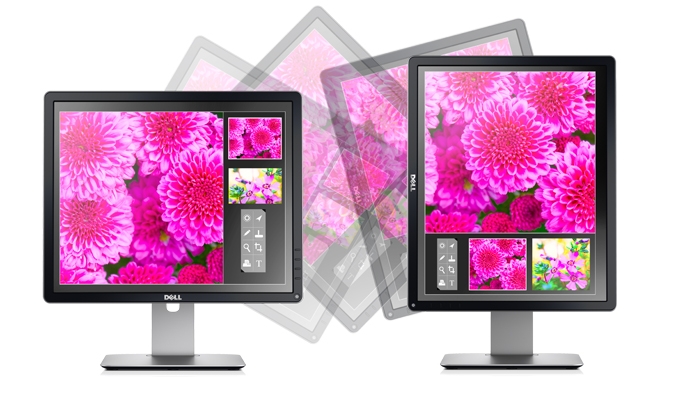

- Tilt, pivot, swivel and adjust the height of your monitor to maximize viewing comfort.
- Easily transition from landscape to portrait orientation for optimal viewing of lengthy web pages with less scrolling.
- Dell Display Manager is your one stop software application to manually adjust or auto assign optimal preset modes to specific software applications.
VESA compatibility
If you prefer a different mounting option to fit your particular workspace, you can purchase your P1914S. The VESA-compatible mounting plate makes it easy to install your monitor the way you want (mounting kits sold separately):
- Dell Single Monitor Arm
- Dell Dual Monitor Stand
- Wall-mounting kit
|

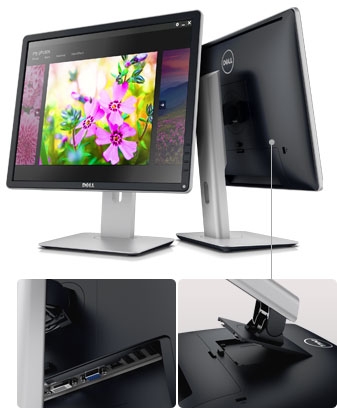

Multiple connectivity options
A comprehensive range of analog and digital ports, and their accompanying cables, provides virtually all the connectivity options you'll need over the course of the day:
- DisplayPort
- VGA
- DVI-D (excluding DVI-D cables)
- 4 x USB
|
Sharp screen clarity
Every detail is bright and clear with the crispness of a LED backlighting.
- 1280 x 1024 SXGA resolution at 60Hz (max.)
- 250 cd/m brightness (typical)
- 83% color gamut4 (typical)
|
Color clarity and consistency across an ultra-wide viewing angle
The in-plane switching (IPS) technology offers clear images with consistent and accurate colors from virtually any viewpoint:
- An ultra-wide 178/178 viewing angle
- Excellent picture quality with high 2 million:1 dynamic contrast ratio (typical) for deep blacks, bright whites and outstanding details
- 8ms (gray to gray) response time (typical) for clean, fluid motion
|
Designed for work and home
Designed to help get the job done quickly, the P1914S is excellent for Latitude and OptiPlex systems driving business or education applications. It is also ideal for Latitude and XPS systems in home-office environments.

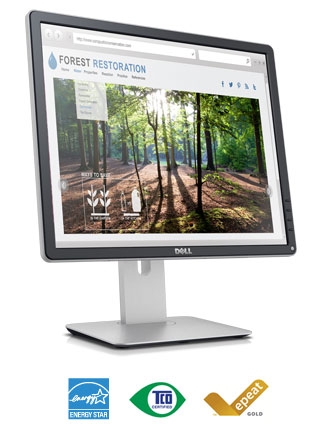

Environment-conscious design
The Dell 19 Monitor P1914S meets the latest regulatory and environmental standards.
- ENERGY STAR Qualified
- EPEAT Gold Rated
- TCO Certified Displays
- China Energy Label (CEL) compliant
|
The P1914S is BFR/PVC-free (excluding external cables) with more than 25 percent post-consumer recycled plastics in the chassis.
Energy-efficient design
With 16W normal-operation power consumption (typical) and less than 0.5W power consumption in active-off mode, the P1914S can help keep energy costs down.
Manage power consumption wisely with PowerNap, enabled through the Dell Display Manager to either dim the monitor to the minimum brightness level or put it into sleep mode when it is not in use.
Complete your Dell Monitor experience
Your Dell 19 Monitor P1914S is just the start. Look for these great additions when finalizing your purchase.
Accessories
You can maximize the versatility and performance of your P1914S with extras like a single monitor arm, stereo soundbar and a wireless keyboard and mouse combo. Youll find just what you need at Dell.com.
Dell Single Monitor Arm (MSA14)
Enjoy great viewing flexibility and adjust your monitor any way you want.
Dell Soundbar (AC511)
Snap the Dell Soundbar snugly to the bottom of your monitor to enjoy rich, stereo sound.
Dell Wireless Keyboard and Mouse (KM632)
Free yourself from cable clutter and enjoy an enhanced multimedia experience.
Warranty
Enjoy peace of mind with Dell’s Premium Panel Guarantee1 and Advanced Exchange Service2.
Limited Hardware Warranty:
Because it is backed by a 3-Year Limited Hardware Warranty5 and Advanced Exchange Service2, you can purchase your Dell 19 Monitor – P1914S with confidence.
Premium Panel Guarantee:
The Dell Premium Panel Guarantee1 allows free panel replacement during the Limited Hardware Warranty period if even one bright pixel is found.
Specifications
| Dell 19 Monitor |
|
|
Display
Diagonally Viewable Size:
48.0 cm
19" (19-inch viewable image size)
Aspect Ratio:
Standard (5:4)
Panel Type, Surface:
In-plane switching, anti glare with hard coat 3H
Optimal resolution:
1280 x 1024 at 60 Hz
Contrast Ratio:
1000: 1 (typical)
Brightness:
250 cd/m2 (typical)
Response Time:
8 ms (gray to gray)
Max Viewing Angle:
(178 vertical / 178 horizontal)
Color Support:
16.7 million colors
Pixel Pitch:
0.29mm
Panel Backlight:
LED
Display Type:
Widescreen Flat Panel Display
|
 |
|
Connectivity
1 Digital Visual Interface connectors (DVI-D) with HDCP
1 Video Graphics Array (VGA)
1 DisplayPort (version 1.2a)
4 USB 2.0 ports (3 downstream ports, 1 upstream port)
|
|
Stand
Height-adjustable stand, pivot, tilt, swivel and built in cable-management
Flat Panel Mount Interface:
VESA (100 mm)
|
|
|
Built-In Devices
Dell Display Manager
USB 2.0 Hi-Speed Hub (with 1 USB upstream port and 4 USB downstream ports)
|
|
Security
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to panel)
|
|
|
Size and Weight
Dimensions with stand (H x W x D):
14.57" ~ 19.67" (370.2 mm ~499.7 mm) x 16.20" (411.4 mm) x 7.09" (180.0 mm)
Dimensions without stand (H x W x D):
13.24" (336.4mm) x 16.20" (411.4 mm) x 1.83" (46.5 mm)
Preset Display Area(H X V):
374.8 mm x 299.8 mm
14.76" x 11.80"
Weight (panel only - for VESA mount):
2.76 kg (6.07 lbs)
Weight (with packaging):
6.57kg (14.45 lbs)
|
|
| Environmental and Regulatory |
|
|
Electrical
Voltage Required:
100 to 240 VAC / 50 or 60 Hz 3Hz / 1.2 A (Max)
Power Consumption (Operational):
16W (typical) / 37W (maximum)
Power Consumption Stand by / Sleep:
Less than 0.5 W
|
|
|
Environmental
Temperature Range Operating:
0 to 40C (32 to 104F)
Temperature Range Non-operating:
Storage : -20 to 60 (-4 to 140 F)
Shipping : -20 to 60 (-4 to 140 F)
Humidity Range Operating:
10% to 80% (non-condensing)
Humidity Range Non-operating:
Storage : 5% to 90% (non-condensing)
Shipping : 5% to 90% (non-condensing)
Altitude Operating:
5,000 m (16,400 ft) max
Altitude Non-operating:
12,191 m (40,000 ft) max
|
|
Compliance and Standards
ENERGY STAR 6.0
EPEAT Gold
CECP
RoHS Compliant
TCO Certified Displays
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
|
|
|
Whats in the box
|
Monitor with stand
Cable cover
Power cable
DisplayPort cable
VGA cable
USB upstream cable
Drivers and documentation media
Quick setup guide
Safety information
|
|
|
|
|
Warranty
3-Year Advanced Exchange Service and Premium Panel Guarantee
|
|
