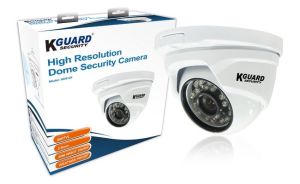

KGuard HD912FPK High Resolution Dome Security Camera - 1/3" CMOS w. IR Cut Filter, 3.6mm Fixed Lens with 75 Degrees Viewing Angle To Monitor Particular Areas, 800 TV Lines, Weatherproof Metal Casing - White

No Longer Available

Part Number:

375072

(?) Brand:

KGuard

Manuf No:

HD912FPK

Shipping Weight:

1.2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

HD912FPK, KGHD912FPK, KG-HD912FPK

KGUARD HD912FPK, 1/3'' KGUARD Fulcolor Sensor, 800TVL, 75 Degrees Viewing Angle, IR 20M Dome Type

HD912FPK

Description

HD912F has 800 TVL high resolution with 1/3'' CMOS and 3.6mm Fixed Lens with 75 degrees viewing angle.

800 TVL high resolution makes the video clearer and helps you monitor particular areas, such as yards or warehouses

Features

High Resolution 800TVL
3.6mm Fixed Lens with 75 degrees viewing angle to monitor particular areas
Long range night vision up to 20 meters (65ft) for day & night surveillance
The weatherproof metal casing can be used in both indoor & outdoor applications

Package

HD912F Camera
DC 12V Power Adapter
Slim Type Video & Power Cable (18m / 60ft)
Quick Installation Guide
Position Gasket Sticker
Screw Kit
Warranty Card
Theft Deterrent Stickers

Specifications

Model Name	HD912F
Video
Image Sensor	1/3" CMOS with IR Cut Filter
Electronics Shutter	NTSC 1/60-1/100,000(sec)
	PAL 1/50-1/100,000(sec)
Horizontal Resolution	800 TV Lines
Lens	3.6mm Fixed
Viewing Angle	75 Degrees
Video Output	1.0VP-P,75
S/N Ratio	More than 48dB(AGC OFF)
Day / Night Mode	Color during day / switches to B&W at night
Minimum Illumination	While Infrared LED ON "0" lux
Gain Control	Auto
Backlight Compensation	Auto
Night Vision
Night Vision Distance	Up to 20m / 65ft
Illumination	Infrared LED
Infra-Red Wavelength	850nm
Infra-Red LED Life	10,000hrs
General
Indoor / Outdoor	Weatherproof (Both)
Operating Temperature	-10~50C / 14~122F
Storage Temperature	-20~70C / -4~158F
Camera Dimension	106x97x75mm/4.2x3.8x3"
Body Construction	Aluminum
Weight - Camera with Stand	315g/0.69lbs
