All stock codes associated to this product
V11H544053, 9314020614088

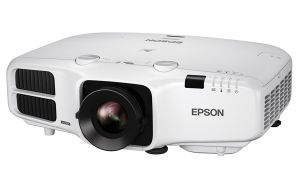

Epson EB-4750W
Installation Multimedia Projectors
Overview
The Epson EB-4750W provides brilliant colour and amazing image quality with 4,200 lumens of colour brightness and 4,200 lumens of white brightness. This powerful product also features Faroudja DCDi video processing to ensure your image always looks its best. Whether its used in the boardroom, or your living room, the EB-4750W delivers bright, vivid images that will captivate any audience.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
- Crisp Clear Images Featuring WXGA resolution.
- Lens Shift Align images easily with horizontal and vertical lens shift.
- Versatile connectivity Easily integrate with any system with HDMI and DisplayPort.
- Convenient Remote Management Remotely monitor and control presentations.
- Epson iProjection Wirelessly display and control content from your iPhone, iPad, iPod touch and Android devices.
- Arc and Point Correction Fine tune image geometry to perfection.
3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson 3LCD projectors have 3x Brighter Colours than leading competitive projectors*.
One brightness measurement (lumens) is not enough. A projectors specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not be sure to ask for a projectors colour brightness specification.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Faroudja DCDi® Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, Deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.
Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
Easy Management®
The EasyMP® Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.
Schedule function
Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.

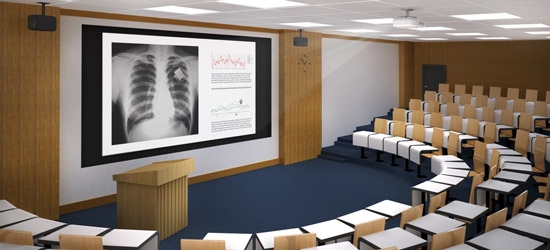

DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode2 is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.
Epson iProjection App
Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content — larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen.

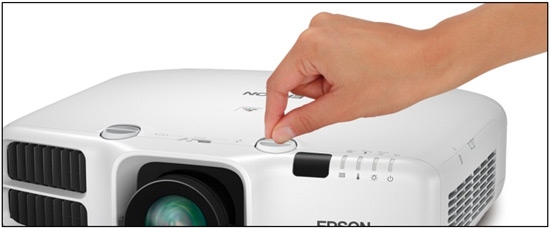

Lens shift
Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to ±70° on the vertical axis and up to ±38° on the horizontal axis (may vary by model). Users can operate the lens shift functions using the adjustment knobs on the top of the projector.
Centered lens design
Featuring a centered lens design, the Epson 4000 series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.

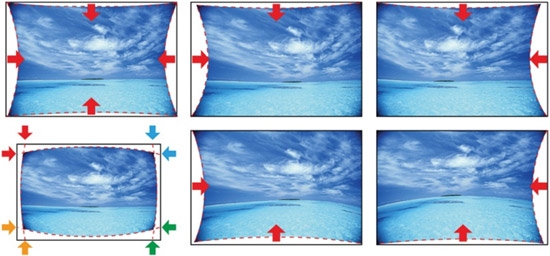

Arc correction
Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.
Easy maintenance
Offering convenient access to the lamps and filter, the Epson 4000 series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.
Protect your investment long-life electrostatic air filter
The Epson 4000 series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule3 and can capture particles as small as three microns, due in part to its pleated, expanded design.

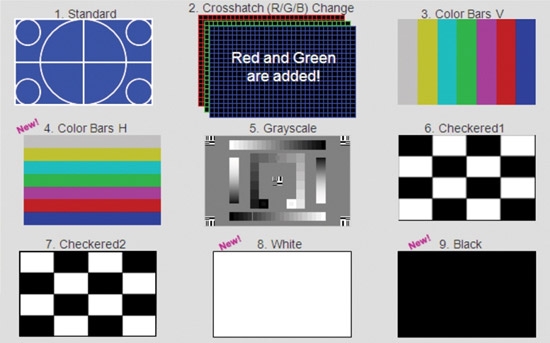

Convenient test patterns
Make sure your presentation is setup correctly before you begin. The Epson 4000 Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.

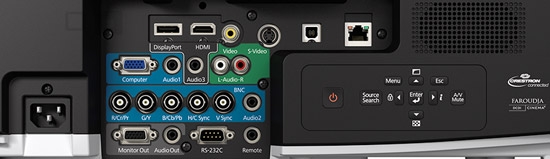

Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-4750W |
| PRODUCT CODE |
V11H544053 |
| WHAT'S IN THE BOX |
|
| |
EB-4750W Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM. |
| TECHNOLOGY |
|
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.59-inch wide panel with MLA |
| OPTICAL |
|
| Zoom |
1 - 2.0 (Optical) |
| Screen Size |
30" to 300" [0.79m to 8.32m] (Zoom: Wide)
30" to 300" [1.65m to 16.85m] (Zoom: Tele) |
| Projection Distance |
100" screen 2.74 m - 5.59 m |
| Throw Ratio |
1.27 (Zoom: Wide), 2.59 (Zoom: Tele) |
| Projection Lens F Number |
1.50-2.15 |
| Projection Lens Focal Length |
16.72mm -33.47mm |
| Focus Method |
Manual |
| IMAGE |
|
| Colour Light Output |
4,200 Lumens |
| White Light Output |
4,200 Lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
5,000:1 |
| Lamp Hours |
4000 hours (Normal)
5000 hours (ECO) |
| Lamp Type |
260 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
| Lens Shift |
Vertical: -70% to +70%
Horizontal: -38% to +38% |
| Tilt Angle |
-2.50 to 10 degrees |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC |
| Input: Computer |
1x D-sub 15-Pin (RGB) |
| Input: Digital |
1 x HDMI, 1 x DisplayPort |
| Input: Audio |
3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort |
| Input: Control |
1 x RS232c, 1 x Stereo mini-jack (Remote) |
| Input: Network I/O |
1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit) |
| Wireless Connectivity |
Optional |
| Output: Video |
1 x Monitor Out (via D-sub 15-pin) |
| Output: Audio |
1 x Stereo mini-jack |
| Speaker Output |
10W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| Split Screen |
Yes |
| Edge Blending |
|
| Arc Correction |
Yes |
| Frame Interpolation |
|
| 360 Degress Projection |
|
| Passive 3D Capable |
|
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington style lock provision
Padlock & Security cable hole
Wireless LAN Lock
|
| Colour Modes |
Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM |
| GENERAL |
|
| Dimensions D x W x H |
320 x 472 x 134 mm |
| Weight |
6.5kg |
| Lamp Warranty |
1 Year or 750 Hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
388 W |
| Power Consumption: Standby |
0.39 W |
| Noise Level |
Normal/Eco: 38/30 dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L77 |
Replacement Lamp |
| |
V13H134A45 |
Replacement Filter |
| |
V12H418P13 |
Wireless LAN adaptor |
| |
V12H005M09 |
Quick Wireless USB Key |
| |
V12H003B22 |
Ceiling Mount |
| |
V12H003P13 |
Extension Pole 668-918mm |
| |
V12H003P14 |
Extension Pole 918-1,168mm |
| |
V12H526040 |
Flush Ceiling mount |
| |
|
|
