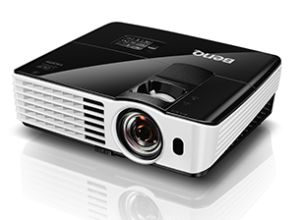

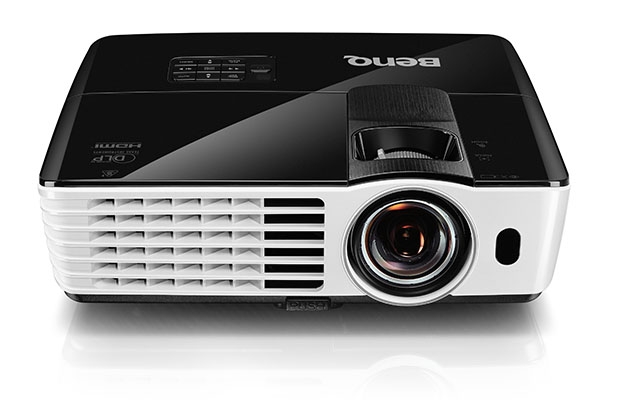

TH682ST





Featuring a Full HD native resolution, a brightness of 3,000 ANSI lumens and a high contrast ratio of 10,000:1, the cost-effective and eco-friendlyTH682ST offers a stunning full-screen presentation with the finest details regardless of the ambient light level.



Offering lower TCO and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporates are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.

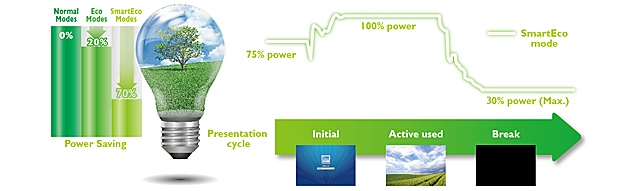

By detecting the input content to determine the amount of brightness required for optimum color and contrast performance, the SmartEco Mode is able to reduce lamp power while delivering the finest image quality. No compromise!





SmartEco Mode, the dynamic power saving mode,can save up to 70% power based on the projection content level.



The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, elimating unnecessary energy waste and prolonging the life of the projector lamp.



100% Lamp Power






30% Lamp Power







With the BenQ TH682ST, business presentations will never look the same! The TH682ST supports multiple video formats including 480p, 576p, 720p, 1080i and 1080p - giving you the flexibility to present in the latest video formats with Full HD quality. The BenQ TH682ST sets a new standard of video presentation that delivers 5X more detail than traditional 480p projectors.















BenQ TH682ST is built with latest DLP technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content.





You don't need a big room or a lot of free ceiling space to create a big picture when you've got a short-throw projector! Teachers can think outside the box to turn every corner into the perfect place for educational use.







A short-throw projector can be placed close to the screen in front of the class and well out of students' way, greatly decreasing the occurrences of shadow disruptions. Teachers can enjoy teaching without worrying about the class being interrupted.





A short-throw projector keeps the projector light from shining directly into everyone's eyes. The intensity of the projector beam may be potentially harmful. So it's for the best to keep it out of the way.



BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.











DLP Technology also affords a filter-free engine design for carefree confidence in long-lasting image quality and reduced total cost of ownership. BenQ’s SmartEco™ Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.



Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.



BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit venue.









Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!



ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.





Projection System	DLP
Native Resolution	Full HD (1920x1080)
Brightness*	3000AL
Contrast Ratio	10000:1
Display Color	1.07 Billion Colors
Lens	F=2.6-2.7 f=10.2-11.22 mm
Aspect Ratio	Native 16:9 (5 aspect ratio selectable)
Throw Ratio	0.69~0.76(65.7"3% @ 1m)
Image Size (Diagonal)	60"~300"
Zoom Ratio	1.1: 1
Lamp Type	210W
Lamp(Normal/Economic Mode/SmartEco Mode)*	4000/6000/8000 hours
Keystone Adjustment	1D, Vertical +/- 40 degrees
Projection Offset	105% 5%
Resolution Support	VGA(640 x 480) to WUXGA_RB(1920X1200) *RB=Reduced blanking
Horizontal Frequency	15~102KHz
Vertical Scan Rate	23~120Hz
Interface	Computer in (D-sub 15pin) x 1 Monitor out (D-sub 15pin) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 HDMI x 1 Audio in (Mini Jack) x 1 Audio out (Mini Jack) x 1 Speaker x 1 (10W) U
Dimensions(W x H x D)	311.8 x 104.7 x 247.5 mm
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
Weight	2.8kg(6.39 lbs)
Audible Noise	36/33 dBA (Normal/Economic mode)
Power Supply	AC100 to 240 V, 50 to 60 Hz
Power Consumption	Normal 280W, Eco 230W, Standby <0.5W
On-Screen Display Languages	Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Tradi
Picture Modes	Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2
Accessories (Standard)	Lens Cover Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable
Accessories (Optional)	Spare Lamp Kit Wall Mount Carry bag 3D Glasses
3D Support and Compatibility	"Frame Sequential: Up to 720p Frame Packing: Up to 1080p Side by Side: Up to 1080i/p Top Bottom: Up to 1080p"
