Wireless HDMI Transmitter and Receiver Kit
GWHD11
Description
Wireless HDMI Transmitter and Receiver Kit
IOGEAR's Wireless HDMI Transmitter and Receiver Kit is the perfect solution for the home, office or school environment. It sends uncompressed Full HD 1080p with 3D support from your laptop, computer, game console and / or other HDMI devices. Up to three additional Wireless HDMI Transmitters (Part# GWHDSTX) can be paired to the Receiver, adding up to four total Wireless HDMI Transmitters per Receiver.
This simplified Wireless Transmitter and Receiver Kit does not require any drivers or software installation, simply plug the Transmitter into the HDMI port of your HDMI device to send wireless audio/video up to 30ft away to the Wireless Receiver that is connected to your HDTV or HD projector.
Wirelessly Extend or Mirror your Computer
Take advantage of your large screen HDTV and mirror or extend your computer's screen wirelessly. Browse the Internet, view streaming video sites and share photos and videos for easier viewing.
Low Latency
With less than 1ms latency, you can set your computer or game console up for wireless gaming! The Wireless HDMI Transmitter and Receiver Kit does not require a direct line-of-sight placement enabling a quick, simple and flexible wireless audio/video solution.
Features
- Wireless HDMI Audio/Video Transmitter with Receiver Kit
- Wireless uncompressed Full HD 1080p audio/video streaming with 3D support up to 30ft
- Connect and wirelessly transmit content from a Laptop, Game Console, Blu-ray / DVD player and or Set-top box/DVR/Cable box
- Supports 5.1 channel digital audio
- Video Resolutions: 480p, 720p, 1080i and 1080p
- No software or driver installation needed
- Low latency < 1ms; great for wireless gaming
Up to 3 additional Wireless HDMI Transmitters, sold separately - Part# GWHDSTX
Distances may vary depending on environment; solid objects such as steel, concrete and brick may cause shorter viewing distances or loss of signal
Warranty: 1-YEAR

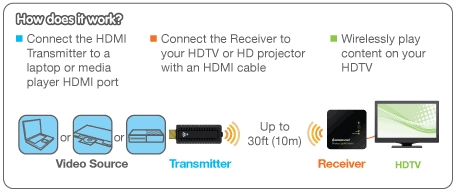

Function Diagram
Requirements
Display:
- HDTV or HD Projector
- HDMI Input
Media Source:
Optional: Additional Wireless HDMI Transmitters (up to 3 additional units), sold separately - Part# GWHDSTX
Package Content
- 1 x Wireless HDMI Transmitter
- 1 x Wireless HDMI Receiver
- 1 x Mini USB to USB Cable
- 2 x USB Power Adapters
- 1 x Remote Control
- 2 x AAA Batteries
- 1 x HDMI Cable
- 1 x Quick Start Guide
- 1 x Warranty Card
Specifications
UPC: 881317512208
| Function |
GWHD11 |
| Connectors |
| Video Input |
Transmitter: 1 x HDMI (Type A, Male) |
| Video Output |
Receiver: 1 x HDMI (Type A, Female) |
| Power |
1 x Mini USB Power Jack (Transmitter and Receiver) |
| Video Resolution |
480p, 720p, 1080i and 1080p with 3D support |
| Video Streaming |
<1ms Latency |
| Audio |
| Audio Output |
Digital 6Mbps, 2 to 8 channels 16 ~ 24 bits/sec by I2S and S/P DIF bus over WHDI transmission (Dolby Digtial & DTS) |
| Frequency |
4.9 ~ 5.9 GHz (Includes Non-DFS and DFS Frequency Bands) |
| Range |
Maximum video transmission range is 30ft (10m) |
| LEDs |
| Power On |
Transmitter: 1 x Blue LED; Receiver: 1 x LED (two-tone: green & red) |
| Power |
| Amps |
1A (Transmitter) and 1.5A (Receiver) |
| Voltage |
5V DC Mini USB (Transmitter and Receiver) |
| Operating Temperature |
0 ~ 40C |
| Dimensions |
GWHD11 |
| Unit Dimensions |
| Height |
1.50" (3.81cm) |
| Depth |
3.78" (9.60cm) |
| Length |
3.78" (9.60cm) |
| Unit Package Dimensions |
| Width |
9.63" (24.5cm) |
| Height |
1.31" (3.33cm) |
| Depth |
7.25" (18.4cm) |
| Master Carton |
| Width |
10.38" (26.4cm) |
| Height |
7.84" (19.9cm) |
| Depth |
8.13" (20.7cm) |
| Master Carton Qty. |
3 |
| Weight |
| Master Carton Wt. |
5.40lb (2.46kg) |
| Unit Pack Wt. |
1.60lb (0.74kg) |
| Unit Wt. |
0.35lb (0.16kg) |
