All stock codes associated to this product
GWHDMS52MBK3
Long Range Wireless 5x2 HDMI Matrix PRO with 2 Additional Receivers
GWHDMS52MBK3
Description
Multicast Kit
The GWHDMS52MBK3 is a Multicast kit which includes two (2) additional wireless HD receivers (Part# GWHDRX01) for support of three (3) wireless locations.
IOGEAR's Long Range Wireless 5 x 2 HD Matrix PRO with Multicast is the first to send uncompressed HD 1080p up to an astonishing 200 feet, including the ability of multicasting up to a total of 4 wireless receivers!
Wireless Matrix
The Wireless 5x2 HDMI Matrix PRO is setting a new standard in wireless connectivity, flexibility, convenience, and dcor.
The wireless matrix feature is the biggest breakthrough in wireless A/V solutions today. This means you can watch cable TV in the living room while the bedroom independently selects a Blu-ray movie to watch wirelessly at the same time. It's capable of streaming uncompressed Full HD 1080p with support for 3D content and digital audio up to 200 feet* away within the home or desired set up.
Distances may vary depending on environment; solid objects such as steel, concrete and brick may view shorter distances
Multicast Capability
Expand beyond one wireless display to multiple wireless displays with Multicast capabilities. Simply add up to 3 additional wireless receivers* broadcasting to a total of 4 wireless receivers from the same HD video source.
Additional wireless receivers sold separately. Visit the GWHDRX01 product page for more information.
Discrete Remote
Our newly designed discrete remote gives installers and prosumers the flexibility to consolidate functions with professional A/V systems.
Infrared (IR)
Supports IR pass-through - Enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVD / Blu-ray players, DVR / Cable boxes, Game consoles and computers to design your own custom entertainment space.
EDID Management
The default EDID resolution setting is 720p, to ensure HD video on every initial set up. The PRO unit provides three (3) EDID management modes for the best installation every time. This gives flexibility and power for any install or end customers desired set up.
- EDID 1 Mode: Changes the default setting to 1080p Full HD.
- EDID 2 Mode: Refreshes the screens and sets the highest common resolution of ALL the connected displays.
- EDID 3 Mode: Restores the factory default video resolution back to 720p
Home Design
Take re-decorating, retrofitting and designing to a new level of creativity and convenience. Ever wanted to set up another HDTV in the Bedroom, Kitchen, Den or patio? Now you can have the wireless HDTV, if you have power you can have HDTV. Set up the HDTV in the back patio for the big sporting event while the kids play video games or watch a Blu-ray movie in the living room!
The Wireless 5 x 2 HD Matrix does not require a line-of-sight placement, keeping home theater devices neatly out of sight, which enables a quick, simple, and flexible wireless HD or 3D audio / video solution.
IOGEAR's Long Range Wireless 5 x 2 HD Matrix PRO with Multicast is the first to send uncompressed HD 1080p up to an astonishing 200 feet, including the ability of multicasting up to a total of 4 wireless receivers!
Multicast Kits
- GWHDMS52MBK2
- GWHDMS52MBK4
Features
- Long Range Wireless 5x2 HD Matrix with Multicast - Includes 2 additional Wireless HDMI Receiver
- Wireless fully uncompressed HD video up to 200 feet through standard home walls
- Built in 5 x 2 Matrix - Allows you to switch and independently select any of 5 sources between 2 HDTVs
- Location 1: HDTV can connect to transmitter's loop-through (local) port
- Location 2: HDTV can receive content from wireless receiver
- Multicast up to 5 HDTVs Send content up to 5 locations at the same time (4 wireless)*
- Connect and wirelessly transmit content from a Blu-ray / DVD player, DVR / Cable box, Game console, Computer /laptop, and media server
- Supports full uncompressed HD 1080p, 3D content, and 5.1 channel digital audio
- Video Resolutions:
- 480p, 720p, 1080i and 1080p (24 / 30 / 60fps)
- HDMI Inputs / Outputs :
- Transmitter:
- 4 x HDMI in
- 1 x Component in
- 1 x Mini USB in
- 1 x HDMI out (local port)
- 1 x IR In
- Receiver
-
- Based on WHDI Technology
- HDCP 2.0 Compliant
- Built-in Infrared (IR) pass-through allows user control over their source devices that are in a different location from the wireless receiver
- No software or driver installation needed
Note:
Wireless HD Receiver Part# GWHDRX01 sold separately
Multicasting the transmitter broadcasts the same video source to all 4 wireless receivers, while the transmitter itself is able to view a separate or same source; making it a 5 HDTV solution.
Distances may vary depending on environment; solid objects such as steel, concrete and brick may view shorter distances
Warranty: 1-YEAR

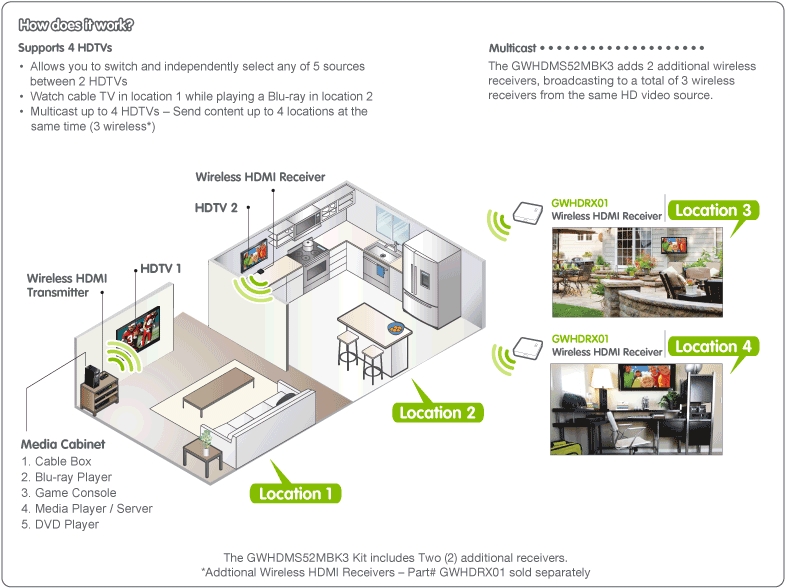

Function Diagram
Requirements
Display
Media Source
- 1 HDMI output
- 1 Component output
Multicast
- Additional Wireless HDMI Receivers sold separately - Part# GWHDRX01
Cables
- HDMI Cables (1 included)
- Component Cable (not included)
- RCA Audio Cable (L&R, not included)

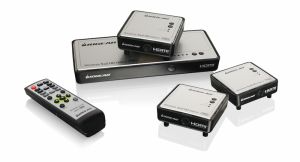

Package Content
- 1 x Wireless HDMI Transmitter
- 3x Wireless HDMI Receivers
- 4x Remote Controls
- 1 x Component Adapter Cable
- 1 x IR Blaster Cable (Transmitter)
- 3x IR Sensor Extender Cables (Receiver)
- 4x Power Adapters
- 3x HDMI Cables
- 8x Batteries
- 1 x User's Guide
- 1 x Warranty Card
Specifications
UPC: 881317511997
| Function |
GWHDMS52MBK3 |
| Connectors |
| Video Input |
4 x HDMI, 1 x Component |
| Video Output |
1 x HDMI Loop Through (Transmitter), 1 x HDMI (Receiver) |
| Power |
1 x Power Jack (Transmitter and Receiver) |
| Video Resolution |
480p, 576p, 720p, 1080i, 1080p (24/30/60fps) and 3D Support |
| Video Streaming |
<1ms Latency |
| Audio |
| Audio Output |
Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample |
| Frequency |
4.9 ~ 5.9GHz (Includes non-DFS and DFS Frequency Bands) |
| Antenna Type |
High Performance Internal |
| Range |
Maximum video transmission range is 200ft (60m) |
| Power Switch |
1 x Push Button (Transmitter and Receiver) |
| LEDs |
| Power On |
Green / Red LED (Transmitter and Receiver) |
| Link |
Green LED (Transmitter and Receiver) |
| Input |
5 x Green (Transmitter) 1 x Green (Receiver) |
| Power |
| Voltage |
100~240v - 5V DC Jack (Transmitter), 5V DC mini USB (Receiver) |
| Amps |
Transmitter: 2A, Receiver: 1.5A |
| Infrared |
| Frequency |
3ft IR Extension Cable 38kHz, 47kHz & 56kHz |
| Operating Temperature |
0 ~ 40C |
| Housing |
| Case |
Plastic |
| Cable Connections |
| Input |
1 x Mini USB (Female) |
| Security |
128-Bit AES Encryption |
| Warranty |
1-Year |
| Dimensions |
GWHDMS52MBK3 |
| Unit Package Dimensions |
| Width |
12in |
| Height |
10in |
| Depth |
9in |
| Weight |
| Unit Pack Wt. |
7.10lb |
