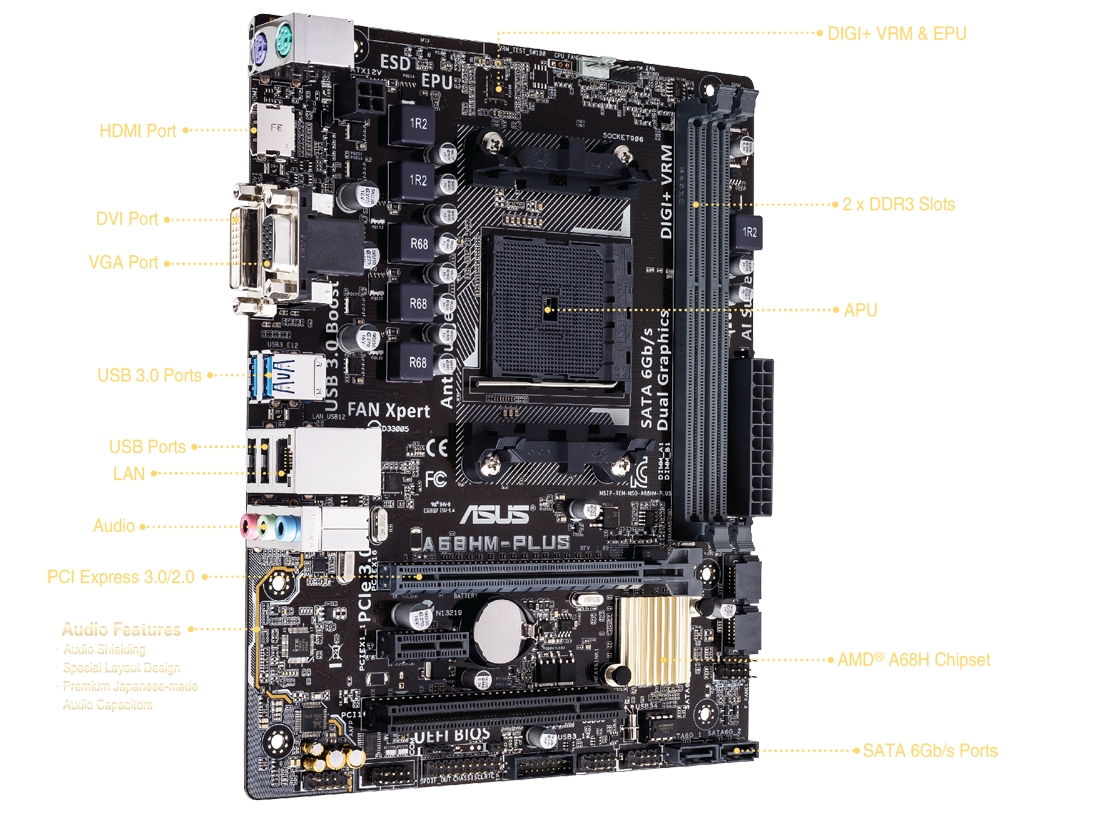

ASUS A68HM-PLUS Motherboard
  • FM2+, A68H, 2xDDR3-1600, 1xPCI-Ex16 v3.0/2.0, 1xPCI-Ex1 v2.0, 1xPCI, 4xSATA-III, RAID, 1xGigLAN, 8Chl-HD, USB3.0, VGA, DVI, HDMI, mATX

IMG 1 of 4
No Longer Available
Part Number:
388375
(?) Brand:
ASUS Web Site
Manuf No:
A68HM-PLUS
A68HMPLUS
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
A68HMPLUS, A68HM-PLUS, 2844335, 4716659949398
A68HM-PLUS

Overview

FM2+ Socketed motherboard features enduring 5X Protection, high-clarity audio and the new UEFI BIOS on the A68H Chipset

  • Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours
  • Audio Features - Audio that roars on the battlefield
  • New UEFI BIOS - The Smoothest and Slickest Mouse-controlled Graphical BIOS
  • USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0


Proven quality. Enduring trust.


From gaming to multimedia


Easy PC DIY


Best UEFI BIOS


Ultimate Cooling



Proven quality. Enduring trust.
Strict compatibility and validation

Protection Hardware safeguards to ensure long-term durability.


Compatible Devices Including CPUs, memory modules, graphics cards and more.


Validation Hours Extensive testing for extreme reliability, compatibility and safety.


We are the world's biggest motherboard manufacturer, and renowned our design thinking that revolves around users just like you. Our engineers employ exacting standards to guarantee quality throughout the product's life, choosing the finest components for real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and undergo a minimum of 7,000 hours of strict validation. That gives you the peace of mind of knowing that ASUS motherboards are fit for all environments and applications. To build your PC with the best foundations, build it with an ASUS motherboard.

ASUS 5X Protection

Hardware safeguards to ensure long-term durability

Our be-the-best ethos underscores the choice of every single component that goes into your ASUS motherboard. We focus relentlessly on quality to ensure long-term system reliability and performance.

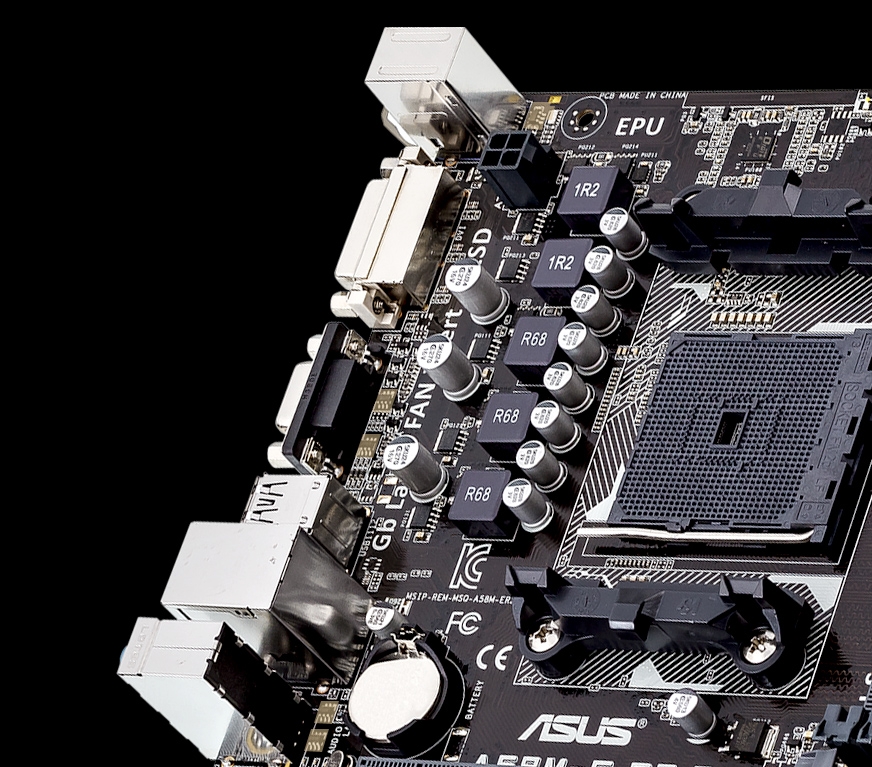

Precise digital power control with ASUS DIGI+ VRM

Voltage regulator modules (VRMs) are among the most essential motherboard components. A good VRM intelligently delivers CPU power based on actual needs at any given time. ASUS was first with digital power design featuring faster sensing and response to deliver precise CPU power on demand. This great accuracy reduces energy waste and of course improves system stability thanks to more consistent delivery.

Enhanced DRAM overcurrent protection

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device.


5K-hr solid-state capacitors that last 2.5X longer

Solid-state capacitors are able to withstand extreme temperatures of up to 105C for as long as 5,000 hours that's two-and-a-half (2.5X) times longer than traditional capacitors. This exceptional durability means superb real-world endurance to more typical PC operating temperatures, ensuring that ASUS motherboards continue working longer.


Stainless-steel back I/O that lasts 3X longer

ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3X) longer compared to ordinary panels.


ESD Guards for protection from electrostatic discharge

Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.


Keyboard and mouse connectors: Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.


VGA connectors: Additional on-circuit ESD TVS diodes to protect D-Sub functionality.


LAN port: ESD TVS diode protection on the LAN circuit.

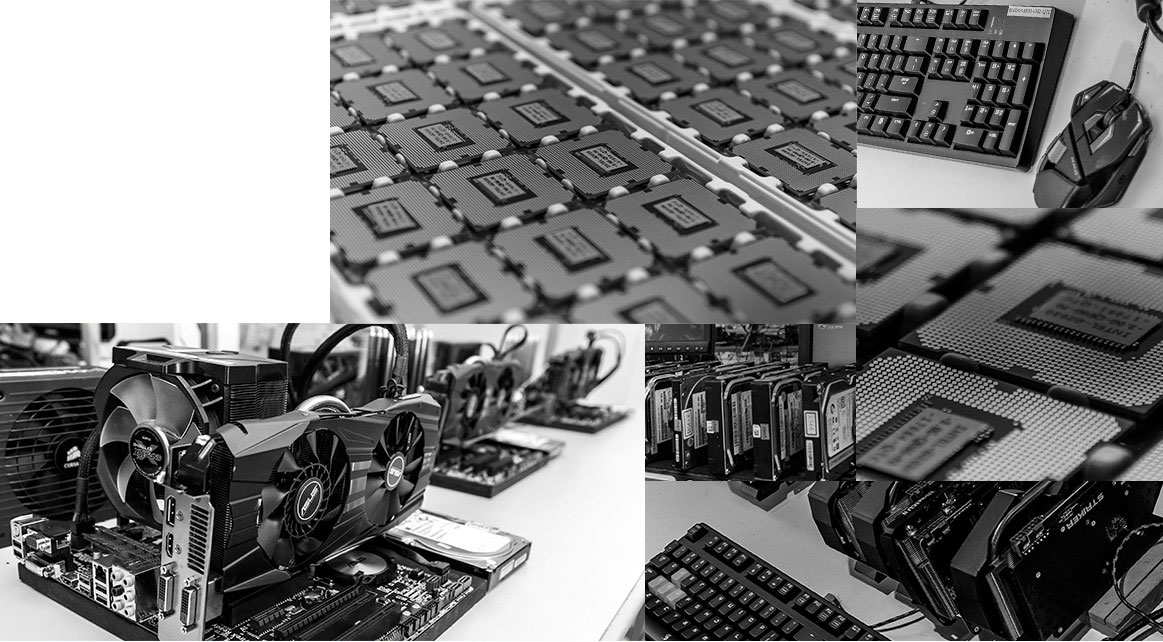

Proven compatibility

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future that's the ASUS way.

Tested - 1,000+ compatible CPUs, memory modules, graphics cards and more

Every ASUS motherboard is compatible with thousands of devices. Our engineers fit and assess both server and consumer CPUs, hundreds of memory modules, dozens of graphics cards, loads of storage devices, power supplies, network devices, displays, optical drives, peripherals and many more. We do this to give you complete confidence in our products and their superb compatibility.

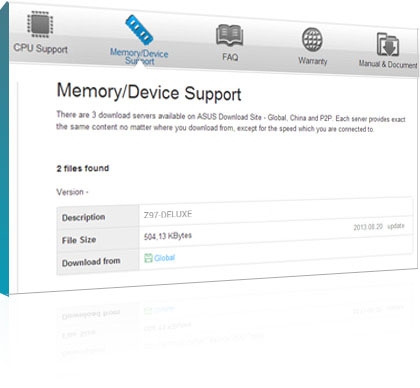

Complete & Public QVL

View our Qualified Vendor List (QVL) online

We're so confident in our motherboards' superior compatibility that we publish our entire QVL for all to see delivering you more choices for worry-free PC-building experiences. There are no gaps in our QVL: every compatible component is on the list for all to see. To check that a particular component or device is compatible with your motherboard, just reference the QVL for instant reassurance.

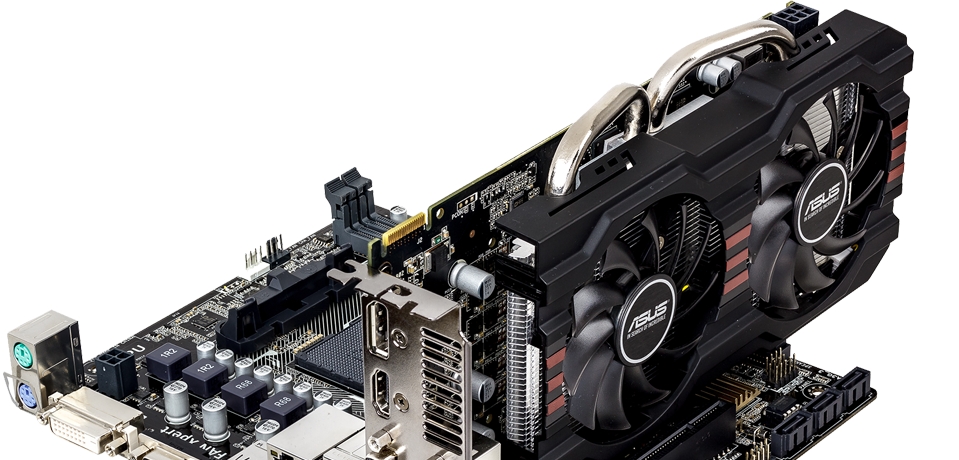

Designed Great compatibility with ASUS products

When you choose an ASUS motherboard, it's likely you'll also go with ASUS for other components. ASUS designs products from the ground up so that graphics cards, sound cards and optical drives work flawlessly with your motherboard.


Top-to-bottom reliability

Our motherboards have superb endurance. We verify this by subjecting every board to over 7,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust with reliability that surpasses industry standards.

Extensive testing for extreme reliability, compatibility and safety

Each motherboard is subjected to extended reliability testing under heavy load conditions, from the transportation to daily operations, to make sure they are delivered to you in perfect condition. Trials include temperature and humidity, burn-in, power on/off, power consumption, insertion and thermal-shock testing among many others. Every certified-compatible component puts through an up to 24-hour aging test to ensure trouble-free operation every day no matter what you fit or attach and no matter what you do!

Temperature and Humidity Test Components withstand extreme conditions


Thermal Measurement Cool and stable under the heaviest loads


Insertion Test Guaranteed I/O reliability


Up to 24-hour aging test to ensure reliability



Power Consumption Test Ensure global-standard energy efficiency


7000+ VALIDATION HOURS

Temperature and DC Margin
Thermal Shock Test
Non-Operation Vibration Test
Burn-In Test
Installation Test
Drop Test
Shock Test
Salt and Spray Test

Games or multimedia it's always ready!

Flawless audio that makes you part of the game

ASUS audio features get you always ready for gaming, chatting, watching movies or relaxing to your favorite music. Discover a whole new dimension of superior audio and get ready to rule!

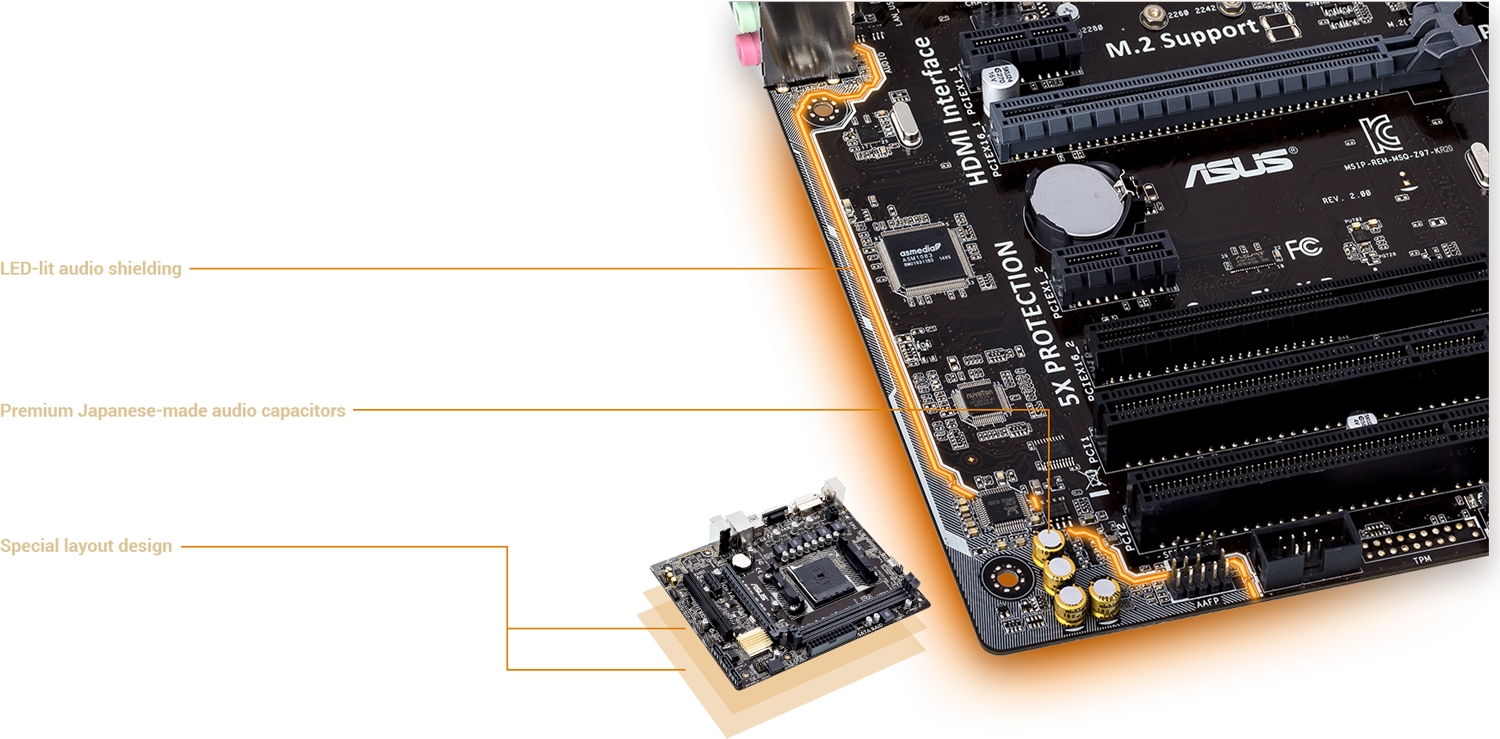

LED-lit audio shielding

Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path

Premium Japanese-made audio capacitors

Provides warm, natural and immersive sound with exceptional clarity and fidelity

Special layout design

Seprate layers for left and right channels to guard the quality of sensitive audio

Right Track, Left Track

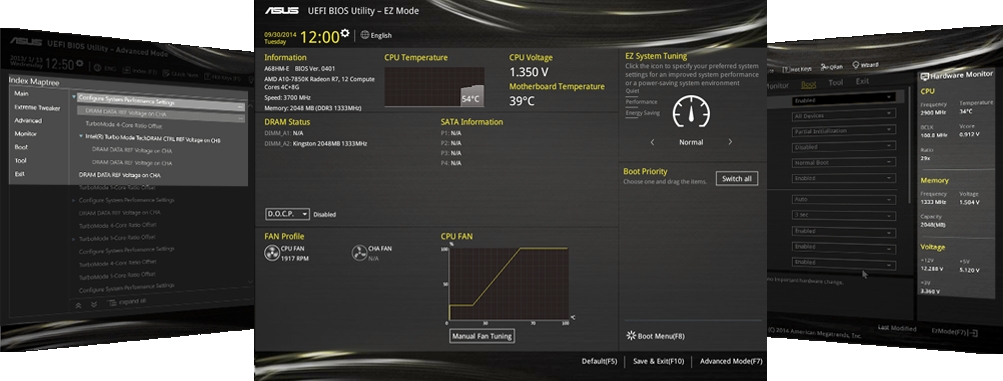

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

Map to MyFavorite: Quickly find tuning options and add preferred tools to the MyFavorites list!

EZ Tuning Wizard OC and RAID: Select your hardware and use scenarios to tune system performance or streamline your RAID configuration for faster data retrieval and backups!


EZ D.O.C.P Improve your DRAM performance with a click!

Intuitive graphical fan control Fine-tune individual fans simply by dragging a curve with the mouse!

Real-time hardware monitor Benefit from instant information from the critical parts of your system!

EZ Mode

  • Fan Profile: Detailed CPU and case fan information for instant cooling!
  • SATA Information: Displays SATA port details for you to easily recognize devices!
  • Fast Clock Adjustment: Use mouse controls to change the time and date!
  • EZ D.O.C.P : Improve your DRAM performance with a click!

Advanced Mode

  • Shortcut: Press Enter to create shortcuts to favorite settings, or select an existing shortcut and press F4 to go straight there!
  • Quick Notes: Make notes and capture BIOS-related ideas, quickly and conveniently!
  • Last Modified Log: Track last change and save preferred profiles onto a USB drive!
  • SATA Port Renaming: Rename SATA ports for easy identification!

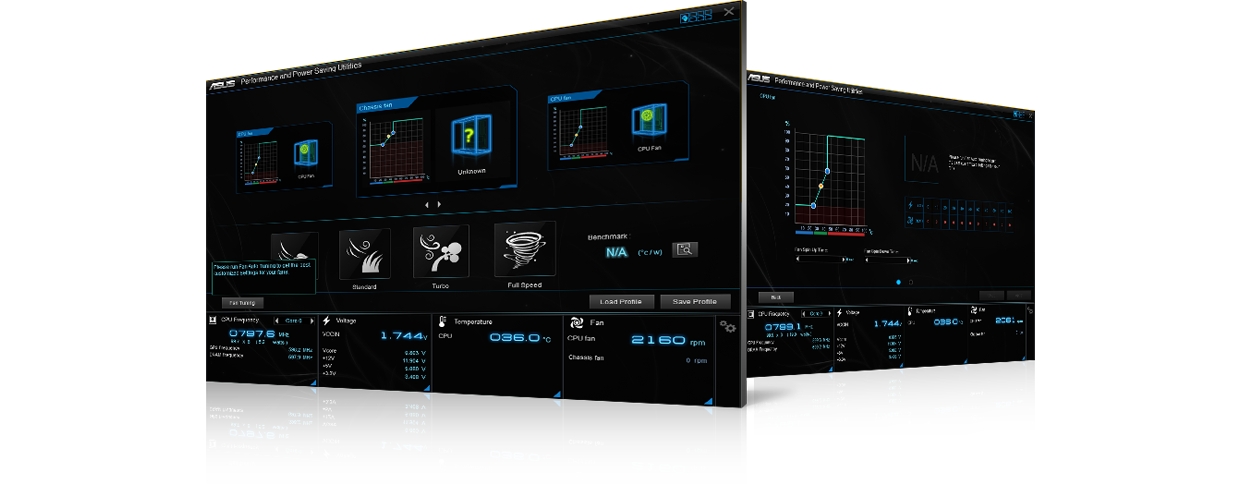

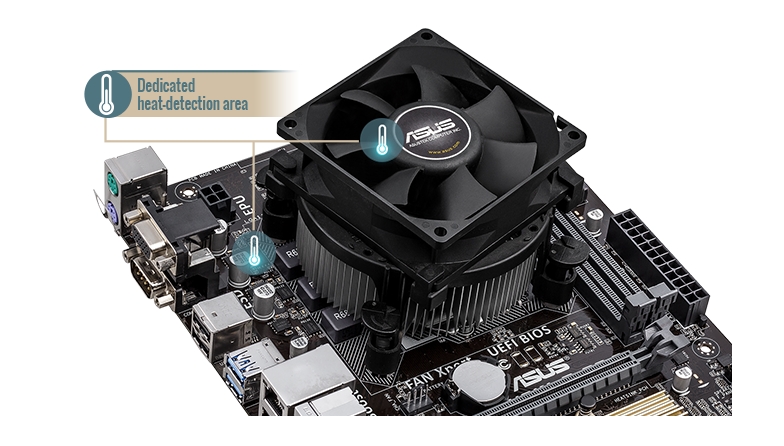

Ultimate cooling and quietness with Fan Xpert

ASUS Fan Xpert intelligently allows you to adjust CPU and case fan speeds according to different ambient temperatures in diverse climate conditions and locations, as well as actual PC loading. Various preset fan performance profiles offer flexible fan speed controls to achieve a quiet and cool environment.



RPM Fixed Mode

Designed for users who wish to reduce noise levels to near 0dB with highly specific fan speed control. It reacts to system loads for greater response.
Auto Tuning Mode

Scans fan parameters through exclusive automatic speed detection to provide custom settings for each fan with a single click. This achieves the best cooling for your components beyond just the mere number of fans in your case.
Informative fan controls

Delivers complete information that allows you to take advanced control over each fan.

Ultra-fast, always!

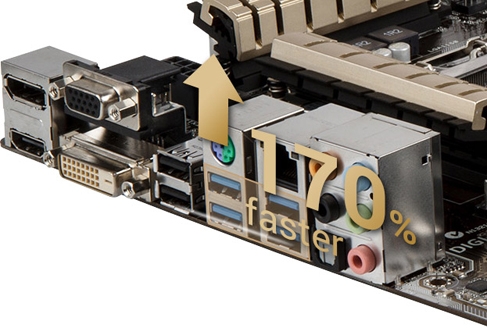

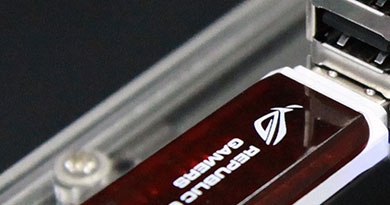

170% faster transfer speeds with USB 3.0 Boost

ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) USB 3.0 in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

PC DIY has never been this easy

We understand how you use your PC. From assembly, system setting and monitoring, and to firmware and hardware updates we're all about making your life easier. That's why we never stop developing new and exciting DIY opportunities to make PC DIY easy, fun and free from hassle!


1 assembly

ASUS Q-Design makes PC building quick and easy

2 settings

ASUS AI Suite 3 is a one-stop shop for adjusting your settings



3 monitoring

ASUS Push Notice monitors your PC status on the go

4 BIOS updates

ASUS EZ Flash 2 updates your BIOS from USB outside the operating system


ASUS Q-Design

Easy PC DIY starts today

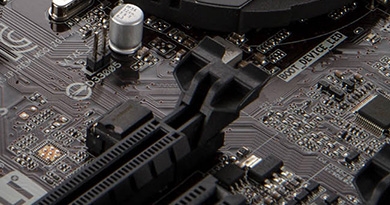

Q-Slot - Effortless PCI Express component removal The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

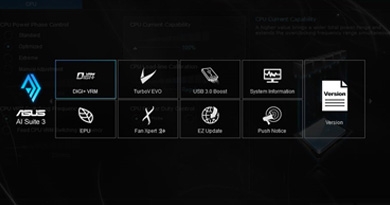

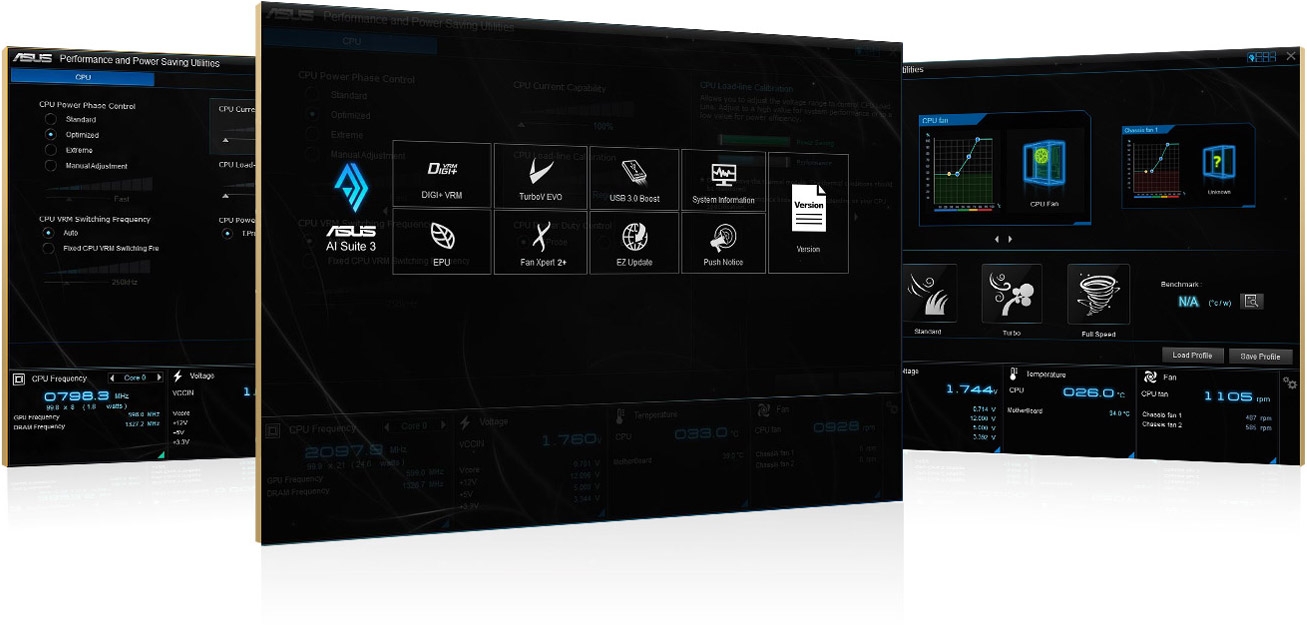

AI Suite 3

One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

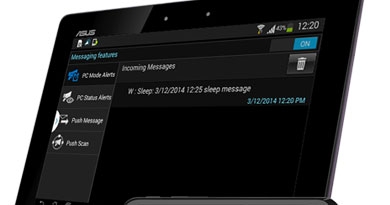

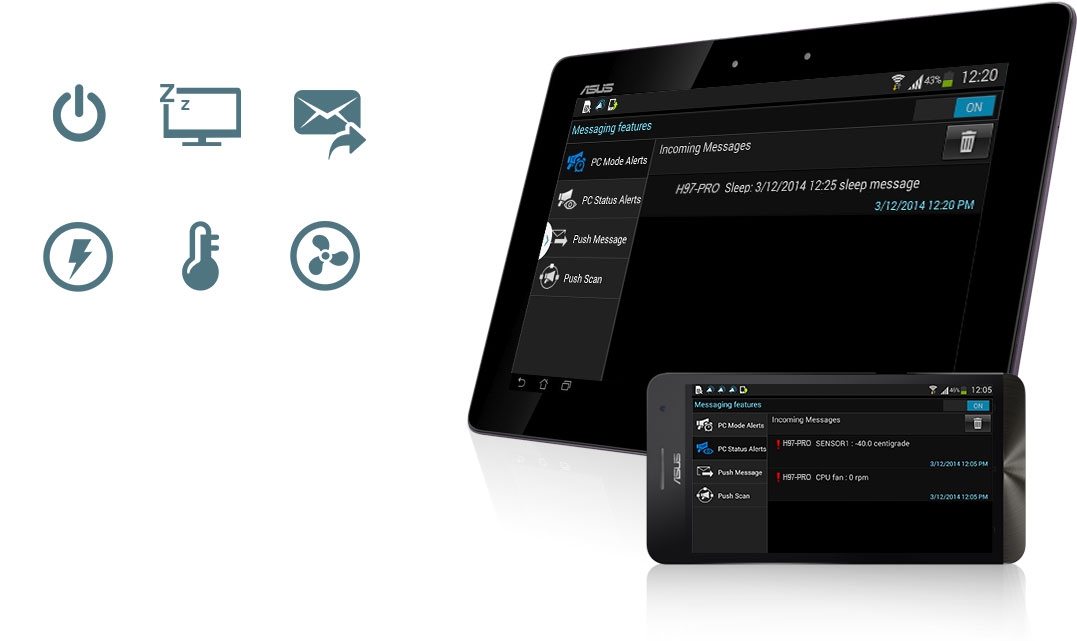

Push Notice

Monitor your PC status on the go.

If you've ever wondering how your PC is faring when you're not around, Push Notice will keep you informed in real time! When your PC's status changes, Push Note instantly sends an alert to your tablet or smartphone. You can also throw the webpage you are browsing or memo to your smart device. Everything is under control, no matter where you are.


EZ Flash 2

Easy BIOS updates from USB outside the operating system

Quickly update your BIOS from a USB flash drive before entering the OS. It only takes a few clicks, with no floppy disk or an OS-based flash utility.


APU and Chipset Features


AMD  A-Series Accelerated Processor with AMD Radeon R Series Graphics

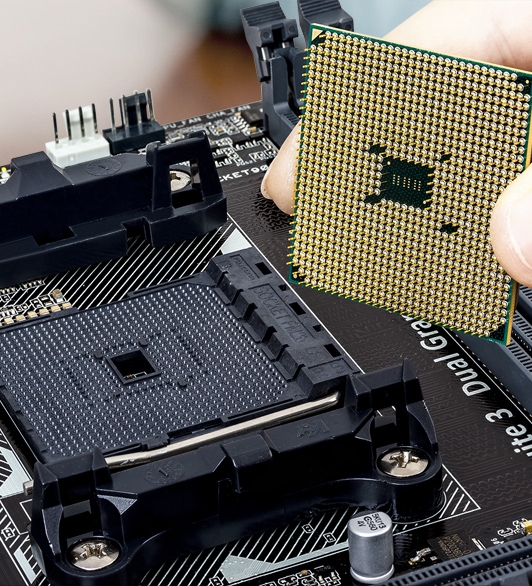

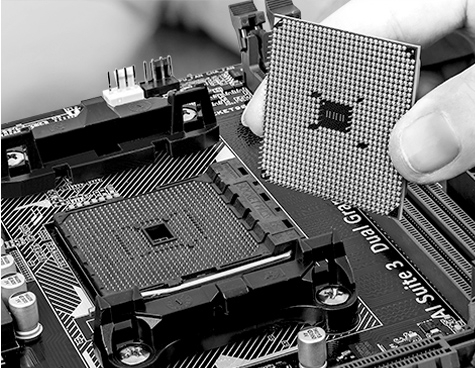

This motherboard fully supports the latest AMD Socket FM2+ Kaveri APUs with AMD Radeon R series graphics and retains compatibility with AMD Socket FM2 (Richland and Trinity) APUs. AMD Socket FM2+ APUs support Microsoft  DirectX 11.1 for incredibly fast and smooth graphics, native PCI Express 3.0 for full-speed expansion and 4K resolutions via HDMI and DisplayPort connections.


AMD  A68H FCH(Bolton D2H)

AMD  A68H FCH(Bolton D2H) is designed to support up to 5GT/s interface speed and PCI Express 2.0 graphics.It supports 4X SATA 6 Gb/s ports and 2X USB3.0 ports.

Specifications:

  • CPU
    AMD Socket FM2+ Athlon/A- Series Processors
    Supports CPU up to 4 cores
    Supports AMD Turbo Core 3.0 Technology
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD A68H FCH (Bolton D2H)
  • Memory
    2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Support AMD Memory Profile (AMP) memory
    * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
  • Graphic
    Integrated AMD RadeonR/HD8000/HD7000 Series Graphics in the A-Series APU
    Multi-VGA output support : HDMI/DVI/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz
    - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
    Maximum shared memory of 2048 MB
    AMD Dual Graphics technology support *1
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 *2
    1 x PCIe 2.0 x1
    1 x PCI
  • Storage
    AMD A68H FCH (Bolton D2H) chipset :
    4 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 10, JBOD
  • LAN
    Realtek 8111GR, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek ALC887-VD 8-Channel High Definition Audio CODEC *3
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    ASMedia ASM1042 controller :
    2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
    AMD A68H FCH (Bolton D2H) chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
    AMD A68H FCH (Bolton D2H) chipset :
    2 x USB 3.0 port(s) (2 at mid-board)
  • Special Features
    ASUS 5X Protection :
    - ASUS DIGI+ VRM - 3 + 2 Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger+
    - Anti-Surge
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Slot
  • Operating System Support
    Windows 8.1 , 32bit/64bit
    Windows 8 , 32bit/64bit
    Windows 7 , 32bit/64bit
    Windows XP , 32bit
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.0
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x TPM connector(s)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Support Disc
    Drivers
    ASUS utilities
    ASUS Update
    Anti-virus software (OEM version)
  • Form Factor
    mATX Form Factor
    8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
  • Note
    *1: Refer to https://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
    *2: Only FM2+ Processors can support PCIe3.0.
    *3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 3 | TM: 7 | LM: 17 | TY: 143 | T: 1645

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
