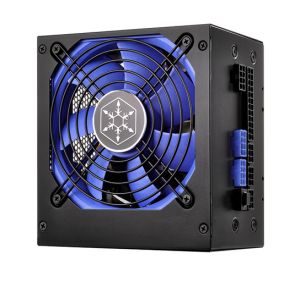

ST60F-PB
STRIDER Plus
Unparalleled combination of power efficiency, and flexibility.
High efficiency with 80 PLUS Bronze certification 100% modular cables. Silent running 120mm fan with 18dBA.
ST60F-PB ~ 600W
INTRODUCTION
The Strider series is the most versatile and time-proven line of power supply products from SilverStone with models rated from 500W to 1500W and packed with innovative features. To build on this impressive lineup, SilverStone engineered a new generation of power supplies that combine more features than ever before.
The Strider Plus ST60F-PB boasts the important features professionals and enthusiasts crave:
High efficiency: 80 PLUS Bronze level
Compact size (140mm depth) to fit in nearly any system
Class-leading powerful single +12V rail with 46A
Quiet and cool 120mm fan
The versatility of these power supplies extends to the 100% modular cables with all the important connectors to support current and future graphics card specifications.
For enthusiasts that are looking for the power supply with all the right features to make a high performing and aesthetically pleasing system, the Strider Plus series reaches the goal with maximum satisfaction.
SPECIAL FEATURES
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40 operating temperature
- 100% modular cables
- Class-leading single +12V rail
- Strict 3% voltage regulation and low ripple & noise
- Silent running 120mm fan with 18dBA
- PCI-E 8pin and PCI-E 6pin connectors support

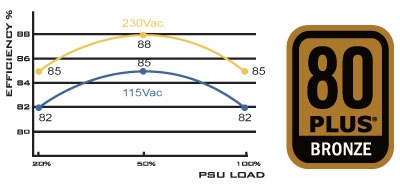

Designed for 80 PLUS Bronze level of efficiency to reduce wasted heat and save on electricity.

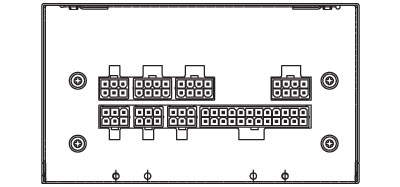

100% moudlar cable design for use with short cable kit such as SilverStones PP05 or for easy removal in a case with cable routed and tied down.

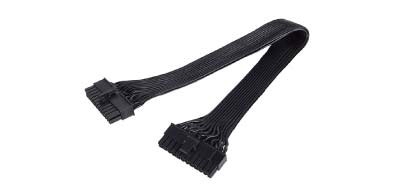

Flat cables have much greater flexibility to allow for tighter folding and management of cables.

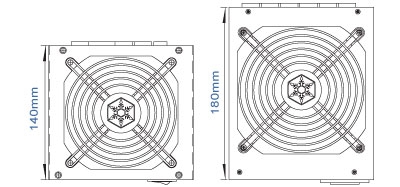

140mm depth sets new standard for high wattage PSUs with modular cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

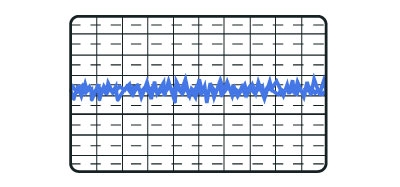

3% regulation and low ripple & noise performance for high stability

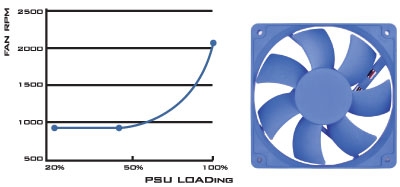

Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Specifications
|
Model No.
|
SST-ST60F-PB
|
|
Max. DC Output
|
600W (Peak 650W)
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
|
20A |
17A |
46A |
2.5A |
0.3A |
|
|
/ |
/ |
/ |
/ |
/ |
|
|
0.1A |
0.2A |
0.5A |
0A |
0A |
|
|
3% |
3% |
3% |
5% |
10% |
|
|
1% |
1% |
1% |
1% |
1% |
|
|
50mV |
50mV |
120mV |
50mV |
120mV |
|
|
combined +3.3, +5V
|
120W
|
|
combined +12V
|
552W
|
|
Input Voltage
|
90V~264V
|
|
Input Frequency Range
|
47Hz~63Hz
|
|
PFC
|
Active PFCPF>0.9 at full load
|
|
Efficiency
|
82%~85% at 20% ~ 100% loading
|
|
MTBF
|
100,000 hours
|
|
Operating temperature
|
0C ~ 40C
|
|
Protection
|
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
|
|
Connectors
|
1 x 24 / 20-Pin motherboard connector550mm
1 x 8 / 4-Pin EPS / ATX 12V connector750mm
2 x 8 / 6-Pin PCIE connector"550mm"x2
2 x 6-Pin PCIE connector"550mm / 150mm" x 2
8 x SATA connector"600mm / 150mm / 150mm /150mm" x 2
3 x 4-Pin Peripheral connector 600mm / 150mm / 150mm
1 x 4-Pin Floppy connector600mm / 150mm / 150mm / 150mm
|
|
Color
|
BlackLead-Free Paint
|
|
Cooling System
|
Single 120mm silent fan
|
|
Noise Level
|
18 dBA minimum
|
|
Dimension
|

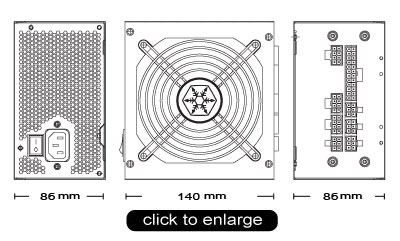

150 mm (W) x 86 mm (H) x 140 mm (D)
|
|
Weight
|
2.0 kg
|
|
Form factor
|
ATX
|
|
Certification
|
80 PLUS Bronze
|
|
Other
|
GPU Support list
Haswell CPU support
|
