SX500-LG
SFX Series

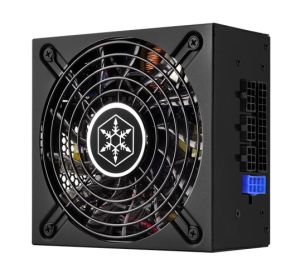

A Pioneering SFX-L Form Factor Power Supply
Silent running 120mm fan with intelligent semi-fanless operation.
INTRODUCTION
For small form factor enthusiasts, the standard SFX power supply form factor has excellent combination of size, power, and affordability. At 100mm deep, however, the standard SFX PSU is also limited in fan size to 80mm. While advances in engineering and components have made modern high-end SFX PSUs quieter than ever, there is still inherent limitation with 80mm fan’s ability to dissipate heat at maximum loading conditions while maintaining satisfactory noise profile for users sensitive to higher-pitch sounds. With this in mind, SilverStone has released a “lengthened” variation of the SFX form factor called, SFX-L. With 30mm of added depth, a SFX-L power supply has enough room to fit a 120mm fan, thus its maximum load noise can be not only lower in intensity (via slower fan speed), but also lower in pitch (due to larger fan size).
The first model to debut in the SFX-L will be the SX500-LG, a 500W model that includes all features available from top of the line SFX SilverStone PSUs such as 80 PLUS Gold efficiency, modular flexible flat cables, and semi-fanless capability. An ATX adapter bracket is included as well to enable users to install this PSU into any small or even larger cases that do not have SFX mounting holes.
SPECIAL FEATURES

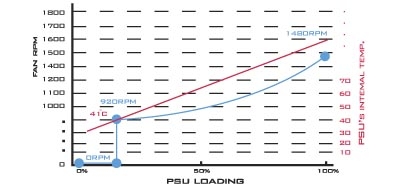

- Silent running 120mm fan with intelligent semi-fanless operation
- Support SFX-L form factor and ATX via included bracket
- High efficiency with 80 PLUS Gold certification
- 100% modular cables
- All cables made with flexible flat arrays
- 500W continuous power output at 40 operating temperature rated for 24/7 operation
- Class-leading single +12V rail with 40A
- Strict 3% voltage regulation and low ripple & noise
- Support dual PCI-E 8/6pin connectors
- Active PFC

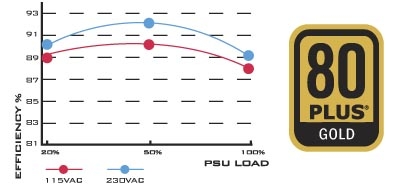

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
100% moudlar cable design for use with short cable kit such as SilverStone’s PP05 or for easy removal in a case with cable routed and tied down.

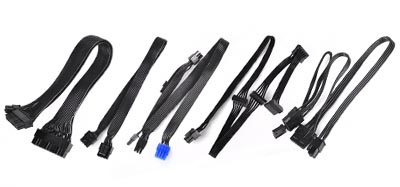

Flat cables have much greater flexibility to allow for tighter folding and management of cables.
Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

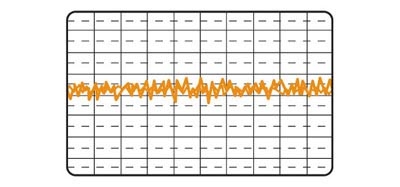

3% regulation and low ripple & noise performance for high stability
Specifications
|
Model No.
|
SST-SX500-LG
|
|
Max. DC Output
|
500W
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
|
20A |
20A |
40A |
3.0A |
0.3A |
|
|
/ |
/ |
/ |
/ |
/ |
|
|
0A |
0A |
0A |
0A |
0A |
|
|
3% |
3% |
3% |
5% |
10% |
|
|
1% |
1% |
1% |
1% |
2% |
|
|
50mA |
50mA |
120mV |
50mV |
120mV |
|
|
combined +3.3, +5V
|
105W
|
|
combined +12V
|
480W
|
|
Input Voltage
|
90V ~ 264V
|
|
Input Frequency Range
|
47Hz ~ 63Hz
|
|
PFC
|
Active PFCPF>0.95 at full load
|
|
Efficiency
|
87%~90%20% to 100% loading
|
|
MTBF
|
100,000 hours
|
|
Operating temperature
|
0C ~ 40C
|
|
Protection
|
Over power protection
Over voltage protection
Under voltage protection
Short circuit protection
|
|

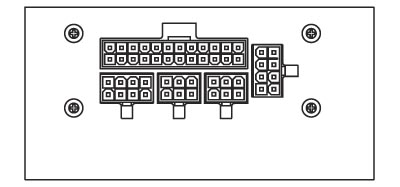

Connectors
|
1 x 24 / 20-Pin motherboard connector300mm
1 x 8 / 4-Pin EPS / ATX 12V connector400mm
2 x 8 / 6-Pin PCIE connector400mm / 150mm
3 x SATA connector300mm / 200mm / 100mm
2 x 4-Pin Peripheral connector 300mm / 200mm
1 x 4-Pin Floppy connector300mm / 200mm / 200mm
|
|
Color
|
BlackLead-Free Paint
|
|
Cooling System
|
Single 120mm silent fan
|
|
Noise Level
|
0 ~ 36 dBA
|
|

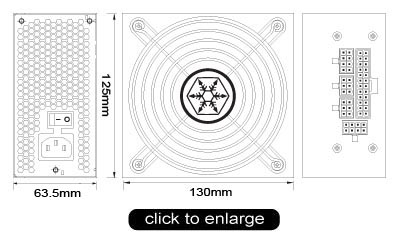

Dimension
|
125 mm (W) 63.5 mm (H) 130 mm (D)
|
|
Weight
|
1.4 Kg
|
|
Form factor
|
SFX-L
|
|
Certification
|
80 PLUS Gold
|
|
Other
|
Includes SFX to ATX bracket for use in ATX case
