Seasonic 520W Platinum Series Power Supply - ATX 12V, EPS 12V, Fanless, Full Modular Cabling Design, 80 PLUS Platinum Certified
  • 6x SATA, 2x PCI-E 8-Pin, 2x PCI-E 6-Pin

IMG 1 of 1
No Longer Available
Part Number:
389391
(?) Brand:
Seasonic
Manuf No:
PSUSEAX520FLESS
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, PSUSEAX520FLESS

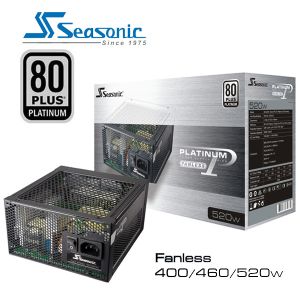

Seasonic 80Plus Platinum Series Fanless 520W PSU


01

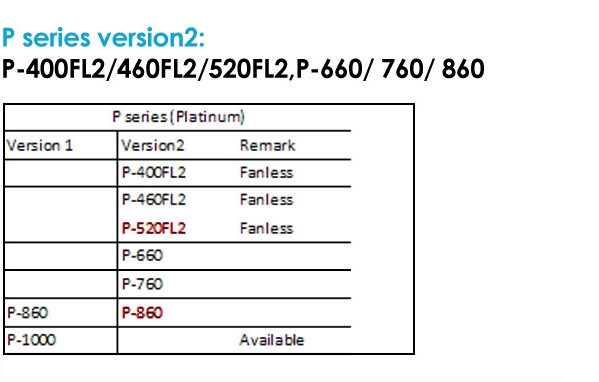

FL2 (Fanless 80+ Platinum) Model: P-400FL/P-460FL/P-520FL

Main difference (to compare with previous model):

  • Free efficiency upgrade for 400FL and 460FL: from 80+ Gold to 80+ Platinum
  • Add 520W in Fanless product family.
  • Wire: use black flat module wire

02

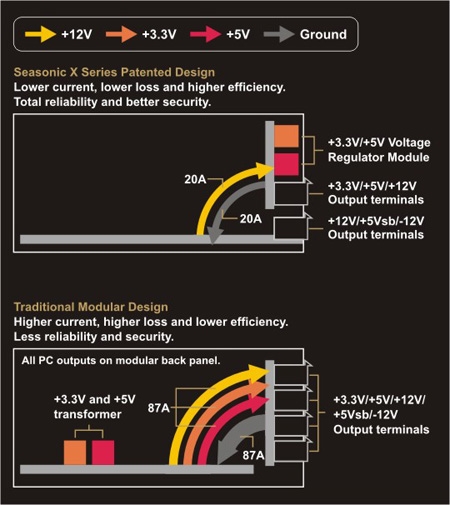

Seasonic Patented DC Connector Panel with Integrated Voltage Regulation Module


Seasonics Patented Fully Modular Design while minimizing voltage drops and impedance, it greatly maximizes efficiency and cooling to enhance overall performance and reliability.

Patent #: US8.040.686, TW381825, CN1552150, JP3171420. Patent Pending: US, DE

08

05

80+ Platinum

The Platinum Series, certified in accordance to the 80PLUS highest standards, offers the newest technology and innovation for performance and energy savings with up to 92% efficiency and a true power factor of greater than 0.9PF.

+
  • 80PLUS Platinum Certified Super High Efficiency
  • Full Modular Cabling Design
  • Fanless- 0dBA
  • Patented DC Connector Module with Integrated VRM [Voltage Regulator Module]
  • DC to DC Converter Design
  • Conductive Polymer Aluminum Solid Capacitors
  • Highly Reliable 105C Japanese Aluminum Electrolytic Capacitors
  • Tight Voltage Regulation [2%]
  • Active Power Factor Correction [99% PF Typical]
  • High +12V Output
  • Gold Plated High Current Terminals
  • Dual Sided PCB Layout
  • Ultra Ventilation [Honeycomb Structure]
  • Multi-GPU Technology Support
  • All-in-One DC Cabling Design
  • Easy Swap Connector
  • Universal AC Input [Full Range]
  • 7 Years Warrant

Product Information:

AC input & DC output voltages /Wire Configuration/Dimension

Model: Platinum-520 Fanless (SS-520FL2 Active PFC F3)

06

07
08

No additional files, specification sheets, guides or documentation found for product.
