Aten VS481B 4-Port 4K HDMI Switch

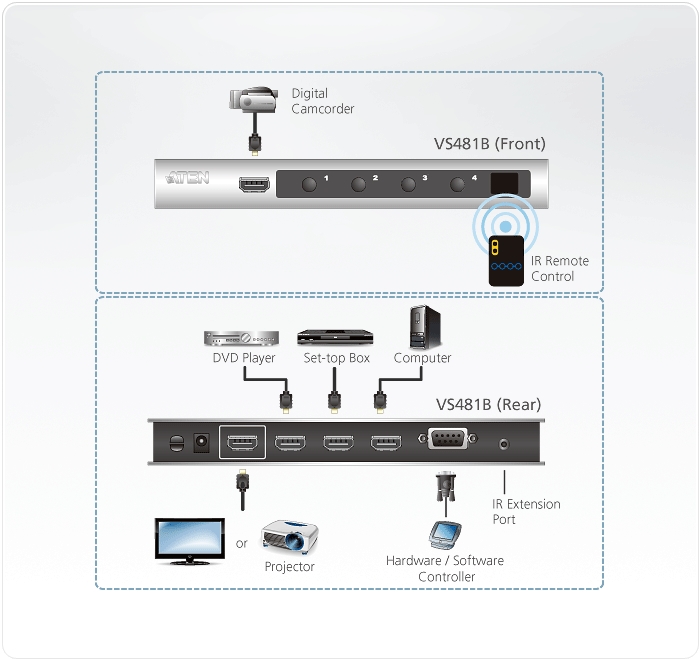

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panels LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
Features
- Allows up to four HDMI A/V sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- HDMI (3D, Deep Color, 4kx2k); HDCP compatible
- Auto switching modes for auto port selection
- Long distance transmission up to 15 m (24 AWG)
- Consumer Electronics Control (CEC) support
- Supports Dolby True HD and DTS HD Master Audio
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Instant switching between HDMI input sources
- Supports IR extension using a IR extension cable *
- LED indication of video source devices
Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.
Specifications
| Connectors |
Device Port |
HDMI In |
4 x HDMI Type A Female (Black) |
| Display Port |
HDMI Out |
1 x HDMI Type A Female (Black) |
| RS-232 Port |
1 x DB-9 Female (Black) |
| Power |
1 x DC Jack |
| IR Extension Port |
1 x mini stereo jack |
| Switches |
Port |
4 x Pushbutton |
| LEDs |
Selected |
4 (Green) |
| Video |
HDTV resolutions of 480p, 720p,
1080i, 1080p , and up to 4k2k
(4096 x 2160 or 3840 x 2160);
VGA resolution: SVGA, SXGA,
UXGA, WUXGA |
| Power Consumption |
DC5V, 5W |
| Environment |
Operating Temp. |
050C |
| Storage Temp. |
-2060C |
| Humidity |
080% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.47 kg |
Dimensions
(L x W x H) |
20.00 x 8.25 x 2.50 cm |
