SHDU3WP

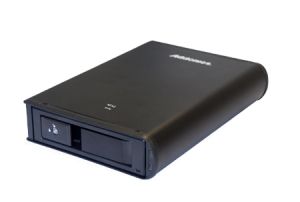

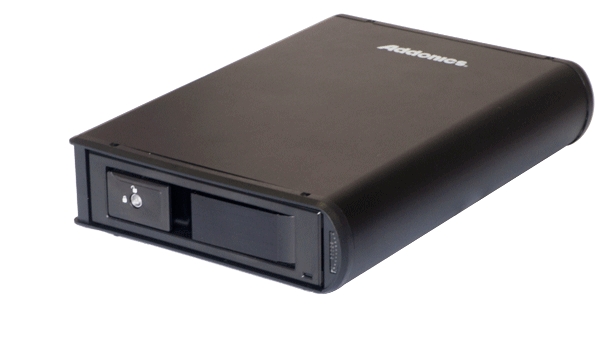

Sapphire WRITE-PROTECT Drive Reader
Overview
This Sapphire WRITE PROTECT Drive Reader, equipped with an interface bridge that disables the WRITE function on the hardware level, allows accessing data on any 3.5" or 2.5" SATA hard drives without the risk of accidentally erasing or altering the content on the drive. This unique feature ensure absolute protection on any hard drive or SSD against virus contamination or data tampering. It is a great tool for sharing drives containing important data among different users or for forensic application. This Reader essentially treats any hard drive or SSD as a READ only media, similar to CD or DVD disc.
With the build-in USB 3.0 interface, this Reader can be attached to practically any computer equipped with USB 2. 0 or USB 3.0 port. The USB 3.0 also ensure fast data access up to 5 Gbps when connecting to system equipped with USB 3.0 port. Integrated with a Snap-In removable drive cartridge system, any 3.5" hard drive can be easily added or removed from this Reader without any special tool. The included 2.5" to 3.5" hard drive adapter also enables loading 2.5" hard drive or SSD into the Reader. By using the optional Addonics' family of 2.5" flash drive kit, you can further expands the capability of this Reader to include various flash media such as mSATA SSD, the latest M2 (NGFF) SSD, the CFast or CF cards.
Note: Hard drive shown above is for illustration purpose only and is not part of the product

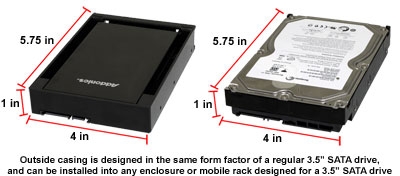

A 2.5" hard drive can also be installed into this Sapphire WRITE-PROTECT Drive Reader using the included Snap-In 25

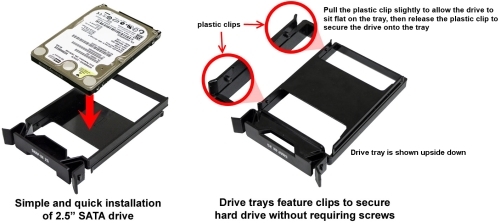

Installing 2.5" SATA drive into the Snap-In 25
Read M2 card, mSATA SSD, CFast or CF card with the following optional adapters
|
M2 card in 2.5" M2 drive
kit (AD25M2SSD)
|
mSATA SSD in 2.5" mSATA
drive kit (AD25MSD)
|
CFast card in 2.5" CFast
drive kit (AD25CFASTD)
|
CF card in 2.5" CF drive kit
(AD25CFD)
|
Features
- READ only drive cartridge system
- Protect drive against virus contamination or data tempering
- WRITE disabled at hardware level. No software hacking to circumvent the WRITE PROTECT function
- No volatile memory
- Drive appears to OS as READ only device. Options to format, delete and other commands that alter the content, partition table or MBR of the drive are all diabled by the OS (see screen shots from Windows OS below)
- Supports any 3.5" hard drives
- Supports any 2.5" HDD/SSD using the included Snap-In 25 (AE25SN35SA)
- Drive can be added or removed like VHS cassette without any drive tray or special tool*
- Can access data on flash media such as mSATA SSD, M2 (NGFF) SSD, CFast or CF card using the optional Addonics family of 2.5" Flash drive kit,
- Rugged anodized aluminum construction for rough handling, fast cooling and for easy transportation
- Connect to any system via USB 3.0 or USB 2.0 port
- Maximum data throughput: USB 3.0 - up to 5,000 mbps, USB 2.0 - 480 mbps
- Key lock to secure hard drive inside the enclosure
- Compact size for convenient transportation
- Rear mount 40 x 40 mm cooling fan
- LED for drive access and power
- Plug and play
- OS Compatibility: All Windows, Linux (Kernel 2.4 and above), Mac OS X and above

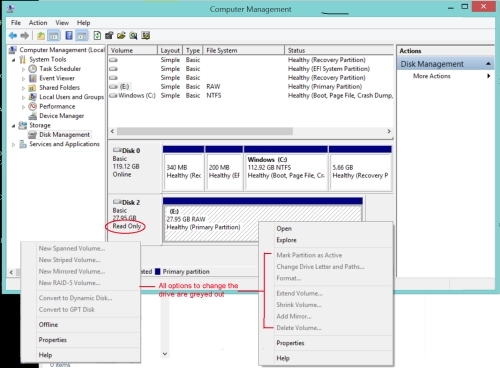

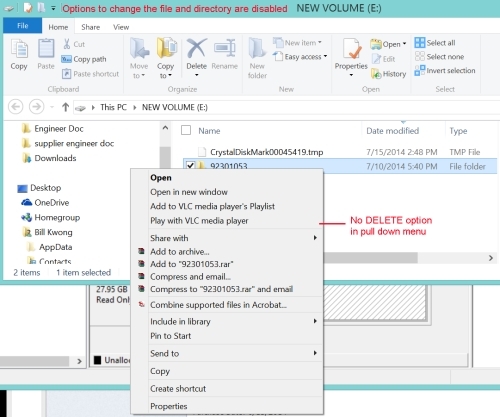

Sample of Windows 8 screen shots showing options to format, delete and other commands that alter the content or structure of the drive are all diabled by the OS
Specifications

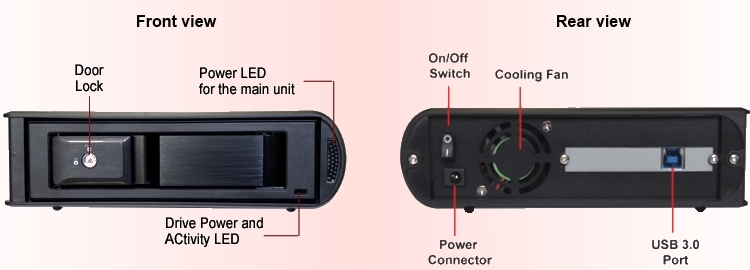

Front of enclosure
- One 3.5" Snap-In drive bay
- Power and drive access LED
Rear of the enclosure
- USB 3.0 B female connector
- Power ON/OFF switch
- Power input jack
- 45 x 45 mm cooling fan
- Enclosure material: Brushed black anodized aluminum with plastic front bezel
- Power Adapter: 110/240V AC/DC 12V 3A
- Power consumption ~ 1 watt (not including drive)
- Dimensions (L x W x H): 9.88 x 6.88 x 2.00 in ( 251 x 175 x 50.8 mm)
- Weight: ~ 2.45 lbs. (1.11 kg) without drive
- Operating temperature and humidity: 0C to +60C, 5% to 95% RH (non-condensing)
- Storage temperature and humidity: -30C to +70C, 5% to 90%
