HOME / Back -> Power Supplies -> 500W - 599W -> AeroCool

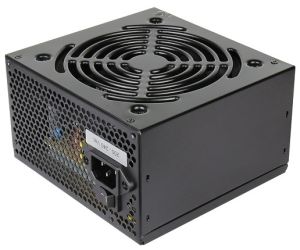

AeroCool 550W VX-550 Power Supply - ATX 12V v2.3, 120mm Fan, High-End SECC with Black Powdercoated Case, Supports C6/C7 Power Saving Mode On Intel Haswell CPU
  • 4x SATA, 2x PCI-E 6+2-Pin10

IMG 1 of 1
No Longer Available
Part Number:
390727
(?) Brand:
AeroCool Web Site
Manuf No:
VX-550(230V)
VX550(230V)
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VX550(230V), VX-550(230V)

Information

Features

1.  The most valuable power supply for entry-level system builder.
2.  Compatible with ATX 12V 2.3.

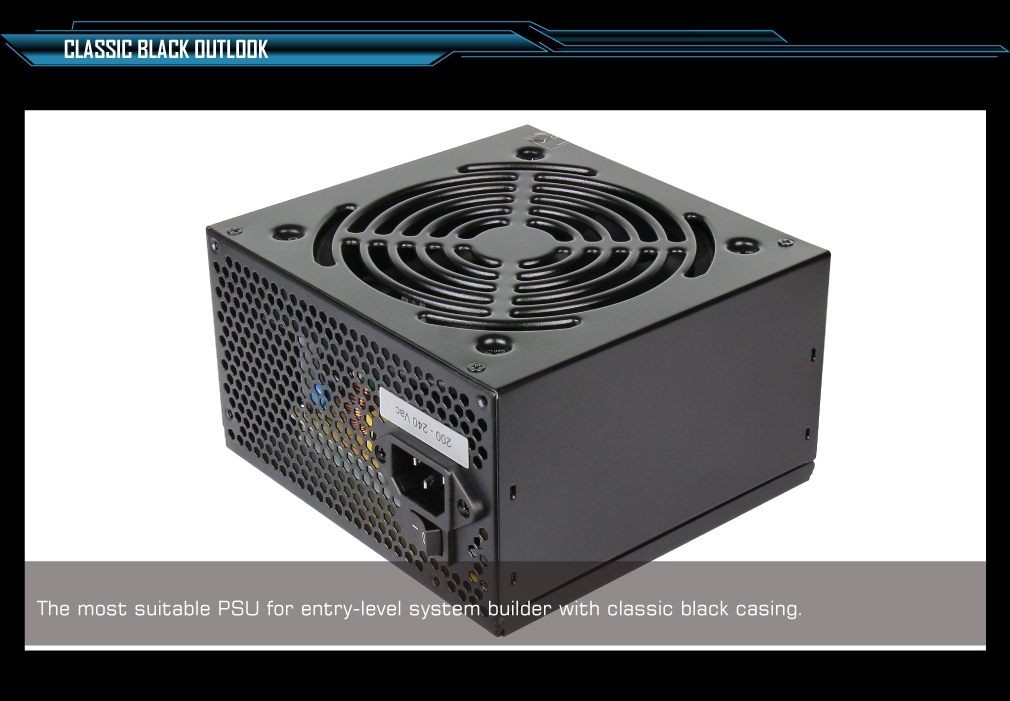

3.  High-end SECC with black coating casing.

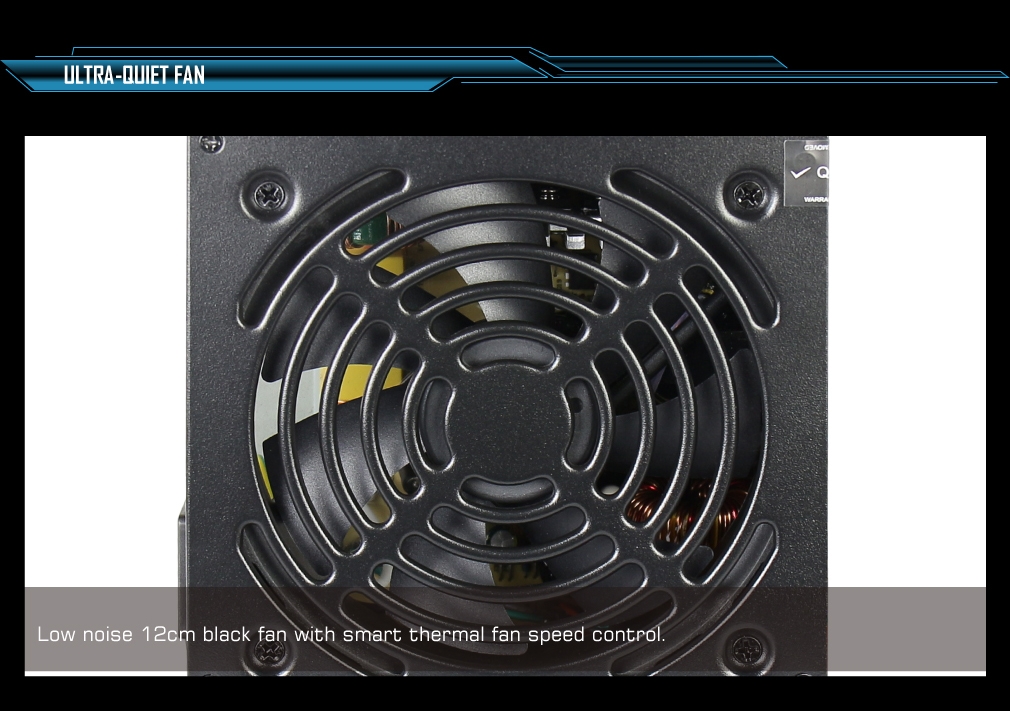

4.  Silence 12cm fan with smart fan speed control.
5.  Support C6/C7 power saving mode on Intel Haswell CPU.
6.  Powerful single +12V rails offer the most compatible DC output to support high-end graphic card and CPU.
7.  Long cable length at least 450mm supports high-end case with "Bottom" PSU position.
8.  OPP/OVP/UVP/SCP electrical protection included.


Specifications

Cables:

  • 1 x 20 + 4 PIN
  • 1 x 4 + 4 PIN
  • 3 x 4 PIN
  • 4 xSATA
  • 1 xFDD
  • 2 x 6 + 2 PIN

Power Specifications:

  • AC Input:230VAC6A47-63Hz
  • DC Output:Max Current/Wattage
  • +3.3V:20A/120W
  • +5V:17A/120W
  • +12V:46A/552W
  • -12V:0.3A/3.6W
  • +5Vsb:2.5A/12.5W
  • Total Combined Wattage: 600W

Environmental Requirements:

  • Operating / Storage Temperature Range:
  • Operating ambient:0Cmin ~ +40Cmax
  • Non operating ambient:-20C~ +60C

Humidity (non condensing):

  • Operating ambient:10% ~ 90% relative humidity
  • Non operating ambient:5% ~ 95% relative humidity

Altitude:

  • Operating ambient:0 to 10,000 ft
  • Non operating ambient:0 to 50,000 ft
  • Noise Level Output:Loading(%) / Noise (dBA)
  • 20%/19.2dBA
  • 40% / 20.7dBA
  • 60% / 24.0dBA
  • 80% / 28.0dBA
  • 100% / 31.7dBA

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (AeroCool) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
