DataCage Basic MB876SK-B 3.5" SATA Hard Drive Mobile Rack
SATA 6Gbps, Tray Design, Hot-Swap, Aluminum Body, Key Lock, 40mm Cooling Fan, Fits 3.5 inch SATA HDD, Support Half-Height HDD, EZ-Tray Compatible
MB876SK-B
Overview

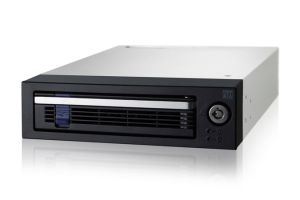

Introducing the DataCage Basic MB876SK-B, a single 3.5” SATA 6Gbps mobile rack for optical 5.25” bay features our successful EZ-Tray removable tray system. It features a slim, yet durable profile with key lock design and only taking up a single 5.25” optical bay. It is ideal for home and professional server environments requiring hot swap for backups, security and a reliable active cooling solution.
Slim, Strong & Secure

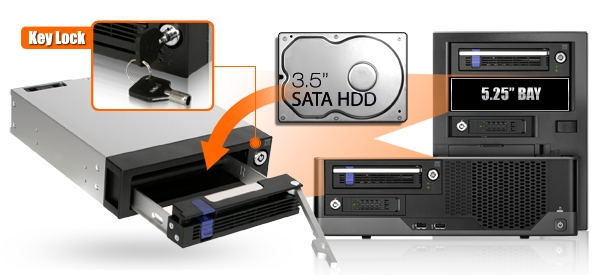

The DataCage Basic MB876SK-B sports an aluminum body for optimal cooling and maximum durability, while fits most standard single 5.25” optical bays for easy implementation. The flat front panel design prevents any interference when using with servers and rackmounts that has a door or cover design with it being flush with the 5.25” housing. Meanwhile, the resilient aluminum latch provides best durability for consistent hot swaps. A sturdy key lock is used in order to keep your precious data safe and secured from accidental drive ejection during operation.
Elegant Contemporary Design

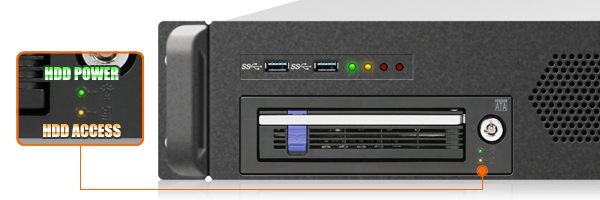

No more bland looking servers. The MB876SK-B provides an elegant looking exterior to showcase your system. It also provides easy to read LED status notification system for your hard drive with both power and activity in green and amber, respectively.
Reliable Cooling Solution

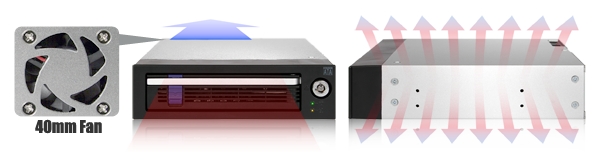

To enhance its cooling efficiency, the multiple front air vents design and full aluminum body increase the passive cooling of the drive. A 40mm warm air outtake fan is built into the rear of the MB876SK-B unit to compliment and ensure that your drive will maintain an optimal temperature, thus increasing the life and dependability of the drive.
Interchangeable Storage

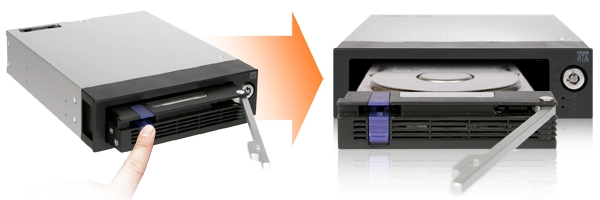

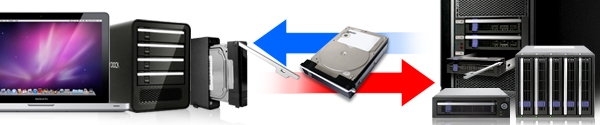

The MB876SK-B uses an interchangeable EZ-Tray compatible with MB45X, MB15X, MB559, and MB561 series. This allows you to continue to use the same trays from these series, or our compatible external 3.5” models without any issues regarding switching to new designs. The EZ-Tray accepts most 3.5” SATA hard drives – particularly, both half height and full height 3.5” hard drives are supported. The EZ-Tray is designed to be easy to install / remove to the device in just two steps – press the release button and pull / push the lever. This allows for easy replacement in case of RAID failure, storage, or transportation of data.

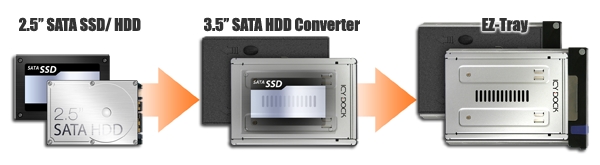

While enclosure is compatible with most standard 3.5’’ SATA I, II & III drives, it is also compatible with 2.5’’ SSD and SATA drives using the optional EZConvert MB882 / MB982 2.5’’ to 3.5’’ HDD Converter series. This allows for convenience and versatility and will save you time and money from having to buy a separate 2.5’’ hard drive enclosure.
Interchangeable hard drive tray with:
|
|
|
Key Features
- Ideal for use in server environments, such as tower or rackmounts for data backups, storage and drive maintenance.
- Device stores a single 3.5" SATA III 6Gbps drive and fits most standard 5.25" device bay.
- Hard drive power and activity LED indicators for essential drive status.
- Removable EZ-Tray system and hot swap capability offers convenient solution for multi-drive exchangeability & maintenance. Compatible with FatCage MB15X, DataCage Classic MB45X, ICYBento, MB559 & ICYCube MB561 series.
- Safeguard key lock function keeps data secure within the enclosure during operation.
- Full aluminum body construction provides superior heat dissipation.
- 40mm rear warm air outtake fan ensures an optimal cooling environment.
- Vented front panel allows for maximum air circulation.
- Anti-Dust Flap protects system internals.
- ICY DOCK 3 year warranty equivalent to hard drive manufacturer warranty to ensure maximum reliability and long life.
|
Specifications
|
|
|
Internal Host :
|
7 pin SATA
|
|
|
Drive Fit :
|
3.5" SATA I / II / III HDD
|
|
|
|
|
Transfer Rate :
|
up to 6Gb/sec. (depending on hard drive speed)
|
|
|
Insert& Extract conection Via :
|
15 pin direct hard drive connection
|
|
|
Structure :
|
Aluminum body w/ partial plastic
|
|
|
Drive Cooling :
|
40 mm rear outtake fan w/ aluminum heat dissipation
|
|
|
LED Indication :
|
Device Power, HDD Access
|
|
|
LED Display Color :
|
Device Power: Green, HDD Access: Orange
|
|
|
Drive Security :
|
2 segment key lock
|
|
|
Dimension (L x W x H) :
|
7.24" x 5.84" x 1.65"
|
|
|
|
