All stock codes associated to this product
VIGI C330(2.8mm), VIGI C330(28mm), NWTLVIGIC3302.8, NWTL-VIGI-C330-2.8, 4895252501773
| Performance |
|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Day/night mode | Yes |
| Certification | CE/BSMI/VCCI/ONVIF |
| Design |
|---|
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/Wall/Pole |
| International Protection (IP) code | IP67 |
| Housing material | Plastic |
| Camera |
|---|
| Lens viewing angle, horizontal | 107.5 ° |
| Lens viewing angle, vertical | 57.2 ° |
| Lens viewing angle, diagonal | 128.7 ° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system |
|---|
| Fixed focal length | 2.8 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video |
|---|
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Smart IR | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 2304 x 1296 pixels |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video streaming | Yes |
| Total megapixels | 3 MP |
| Audio |
|---|
| Built-in microphone | Yes |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Storage |
|---|
| Built-in HDD | No |
| Ports & interfaces |
|---|
| Connectivity technology | Wired |
| Security |
|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Password reset via email | Yes |
| Human and vehicle targets classification | Yes |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (max) | 5.4 W |
| DC output voltage | 12 |
| Certificates |
|---|
| Certification | CE/BSMI/VCCI/ONVIF |
| Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions |
|---|
| Width | 78 mm |
| Depth | 70 mm |
| Height | 174 mm |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |

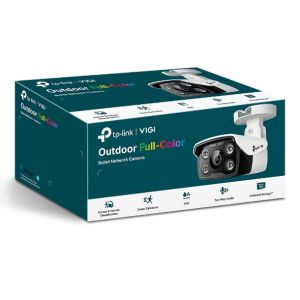

All The Colors, All The Time 3MP Outdoor Full-Color Bullet Network Camera
Clarity and Colors, All in One Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business. Smart Detection Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance. Built-In Microphone The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
Never miss a detail. SmartVid-Smart Video Enhancement VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality. Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Outdoor PoE Connection, Simple Wiring Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Flexible Management Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Flexible Installation Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
One system. Full security. Run your business with peace of mind. The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build – whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
