DGN-16189 | Digiever DS-4216 Pro+ Network Video Recorder - 16 Channel



DS-4216 Pro+ DIGIEVER NVR, a true PC-less and 4-bay standalone NVR, provides a complete network surveillance system with local display and remote browser monitoring with 4K UHD,(200FPS),Full HD(480FPS),HD(720FPS)and D1(1000FPS) outstanding monitoring.



DS-4216 Pro+is a4-bay Linux-embedded standalone NVR, powered by Intel Dual Core High Performance CPU and performs excellent network surveillance of multiple IP cameras up to16channelsof single server and up to144 channelsof multiple servers. DIGIEVER NVR supports hardware decode local display of 4K2K(8MP) quality, remote browser monitoring, multi-layer dynamic E-Map, multi-megapixel recording and smart search playback. The monitoring demands can be satisfied anywhere and anytime by local display monitoring, remote browser monitoring, iOS and Android mobile monitoring.



With intuitive Quick Configuration, users can finish trouble free installation in only five steps on local display or remote browsers. The Linux-embedded NVR supports event/schedule recording, automatic recovery, threshold of recorded videos and video clip. Through event and action management, DIGIEVER NVR lets user set various events and actions for instant alert. For emergent need of video duplication, DIGIEVER NVR is equipped with diverse backup methods so that users can freely backup recorded videos to USB dongle, NAS, Dropbox, etc. In terms of security control, user privilege management and log system offer user detailed information for security control. All these essential features can be configured quickly on DIGIEVER NVR local display and remote browser interface.





DS-4216 Pro+offers 1/4/9/12/16/20/25/30/36/49/56/64 & 5+1-channel & sequential and full screen display modes. DIGIEVER NVR supports video output via either HDMI or VGA connector for high image quality local display. With hardware decode technology, users can have an ultra-clarity surveillance environment to view 4K2K(8MP) local display performance and solidly guard your region. Also, users can control the pan, tilt and optical zoom of IP camera on local display interface. Both monitoring and configuration can be accessed on local display.



Frame rate on local display is based on camera's compression format H.264.



The max. FPS might be varied from different environments.









DIGIEVER NVR lets users monitor remotely via five main browsers in Windows, including IE, Chrome, Firefox, Safari and Opera browser. In remote browser interface, offers 1/4/8/9/10/12/16/20/25/30/36/42/49/56/64 & 5+1/12+1 channel & sequential and full screen display modes and supports up to channels. DIGIEVER NVR can be a mini-CMS server to connect other DIGIEVER NVR and select a maximum of 144 channels as well as simultaneously monitor other remote NVR sites without installing any extra VMS software. Also, remote monitoring offers control of PTZ camera and lets users view all preset positions of the IP camera.



Quick Navigation with Dynamic E-Map

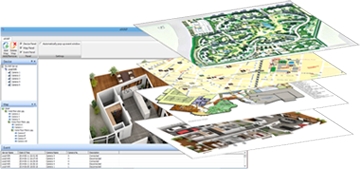

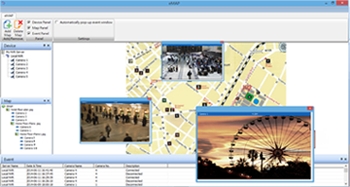

Dynamic E-Map on liveview monitoring as a quick navigation can indicate the physical location of cameras. Users can expand multi-layer maps in different perspectives and deploy cameras on the maps. When an event is triggered, a window will pop out to notify user and display recording video to users; therefore, users can quickly locate event site and take appropriate actions to minimize event lose and damage. Furthermore, event log history offers a detailed and latest list of event history to make users easily control the event situation with zero error possibility.





Smart and scheduled recording







DIGIEVER NVR gives users high performance megapixel recording and supports MJPEG, MPEG-4 and H.264 formats. Users can configure different recording schedules such as continuous, schedule, event and audio recording for each camera in high megapixel recording. Users can also set recording percentage or days for keeping videos to overwrite the oldest video files automatically. Furthermore, DIGIEVER NVR supports multi-stream to let users set video format, frame rate, resolution and other features in different conditions to save bandwidth for monitoring and recording.Furthermore, with flexible recording stream setting, users can also decide to record videos either in higher resolution to view more detailed information or in lower resolution to save more HDDs capacity. Finally, to satisfy diverse surveillance requirements of recording video, DIGIEVER provides two recording formats for different safety concerns.For higher security concern users can only view videos via NVRPlayer while for normal security concern users can view videos via general video player such as Windows Media Player, VLC, including NVRPlayer to easily view recorded videos.



Diversified events and corresponding trigger actions

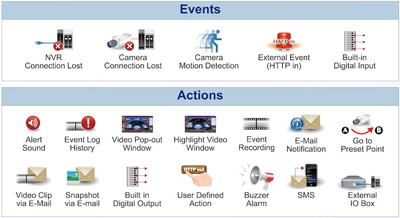

DIGIEVER NVR can support up to 14 types of action to inform users at the very first time and to mininize event lose and damage when an event is triggered.



When an event is triggered, such as motion detection or digital input, DIGIEVER NVR can take various actions such as recording video in the server and sending a video clip instantly to users by E-mail. In addition, buzzer can be enabled to sound up to 60 seconds as abnormal events occur. Users can also define digital output actions by themselves, such as fire alarm system.







User-friendly Video Search by Date, Time,Channel,Normal Record, Event and Recovered File
Frame by Frame Playback
Exporting Recordings
Taking a Snapshot

DIGIEVER NVR lets users search the recorded video by selecting date, time, channel number,normal record, event and recovered file. Users can select display modes with more flexibility from 1/4/9/16 for playback to have an intuitive checking on recording file. Frame by frame playback and rewind features help users to locate needed video image.

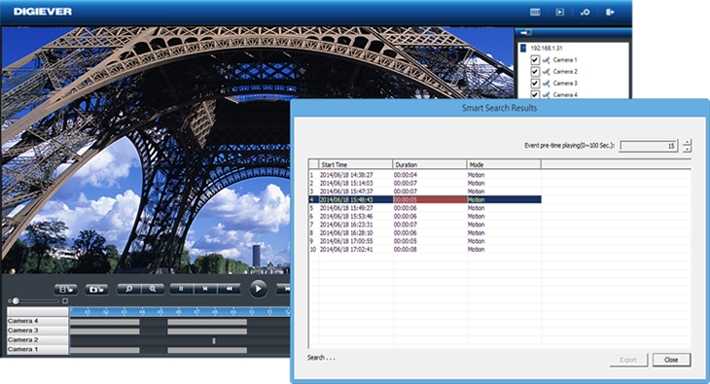

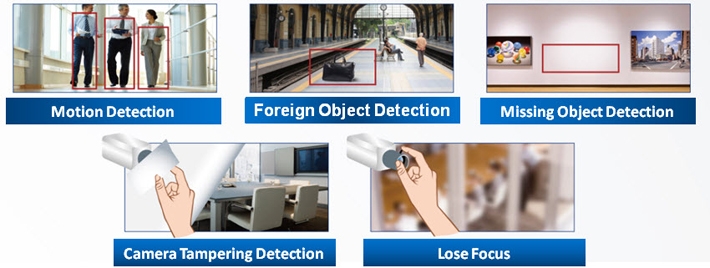

To make surveillance more intuitive and easily, DIGIEVER creates a new feature named Smart Search to help users quickly find out key video at the specific moment with five detection modes, includingMotion Detection, Foreign Object Detection, Camera Tampering Detection, Lose FocusandMissing Object Detection.





DIGIEVER NVR is a Linux-embedded operating system which is efficient to avoid virus attack and hacker intrusion. Compared with PC, Linux-embedded system offers more green and power saving.With over six clear log systems, users can do quick trouble shooting and security control of DIGIEVER NVR.As for privilege management, administrator can add multiple user groups like power user and user to configure live view and playback access. Besides, users can specify IP address or network segment to permit or prohibit specific IP address as white or black list from live view or playback access.





Advanced network system and data pretection solution

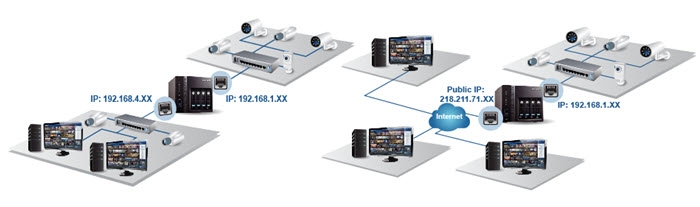

DIGIEVER NVR provides a flexible network configuration as proxy function to connect different network segments, even one in WAN, one in LAN. Dual IP application allows users to maximize network efficiency and bandwidth stability for various purposes such as daily operation and surveillance usage. Dual IP application largely increases the resistibility of unauthorized data theft and the unavailability of accessing to cameras.



Smart, Simple and Mobile Enhancement



Smart enhancement brings you more convenience







Configuration in advance save time for backup in convenience





To ensure the security of confidential videos, DIGIEVER NVR provides diverse built-in backup methods to back up vital recorded videos in different situations.USB backup and USB Type DVD Backupprovide users a quick backup solution for emergency situation.Users can set a maximum of days, hours and minutes to backup the latest video files and configure the specific channels for duplication in advance. After setting the time and channels, users just need to press USB BACKUP button on the NVR and then export the video files to external USB device or USB type DVD burner. When an urgent need arises, video files are backed up efficiently and quickly.For daily backup, Users can routinely backup videos withRemote Backup to NAS serverto storage confidential videos for a longer time. When users wants to share some videos to friends or colleagues,Cloud Backup with Dropboxis an useful method to drag the specific video on Dropbox.



DIGIEVER NVRs excellent hardware performance truly enhances your efficiency







DIGIEVER NVR is powered by Intel CPU for excellent megapixel recording and provides network throughput up to360Mbps. DIGIEVER NVR also supports each hard disk drive up to 6TB. Through DIGIEVER NVR, users can configure JBOD, RAID0, RAID1, RAID10 and RAID5 in local display or web-based interface; hot swap design allows users to replace failed HDD without turning off the server. DIGIEVER NVR will also automatically recover when power resumes after an outage and recover missing file caused from power outage. On the other hand, DIGIEVER NVR supports built-in General Purpose I/O for both choices of setting digital input and output.



Simple and functional complement of network video recorder





Users can register a domain name from a dynamic DNS (DDNS) provider and enable DDNS in DIGIEVER NVR. DIGIEVER NVR supports NTP (Network Time Protocol) by selecting time zone for synchronizing the date and time. Users can set either static IP or DHCP on DIGIEVER NVR. With no need of router connection, DIGIEVER NVR supports built-in DHCP server to assign local IP addresses to other device in a local area network (LAN), which makes installation become much easier. Besides, users can add camera via quick UPnP search in LAN. With Windows networking and FTP service, DIGIEVER NVR allows users quickly access the video files.
