19.5" LED Display. Sleek and Stylish Display.
Features

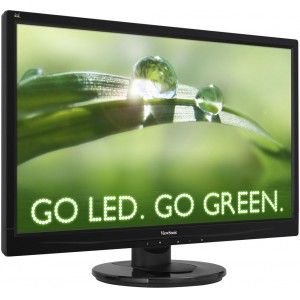

The ViewSonic VA2046m-LED is a 20 (19.5 Vis) widescreen monitor with an LED backlight and glossy, thin-bezel design ideal for use in the home or at the office. With 1600x900 resolution and a 10M:1 dynamic contrast ratio, the VA2046m-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. As a complete multimedia package, the display also includes a pair of integrated speakers. VGA and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With an efficient LED backlight and energy-saving Eco mode, the VA2046m-LED is an environmentally friendly display choice.
High Resolution for Superior Pixel Performance
A superior dynamic contrast ratio of 10,000,000:1 better defines the relationship between the darkest and brightest colors, ensuring all displayed images are rich and detailed. Combined with an extremely fast 5ms response time, every motion is naturally and accurately reproduced without any blurs.
Energy-Saving Eco-Mode
ViewSonic's proprietary Eco-mode function gives you the choice tooptimize (85%) or conserve (65%)energy,thus reducing display brightness and conserving energy by up to 30%. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility while reducing eye fatigue and prolonging the display's lamp life.

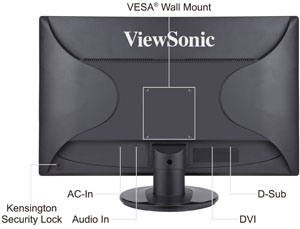

VESAMount andKensington Security Lock Compliant
Designed for use in various settings, the VA2046m-LEDs robust design makes it safe and secure wherever it is installed. Thats because it comes with a Kensington security lock slot and is VESA wall mount compliant making it the perfect monitor for all office and public settings.
Windows 8 certified compliance
Windows 8 Certified, the VA2046m-LED provides the most updated Windows 8 experience without any compatibility issues.Experience the all-new Windows 8 operating system with ViewSonic's VA2046m-LED display.
Specifications
| LCD |
Type |
20 Wide |
| Display Area |
19.5 inch |
| Optimum Resolution |
1600x900 |
| Contrast Ratio |
600:1 (typ), 10,000,000:1 (DCR) |
| Brightness |
200 cd/m2 (typ) |
| Viewing Angles |
90 horizontal, 65 vertical |
| Response Time |
5ms |
| Panel Surface |
Anti-glare Type, 3H Hardness |
| Light Source |
40,000hr (min.) |
| Video Input |
Analog |
RGB Analog (75, 0.7 / 1.0 Vp-p) |
| Digital |
DVI (TMDS, 100 ohms) |
| Frequency |
Fh: 24-82KHz; Fv: 50-75Hz |
| Sync |
Separate Sync |
| Compatibility |
PC |
VGA up to 1600 x 900 Non-interlaced |
| Mac |
MAC up to 1600 x 900 |
| Connector |
Analog |
RGB Analog (75, 0.7 / 1.0 Vp-p) |
| Digital |
DVI-D x 1 |
| Audio |
3.5mm x 1 |
| Power |
Internal Power Board , 3-pin Plug (CEE22) x 1 |
| Audio |
Speakers |
2W x 2 |
| Power |
Voltage |
AC 100 - 240V (Universal); 50 / 60Hz |
| Consumption |
18W; Optimize: 14W; Conserve: 12W |
| Operating Conditions |
Temperature |
32F to 104F (0C to 40C) |
| Humidity |
10% to 90% (No Condensation) |
| Dimensions |
Physical |
478.2mm (width) x 360.2mm (height) x 197.6mm (depth) |
| Weight |
Net |
3.0 kg |
| Regulations |
|
CB, WEEE, RoHS, Vista Premium, Windows 8 , Windows 7, UL, cUL, FCC-B, TUV-S, NOM, CE, GOST-R+Hygienic, SASO, Ukraine, CCC, CEL, BSMI, PSB, C-TICK, KC, e-Standby |
| Wall Mount |
|
100mm * 100mm |
| Package Contents |
|
Power Cable *1, D-Sub*1, Audio Cable *1, Quick Start Guide *1, ViewSonic CD Wizard *1 |
