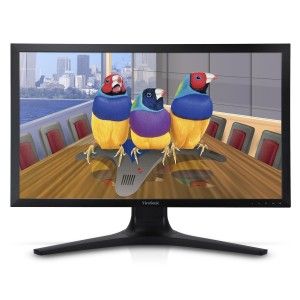

VP2780-4K
27’’ Ultra HD LED Monitor with SuperClear® IPS Panel Technology
Features
- Stunning Ultra HD resolution
- Incredible color accuracy
- Preset EBU and Gamma corrections
- Next generation connectivity
- View up to four video sources
Overview
Description
The ViewSonic VP2780-4K 27 Professional Ultra HD LED monitor delivers stunning definition for color-critical applications. With 3840x2160 resolution, and SuperClear IPS technology for wide-angle viewing, this 10-bit monitor can display up to 1.07 billion colors with pre-calibrated Delta E2. This provides superior color accuracy and performance for content creation, graphic design, print, and other professional applications. Equipped with an exclusive wide-range gamma setting and ViewMode technology, the VP2780-4K delivers optimized screen adjustments for different viewing scenarios. One of the first Ultra HD monitors to feature future-proof HDMI 2.0 to support 3840x2160 content at 60hz, along with DisplayPort 1.2a, dual MHL connectivity, and 4-port USB 3.0 for versatile connectivity to computing and entertainment devices. ViewSonics MultiPicture functionality allows for efficient multitasking by providing simultaneous viewing of up to four split windows, while full ergonomic functionality delivers maximum comfort and enhanced productivity.
Designed for: Content Developers, Graphics Professionals & Post Production
Stunning Ultra HD Resolution
Displaying more than 8 million pixels with a high pixel density of 163 PPI, this Ultra HD 3840x2160 monitor delivers the ultimate in image detail and clarity for stunning, lifelike images. In addition, with 4x more pixels than Full HD resolution, this Ultra HD monitor displays more content to maximize productivity.
8M+
Pixels
163
Pixels per inch
Incredible Color Accuracy
With impressive 10-bit color processing, this monitor can display up to 1.07 billion colors for professional-grade color accuracy and stunning images ideal for any multimedia application. Featuring Delta E2 color accuracy, this monitor reproduces phenomenal colors nearly imperceptible from real life for consistent and brilliant colors, every time.
Preset EBU and Gamma Corrections
Delivering broadcast-like color and stable imaging, this Ultra HD monitor features a pro-style EBU preset ideal for video production and editing. Offering five gamma settings ranging from Gamma 1.8 to Gamma 2.6, this monitor optimizes color performance and contrast ratio for graphic design, video editing, photography production, and more.
5 Gamma Settings
Optimized color

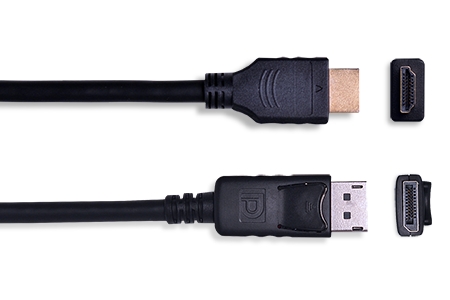

Next Generation Connectivity
Future-proof HDMI 2.0 and DisplayPort 1.2a video standards support 3840x2160 resolution at a quick 60Hz frame rateguaranteeing jitter-free multimedia, smooth screen performance, and true Ultra HD picture clarity.
HDMI 2.0 & DisplayPort 1.2a
UHD @ 60Hz
MultiPicture Functionality
This monitor features MultiPicture support for multitasking and simultaneous viewing of up to 4 video sources at Full HD 1080p resolution. Picture-in-Picture (PIP) and Picture-by-Picture (PBP) functionality is also available for increased productivity.
4
HD Video Sources
SuperColor IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter your vantage point! With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Ergonomic Design
With advanced ergonomic features, ViewSonic displays are designed to provide a greater range of adjustment for increased productivity and comfort. Users can reduce eyestrain and physical fatigue by adjusting the monitor via swivel, pivot, tilt, and height adjust options.
A Larger Screen for Mobile Devices
Integrated with MHL, this monitor enable users to connect compatible high definition mobile devices, such as smartphones and tablets, directly to the projector.This allows digital content from mobile devices to be viewed on larger screen, while also simultaneously charging the batteries of the mobile device.
ViewMode
ViewSonics unique ViewMode feature offers Game, Movie, Web, Text, and Mono presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic monitorbacked by the industrys leading pixel performance policy and a 3-year limited warranty.

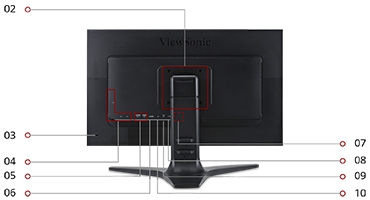

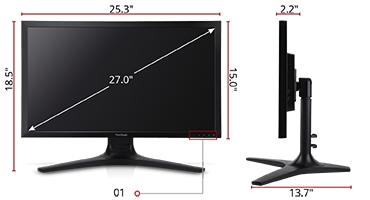

Dimensions:
- Menu controls
- VESA Compatible Wall Mount (100 x 100 mm)
- Kensington Lock Slot
- USB 3.0 (x4)
- HDMI/MHL (x2)
- HDMI (x1)
- DC In
- Headphone
- Mini DisplayPort
- DisplayPort
The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product.
Specifications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright 2015 ViewSonic Corporation. All rights reserved.
Specifications
LCD
Type
- Color Active Matrix TFT LCD
Display Area
- 23.5" horizontal x 13.2" vertical; 27.0" diagonal
Optimum Resolution
Contrast Ratio
Dynamic Contrast Ratio
Viewing Angles
- 178 horizontal, 178 vertical
Response Time
Light Source
Brightness
Panel Surface
- Anti-glare, hard-coating (3H)
Colors
- 1.07B (10-bits with A-FRC)
Backlight Life
VIDEO INPUT
Analog/Digital
Frequency
- Fh: 15~204kHz, Fv: 24~120Hz
Sync
- Separate Sync, Composite Sync, Sync on Green
COMPATIBILITY
PC
Mac
CONNECTOR
Video Digital In
- HDMI 2.0, HDMI / MHL (x2), DisplayPort (x2)
USB
- USB 3.0 (x4) USB Upstream
Headphone
Power
POWER
Voltage
- AC 100240V (universal), 50 / 60Hz
Optimize
Consumption
- 46.5W (typ.) / 49W (max.)
Conserve
CONTROLS
Basic
OSD
- Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
OPERATING CONDITIONS
Temperature
Humidity
DIMENSIONS (WxHxD)
Physical With Stand
- 25.3 x 18.5 x 13.7 in. / 642.7 x 469.7 x 347.8 mm
Physical Without Stand
- 25.3 x 15.0 x 2.2 in. / 642.7 x 381.7 x 56 mm
Packaging
- 29.1 x 22.7 x 10.2 in. / 739 x 576 x 259 mm
WEIGHT
Gross
Net With Stand
Net Without Stand
Tilt
Forward 5 / Back 23
Vesa Mount
100 x 100mm
Regulations
CB, CE, WEEE, RoHS, ErP, REACH, TCO6.0, UL, FCC-B, Mexico CoC, EPEAT Gold, ENERGY STAR, Mexico Energy
Recycle/Disposal
Please dispose of in accordance with local, state, or federal laws
PACKAGE CONTENTS
VP2780-4K monitor, Power cable, DisplayPort cable, MHL cable, HDMI cable, USB 3.0 upstream cable, Quick Start Guide, ViewSonic Wizard CD (with user guide)
Warranty
Three-year limited warranty on parts, labor and backlight
