Ultimate cooling

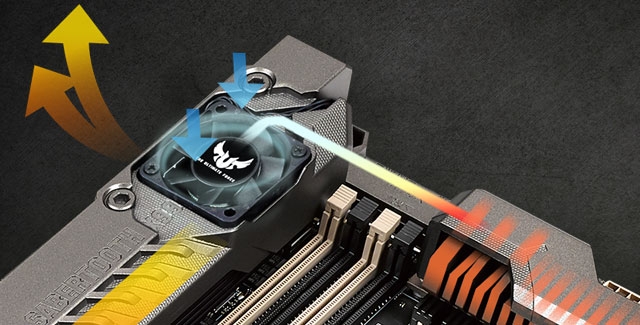

Thermal Armor
Total airflow-boosting heat dissipation

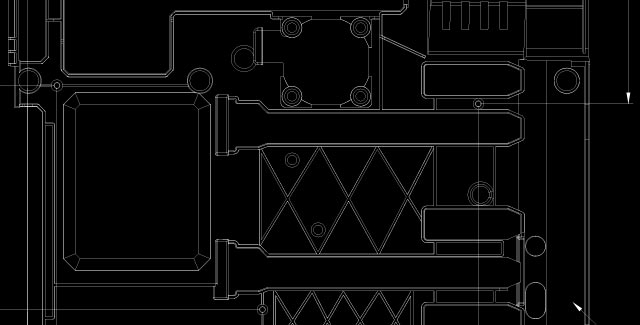

More than just a cool military-styled cover, TUF Thermal Armor employs the fan to provide boosted airflow for rapid cooling. The special heat pipes accelerate dissipation from critical components and make sure temperatures stay low across the board. SABERTOOTH X99 Thermal Armor can reduce the temperature by up to 10C!

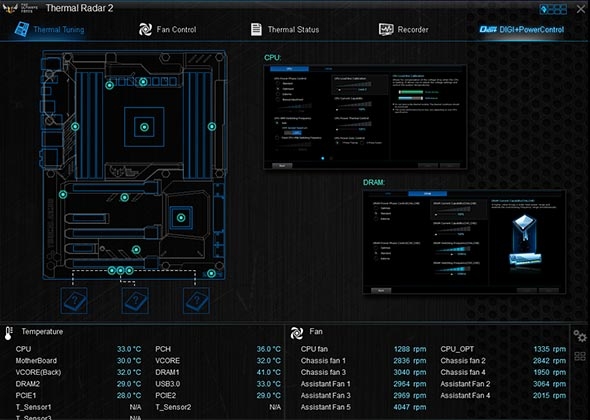

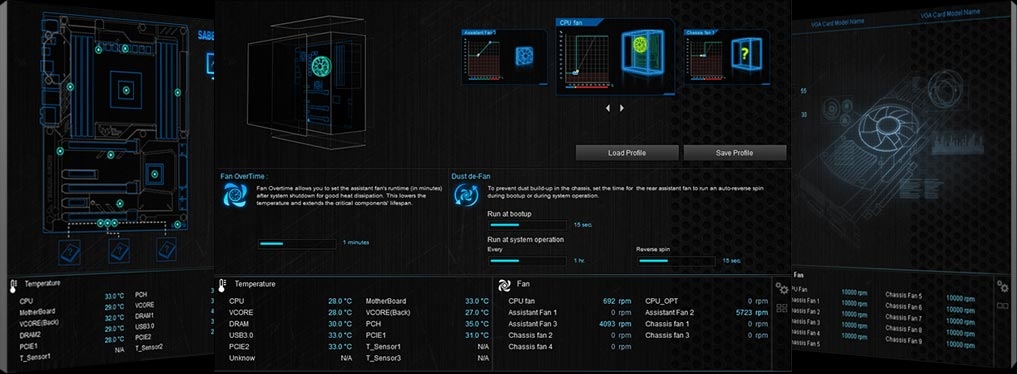

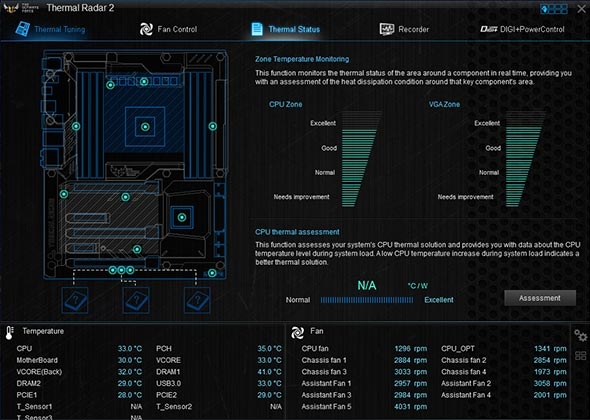

Thermal Radar 2
Customized fan tuning, complete system cooling
SABERTOOTH X99 Thermal Radar 2 now has up to 11 fan connectors to let you control fans as many as you want. Moreover, Multiple onboard sensors and the bundled thermistor cable let you monitor graphics card temperatures and other key components in real time, so you can adjust manually or optimize automatically with one click.

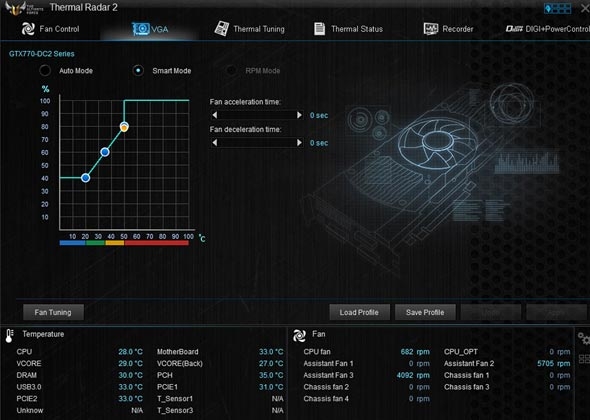

VGA
X99 Thermal Radar 2's fan management has been expanded so now you can control fans on ASUS graphics cards, as well as multiple case fans!

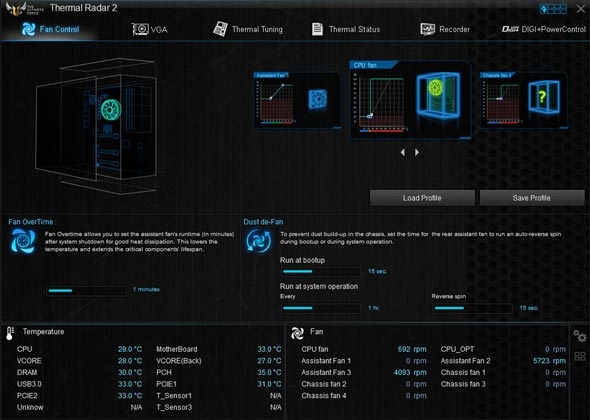

Fan Control
With customizable settings for each fan, you can extend your motherboard's lifespan. You can even monitor, manage and individually name and control your system's fans to create your perfect balance between quietness, cooling and performance.

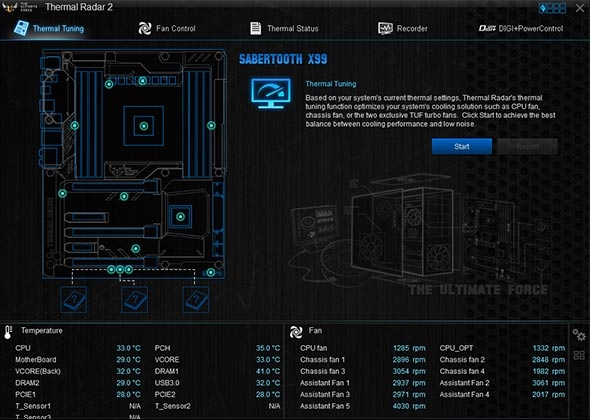

Thermal Tuning
You can also choose to optimize the whole system's fan setup with a single click. Based on the characteristics of each fan connected to your motherboard, all fan profiles can be quickly optimized.
Thermal Status
With thermal-status reports showing CPU and graphics cards zone temperature in real-time, your system fan control can be as precise as you like! Additional CPU thermal assessment gauges temperature rises with increasing voltage, providing a benchmark to judge your CPU cooler's performance.

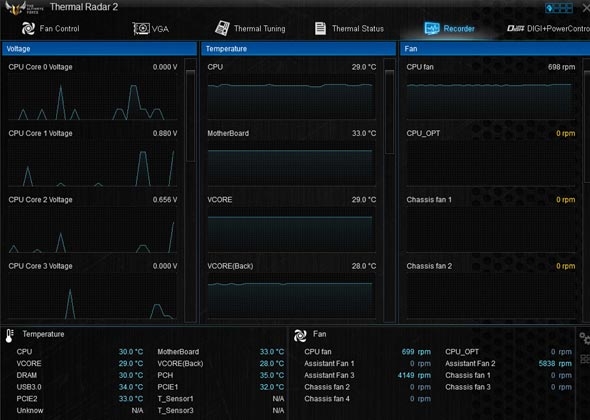

Recorder

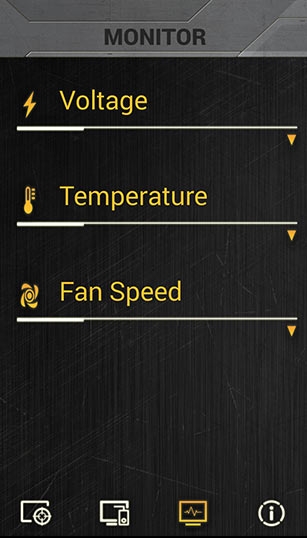

Critical voltages, temperatures and fan speeds are recorded over time, so you can review your system's history and make informed judgments for improved operation.
Digi Power Control

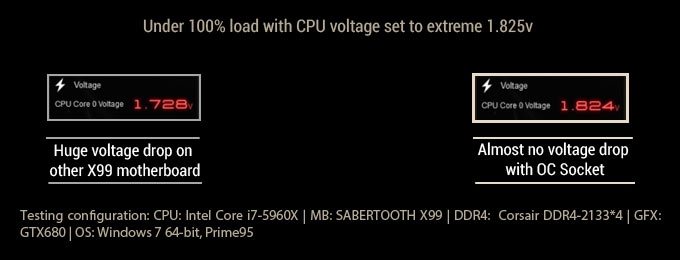

DIGI+ Power control is one of the most essential motherboard designs, and TUF offers ultra-precise memory tuning in addition to extra-accurate CPU voltage control. Best in class power efficiency and stability reduces wasteful voltage discrepancies and provides a more stable CPU and memory setup.
TUF ICe
The total cooling commander

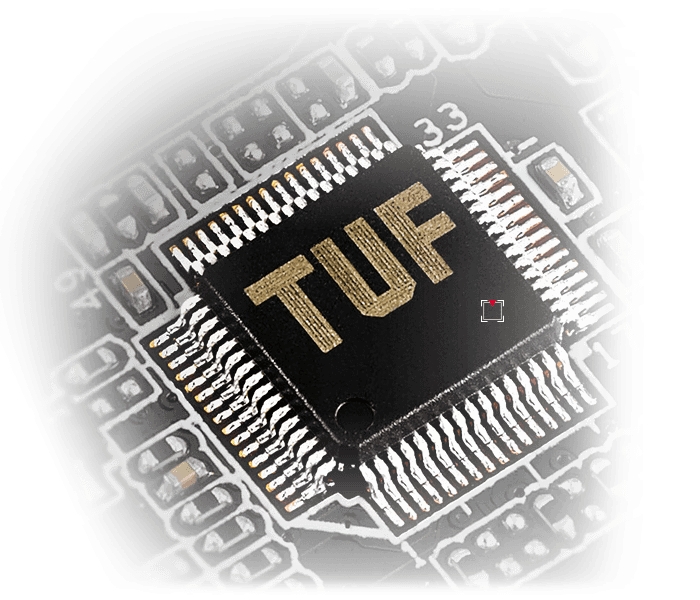

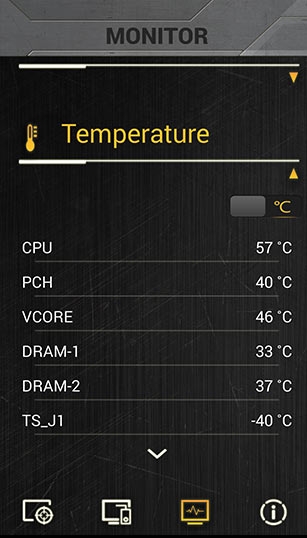

ASUS TUF engineered have forged a brand-new microchip that delivers incredibly precise temperature monitoring and fan controls.
With the TUF ICe Cool processor, you can be assured that monitoring of onboard temperature sensors and fan speeds is always ultra-accurate whether you're adjusting settings manually or using the automatic one-click optimization.

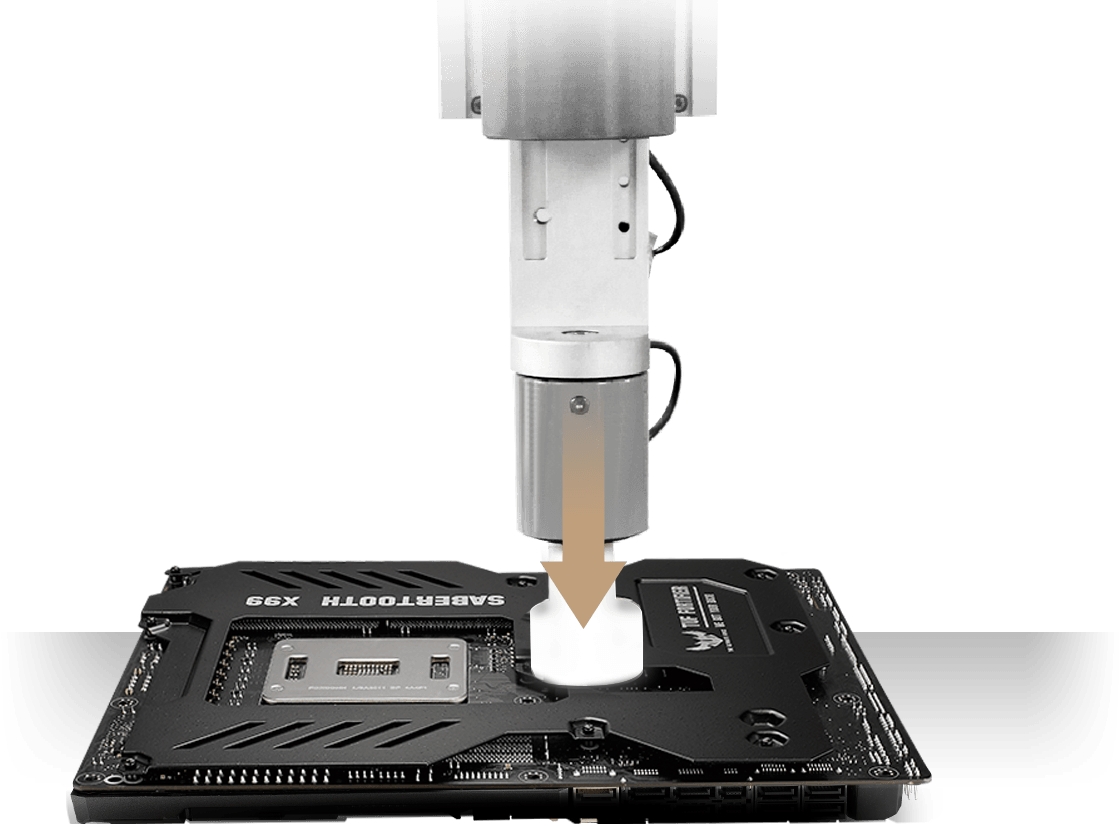

Tested Reliability
TUF Fortifier
Improves rigidity and cooling behind the board
SABERTOOTH X99 delivers great strength and cooling via exclusive TUF Fortifier. A reinforced backplate ensures that the motherboard doesn't buckle under the weight of heavy graphics cards and CPU coolers, minimizing the risk of damaged circuitry from bowing and bending.
TUF Fortifier also includes a thermal pad that efficiently directs heat away from the VRM and other components an innovation that reduces operating temperatures by up to 6C!

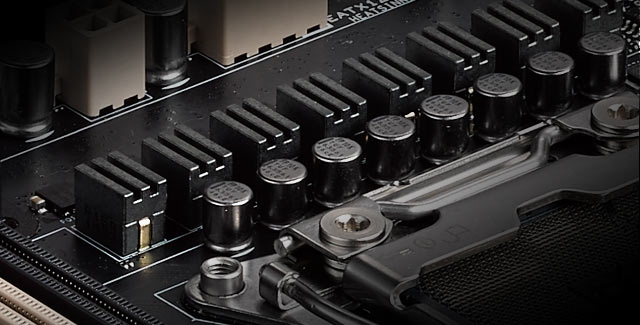

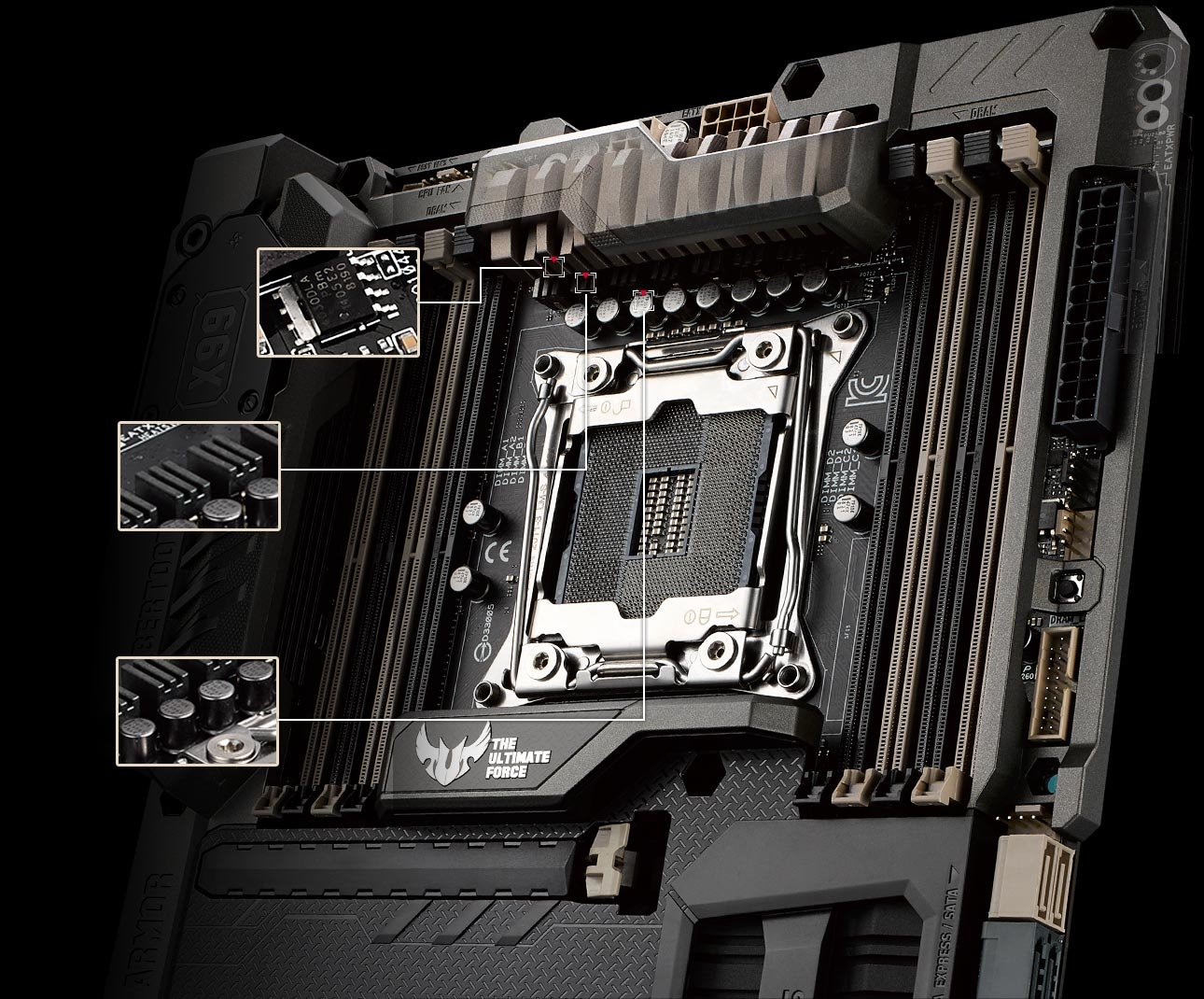

TUF Components
Certified for tough duty

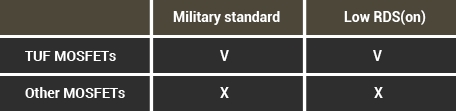

TUF MOSFETs: military-grade certified MOSFETs with lower RDS(on)

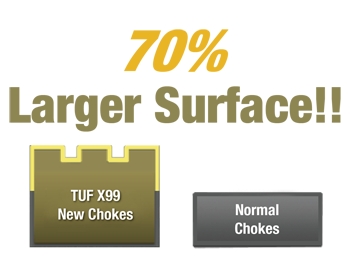

TUF Chokes: Heat-sink concept design for larger heat-dissipation area

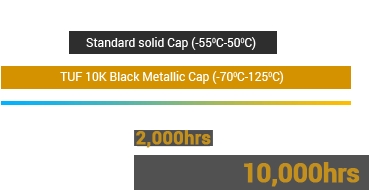

10K Ti-Caps: +20% temp. tolerance and 5X longer lifetime usage.

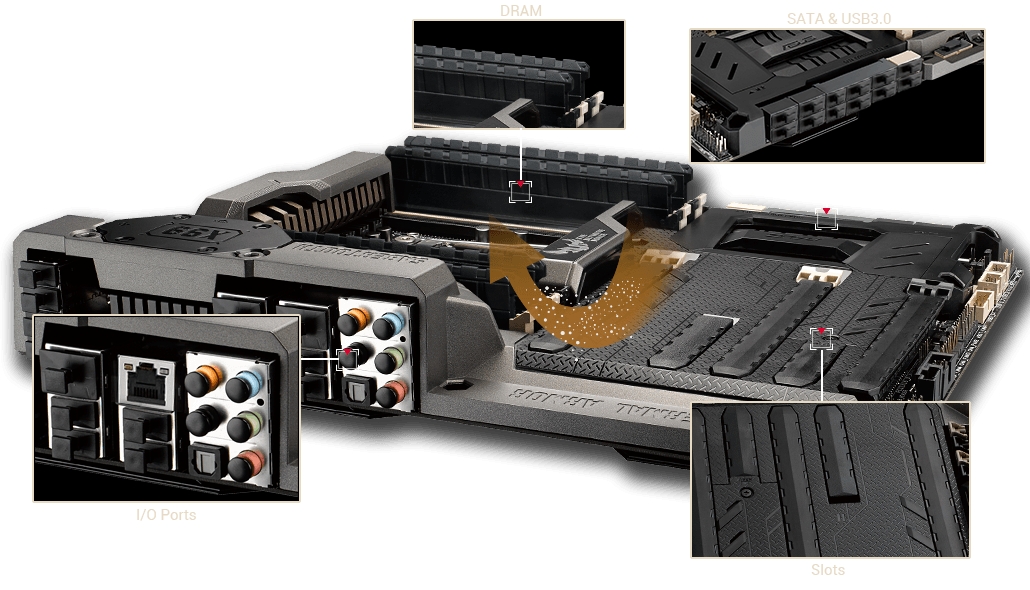

TUF design protects back I/O ports, expansion and memory slots plus critical connectors from dust and particles that degrade system performance over time if left unchecked. With a filter to ensure the back I/O fan doesn't draw dust into the board, Dust Defenders guards against dust build up, helping your PC perform in an optimal and stable state longer.
5 Years Warranty
Guaranteed reliability
Each and every TUF motherboard is built with components certified for military use and undergoes serious server-level burn-in tests, including over 7,000 hours of compatibility checks with over 1,000 devices. TUF is forged solid for your confidence, which is why every board is covered by a 5-year warranty.
The service will follow the local standard and service policy.

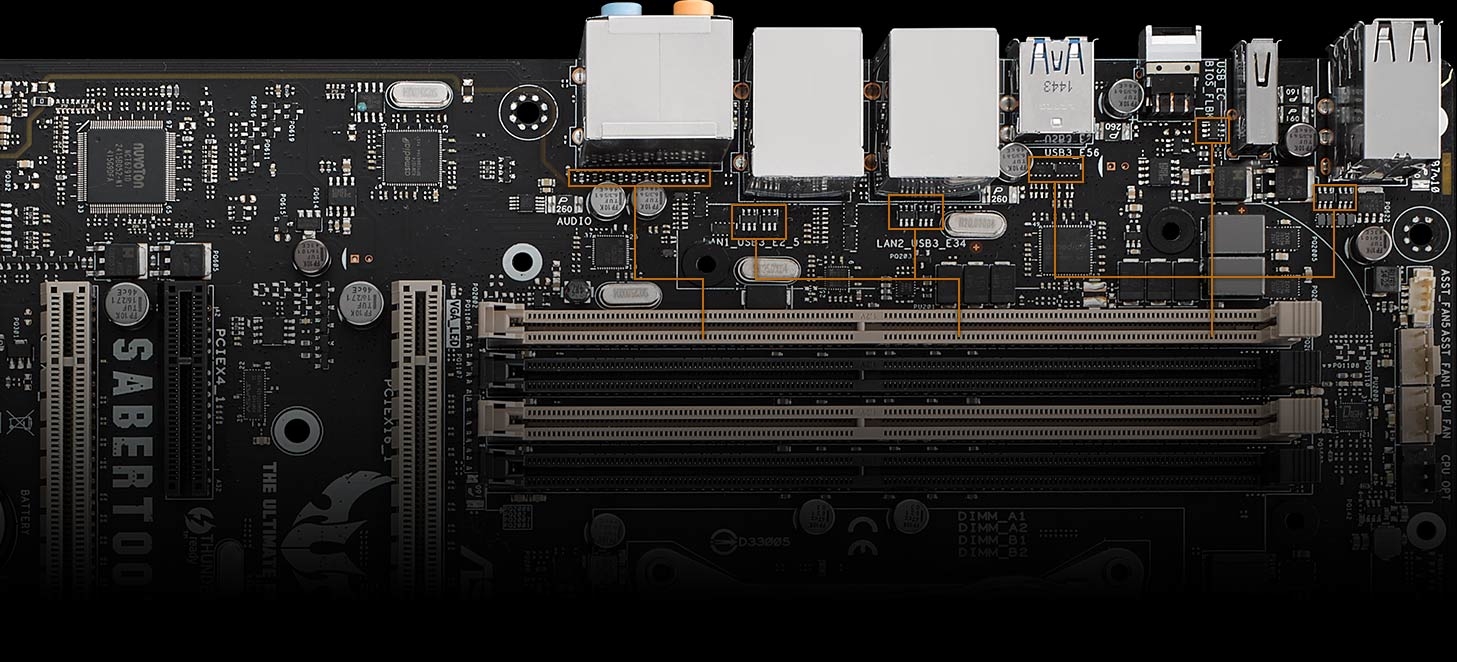

TUF ESD Guards 2
2X Stronger ESD protection for extended component lifespan
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. TUF ESD Guards 2 technology is tested to standards that are 2X higher than industry standards and exclusive pin-level on specific rear IO connectors* testing is 30% higher than previous TUF standard, ensuring electrostatic discharges are properly grounded from all onboard connectivity and that means greater component longevity.
USB/LAN/DVI/HDMI/DisplayPort
Audio connectors
Capacitor protection on both front and back audio-output circuits
LAN port
ESD TVS diode protection on the LAN circuit bolstered by an anti-surge LAN connector that increases protection against extreme events, such as lightning strikes.
USB 3.1/3.0 connectors
On-circuit transient-voltage-suppression (TVS) diodes and capacitor protection for surface-mount and dual-inline packages.

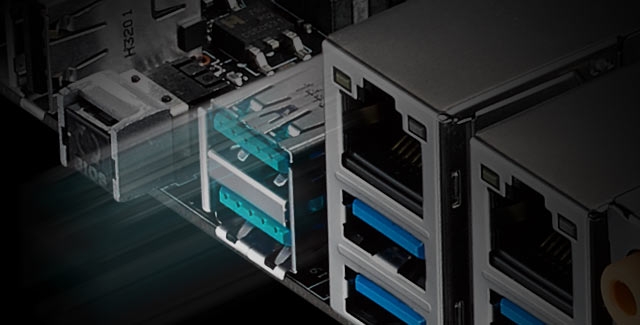

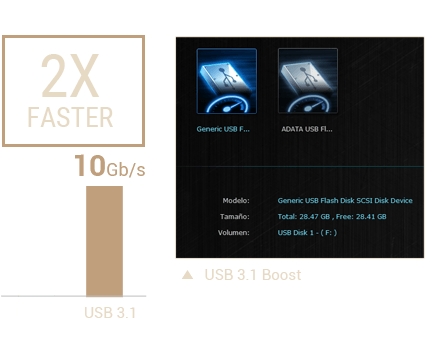

High-Speed transfer
10Gb/s USB 3.1 built in to the board
With the latest USB 3.1 connectivity built in and dual Type-A ports for the very fastest USB data transfers, you'll experience data-transfer speeds of up to 10Gbit/s or twice as fast USB 3.0. The next-generation standard is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!

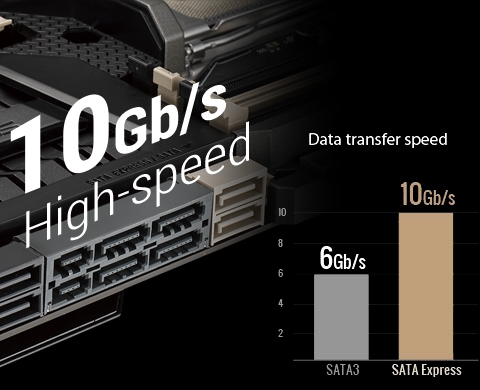

Evolve your storage speed with SATA Express

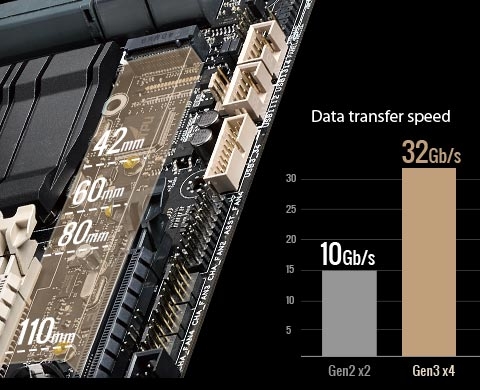

Speed up with onboard M.2 up to 32Gb/s
Turbo Lan
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and intuitive user interface. It allows you to lower lag with no expert knowledge by up to 1.45X! If you're a tweaker, use Advanced Mode for hardcore controls.
Durable Design

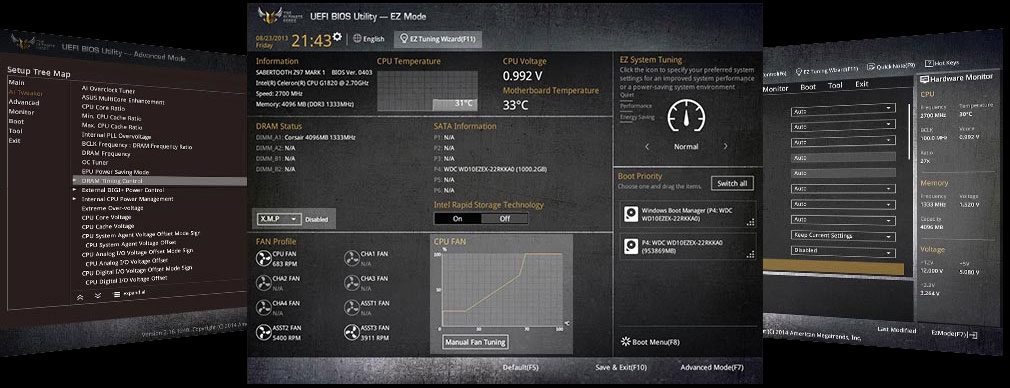

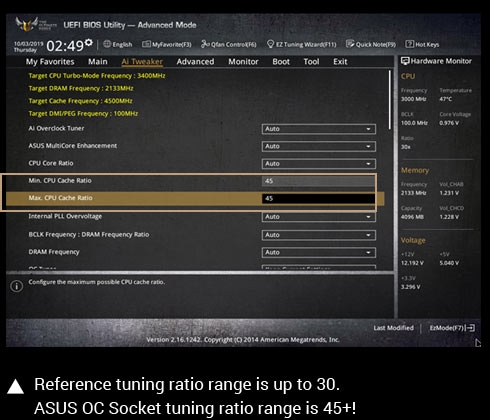

Media-acclaimed the most intuitive UEFI BIOS
The smoothest mouse-controlled graphical BIOS is with improvements to both EZ and Advanced Modes. It benefits both the novice builder as well as the seasoned overclocker.
Easy navigate to tuning options and add to My Favorite
Answer few simple questions to tune system performance or build up RAID
Quickly apply XMP settings achieving better DRAM performance.
Customized fan curve of each individual fan with simple drag and put of mouse curser
Know your system well and adjust instantly based on facts.
EZ Mode
- Fan Profile: Detailed CPU & Chassis fan controls for instant cooling.
- SATA Information: Displays each SATA port details for you to easily recognize devices.
- Fast Clock Adjustment: Easily change the time and date in EZ Mode using the mouse
Advanced Mode
- Shortcut: Customize your own shortcut log by pressing F4 or right clicking to create shortcuts to frequently-used settings.
- Quick Notes: Type remarks and ideas in the BIOS. Save time and convenient.
- Last Modified Log: Easily track settings and save preferred profile into a USB drive.
- SATA Port Renaming: Rename SATA ports for easy identification.
TUF Audio Design
TUF Audio Design makes short work of optimizing audio settings for the way you want to listen, chatting, watching movies or relaxing to your favorite music. Onboard physical shielding, professional engineered design and premium components result in sound output that has exceptional clarity and fidelity.
Audio Shielding Ensures precision analog/digital separation and qreatly reduced multi-lateral interference.
Unique de-pop circuit Reduces start-up popping noise to all audio outputs.
Audio amplifier Enhance the highest quality sound for headphone and speakers.
Special layout design Separate layers for left and right channels to guard the quality of the sensitive audio signals
Intel CPU and chipset features

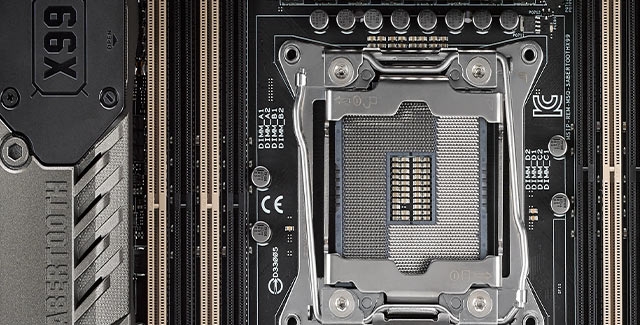

Intel Core i7 Processor LGA2011-v3 Ready
This motherboard supports Intel Core i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
Intel X99 Express Chipset
The Intel X99 Express Chipset is a single-chipset design that supports socket LGA2011-v3 Intel Core i7 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB 3.0 ports, 10 SATA 6Gbit/s ports for faster data retrieval.
Specifications:
- CPU
Intel Socket 2011-v3 Core i7 Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
- Chipset
Intel X99

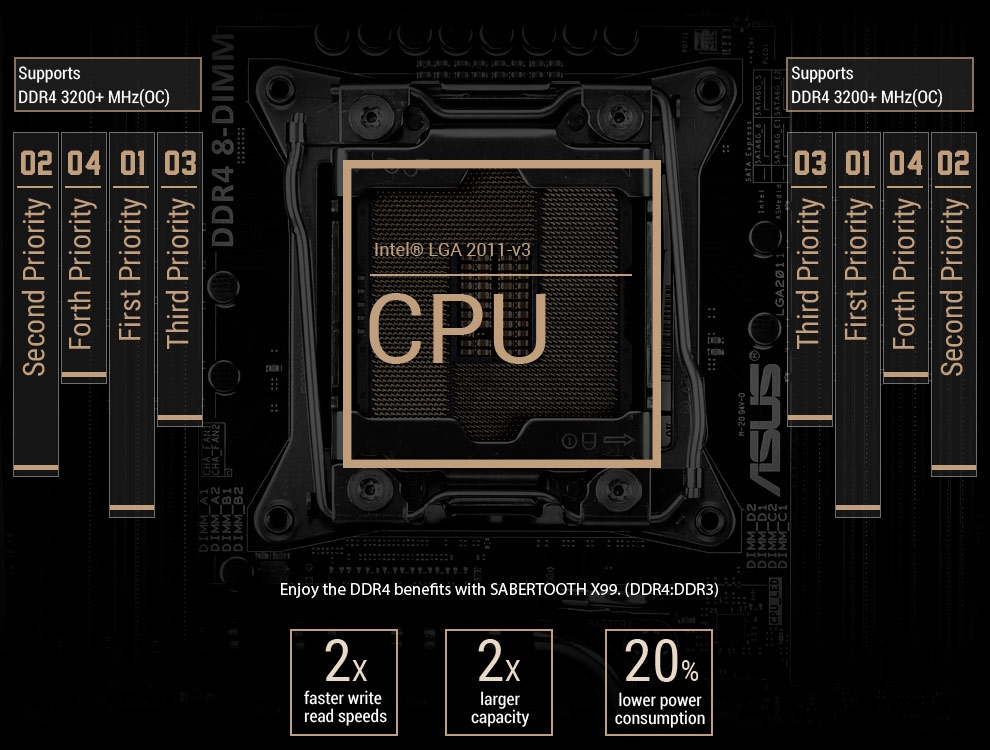

- Memory
8 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
- Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
- Expansion Slots
40-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *1
28-Lane CPU-
3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *1
1 x PCIe 2.0 x4 (x2 mode)
1 x PCIe 2.0 x1
- Storage
New Intel Core i7 Processors :
1 x M.2 Socket 3, graywith M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
Intel X99 chipset :
1 x SATA Express portcompatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*2
- LAN
Intel I218V, 1 x Gigabit LAN Controller(s)
Realtek 8111GR, 1 x Gigabit LAN
Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
ASUS Turbo LAN Utility
- Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- Absolute Pitch 192khz/24bit true BD lossless sound
Separate layer for left and right track, ensuring both sound deliver equal quality
- USB Ports
Intel X99 chipset :
8 x USB 3.0 port(s) (4 at back panel, , 4 at mid-board)
Intel X99 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, +teal blue)
- Special Features
TUF Features:
TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Armor
- TUF Thermal Radar 2 with Thermistors
- TUF ICe
Safe & Stable! Guardian Angel :
"We Got Your Back!" Shape Force
- TUF Fortifier
- Dust Defenders with connector covers and back I/O dust filter
- TUF ESD Guards 2
- Operating System Support
Windows 8.1
Windows 8
Windows 7
- Back I/O Ports
2 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
- Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x TPM header
1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
1 x CPU fan with PWM control
4 x Chassis Fan connector(s) (4 x 4 -pin)
5 x Assistant Fan connector(s) (5 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
- Accessories
User's manual
Accessory Guide
ASUS Q-Shield
6 x SATA 6Gb/s cable(s)
1 x ASUS 2-Way/3-Way SLI bridge
1 x Supporting DVD
1 x Q-connector(s) (2 in 1)
1 x Assistant Fans(40mm)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)(white)
1 x STAY COOL BE TUF sticker(s)(white)
1 x Accessory Package(s):
- 2 x PCIe x16 slot dust cover(s)
- 4 x DRAM slot dust cover(s)
- 1 x PCIe x1 slot dust cover(s)
- 1 x PCIe x4 slot dust cover(s)
- 3 x Thermistor cable(s)
- 1 x connector dust cover collection(onboard USB 3.0, LAN)
- 2 x On board USB 2.0 connector dust cover(s)
- 11 x back I/O USB 2.0 connector dust cover(s)
- 9 x On board SATA connector dust cover(s)
- 1 x SATA Express conector dust cover(s)
- 5 x Audio connector dust cover(s)
- BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
- Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
Drivers
Anti-virus software (OEM version)
ASUS/TUF CPU-Z
ASUS Utilities
- Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Note
1* The PCIe x16_3 shares bandwidth with M.2 x4. When M.2 socket is occupied, the PCIe x16_3 slot will be disabled.
2* Due to chipset behavior, The SATA6G_78, SATA6G_910 ports (black) do not support IRST including RAID configuration.
3* These functions will work depending on the CPU installed.
