Professional-grade digital signage that reliably delivers rich content 24/7 with 2015s new MagicInfo solution.





Enhance your brand image and messaging with Samsung DME Series SMART Signage professional-grade displays. With vivid picture quality, high-brightness screens (450 nit) and exceptional 24/7 durability, DME displays offer the functionality you need to promote your business.



Powered by the enhanced 3rd Generation Samsung SMART Signage Platform (SSSP), DME Series displays deliver rich content without an additional PC or media player. Samsungs MagicInfo Player S3 is also equipped with a range of intuitive features, such as decorative icons, drag and drop functionality and various fonts, and with Samsungs convenient mobile app, you can manage your digital signage from virtually anywhere through a smart phone or tablet.







DME Series displays deliver industry-leading performance, proven Samsung technology and a wide array of sizing options for adaptable and dependable business usage to meet various business needs. These attributes make DME Series the smart choice for any business or retail establishment. The displays offer durable and extended 24/7 usage to ensure that your business messages are conveyed whenever and wherever they are most impactful.

And, with high 450 nit brightness and crystal clear image quality, your promotions and information are sure to captivate viewers. Samsungs unique Picture Quality Enhancer function optimizes the color, detail, contrast and color temperature for your environment with rich color and detailed textures. Viewing is maximized by eliminating factors that can interrupt visibility from light reflection, and reducing glare and haze to only 2%. Plus, connectivity options are enhanced with two HDMI ports for easier enriched content display.









3rd Generation Samsung SMART Signage Platform (SSSP) features a media player embedded inside the display as a powerful Quad Core System on Chip (SoC). 3rd Generation SSSP integrated hardware and software solution streamlines digital signage configuration and management by eliminating the need for an additional PC unit. And, the internal memory enhancement from 4 GB to 8 GB provides robust performance.

Enhanced 3rd Generation SSSP enables you to create, deploy and manage content more easily than the previous version with an enhanced UI and UX. Because 3rd Generation SSSP is an open platform that is compatible with myriad third-party software, its flexible and easy to use with other applications.







Heighten efficiency and productivity with a newly designed Home Menu UI that displays frequently used functions in a new, large-button matrix design. Simplify usage with a selection of customizable menu configurations that allow ready access to repeatedly used menus. Generate content more easily and conveniently than ever with the Home Menus newly designed templates for various vertical markets including grocery stores, QSRs, terminals and lobbies. Leverage these sharp, professional template layouts to produce and design content in either portrait or landscape orientation. And, turn the Home Menu into a touch-activated user experience by adding an optional Touch Overlay.

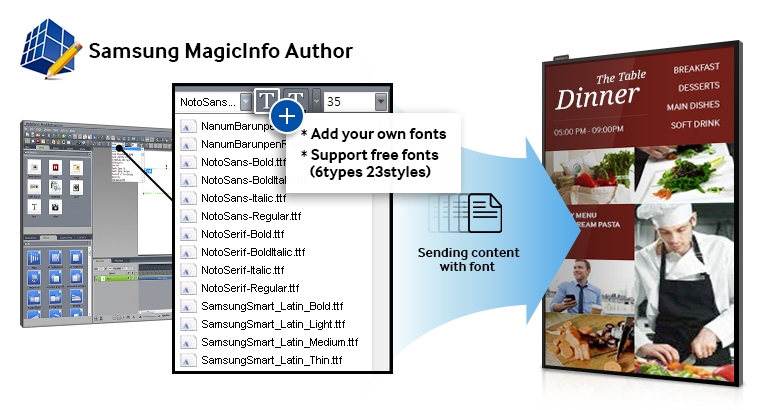

Boost revenues with professionally polished display content generated with a content management solution, MagicInfo S3, embedded within the new 3rd generation SSSP. Along with widgets and stickers, the solution provides 6 different types of free fonts in 23 styles. New MagicInfo S3 eliminates single-font formatting limitations with the upgraded ability to select from various free fonts or add your own. Use handy stamps and either preset or self-created, text-editable stickers to update your promotional information and price tags for convenient and straightforward content changes. Create eye-catching transitions with Dynamic Effect, a feature that enables slideshow-type effects, such as fade, fly-on and zoom. Plus, you can leverage a drag-and-drop widget solution to simply add widgets such as AccuWeather that displays daily and weekly weather for the ultimate in professional content presentation.







Simplify content control and enhance efficiency by using the MagicInfo S3 mobile application on your mobile device to create, edit and deploy content. Wirelessly connect to easily create content using templates, upload and play material from a mobile device, quickly edit content, and readily use playlist navigation to select and start content playing. Further extend connectivity using embedded Wi-Fi, which provides control and sharing with note PCs, tablets and smartphones.

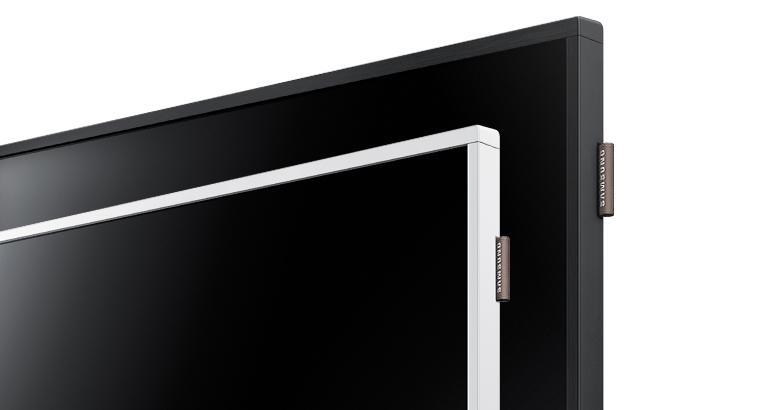

Enhance any display environment with a chic and streamlined design and captivating appearance. For convenient and efficient mechanical compatibility, DME Series displays maintain the same stunning design as previous Samsung D-Series SMART Signage. To elevate your dcor, the displays feature slim and elegant black hairline deco-bezels or white color deco-bezels.* A flexible, tag-type spacer with a logo is designed for either portrait or landscape installations to create a polished, professional look in any space.





Set Dimension (W x H x D)(mm) : 1075.1 X 619.4 X 49.9





Panel

Diagonal Size	48"	Type	60Hz D-LED BLU
Resolution	1920 X 1080(FHD)	Pixel Pitch(mm)	0.183(H) x 0.549(V)
Active Display Area(mm)	1054.08(H) x 592.92(V)	Brightness(Typ.)	450 nit
Contrast Ratio	5000:1	Viewing Angle(H/V)	178:178
Response Time(G-to-G)	8ms	Display Colors	10bit Dithering - 1.07Billion
Color Gamut	0.72

Display

Dynamic C/R	50,000:1	H-Scanning Frequency	30 ~ 81kHZ
V-Scanning Frequency	48 ~ 75HZ	Maximum Pixel Frequency	148.5MHz

Sound

Speaker Type	Built in Speaker(10W + 10W)

Connectivity

Input	RGB	Analog D-SUB, DVI-D(HDMI Common), Display Port 1.2
	Video	HDMI1, HDMI2(except KR, NA) Component(CVBS Common)
	Audio	Stereo mini Jack
	Usb	USB 2.0 x 1
Output	RGB	DP1.2(Loop-out)
	Video	N/A
	Audio	Stereo mini Jack
	Power Out	N/A
External Control		RS232C(in/out) thru stereo jack, RJ45
External Sensor		IR, Ambient Light

Power

Type		Internal
Power Supply		AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption	Max[W/h]	132.0
	Typical[W/h]	94 (w/w), 50 (us), 96 (kor)
	BTU(Max)	450.12
	Sleep mode	less than 0.5W
	Off mode	less than 0.5W

Mechanical Specification

Dimension (mm)	Set	1075.1 X 619.4 X 49.9
	Package	1185 X 715 X 148
Weight (kg)	Set	11.1
	Package	14
Package	N/A
VESA Mount		400*400mm
Protection Glass		N/A
Stand Type		Foot Stand (Optional)
Media Player Option Type		Embbeded, SBB(Attachable)
Bezel Width (mm)		9.5 (Top/Side), 15.0 (Bottom)

Operation

Recommended Usage Hours	N/A
Operating Temperature	0.0 ~ 40.0	Humidity	10.0 %~ 80.0 %

Feature

Key Features		Slim & Light LFD with Built-in MagicInfo Player S3
Special Features		H/W: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot, Tuner(only for NA, KR) S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
Internal Player	Processor	Cortex-A9 1GHz Quad Core CPU
	On-Chip Cache Memory	L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
	Clock Speed	1GHz CPU Quad
	Main Memory Interface	1.5GB Dual 48bit DDR3-933 (1866MHz)
	Graphics	2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
	Storage (FDM)	8GB (2.65GB Occupied by O/S, 5.35GB Available, )
	Multimedia	Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
	IO Ports	USB 2.0
	Operating System	Linux

Certification

Safety	CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 IRAM (Argentina ) : IRAM+IEC60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 CSA (Canada) : cUL RCM(Australia) : IEC60950-1/AS/NZS 60950-1 BIS(India) : IEC60950-1 / IS13252 TUV (Germany) : CE NEMKO (Norway) : CE
EMC	FCC (USA) Part 15, Subpart B Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A CCC(China) :GB9254-2008 GB17625.1-2012 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
Environment	ENERGY STAR 6.0 (USA)

Accessory

Included		Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)
Optional	Stand	STN-L4655E
	Mount	WMN4270SDWMN450MD, WMN250MDWMN4675MD
	Specialty	CML450D (Ceiling Mount)

Media Player

Media Player	SBB (Optional)
