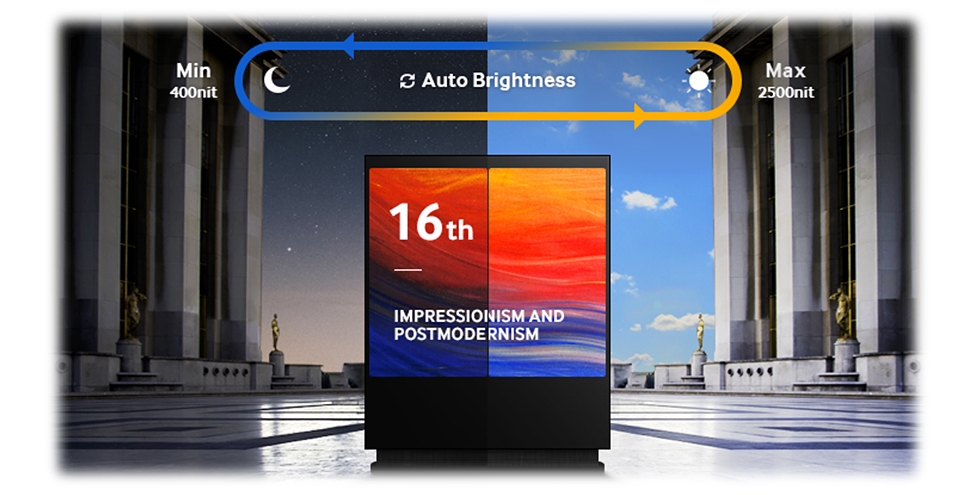

Optimize brightness control while reducing display operating expenses and power consumption with an automatic brightness sensor. You can customize the maximum and minimum brightness within a range of 350-nit to 2,500-nit brightness to complement any environment and control expenses, while extending the life of the monitor.
Rely on strong 24/7 durability in various outdoor environments
Present business messaging 24/7 even when the display is exposed to sunlightdirectly and indirectly for reliable around-the-clock operation.OMD Series SMART Signage is mechanically designed and has undergone internal testing to endure heat with a panel that can withstand up to 110C (230F) temperatures.
Clutter-free installation and management through SSSP
Experience easy management and clutter-free installation with SSSP
LeverageSamsungs industry-leading 2nd Generation SSSP and a powerful quad-core processor with SoC technology for outstanding performance.2nd Generation SSSP has advanced MagicInfo Premium S all-in-one embedded content management solution that eliminates the need for a separate PC or media player. The result is an uncluttered and simplified digital signage configuration that delivers rich media content, enhanced operational efficiency and lower TCO.
Easy, professional display management with mobile devices and MagicInfo server
Easily and professionally manage content from a mobile device
Manage content conveniently from a mobile device with built-in Wi-Fi and MagicInfosolution, even when the displays are installed in difficult-to-access locations. MagicInfo enables professional management of multiple displays, and theMagicInfo Mobile application can be used on a tablet or other mobile device to easily deliver content to displays or to update the displays templates or content.
Sophisticated design
Deliver engaging content with a very visible, sleek and exceptional design

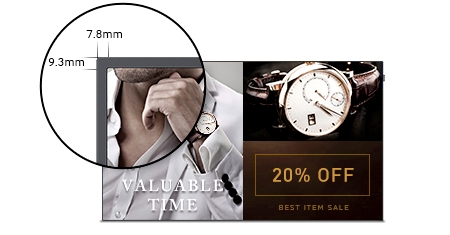

Impress customers and reduce viewing distractions with a sophisticated design featuring a narrow 9.3 mm bezel and slim depththat offers an elegant appearance. Slim bezels allow OMD Series displays to be used in seamless video walls for stunning window and wall displays. And with slim-depth panels these stylish displays deliver efficient use of space while reducing separate housing design costs.
Complete product or kit-type product
Choose the ideal display type for any business environment

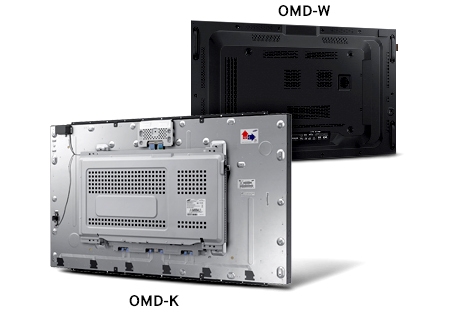

Take advantage of a variety of form factors to suit your display environment. As a standalone kit-type panel, the OMD-K is designed for specialized use in various customized housings to serve a wide range of configuration and environmental needs. OMD-W is an aesthetically pleasing standalone panel that is suitable for in-window store display usage with a backcover that hides its array of connectivity ports and openings.Both OMD-K and OMD-W models are available in various sizes (46, 55 and 75)for configuration flexibility.
Specifications:
Set Dimension (W x H x D)(mm) : 1,675.8 x 953.8 x 124.6 mm
Panel
| Diagonal Size |
75" |
Type |
S-PVA |
| Resolution |
1920 X 1080(FHD) |
Pixel Pitch(mm) |
N/A |
| Active Display Area(mm) |
1650.24(H) x 928.26(V) |
Brightness(Typ.) |
2500 nit |
| Contrast Ratio |
5000:1 |
Viewing Angle(H/V) |
178/178 |
| Response Time(G-to-G) |
6ms |
Display Colors |
8 bit - 16.7M |
| Color Gamut |
72% |
Display
| Dynamic C/R |
N/A |
H-Scanning Frequency |
30 ~ 81kHZ |
| V-Scanning Frequency |
48 ~ 75Hz |
Maximum Pixel Frequency |
148.5Mhz |
Sound
| Speaker Type |
Built in Speaker (10W + 10W) |
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D, Display Port 1.2 |
| Video |
HDMI1, HDMI2, Component(CVBS Common) |
| Audio |
Stereo Mini Jack |
| Usb |
N/A |
| Output |
RGB |
DP1.2(Loop-out) |
| Video |
N/A |
| Audio |
Stereo Mini Jack |
| Power Out |
N/A |
| External Control |
RS232C (In/Out), RJ45 |
| External Sensor |
Detachable Type (IR, Ambient) |
Power
| Type |
Internal |
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption |
Max[W/h] |
935.0 |
| Typical[W/h] |
550.0 |
| BTU(Max) |
N/A |
| Sleep mode |
less than 0.5W |
| Off mode |
less than 0.5W |
Mechanical Specification
| Dimension (mm) |
Set |
1,675.8 x 953.8 x 124.6 mm |
| Package |
1,815 x 1,075 x 415 mm |
| Weight (kg) |
Set |
48.0kg |
| Package |
60.0 kg |
| Package |
N/A |
| VESA Mount |
900 x 600 mm |
| Protection Glass |
N/A |
| Stand Type |
N/A |
| Media Player Option Type |
Embedded, SIM (Slide in Module ) |
| Bezel Width (mm) |
11.7 / 11.7 / 11.7 / 11.7 |
Operation
| Recommended Usage Hours |
N/A |
| Operating Temperature omd |
0~ 40 (w/o Direct Sunlight), 0~ 30 (Direct Sunlight) |
| Humidity |
10.0 %~ 80.0 % |
Feature
| Key Features |
Extremely High Brightness,Semi-Outdoor Solution |
| Special Features |
Plug and Play, MagicInfo S2, Slide in Module, Digital Daisy Chains(100ea), Built in Speakers, Lamp Error Detection, Anti Image Retention, Temperature Sensor, RS232C/RJ45 MDC, PIP/PBP, Video Wall(10x10), Portrait Installation Support, Button Lock, Smart Scheduling, WiFi Embedded, Sunglasses Viewable |
| Internal Player |
Processor |
Cortex-A9 1GHz Quad Core CPU |
| On-Chip Cache Memory |
L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB |
| Clock Speed |
1GHz CPU Quad |
| Main Memory Interface |
1.5GB Dual 48bit DDR3-933 (1866MHz) |
| Graphics |
2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES |
| Storage (FDM) |
8GB (2GB Occupied by O/S, 6GB Available, ) |
| Multimedia |
Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. |
| IO Ports |
USB 2.0 |
| Operating System |
Linux |
Certification
| Safety |
UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1998 IRAM (Argentina) : IEC60950-1 SASO (Saudi Arabia) : IEC60950-1 |
| EMC |
FCC (USA) : Part 15, Subpart B Class A CE (Europe) : EN55022, EN55024 VCCI (Japan) : V-3 (CISPR22) KCC (Korea) : KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC (China) : GB9254-2008, GB17625.1-2012 |
| Environment |
N/A |
Accessory
| Included |
External IR/Brightness Sensor, Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional |
Stand |
N/A |
| Mount |
N/A |
| Specialty |
N/A |
Media Player
| Media Player |
SBB-C (Optional) |
