HOME / Back -> Monitors -> Commercial LED LCD -> NEC

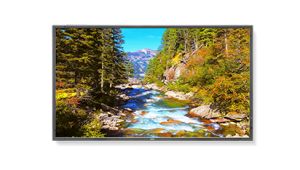

NEC E705 Commercial Grade LED LCD Display
  • 70"LED Edge-Lit, Widescreen, 8ms, 1920x1080, 4000;1, 360cd/m2, VGA, DVI, DisplayPort, HDMI, Audio, RJ45, RS232C, Speakers

IMG 1 of 7
No Longer Available
Part Number:
393688
(?) Brand:
NEC
Manuf No:
E705
Shipping Weight:
65 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
E705, 13NECE705, 13NEC-E705, 5028695111646
70" LED Backlit Commercial-Grade Display

MODEL: E705

NEC's 70" Large Screen E705 delivers a cost-effective solution while maintaining the extensive feature set and high visual quality that's expected with a commercial grade display. With its extremely large size, full external control and expanded connectivity, this display is the ideal solution for all boardroom, conference room and meeting room type of applications.

  • Full bi-directional external control via both RS232 and LAN
  • Expanded terminal interface including 2 HDMI, DisplayPort, DVI and VGA connections
  • Full 3 year commercial grade warranty

Technologies

Carbon Footprint Meter

Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time.

LED Edge-lit Display

Reduces overall depth while also lowering overall power consumption of the product

Open Pluggable Specification (OPS)

The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage

1080p native resolution (1920x1080)

High resolution provides detailed display of text, graphics and images. HD video is displayed in 16:9 wide aspect ratio.

Built-In Expansion Slot

Allows for seamless integration of current and future NEC accessories and third-party components.

Built-In Speakers

Enhance the visual experience with superior sound

Input Switching Speed

Multiple settings for input switching speed. Select among “normal, quick or super” settings. If multiple sources are used and visible waiting times with black screens would impact viewing, the fast input switching can be convenient and avoid distraction

Product Specifications

Display

Panel Technology UVA

Viewable Image Size 70"

Native Resolution 1920 x 1080

Pixel Pitch 0.8mm

Backlight Type LED Edge-lit

Brightness (typical) 360cd/m2

Brightness (maximum) 450cd/m2

Contrast Ratio (typical) 4000:1

Viewing Angle 176 Vert., 176 Hor. (88U/88D/88L/88R) @ CR>10

Response Time(Gray to Gray) 8ms

Refresh Rate 60Hz

Aspect Ratio 16:9

Active Screen Area 60.6 x 34.1in. / 1538.9 x 865.6mm

Orientation Landscape

Displayable Colors More than 16.7 million

Synchronization Range

Horizontal (Analog/Digital) 15.625 / 15.734 / 31.5-91.1 kHz

Vertical 50-85 Hz

Input Signal

Video Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort

Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

PC Signal Compatibility Yes

Macintosh Compatibility Yes

Input Terminals

Digital DisplayPort, HDMI (2), DVI

Analog VGA 15-pin D-sub

Audio Audio Mini-Jack x 2

External Control Ethernet (RJ45), RS-232C


Output Terminals

Audio Audio Mini-Jack, External Speaker Jack (2)

Power Consumption (typical)



On 150W

ECO Mode Standby <2.5W

Physical Specifications




Bezel Width (Left/Right, Top/Bottom) 0.9/0.9, 0.9/0.9 in. / 23.0/23.0, 23.0/23.0 mm

Dimensions (WxHxD)

Net (with stand) 62.5 x 37.7 x 23.9 in. / 1587.0 x 956.8 x 606 mm

Net (without stand) 62.5 x 36.2 x 3.4 in. / 1587.0 x 919.6 x 86.9 mm

Shipping 68.4 x 45.4 x 12.5 in. / 1738 x 1153 x 318 mm

Weight



Net (with stand) 113.5lbs / 51.6 kg

Net (without stand) 103.4lbs / 47.0 kg

Shipping 134.2lbs / 61 kg

VESA Hole Configuration Specifications

400 x 400mm

Environmental Conditions

Operating Temperature 41-104F / 5-40C

Operating Humidity 20-80%

Operating Altitude 9843 ft. / 3000m

Storage Temperature 32-104F / 0-40C

Storage Humidity 10-90%

Storage Altitude 40,000 ft. / 12,192m

Limited Warranty (parts & labor, including backlight)

3 years

Additional Features


  • Integrated Temperature Sensors
  • Thermodynamic Cooling Fans
  • Ethernet control and communication
  • RS-232Control and communication
  • AMX Beacon Compatible, Crestron Connected Compatible
  • Full 24/7 Scheduler
  • OPS expansion slot
  • Custom Input Detect Options

Auto Power On Integrated 10W Speakers Full Steel Chassis Plug and Play DDC2B Full Scheduler Function

Ships With



  • Power cord
  • 1.8m DVI-D cable
  • Wireless remote control
  • Batteries
  • CD-ROM (user manual)
  • Option board slot cover
  • Screws
  • Thumbscrews

Accessories

Optional



NEC

  • Table Top Stand (ST-801)
    • Optional Side-Mounted 15W Speakers (SP-TF1)
      • Optional Rear-Mounted 15W Speakers (SP-RM1)
        • Optional Tilt Wall mount (WMK-6598)
          • OPS HDBaseT Receiver Module (SB-07BC)
            • OPS HD-SDI Module (SB-01HC)
                • Any NEC OPS PC Option

No additional files, specification sheets, guides or documentation found for product.
