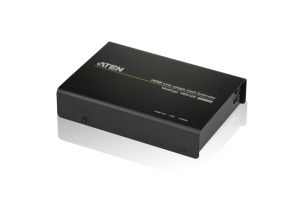

VE812R
HDMI over Single Cat 5 Receiver
Overview
The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 100 m.The VE812R not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Features
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Anti-jamming resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 100m
- EDID Expert selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Specifications
| Video Input |
Interface |
1 x HDMI Type A Female (Black) |
| Impedance |
100 |
| Max Distance |
1.8 m |
| Video |
Max. Data Rate |
10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock |
Up to 340 MHz |
| Compliance |
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC) |
| Max Resolutions / Distance |
Up to 4K@70m (Cat 5e/6); 1080p@100m |
| Audio Input |
1 x HDMI Type A Female (Black) |
| Power |
Connector: 1 x DC Jack (Black)
Consumption: 5.3 VDC, 1.9W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20 - 60C |
| Humidity |
0-80% RH, Non-Condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.43 kg |
Dimensions
(L x W x H) |
14.17 x 10.30 x 3.00 cm |
| Carton Lot |
5 pcs |
