All stock codes associated to this product
24390026, 24-390-026, 2441425, 698833040036

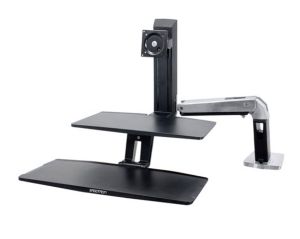

WorkFit-A with Suspended Keyboard, Single LD
This premium stand-up desk solution adds extra ergonomic benefits, allowing the keyboard tray to be positioned below desktop level for optimum computing comfort.
A WorkFit height-adjustable workstation moves your keyboard and monitor in one simple motion—change from a sitting to a standing position whenever you want. Fold your keyboard up and swing the arm out of the way when you need your desk surface.
NOTE: To span between standing and sitting heights, extra long computer cables may be required for your system.
Benefits
For Computer Users
Keyboard can be positioned below desk surface for optimum ergonomic comfort
Safe, easy to use—simple installation and effortless operation
Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort
Patented Constant Force™ lift technology provides fluid, one-touch adjustments of the keyboard and monitor
Fold keyboard up and swing arm and monitor out of the way when you need your desk surface
Included worksurface provides ample space and quick access to a tablet computer, phone or task-related items
For IT and Facilities Staff
Flexible, open-architecture design is scalable for future computer equipment
Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers
Safe and neat routing of cables
For HR/Risk Management and Company Cost Savings
Manage the cost of healthcare premiums by promoting wellness in the daily work routine
Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
Comfortable computing offers provable ROI on investment—healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
WorkFit helps alleviate back and neck pain, the most costly conditions affecting employees according to the 2007 OE Medicine Journal
Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture**
Tech Specs
Part Number: 24-390-026
Description: WorkFit-A with Suspended Keyboard, Sit-Stand Workstation, LD Light Duty for standard-size monitors (polished aluminum, black)
Includes arm, desk clamp, grommet mount, monitor riser, monitor pivot, keyboard tray support bracket, worksurface, keyboard tray, assembly fasteners, Velco, cable wrap, adjustment tools
* Weight Capacity: Maximum total load on height-adjustment assembly = 20 lbs (9.1 kg). LCD weight = 5–15 lbs (2.3–6.8 kg), worksurface = 5 lbs (2.3 kg), keyboard tray = 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 20 lbs (9.1 kg). The minimum total weight should not be less than 6 lbs (2.7 kg)
† Lift Range: LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
When in seated position, keyboard tray can drop down = 4" (10 cm) below level of desktop surface, placing the keyboard at the optimum ergonomic height
Mounting Surface Requirements: When installed using Desk Clamp option, can be configured to work with desk surfaces up to 31.5" (80 cm) deep. When installed using Grommet Mount option, center of through-hole should be no more than 29.5" (75 cm) from front edge of desk surface. These requirements ensure that the suspended keyboard tray can extend past the desktop’s front edge
Keyboard tray can be installed in 3 different positions: centered, offset right or offset left
Keyboard tray designed with slight tilt to ensure wrists remain in a neutral position during data entry and help prevent repetitive stress-injuries; tray can be flipped up 90º when not in use
Integrated cable management hides wires
Worksurface Dimensions: Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Can be configured to hold a laptop in place of monitor: order accessory Notebook Tray (50-193-200)
NOTE: Computer systems mounted on a WorkFit-A may require extra long power and video cables in order to span between standing and sitting heights
** A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%
Shipping Dimensions: 36" x 21.25" x 10.75" (941 x 540 x 273 mm)
Shipping Weight: 45 lbs (20.5 kg)
Warranty: Five (5) years
