All stock codes associated to this product
AP7723, 1000520, 731304255857

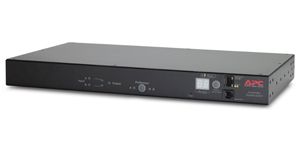

Rack-mount Transfer Switches
RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT
AP7723
APCRack-mount Transfer Switches, Input:200V, 208V, 230V, Input Connections:IEC-320 C20, Output:230V, Output Connections:IEC 320 C13,IEC 320 C19
Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable, Warranty card
Product Overview
AP7723 Features
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Rack-mount Transfer Switches Features & Benefits
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Dual Input Power Sources
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
Technical Specifications
Nominal Output Voltage
230V
Maximum Total Current Draw per Phase
16A
Output Connections
| (8) IEC 320 C13 |
 |
| (1) IEC 320 C19 |
 |
Nominal Input Voltage
200V, 208V, 230V
Input Frequency
47 - 63 Hz
Maximum Line Current per phase
20A
Maximum Input Current per phase
20A
Operating Environment
-5 - 45C
Operating Relative Humidity
5 - 95%
Operating Elevation
0-3000meters
Storage Temperature
-25 - 65C
Storage Relative Humidity
5 - 95%
Storage Elevation
0-15000meters
Regulatory Approvals
cUL Listed, CE, EN 55022 Class A, FCC Part 15 Class A, UL Listed
Standard Warranty
2 years repair or replace
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Battery Directive
Compliant
Battery Notes
Contains Lithium Coin Cell
Other Environmental Compliance
China RoHS
