Corporate Portable Multimedia Projectors
High Performance Mid-Range Projection For Education and Corporate
Overview
Epson EB-965H mid-range projector provides ultra-bright image quality. With 3,500 lumens both in high colour brightness and in white brightness driven by 3LCD, 3-chip technology. The EB-965H mid-range projector is ideal for delivering large and engaging presentation content in the classroom or office with versatile digital connectivity. The EB-965H now comes equipped with MHL connectivity via HDMI for a more complete digital solution. The long lasting lamp, projecting up to 10,000 lamp hours in ECO mode gives an extended period of reliable performance. Suitable for desktop use with convenient table top placement or using the optional ceiling mount (ELP-MB23), the EB-965H offers flexible installation in any environment.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
- Crisp Clear Resolution Featuring XGA image resolution (4:3).
- Maximise the display Split screen function allows content from two separate sources to be displayed side by side on the same screen.
- Long Lasting, low cost lamp priced at $99 RRP inc GST Up to 10,000 hours in ECO mode.
- Versatile Connectivity Newly added dual HDMI ports (the HDMI 2 port is MHL compatible) increases digital compatibility.
- Horizontal Keystone Slider The Horizontal Keystone slider allows for quick and easy adjustments to correct image distortion.
- Control4 support Newly added Control4 supports to dim the lights, lower the screen and turn on the projector with one touch control.
- Auto Power on Simply plug in a source device via VGA and the projector will power on.
- Convenient collaboration for BYOD classrooms Wirelessly share and compare students work from multiple devices, simultaneously, with EasyMP software / Multi-PC Projection function.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.
Up to 3x Brighter Colours with Epson Projectors
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

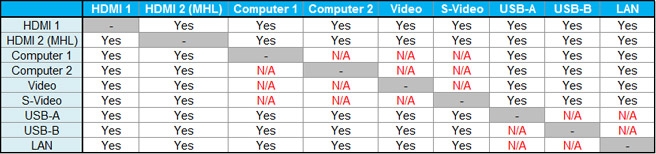

Maximise the display with split screen
Split Screen allows inputs from two separate sources to be displayed side by side on the same screen. For example, images from a document camera and PC could be projected at the same time.
Long Lasting low cost lamp
Enjoy up to 10,000 hours lamp life in ECO mode. The new lamp priced at $99 RRP inc GST will offer lowered maintenance cost while delivering bright vivid images. Even when ceiling mounted changing the lamp is quick and easy thanks to the well placed access points.
Versatile Connectivity
Not only does the wide-ranging interface correspond with conventional analogue sources, it boasts two HDMI inputs. One of which also acts as a MHL (Mobile High Definition Link) terminal (HDMI 2 port).
MHL is an innovative technology allowing you to mirror high definition content and charge an Android device via a single MHL cable.

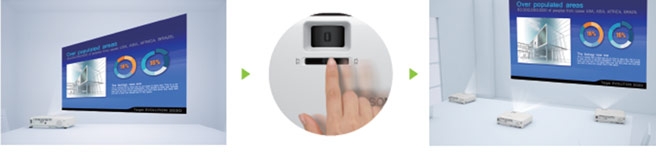

Horizontal Keystone Slider
The Horizontal Keystone slider allows for quick and easy adjustments to correct image distortion. With a single touch a broad range of placement options become available.
Epson iProjection App
Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen (Optional ELPAP07 Wireless LAN Unit is required).
Conveniently collaborate with Multi PC Projection
The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.
Advanced Networking
With the EB-965H, its possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (RJ45) and wirelessly (via optional wireless LAN unit ELPAP07).
Control4 support
The new EB-965H now comes with Control4 SDDP (Simple Device Discovery Protocol) automation technology offering wider range of connectivity.
Turning the projector ON, lowering the screen, dimming the lights, controlling speaker volume, and performing other tasks can be all automated by simply selecting options on the classroom computer screen.
Additionally, EB-965H can also be controlled and managed with AMX, Crestron and Extron technology.

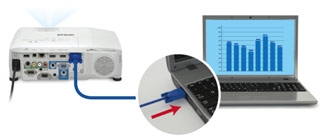

Auto Power on
The EB-965H comes with an Auto Power feature, providing a quick start to any meeting or class. To start automatically, simply connect to a source device via VGA while the projector is in standby. There is no need to reach for the power button or go looking for the remote control.

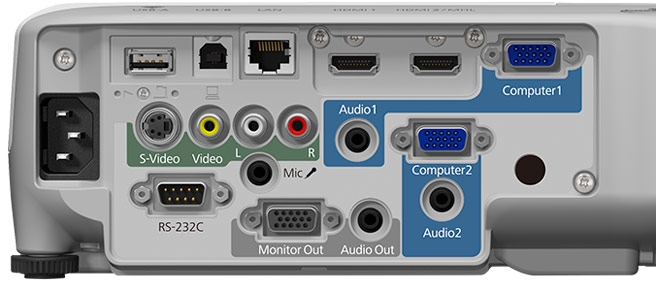

Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-965H |
| PRODUCT CODE |
V11H682053 |
| WHAT'S IN THE BOX |
|
| |
1.8m Computer Cable, 1.8m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual |
| TECHNOLOGY |
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.63-inch with MLA (D7) |
| OPTICAL |
|
| Zoom |
1 - 1.6 |
| Screen Size |
30" to 300" |
| Projection Distance |
60" screen 1.69 m |
| Throw Ratio |
1.38 (Zoom: Wide), 2.24 (Zoom: Tele) |
| Projection Lens F Number |
1.51 - 1.99 |
| Projection Lens Focal Length |
18.2 mm - 29.2 mm |
| Focus Method |
Manual |
| Offset |
8.6:1 |
| IMAGE |
|
| Colour Light Output |
3,500 Lumens |
| White Light Output |
3,500 Lumens |
| Resolution |
XGA |
| Native Aspect Ratio |
4:3 |
| Contrast Ratio |
10,000:1 |
| Lamp Hours |
Normal/Eco: 5,000 Hours/10,000 Hours |
| Lamp Type |
200W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
| Auto Keystone Correction |
Yes |
| Horizontal Slide Keystone Correction |
Yes |
| Split Screen |
Yes |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
USB Type A Ver.2.0 |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
2 x HDMI (1 x MHL) |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
1 x RJ45 (100Mbps) |
| Wireless Connectivity |
Optional Accessory(ELP-AP07) |
| Output: Video |
D-sub 15 pin (black molding) |
| Output: Audio |
Stereo mini jack x 1 |
| Speaker Output |
16W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes (with optional Wireless LAN Unit) |
| EasyMP Network Projection |
Yes (with optional Wireless LAN Unit) |
| PC Free Presentations |
Photo / Motion JPEG |
| USB Plug 'n Play |
Yes |
| Projector Control |
Control 4, AMX, Crestron, Extron |
| AV Mute Slide |
Yes |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington -style lock provision
Padlock
Security cable hole
Wireless LAN Unit Lock Password protect function |
| Colour Modes |
Dynamic, Theatre |
| GENERAL |
|
| Dimensions D x W x H (excluding feet) |
269 x 297 x 87 mm |
| Weight |
2.9kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal/Eco: 287/215W |
| Power Consumption: Standby |
0.26W (communication off) |
| Noise Level |
Normal/Eco: 37/29dB |
| |
|
Whichever comes first. For more information visit Epson Projector Warranty
|
