All stock codes associated to this product
EB585W, EB-585W, V11H602053, 9314020614934
Epson EB-585W
Ultra Short Throw Projectors
The ultimate ultra short-throw projector for classroom collaboration
Overview
The EB-585W ultra-short-throw projector redefines collaborative learning. Engineered for today's BYOD classroom, it features widescreen WXGA resolution, plus advanced network connectivity and wireless performance, making it easier than ever to share engaging, larger-than-life lessons. Offering 3x Brighter Colours* than competitive models, Epson 3LCD projectors ensure bright, vivid lessons. Featuring 3300 lumens of colour brightness1 and 3300 lumens of white brightness1, the EB-585W delivers truly dynamic images. And, it includes Moderator software2, so you can easily share and compare students' work from multiple devices, simultaneously.
Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
Moderator feature is part of Epsons EasyMP Multi PC Projection software.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
KEY FEATURES & BENEFITS
- Brighter images Now with up to 3,300 lumens white brightness and colour brightness.
- Longer lamp life Up to 6,000 hours# lamp life in ECO mode.
- Higher contrast ratio Now with 10,000:1 across the entire range.
- Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android mobile devices.
- Wireless projection Projection function without the wires when used with the optional LAN card (using peer to peer wireless and Epsons EasyMP Network Projection software version 2.81 or later).
- Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
- New projector control tool bar Allows user to control the projector (eg switch sources, zoom, volume up/down etc) using the interactive pen.
- No driver installation required Installation has never been easier (driver installation is required for Mac).
- Advanced Networking Capability Enables users to monitor, control and present from a remote location.
- Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
- 16W Built-in Speaker Built in audio with the power to fill the room.
Lamp life for the EB-575W and EB-575Wi is up to 10,000 hours (eco mode) and 5,000 hours (normal); lamp life for the EB-580, EB-585W, EB-585Wi and EB-595Wi is up to 6,000 hours (eco mode) and 4,000 hours (normal). Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp Brightness decreases over time.
Ultra Short Throw Models - Range at the glance
| Model |
EB-580
|
EB-580e
|
EB-575W
|
EB-575We
|
EB-585W
|
EB-585We
|
| White Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Colour Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Display Technology |
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
| Native Resolution |
XGA
|
XGA
|
WXGA
|
WXGA
|
WXGA
|
WXGA
|
| Aspect Ratio |
4:3
|
4:3
|
16:10
|
16:10
|
16:10
|
16:10
|
| Contrast Ratio |
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
| Network Functionality |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Wireless LAN |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
| HDMI Connectivity |
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
| Speakers |
16W
|
16W
|
16W
|
16W
|
16W
|
16W
|
| Integrated Mount Included |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Zoom Ratio |
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
| Education Model |
-
|
YES
|
-
|
YES
|
-
|
YES
|
| Low Cost Replacement Lamp |
|
|
|
|
|
|
| Lamp Hours |
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
Basic Functions
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.
Up to 3x Brighter with Epson Projectors
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Higher Brightness
With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.
Ultra Short Throw Benefits
Bigger Image
The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.
Significantly Reduced Shadow Interference
You no longer need to worry about obscuring the information on screen with shadows cast by your body.
Classroom Friendly Design
These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.
Wide Ranging Interface
Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.
One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.
Mobile Device Compatibility
Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.
Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.
EASY INSTALLATION AND MAINTENANCE

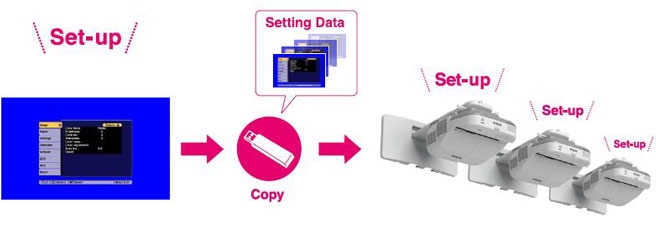

Cloning Function
When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.

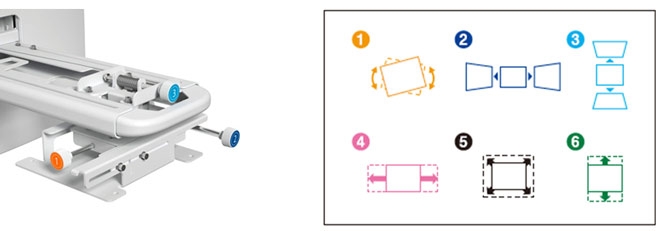

Easy Installation and Adjustment
Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.

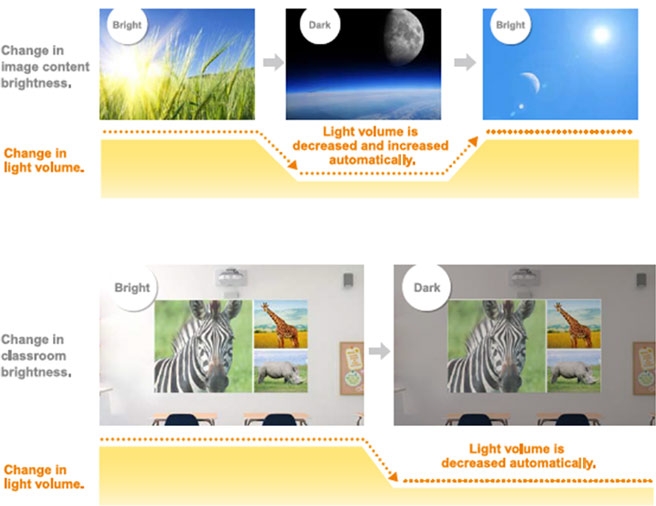

Lamp Regulator Function
This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.
Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.
Longer Lamp Life
The long 10,000 hours lamp life# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.

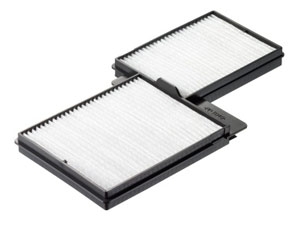

Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.
Connectivity Panel
Specifications:
| PRODUCT NAME |
Epson EB-585W |
| PRODUCT CODE |
V11H602053 |
| TECHNOLOGY |
|
| Projection Technology |
Epson 3LCD, 3-chip technology |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.59-inch with MLA |
| OPTICAL |
|
| Zoom Ratio |
1.0 - 1.35 (Digital Zoom) |
| Screen Size (Projection Distance) |
60" to 100" [34.8 to 59.7cm]
74.3" screen 43.8 cm |
| Throw Ratio |
0.27 (Zoom:Wide)
0.37 (Zoom:Tele) |
| Projection Lens Type |
No Optical Zoom / Focus (Manual) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
6.0:-1 |
| IMAGE |
|
| White Light Output |
3,300 lumens |
| Colour Light Output |
3,300 lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Keystone Correction |
Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
| CONNECTIVITY |
|
| Video I/O - Input |
Analog: 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
1x Min DIN 4pin S-Video |
| Video I/O - Output |
Analog: 1x RGB D-sub 15pin
*In common with Computer 2 input.
Output signal: Computer 1 only |
| Digital Input |
Digital: 2x HDMI (1 supports MHL) |
| Audio I/O - Input |
3x Stereo mini |
| Audio I/O - Output |
1x Stereo mini |
| Mic I/O - Input |
1x Stereo mini |
| Control I/O |
1x RS-232C D-sub 9pin |
| USB I/O |
1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
| Network I/O: |
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP07 LAN unit) |
| Wireless Connectivity |
Optional ELPAP07 Wireless LAN unit |
| Speaker Output |
Monaural: 16 W x 1 |
| ADVANCED FEATURES |
|
| EasyMP Network Projector control and projector management via network |
Yes |
| EasyMP Network Projection |
Yes |
| EasyMP Network Multi PC Projection |
Yes |
| Message Broadcasting |
Yes |
| Firmware update |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD settings |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection |
Yes |
| Wireless LAN Security |
WPA/WPA2-Personal (with optional Wireless LAN Unit) |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Security |
* Kensington - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo) |
| Colour Modes |
Dynamic, Theatre |
| Integrated Mount included |
Yes |
| GENERAL |
|
| Dimensions (excl feet) WxDxH |
367 x 375 x 155mm |
| Weight |
5.3kg |
| Lamp Warranty |
1 Year (or 750 hours)* |
| Projector Warranty |
3 Years |
| Lamp Hours |
4,000 hours (Normal)
6,000 hours (ECO) |
| Lamp Type |
245W UHE |
| Power Consumption: Lamp On |
358W (Normal)
270W (ECO) |
| Power Consumption: Networked Standby |
4.3W |
| Power Consumption: Energy Saving |
0.44W |
| Air Filter maintenance cycle |
up to 5000 hours |
| Fan Noise Level |
Power consumption Normal: 35dB
Power consumption ECO: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| WHAT'S IN THE BOX |
|
| Power Cable |
Yes 5M |
| Password Protect sticker |
YES |
| Remote Control |
YES |
| Battery for Remote Control |
AA x 2 |
| Setting Plate |
YES |
| |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L80 |
ELPLP80 Lamp 245W UHE for EB-580/580e/585W/585We/585Wi/595Wi/595Wie |
| |
V13H134A40 |
ELPAF40 Air filter |
| |
V12H003P13 |
ELPFP13 Extension pole/suspension adaptor |
| |
V12H003P14 |
ELPFP14 Extension pole/suspension adaptor |
| |
V12H516040 |
ELPMB29 Table mount |
| |
V12H525001 |
ELPKC31 USB extension cable |
| |
V12H418P13 |
ELPAP07 USB Wireless LAN adaptor |
| |
V12H005M09 |
ELPAP09 USB Quick wireless USB key |
| |
|
|
