X99EXTREME6/3.1, X99EXTREME6/31
X99 Extreme6/3.1
X99 and Xtreme Series Makes Perfect
- ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- Supports Intel Core i7 and Xeon 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power, 12 Power Phase design, Multiple Filter Cap (MFC)
- Supports Quad Channel DDR4 3200+(OC), 15 Gold Contact in DIMM Slots
- 3 PCIe 3.0 x16, 2 PCIe 2.0 x1, 1 mini-PCIe, 15 Gold Contact in VGA PCIe Slots
- Supports AMD 3-Way CrossFireX and NVIDIA 3-Way SLI
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity Sound 2 & DTS Connect
- Intel Gigabit LAN + Qualcomm Atheros Gigabit LAN
- 10 SATA3, 1 SATA Express, 1 eSATA, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 1 USB 3.1 Type-C 10Gb/s, 2 USB 3.1 Type-A 10Gb/s (Supported by the bundled ASRock USB 3.1 Card/A+A), 8 USB 3.0 (4 Front, 4 Rear), 7 USB 2.0 (4 Front, 2 Back, 1 Vertical Type A)
- 1 COM Port Header, 1 TPM Header, 1 Thunderbolt AIC Connector
- Supports HDD Saver Technology, Full Spike Protection, APP Shop
Features
Onboard type-c & USB3.1 Card / A+A
Faster device charging with power currents of 3.0 ampere
Ultra durable
supports over 10,000 plug and removals
A reversible design
that fits the connector either way
XXL Aluminum Alloy Heatsink Design
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.
Ultra Dual-N MOSFET
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
Tested under industry standard 105 degree Celsius ambient temperature.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

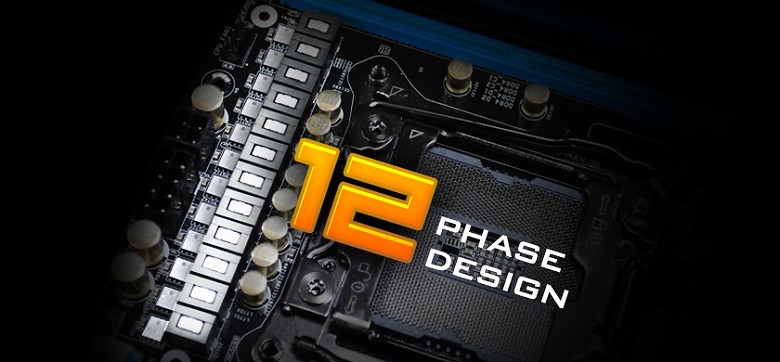

12 Power Phase Design
Designed with a 12 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Digi Power
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 (PCIe Gen3 x4)
The Worlds Fastest M.2 Socket - PCIe Gen3 x4
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.
X Series OC Socket
ASRock’s newly designed LGA2011 CPU socket that adds more pins to boost the performance of the CPU and memory, plus it also unlocks several hidden voltage tweaking options for advanced overclocking.
Supports DDR4 ECC / RDIMM Memory Modules
This motherboard is capable of supporting DDR4 ECC and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.
ECC is supported with Intel® Xeon® processors.
128GB Memory Support
Designed to meet the maximum computing power system, this motherboard adopts Quad-Channel 8 DDR4 DIMM slots. Each slot supports 16GB memory module, thus delivering a maximum capacity up to 128GB.
Dual LAN
Dual Gigabit LAN – This motherboard provides two gigabit LAN ports, Intel® I218V & Qualcomm Atheros AR8171.
SATA Express Connector
The SATA Express* interface provides PCIe Gen2 x2 (10Gb/s) data transfer speed. This motherboard offers the latest SATA Express connector to enthusiasts to enjoy the ultimate performance.
Support to be announced.
mini-PCIe Slot
The mini-PCIe slot is a convenient peripheral interface that can be used for connecting WiFi card.
Thunderbolt™ Ready
This motherboard has been certified with an ASUS ThunderboltEX II and is compatible with other third party Thunderbolt™ devices as well. With the Thunderbolt™ 2 Add-in-Card, it may support up to six daisy chained Thunderbolt™ devices up to 10 Gbps
ASRock Thunderbolt™ Technology Expert
Up to 10 Gbps : The fastest connection to your PC
Bi-directional data transfer with PCI Express and DisplayPort
Daisy Chain : Up to 6 Thunderbolt™ devices
Large, high-resolution displays (Supports 4K)
Connecting to onboard graphics | Connecting to a graphics card
Thunderbolt™ AIC is not included in the motherboard package. Product images for reference only.
Please update to the latest BIOS to support Thunderbolt™ technology.
The list of supported Thunderbolt™ devices can be found here.
Purity Sound™ 2
Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.
This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution's frequency response drops drastically at low frequencies. Compared to traditional audio solution's (2.0dB) at 20 Hz bass low freq area, Purity Sound 2 still maintains its frequency response (0.4dB) and provides better bass with the TI NE5532 amplifier, improving the bass quality by 20% (1.6dB)!
HDD Saver Technology
There's a dedicated 4-pin HDD Saver Connector placed near the SATA ports. By connecting it to the HDDs, you can shut down or turn on the HDDs via software when needed. HDD Saver Technology secures more privacy, saves more energy, and extends HDD life.
Once you shut down your connected HDDs, they will disappear from your file explorer screen. Therefore other people won't even know these HDDs existed, nor can they access your private data stored on these HDDs. You can protect your privacy easily.
Shut down and hide up to 2 HDDs for privacy when needed
Without HDD Saver Technology, all HDDs are visible all the time. Your privacy is NOT protected!
Many HDDs are used for storing data only, while ODD is not frequently used. However, these occupied HDDs/ODD still consume a lot of energy and increase the internal temperature of the chassis when idle. This eco-friendly design allows you to shut down those devices for saving more energy. You can turn them back on anytime you need them.
Switch on or off the connected HDD/ODD whenever you want! Save more energy!
It is always annoying when your HDDs fail, not to mention the loss of your precious photos, videos, data, etc. By avoiding switching your HDDs on and off frequently, you can protect them from any potential damage and prolong your HDDs' life.
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.
Orbweb ME : Get Connected with ASRock Cloud Anytime, Anywhere
App Charger : Fast Charge & Charge Anytime
Google Chrome : Better Browsing with Google Options
XFast LAN : Your Smartest Internet Access Manager
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM and a whole lot more.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboards components from being damaged by these unexpected voltage spikes.
Surge Protection
Protects the motherboard from excessive surges from the power supply unit.
Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
ESD Protection
USB : Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
Tired of listening to crappy audio that makes your ears bleed? Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.
DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
Specifications
Product Specifications
| General |
| Unique Feature |
ASRock USB 3.1
- ASRock USB 3.1 Card/A+A (10 Gb/s)
- ASRock USB 3.1 Type-C Port (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock APP Shop |
| CPU |
- Supports Intel Core i7 and Xeon 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power design
- 12 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Untied Overclocking Technology |
| Chipset |
- Intel X99 |
| Memory |
- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 3200+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory
- Supports non-ECC RDIMM (Registered DIMM)
- Supports DDR4 ECC, un-buffered memory/RDIMM with Intel Xeon processors E5 series in the LGA 2011-3 Socket
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15 Gold Contact in DIMM Slots
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
**Please refer to Memory Support List on ASRock's website for more information.
|
| BIOS |
- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment |
| Audio, Video and Networking |
| Graphics |
- n/a |
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound 2
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with differential amplifier
- TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect |
| LAN |
- 1 x Intel I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
- 1 x Qualcomm Atheros AR8171 (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
- Supports Qualcomm Atheros Security Wake On Internet Technology (on Qualcomm Atheros AR8171)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE |
| Expansion / Connectivity |
| Slots |
- 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode)*
- 2 x PCI Express 2.0 x1 Slots
- 1 x mini-PCI Express Slot
- Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- Supports NVIDIA Quad SLI, 3-Way SLI and SLI**
- 15 Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
*If M.2 PCI Express module is installed, PCIE5 slot will be disabled.
If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x16/x8/x4.
**If you install CPU with 28 lanes, 3-Way SLI is not supported. To support 3-Way SLI, please install the CPU with 40 lanes.
|
| Storage |
- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (SSATA3_3 connector is shared with the eSATA port) (SSATA3_2 connector is shared with Ultra M.2 Socket)*
- 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)
- 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*RAID is supported on SATA3_0 ~ SATA3_5 ports only.
**Support to be announced.
|
| ASRock USB 3.1 Card/A+A |
- 2 x USB 3.1 Type-A Ports (10 Gb/s) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Connector |
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x HDD Saver Connector
- 1 x PCIe Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector
- 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Vertical Type A USB 2.0
- 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x BIOS Selection Switch |
| Rear Panel I/O |
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 1 x eSATA Connector
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
- 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous |
| Software and BIOS |
Software
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock UEFI Guide
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer |
| Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) |
| Accessories |
- 1 x ASRock USB 3.1 Card/A+A
- 1 x ASRock SLI_Bridge_2S Card
- 1 x ASRock 3-Way SLI-2S1S Bridge Card
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x HDD Saver Cable
- 1 x Screw for Ultra M.2 Socket
- 1 x Screw for mini-PCIe Slot |
| Hardware Monitor |
- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages |
| Form Factor |
- ATX Form Factor
- 2oz Copper PCB
- High Density Glass Fabric PCB
- Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC) |
| OS |
- Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications |
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required) |
