All stock codes associated to this product
X99MKiller/3.1, X99MKiller/31

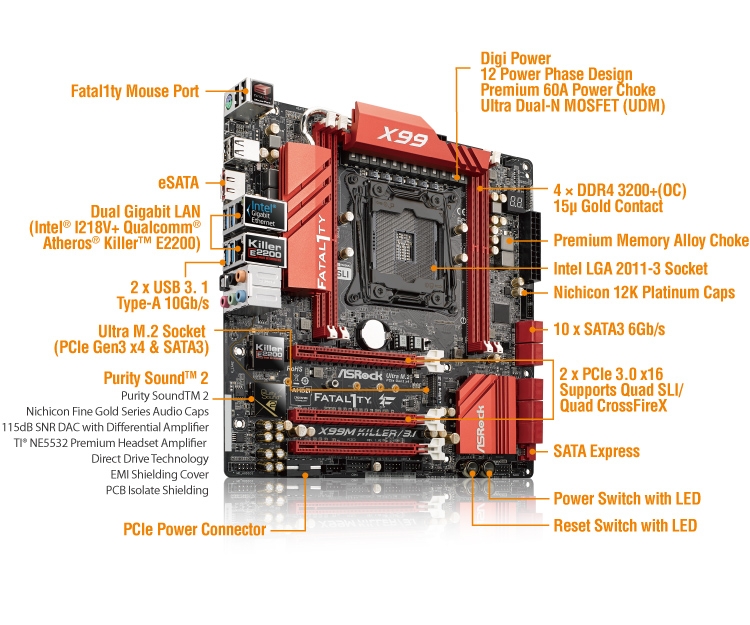

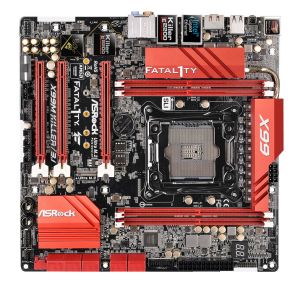

Fatal1ty X99M Killer/3.1
Game First, Questions Later
- ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- NexFET MOSFET
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- Gaming Armor
CPU Power - Hi-Density Power Connector + Ultra Dual-N MOSFET
Memory - NexFET MOSFET + 15 Gold Contact in DIMM Slots
VGA Card - 15 Gold Contact in VGA PCIe Slots, PCIe Power Connector
Cooling - XXL Aluminum Alloy Heatsink
Internet - Intel LAN + Qualcomm Atheros Killer LAN
Audio - Purity Sound 2
- Supports Intel Core i7 and Xeon 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3200+(OC)
- 2 PCIe 3.0 x16, 1 PCIe 2.0 x16
- Supports AMD Quad CrossFireX and NVIDIA Quad SLI
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound 2 & DTS Connect
- Intel Gigabit LAN + Qualcomm Atheros Killer LAN
- 10 SATA3, 1 eSATA, 1 SATA Express, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Type-A 10Gb/s, 4 USB 3.0 (2 Front, 2 Rear), 8 USB 2.0 (4 Front, 3 Rear, Fatal1ty Mouse Port)
- 1 COM Port Header, 1 TPM Header, 1 Thunderbolt AIC Connector
- Supports ASRock HDD Saver Technology, Full Spike Protection, APP Shop, F-Stream, Key Master
Features
USB 3.1 Type-A
Equipped with the latest high performance connectivity standard, two onboard Type A USB 3.1 connectors for delivering up to 10Gbps data transfer rates.
ASRock Killer Series features the Killer™ E2200 Intelligent Networking Platform is built for maximum networking performance for online games and high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. With this exclusive, automatic traffic prioritization, games and real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available.
Fast Networking Performance
Delivering faster networking performance for time-sensitive UDP (User Datagram Protocol) based applications, such as online games and high quality media streaming.
Killer Network Manager
Use Qualcomm Atheros Killer Network Manager to classify and prioritize online games, HD video and high quality audio for better quality and fewer interruptions in your online experience.
See which applications are hogging bandwidth and tune performance for each, so they don't interfere with your online gameplay or other streams. Monitor and manage the health and performance of your gaming rig with graphical displays, detailed logging and complete redesigned user interface.
XXL Aluminum Alloy Heatsink Design
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.
Premium 60A Power Choke
Compared to traditional chokes, ASRocks new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.
Ultra Dual-N MOSFET
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
NexFET MOSFET for Memory Power
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 mO, delivering higher efficiency and lower temperature.
NexFET MOSFETs in memory areas use a special design for protecting them from electrostatic discharge and offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
Tested under industry standard 105 degree Celsius ambient temperature.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

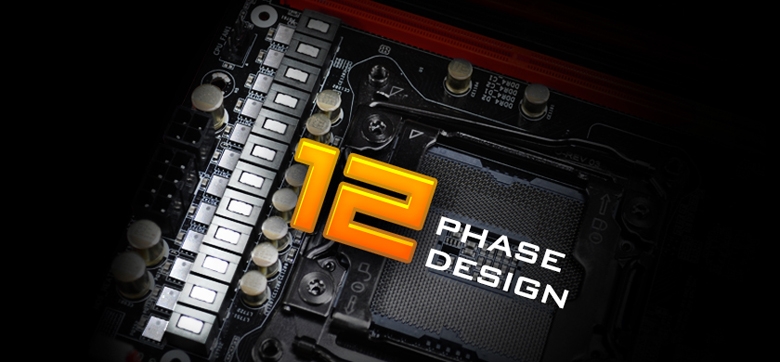

12 Power Phase Design
Designed with a 12 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

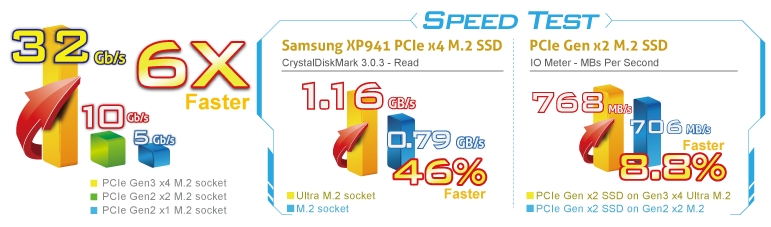

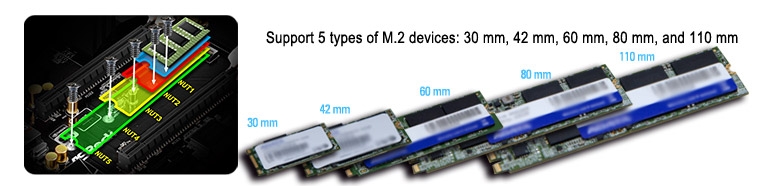

Ultra M.2 (PCIe Gen3 x4 & SATA3)
The World’s Fastest M.2 Socket - PCIe Gen3 x4
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.
X Series OC Socket
ASRock’s newly designed LGA2011 CPU socket that adds more pins to boost the performance of the CPU and memory, plus it also unlocks several hidden voltage tweaking options for advanced overclocking.

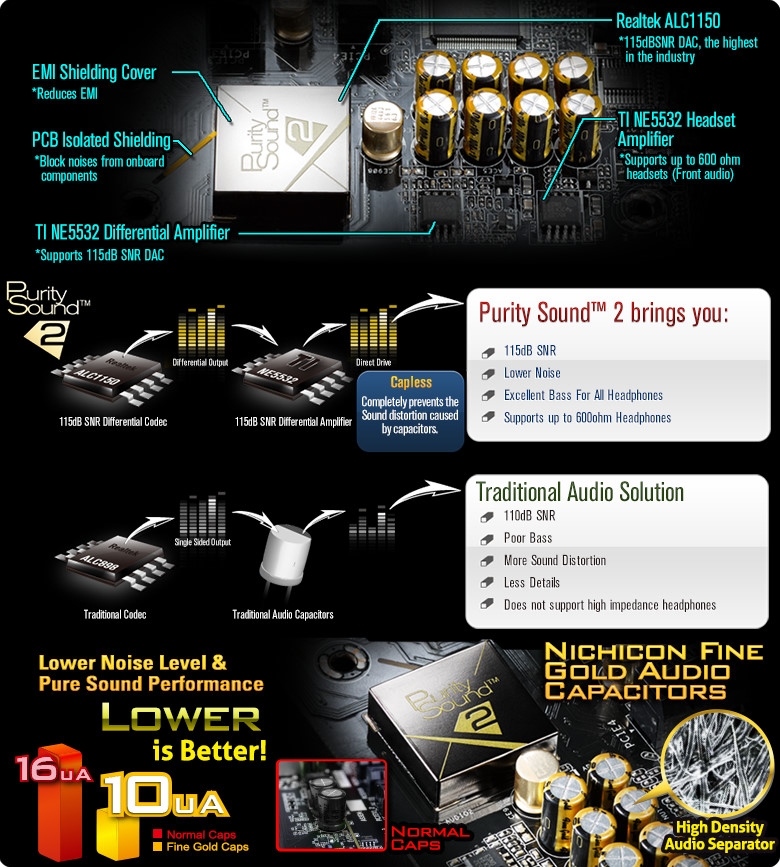

Purity Sound™ 2
Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.

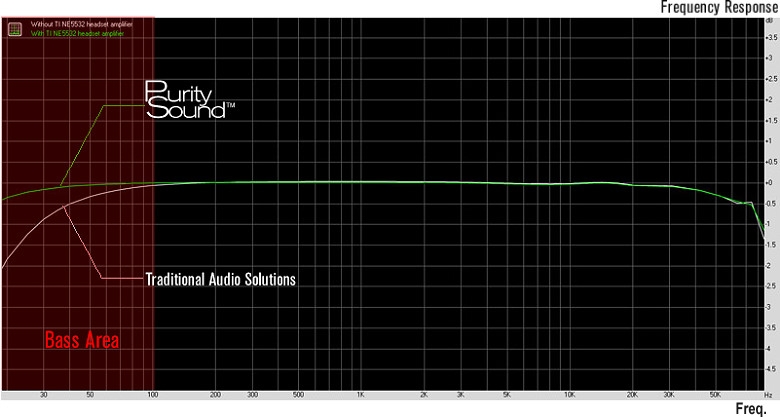

This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution's frequency response drops drastically at low frequencies. Compared to traditional audio solution's (2.0dB) at 20 Hz bass low freq area, Purity Sound 2 still maintains its frequency response (0.4dB) and provides better bass with the TI NE5532 amplifier, improving the bass quality by 20% (1.6dB)!
Key Master
What good is a weapon if you are unable to wield it proficiently? Key Master consists of two major features, Sniper Key and Macro Key. It can enhance your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay, turning your boring old keyboard and mouse into lethal weapons. Key Master may be prohibited by some games. We suggest disabling Key Master if it violates the game's end user license agreement.

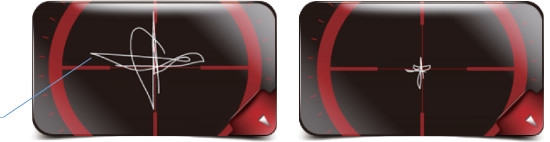

Sniper Key - Use Sniper Key to shift the mouse speed when you're in sniper mode, it will greatly sharpen your accuracy.
Mouse Track
Without Sniper Key
With Sniper Key

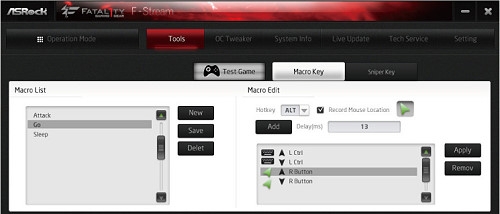

Macro Key - Tired of those repetitive keystrokes? Create your own set of keyboard hotkeys and macros with Macro Key to save the trouble.
Fatal1ty Mouse Port
Fatal1ty Mouse Port is a customizable technology for PC gamers that is a part of F-Stream. After plugging the USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can use Fatal1ty’s personal preferred mouse polling rate at 500 Hz. F-Stream also provides the flexibility for gamers to adjust the mouse polling rate from 125 Hz to 1000 Hz. This is helpful for professional gamers to experience smoother game play and faster response time.

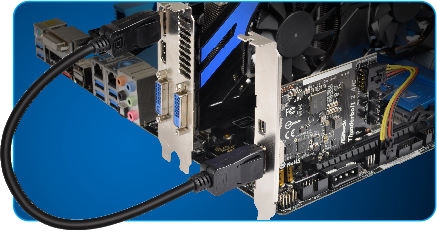

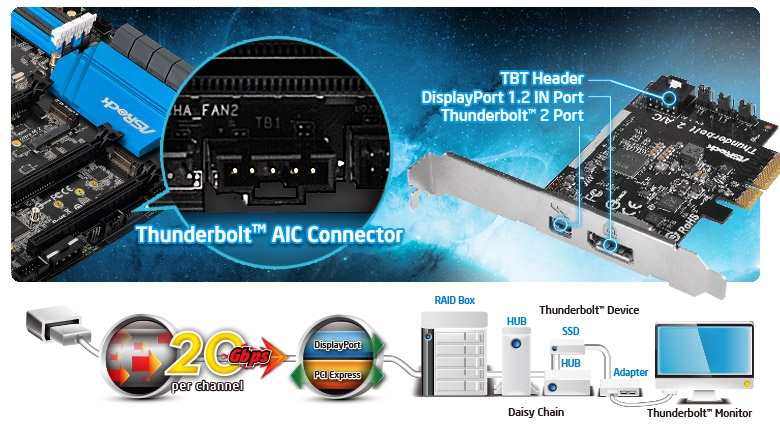

Thunderbolt™ 2 Ready
This motherboard has been certified with an ASUS ThunderboltEX II and is compatible with other third party Thunderbolt™ devices as well. With the Thunderbolt™ 2 Add-in-Card, it may support up to six daisy chained Thunderbolt™ devices up to 20 Gbps
ASRock Thunderbolt Technology Expert
Up to 20 Gbps : The fastest connection to your PC
Bi-directional data transfer with PCI Express and DisplayPort
Daisy Chain : Up to 6 Thunderbolt devices
Large, high-resolution displays (Supports 4K)

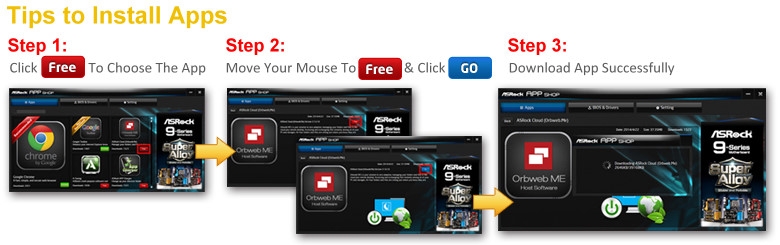

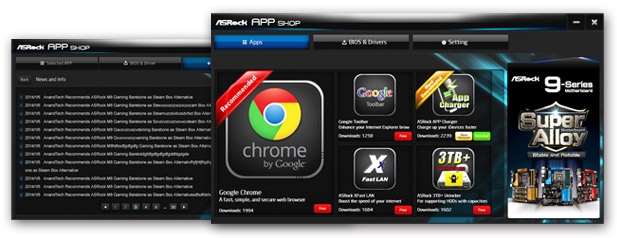

ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface from ASRock exclusive tools to the most update-to-date options of the latest technology.
Orbweb ME : Get Connected with ASRock Cloud Anytime, Anywhere
App Charger : Fast Charge & Charge Anytime
Google Chrome : Better Browsing with Google Options
XFast LAN : Your Smartest Internet Access Manager
F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities, including Key Master, Fatal1ty Mouse Port, EZ OC, Auto Tuning, XFast RAM, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!

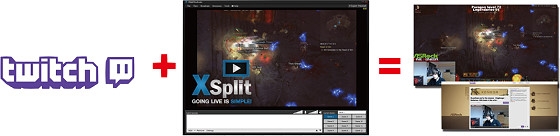

XSplit
XSplit Broadcaster is a desktop application designed to make your multimedia broadcasting, live-streaming and recording a lot easier and more fun. XSplit Gamecaster is a simplified version of XSplit Broadcaster. We’re giving XSplit Broadcaster & XSplit Gamecaster 3-month premium license bundle for FREE! A US$ 24.95 value! (
www.xsplit.com/redeem)
Broadcast Platform
Broadcast Software
Broadcasting!
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

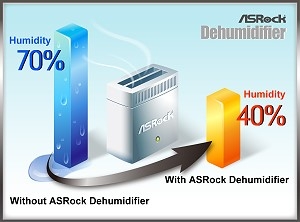

Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
Tired of listening to crappy audio that makes your ears bleed? Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.
DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
Specifications
Product Specifications
| General |
| Gaming Armor |
CPU Power
- Hi-Density Power Connector
- Ultra Dual-N MOSFET (UDM)
Memory
- NexFET MOSFET
- 15 Gold Contact in DIMM Slots
VGA Card
- 15 Gold Contact in VGA PCIe Slot (PCIE1 and PCIE2)
- PCIe Power Connector
Internet
- Intel LAN
- Qualcomm Atheros Killer LAN
Cooling
- XXL Aluminum Alloy Heatsink
Audio
- Purity Sound 2 |
| Unique Feature |
ASRock USB 3.1
- ASRock USB 3.1 Type-A Ports (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Ultra Dual-N MOSFET (UDM)
- NexFET MOSFET
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock APP Shop |
| CPU |
- Supports Intel Core i7 and Xeon 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power design
- 12 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Untied Overclocking Technology |
| Chipset |
- Intel X99 |
| Memory |
- Quad Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 3200+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory
- Supports non-ECC RDIMM (Registered DIMM)
- Supports DDR4 ECC, un-buffered memory/RDIMM with Intel Xeon processors E5 series in the LGA 2011-3 Socket
- Max. capacity of system memory: 64GB**
- Supports Intel Extreme Memory Profile (XMP) 2.0
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
** Please refer to Memory Support List on ASRock's website for more information.
|
| BIOS |
- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment |
| Audio, Video and Networking |
| Graphics |
- n/a |
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound 2
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with differential amplifier
- TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect |
| LAN |
- 1 x Intel I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
- 1 x Qualcomm Atheros Killer E2200 Series (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
- Supports Qualcomm Atheros Security Wake On Internet Technology (on Qualcomm Atheros Killer E2200 Series)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE |
| Expansion / Connectivity |
| Slots |
- 2 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE2 @ x16 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode) **
- Supports AMD Quad CrossFireX and CrossFireX
- Supports NVIDIA Quad SLI and SLI
*If you install CPU with 28 lanes, PCIE1/PCIE2 will run at x16/x8.
**If SATA Express 10 Gb/s Connector is occupied, PCIE3 slot will run at x2 mode.
|
| Storage |
- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology*
- 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)
- 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*S_SATA3_3 connector is shared with the eSATA port; S_SATA3_2 connector is shared with Ultra M.2 Socket; RAID is supported on SATA3_0 ~ SATA3_5 ports only.
**Support to be announced.
|
| Connector |
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x HDD Saver Connector
- 1 x PCIe Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector
- 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x BIOS Selection Switch |
| Rear Panel I/O |
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 1 x eSATA Connector
- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Type-A Ports (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Intel X99) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous |
| Software and BIOS |
Software
- ASRock F-Stream
- ASRock Disk Health Report
- ASRock USB Key
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer |
| Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), XSplit, Killer Network Manager |
| Accessories |
- 1 x ASRock SLI_Bridge Card
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x HDD Saver Cable
- 1 x Screw for Ultra M.2 Socket |
| Hardware Monitor |
- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages |
| Form Factor |
- Micro ATX Form Factor
- High Density Glass Fabric PCB |
| OS |
- Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications |
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required) |
