All stock codes associated to this product
CYTD55LDAH/EN, CY-TD55LDAH/EN, 2681746, 8806086698344

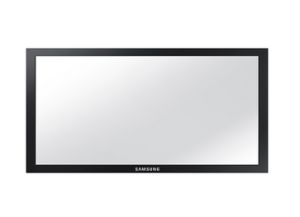

CY-TD55LDAH
Quick installation for touch screen functionality
Designed to upgrade an existing display, Touch Overlay eliminates the need to purchase new signage hardware by converting a standard display into a touchscreen for a more interactive viewing experience.
Feature
Optimize the Functionality and Longevity of LFDs
In todays unstable economic environment, businesses are constantly looking for ways to do more with less and to enhance equipment functionality with as little expenditure as possible. Samsung overlay accessories can upgrade a companys existing LFDs and eliminate the need to purchase new displays.
Transform Existing LFDs into Interactive Touchscreens
The Touchscreen Overlay Accessory converts a standard LFD into a touchscreen LFD for a more interactive viewing experience. A special treatment on the front of the panel provides a realistic writing experience that is similar to writing on a conventional whiteboard.
Add Value to an LFD with Quick Overlay Installation
Samsung overlay accessories offer installation that is designed to be quick and uncomplicated. The installation process enables businesses to upgrade LFDs within minutes, as compared to competitor all-in-one products that require additional steps. Samsung overlay accessories are lighter, slimmer and less expensive than most conventional LFDs that have touchscreen and protective glass features.
Specifications
General Info
| Product Concept |
Touch Overlay |
| Series |
D-series 55" |
| Inch |
55" |
Mechanical Spec
| Dimension (mm) |
Set |
1276.1 x 764.9 x 26.8 |
| Package |
1367 x 879 x 128 |
| Weight (kg) |
Set |
9.8 |
| Package |
12.6 |
| Glass Thickness |
2.8 |
| Glass Film |
AG(Front),PET(Rear) |
| Glass Reflection Rate |
10% |
| Glass Haze |
15% |
| Frame Material |
Aluminum Extrusion |
| Bezel Width (mm) |
32.75mm |
Touch
| Touch technology |
IR |
| Number of Simultaneous Touch |
2 Drawing 10 touch |
| Response Time (1 Point) |
13ms |
Accessory
| Included |
Software |
N/A |
| Hardware |
Extention USB Cable(2m) IR receiver |
| Optional |
N/A |
