SOLID CAP

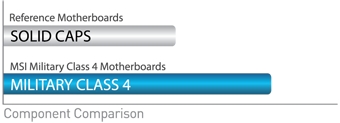

With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
Military Class essentials
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.

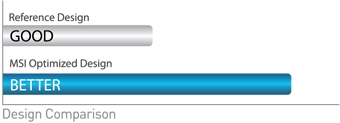

Humidity Protection

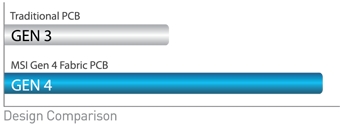

The latest Gen 4 Fabric PCB helps to against moisture cause by some humid conditions and environments.

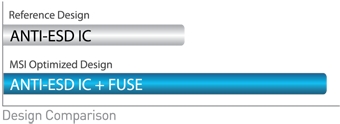

ESD Protection
Anti-ESD ICs and fuses onboard helps to totally protect your motherboard from electrostatic damage.
EMI Protection
The optimized EMI-proof design helps to keep users safe when during a long-time computer operation.
HIGH Temperature Protection
Certificated Military Class 4 components help to work stable under some extreme conditions.
OC Genie 4

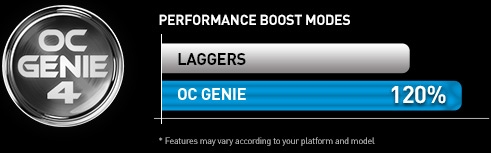

With the one-second overclocking option OC Genie we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot straight away. Give your system an awesome performance boost with ease.
OC Genie supports 65W K-series APU only

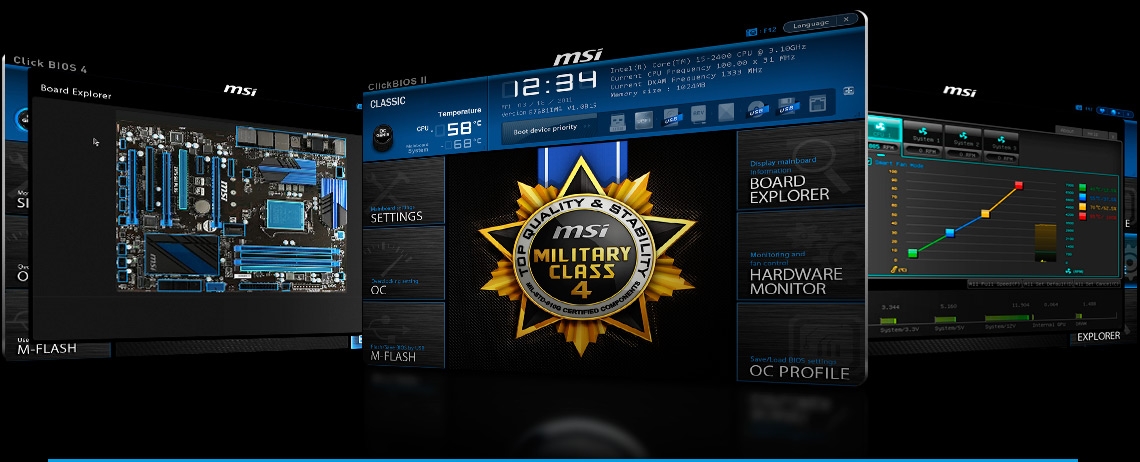

CLICK BIOS 4

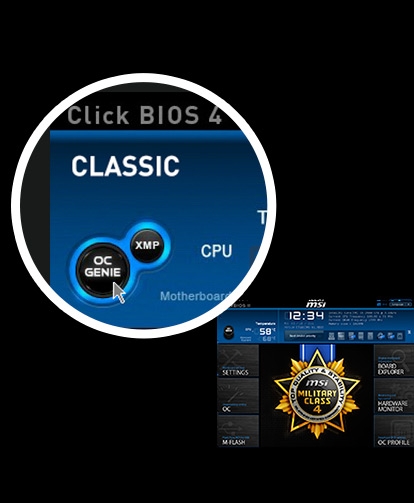

The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.
LIVE UPDATE 6
MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.
FAST BOOT

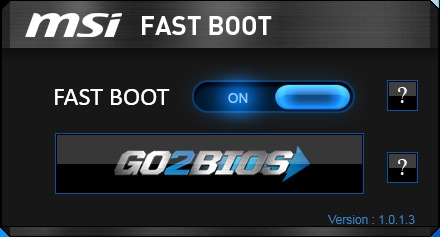

No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.
M-Flash
Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
- Backup/Restore Your BIOS to/from Any USB Flash Disk
- Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
- Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process
USB 3.0
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
SATA 6Gb/s
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.
- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs
USB Safeguard
USB Safeguard can prevent motherboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the motherboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan.
- All MSI motherboards use USB Safeguards anti-ESD chip for thorough protection against ESD damage
- USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply
AMD Cool'n'Quiet
AMD Cool'n'Quiet Technology reduces heat and noise so you can experience amazing performance without distraction. Combined with core enhancements, included in the AMD processors, that can improve overall power savings, deliver better multitasking and energy efficiency. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.
- Independent Dynamic Core Technology
- Dual Dynamic Power Management
- AMD CoolCore Technology
- AMD Wideband Frequency Control
- Multi-Point Thermal Control
HDMI
Enjoy the awesome HD video playback now! MSI motherboards that equip with HDMI port(s) supports the latest and the most innovative signal outputs to provide an unprecedented visual experience.

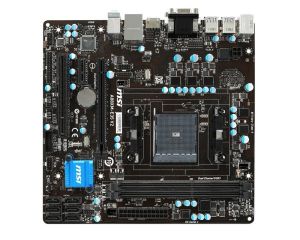

Specifications
Socket: FM2+
CPU (Max Support): AMD® A-Series/Athlon™
Chipset: AMD® A88X
DDR3 Memory: DDR3 1066/1333/1600/1866/2133*(*OC)
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 32
PCI-Ex16: 1
PCI-E Gen: Gen3 (1x16)
PCI-Ex1: 1
PCI: 1
SATAIII: 6
RAID: 0/1/5/10
TPM (header): 1
LAN: 10/100/1000*1
USB 3.0 ports (Front): 2
USB 3.0 ports (Rear): 2
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear) 4
Audio ports (Rear): 3
VGA: 1
HDMI: 1
DVI: 1
VGA Max Share Memory (MB): 2048
DirectX: DX11.1
Form Factor: M-ATX
Dual Graphics: Y
CPU
AMD A-Series/Athlon Processors* for the FM2+ package
* Also support FM2 A-Series/Athlon Processors
* Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
AMD A88X Chipset
|
 |
Main Memory
2 x DDR3 memory slots supporting up to 32GB
Supports DDR3 1333/ 1600/ 1866/ 2133*(*OC) MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports AMD Memory Profile (AMP)
Supports Extreme Memory Profile (XMP)
* For the support status of AMP/XMP memory modules, please take MSIs Memory Support list as reference.
|
|
Slots
1 PCI Express3.0 x16 slot*
1 PCI Express 2.0 x1 slot
1 PCIslot
* Only FM2+ processors can support PCIe 3.0
|
|
Graphics
1 x VGA port, supporting a maximum resolution of 1920x1200 @ 60Hz, 24bpp
1 x DVI-D port, supporting a maximum resolution of 2560x1600@60Hz, 24bpp/ 1920x1200 @ 60Hz, 24bpp
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz, 36bpp*/ 3840x2160@30Hz, 36bpp*/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp
* Only support when using an FM2+ APU
|
|
On-Board SATA
6 x SATA6Gb/sports by AMD A88X
- Supports storage and data transfers at up to 6Gb/s
- SATA1~6 ports support RAID 0/1/5/10 modes byAMD A88X
|
|
Audio
Chipset integrated by RealtekALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
|
|
LAN
Supports Gigabit LAN by Realtek RTL8111G
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
|
|
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
-1 x Front panel audio connector
- 2 x System panel connector
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper
- 2 x USB power jumpers
|
|
|
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports, 2 x USB 3.0 ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x LAN (RJ45) port
- 3 x audio jacks
* This platform supports dual-display function (HDMI+VGA, HDMI+DVI, VGA+DVI) and triple-display function (HDMI+VGA+DVI)
MSI Reminds You...
The graphic output can only work with CPUs with GPUs core inside. |
|
|
Dimension
Micro-ATX (22.6 cm x 21.6 cm)
Mounting
6 mounting holes
|
|
|
|
