All stock codes associated to this product
PSTPD1500MPCGAU1, PS-TPD-1500MPCGAU-1
Overview

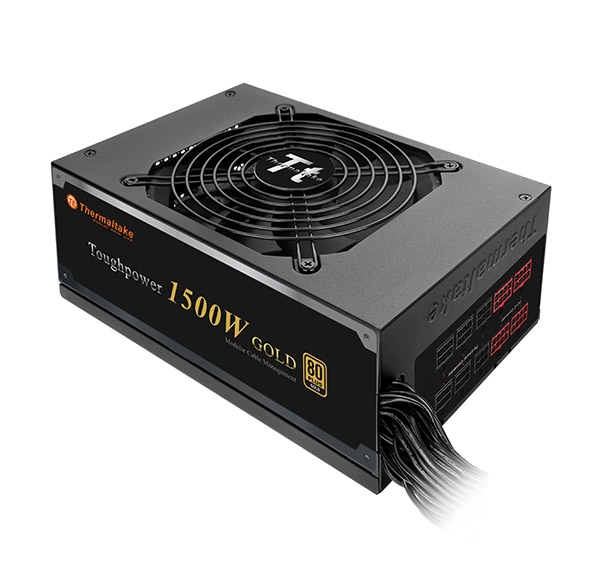

The Thermaltake Toughpower Series is a premium line of PSUs certified to the
80 PLUS Gold standard. Incorporating components of the highest quality, it
delivers stable performance and unbeatable efficiency. TPD 1500W Gold, which
uses a semi-modular design. An ultra-quiet fan delivers silent cooling and a
single strong 12V rail flexibly routes the maximum available power to the CPU,
enabling peak performance of the computer system.

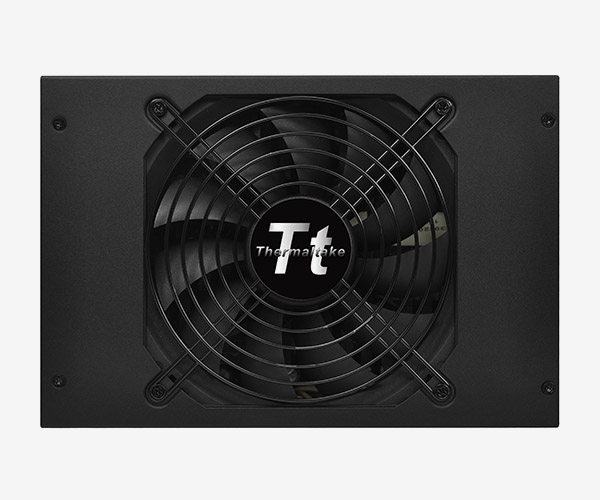

Ultra Quiet Fan
The Toughpower 1500W adopts a 135mm cooling fan with intelligent RPM control.
This guarantees superior cooling performance and silent operation.
80 PLUS Gold Certified and Haswell Ready
The Toughpower 1500W saves energy through its high energy efficiency up to
90% and is certified to 80 PLUS Gold. In addition, the Toughpower Series is
designed to meet the demands of Intels new Haswell processors.

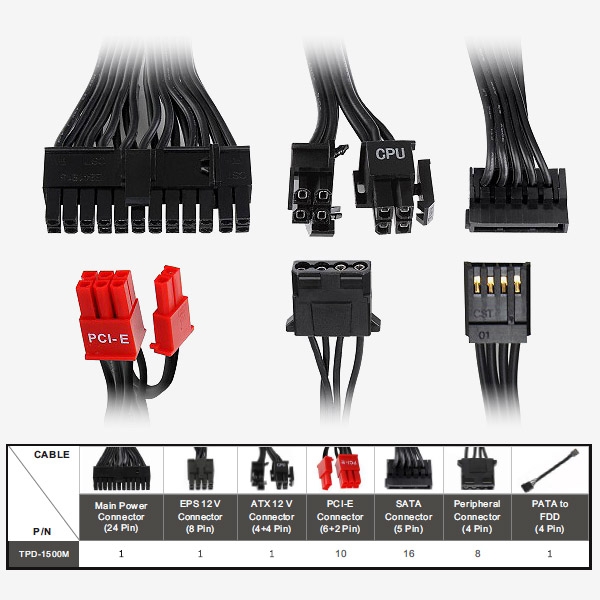

Flat Modular Cables
Low-profile flat modular cables used in the design enhance airflow as well as
improve the thermal performance of the chassis. Flat cables are inherently more
flexible, making cable routing easier.

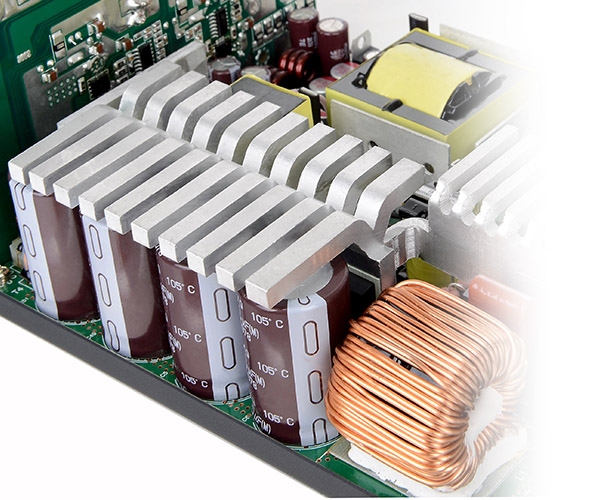

100% High Quality Japanese 105C/221F Capacitors
100% High-quality Japanese capacitors produce supreme performance with low
impedance characteristics. This delivers stable operation over extended periods
of time, as well as excellent reliability.

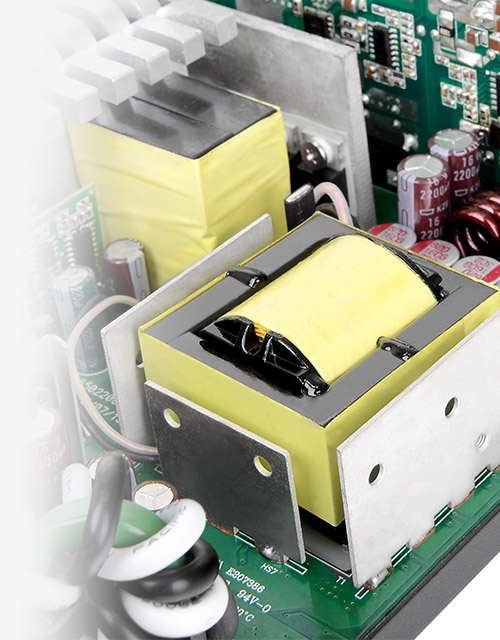

Massive and Dedicated +12V Output
Toughpower 1500W GOLD is equipped with powerful dual +12V rail, please see
the output specification below:
| Input Voltage:
100V-240V |
| Input Current:
18A-9A |
| Frequency:
60Hz-50Hz |
|
|
|
|
| P/N |
PS-TPD-1500MPCG-1 |
| Short
P/N |
TPD-1500M |
| Model |
TP-1500AH5CEG |
| Type |
Intel ATX 12V V2.3
&EPS 12V standards |
| Max. Output
Capacity |
1500W |
| Peak Output
Capacity |
1550W |
| Color |
Black |
| Dimension (H x W x
D) |
86mm x 150mm x
220mm |
| PFC Power
Factor Correction |
Active
PFC |
| Power Good
Signal |
100-500
msec |
| Hold Up
Time |
17msec (minimum) @ 75%
of maximum load at 100V - 240V AC input. |
| Input
current |
18A -
9A |
| Input Frequency
Range |
60 Hz - 50
Hz |
| Input
Voltage |
100 Vac- 240
Vac |
| Operating
Temperature |
0
to +40 |
| Operating
Humidity |
10% to
90%,non-condensing |
| Storage
Temperature |
-10 to
+50 |
| Storage
Humidity |
5% to 95%,
non-condensing |
| Cooling
System |
135mm double
ball-bearing fan, 170010%R.P.M. |
| Efficiency |
87-92% efficiency @
20-100% load |
| MTBF |
120,000 hrs
minimum |
| Safety
Approval |
UL/ CB+Baurt mark/ CE/
FCC/ CCC/ GOST certification |
| PCI-E
Connector |
PCI-E 6+2pin x
10 |
