All stock codes associated to this product
HC787A, IVC2DM288, IVC-2DM288
HC787A HD Analogue Cameras
Product description
The HC787A is part of our range of high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution., and has an interchangeable lenses (not included) using CS-Mount. 1080p has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than standard D1 analogue cameras.
The cabling can run from camera to camera, rather than each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.

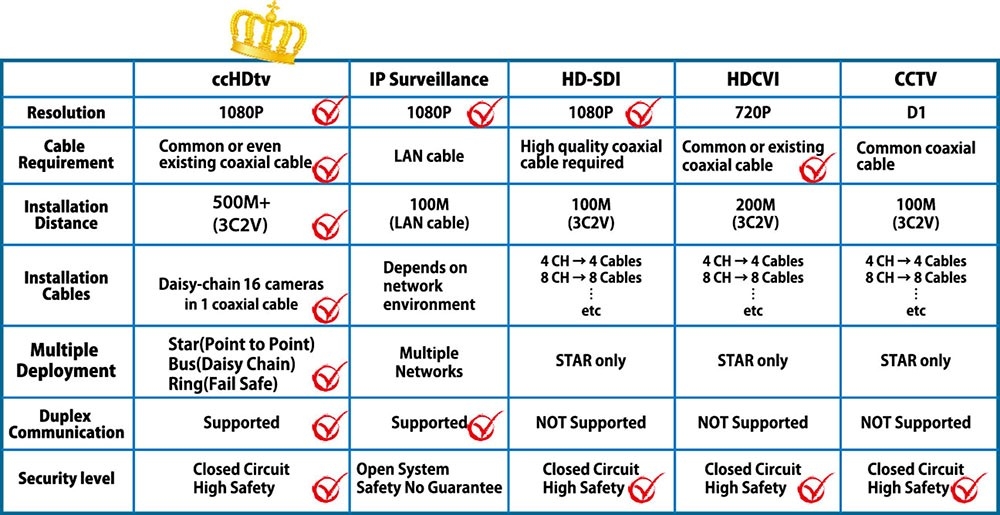

The HC787A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
Customise your image through the following image enhancements available to this security camera: Brightness, Contrast, Color Saturation, Sharpness, White Balance, Backlight Compensation, Exposure Control, Flicker Control, Fine Tuning of Behavior under Low Light Conditions, Noise Filter, Vertical and Horizontal.
Main features: Box ccHDtv Camera, 2MP @30fps, Low lux, 2 year warranty.
Additional Information
| Camera Type |
Box |
| Outdoor Use |
Indoor Use |
| Image Sensor |
1/2.7 2 MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Minimum Illumination |
0.03 Lux |
| Image Enhancement |
Brightness, Contrast, Color Saturation, Sharpness, White Balance, Backlight Compensation, Exposure Control, Flicker Control, Fine Tuning of Behavior under Low Light Conditions, Noise Filter, Vertical and Horizontal |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| Model |
HC787A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
61x120 mm |
| Weight |
1.000000 |
