All stock codes associated to this product
HC718A, IVC2BU134, IVC-2BU134
HC718A HD Analogue Cameras
Product description
The HC718A is part of the high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution with a Sony Exmor image sensor, and has a 2.8-12mm varifocal lens. With resolution of 1080p this security camera has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than the standard D1 analogue cameras.

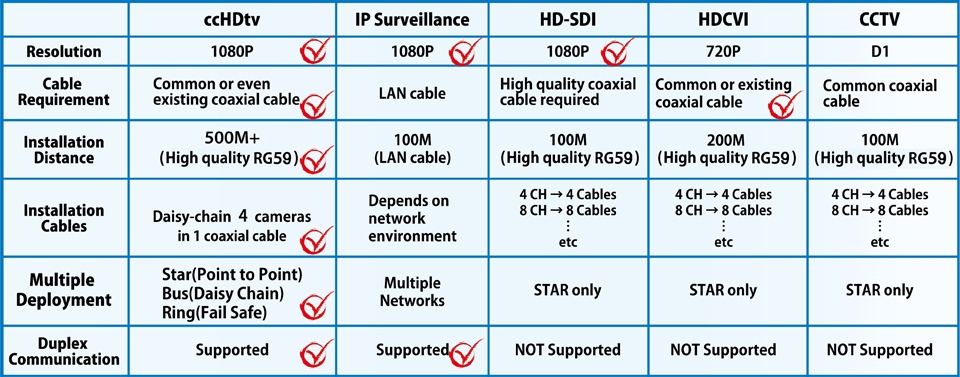

The coax cabling can run from camera to camera, rather than in each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
The HC718A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
The HC718A employs Infrared Cut Filter Removal (ICR) to give distanced footage at night up to a maximum of 40 metres.
These white, visually appealing bullet-style CCTV security cameras are designed for use in outdoor settings, with existing coaxial cable infrastructure.
Main features: Bullet ccHDtv Camera, 2MP @30fps, Sony sensor, 2.8-12mm, IP66, IR, ICR, Low lux, 2 year warranty.
Specifications
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/2.8 SONY Exmor |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.01 Low Lux |
| Day/Night Mode |
ICR |
| Maximum Night IR Distance (M) |
40 |
| Image Enhancement |
Brightness, Contrast, Saturation, Sharpness, Hue, Image Adjustment, Back Light Compensation (BLC), Anti-Flicker, De-Noise, Defog |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| Model |
HC718A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
270x148 mm |
| Weight |
1.200000 |
