EVGA Z170 FTW Motherboard
  • LGA1151, Z170, 4xDDR4-3200, PCI-Ex16, 6xSATA-III, RAID, GigLAN, 8Chl-HD, USB3.0, DisplayPort, HDMI, ATX

IMG 1 of 1
No Longer Available
Part Number:
397305
(?) Brand:
EVGA Web Site
Manuf No:
140-SS-E177
140SSE177
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
140SSE177, 140-SS-E177, 21EZ170FTW, 21E-Z170FTW, 4250812407849

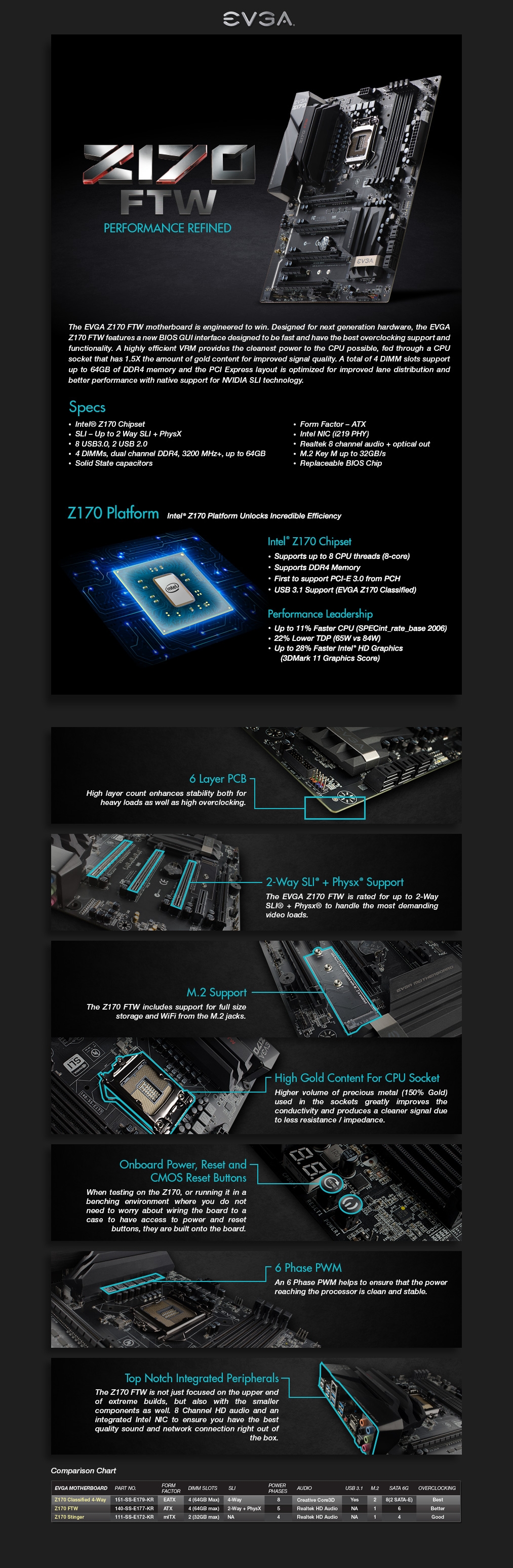

EVGA Z170 FTW


P/N: 140-SS-E177-KR

Overview



Specifications

Chipset Intel Z170

SLI 2-Way + PhysX

SATA 6 SATA 6G

RAID 0, 1, 5, 10, JBOD

USB 8 USB 3.0 / 2 USB 2.0

Memory Support 4 DIMM Dual-Channel DDR4 3200MHz+ (up to 64GB)

Capacitors POSCAP/Solid State

Ethernet 1x Intel Gigabit NIC

Audio 8 Channel High Definition Audio

DisplayPort 1x DP 1.2, 1x HDMI 1.4

Fan Headers 7 (2 PWM, 5 DC)

PCB 6 Layers

PCI-E Slot Arrangement 1x16, 1x8+2x4, 1x8+4+4+1

NVMe Support Yes (PCI-E)

Form Factor

ATX Form Factor

Length: 12in - 304.8mm

Width: 9.6in - 243.8mm

Features

2-Way SLI Support

USB 3.0 Support

SATA 6G Support

8 Channel High Definition Audio

100% Solid State Capacitors

EVGA Vdroop Control

EVGA E-LEET Tuning Support

Onboard Clear CMOS, Power and Reset Buttons

Onboard CPU Temperature Monitor

PCI Express 3.0 Support

150% Increased Socket Gold Content

Supports Intel Core i3, i5, and i7 Socket 1151 Processors

Operating System Support



Product Warranty

This product comes with a 3 year warranty. Registration is recommended.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (EVGA) web site.
