HOME / Back -> Motherboards -> Intel Socket 1151 -> EVGA

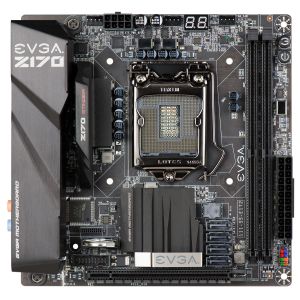

EVGA Z170 Stinger Motherboard
  • LGA1151, Z170, 2xDDR4-3200, PCI-Ex16, 4xSATA-III, RAID, 1xGigLAN, 8Chl-HD, USB3.0, DisplayPort, HDMI, m-ITX

IMG 1 of 1
No Longer Available
Part Number:
397306
(?) Brand:
EVGA Web Site
Manuf No:
111-SS-E172
111SSE172
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
111SSE172, 111-SS-E172, 21EZ170S, 21E-Z170S, 4250812407832

EVGA Z170 Stinger


P/N: 111-SS-E172-KR

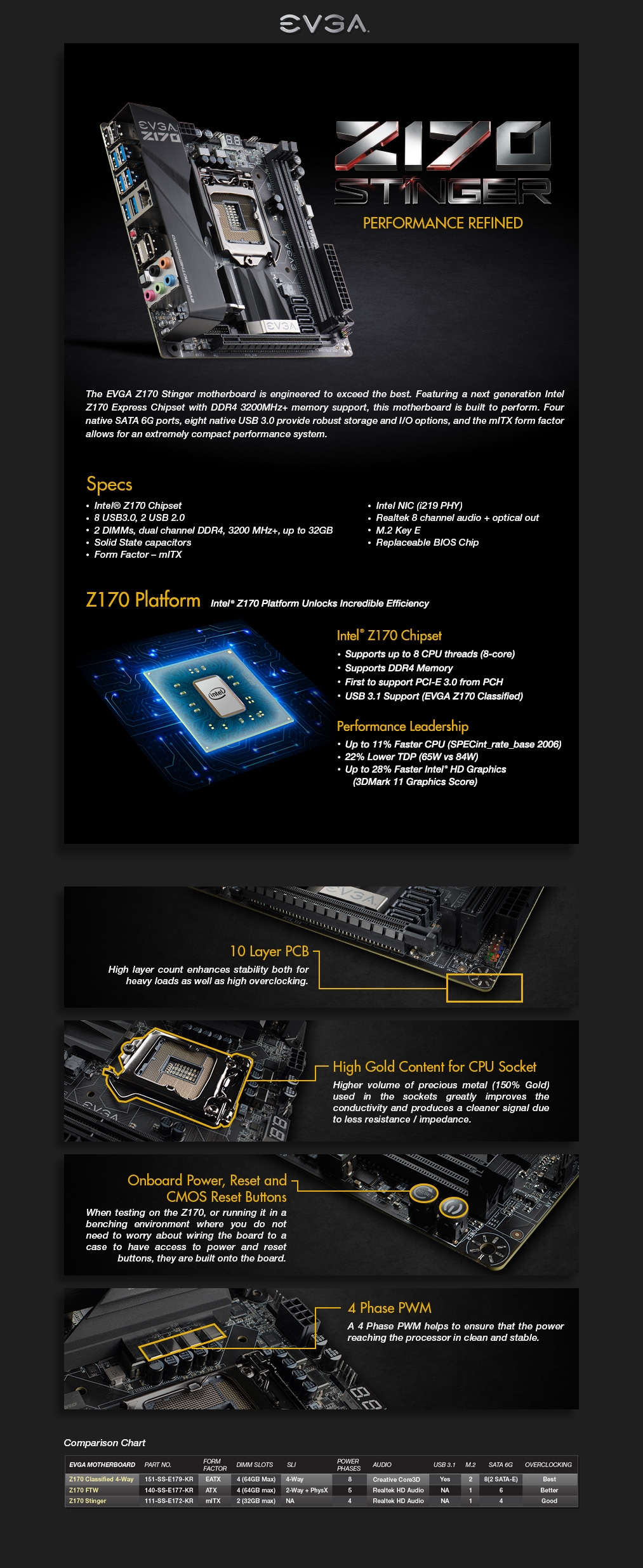

Overview



Specifications

Chipset Intel Z170

SATA 4 SATA 6G

RAID 0, 1, 5, 10, JBOD

USB 6 USB 3.0 / 2 USB 2.0

Memory Support 2 DIMM Dual-Channel DDR4 3200MHz+ (up to 32GB)

Capacitors POSCAP/Solid State

Ethernet 1x Intel Gigabit NIC

Audio 8 Channel High Definition Audio

DisplayPort 1x DP 1.2, 1x HDMI 1.4

Fan Headers 3 (1 PWM, 2 DC)

PCB 10 Layers

PCI-E Slot Arrangement 1x16

NVMe Support Yes (PCI-E)

Form Factor

mITX Form Factor

Length: 6.7in - 170.18mm

Width: 6.7in - 170.18mm

Features

USB 3.0 Support

SATA 6G Support

8 Channel High Definition Audio

100% Solid State Capacitors

EVGA Vdroop Control

EVGA E-LEET Tuning Support

Onboard Clear CMOS, Power and Reset Buttons

Onboard CPU Temperature Monitor

PCI Express 3.0 Support

150% Increased Socket Gold Content

Supports Intel Core i3, i5, and i7 Socket 1151 Processors

2 DIMM Dual-Channel DDR4 3200MHz+ (up to 32GB)

Operating System Support



Product Warranty

This product comes with a 3 year warranty. Registration is recommended.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (EVGA) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
