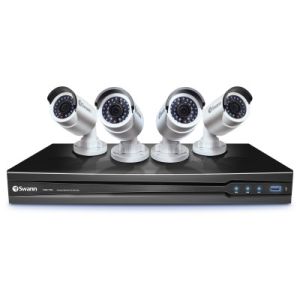

Swann SWNVK-870904B NVR8-7090 (2TB HDD) 8 Channel 3MP NVR with Smartphone Viewing - 3 Megapixel Full HD Resolution, 4x NHD-835 Cameras, 35M Night Vision, Up To Real-Time 30FPS/25FPS, HDMI, VGA

IMG 1 of 7
No Longer Available
Part Number:
397646
(?) Brand:
Swann
Manuf No:
SWNVK-870904B
SWNVK870904B
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SWNVK870904B, SWNVK-870904B, SMSWNVK870904B, SMSWNVK-870904B, 840236112357

NVR8-7090 8 Channel 3MP NVR with Smartphone Viewing & 4 x NHD-835 Cameras


SWNVK-870904B

8 Channel 3MP Network Video Recorder / Full Screen 3MP video quality in Real-Time / Pre-installed 2TB HDD / 4 x 3MP high-definition Cameras / Easier network set-up with the 'SwannView Plus' software / HDMI & VGA output / Live viewing on Internet & Smartphone


3 Megapixel Full HD Resolution


Network Power Over Ethernet


8 Channels View & Record


Includes 4 Cameras


Pre-installed 2TB Hard Drive


3 Megapixel Full HD Camera Resolution


115ft / 35m Night Vision


75 Degree Viewing Angle

Product Description

  • Swanns network video recording security system with beyond 1080p high definition live viewing & playback in real-time (up to 30 fps per channel)
  • State-of-the-art digital imaging technology for 9x the picture sharpness of traditional security systems including analog D1
  • Includes 4 x security cameras capable of generating super high definition 3 megapixels (50% more than 1080p) video with IR cut filters for powerful night vision to 115ft / 35m & weather-resistant for indoor & outdoor use. Add 4 more compatible cameras for full 8 channel monitoring
  • Set & forget by recording continuously from 8 channels for 24 days+ onto a 2TB hard drive (expandable to 8TB^) or even longer with motion detection
  • Save time & have peace of mind by easily locating incident video, then transfer to external storage via USB or network
  • Security in the palm of your hand with live viewing on your Smartphone or tablet including iOS (iPhone, iPad) & Android devices using the free SwannView Plus app
  • View live in HD on your HDTV via HDMI or VGA connection to your LCD screen
  • Professional surveillance system gives you peace of mind by being able to see the detail you need from longer distances including license plates, faces, clothing colors & more, all in super HD

24 days recording achieved using lower settings, default settings give 5 days recording

Based on 2 x 4TB SATA2 HDDs. Depends on camera.

Specifications

NVR8-7090

Video
Video Inputs
8 Channels
Video Outputs
HDMI, VGA
Display Resolution
Up to 1080p

Audio
Audio Input
1 RCA
Audio Output
1 RCA

Recording
Compression Format
H.264
Recording Modes
Manual, Motion, Schedule
Recording Resolution
Up to 3MP (2048x1536)
Recording Frame Rate
Up to real-time 30fps/25fps

Hard Drive
HDD Included
2TB
Hard Drive Capacity
Up to 8TB SATA HDD

Connection
Network Connection
SwannLink Peer-to-Peer
Network Interface
RJ45 Port x 1
USB Interface
USB 2.0 x 2

Software
Computer Operating Systems
Windows, Mac OS
Internet Viewing
SwannView Plus
Handheld Device Supported
iOS, Android 3G/4G Smartphones and tablets

General
Operating Power
100-240V AC 50/60Hz
Dimensions (WxDxH)
255mm x 220mm x 50mm





NHD-835 Camera

Video
Video Quality
3MP (2048x1536)
Viewing Angle
75

Night Vision
Night Vision Distance
Up to 115ft / 35m
IR Cut Filters
Yes

General
Indoor / Outdoor
Indoor or outdoor
Operating Power
DC 12V
Operation Temperature
-4F 122F / -20C 50C
Body Construction
Aluminium
Dimensions - Camera
2.6 x 2.6 x 7.4 / 66 x 66 x 188mm
Weight - Camera
0.961lbs / 436g
