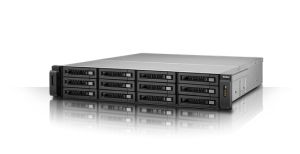

QNAP Systems S-12156U-RP Pro+ Network Video Recorder - 2U Rackmount
  • 12x 3.5" SATA HDD, RAID 0,1,5 ,5+ Hot Spare, 6,6+ Hot Spare,10,10+ Hot Spare, Single, JBOD/Linear, 56 Channel, USB3.0, 4xGigLAN

IMG 1 of 1
No Longer Available
Part Number:
398230
(?) Brand:
QNAP Systems
Manuf No:
VS-12156U-RP Pro+
VS12156URP Pro+
Shipping Weight:
25.6 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
QN00980, VS12156URPPro+, VS-12156U-RP Pro+
VS-12156U-RP Pro+

Ultra-high performance 12-bay NVR server for Enterprise

Features

The QNAP VS-12156U-RP Pro+ VioStor NVR is an enterprise-grade; high-end 2U chassis network surveillance server that supports high quality real-time video/audio monitoring, megapixel recording (up to 10 megapixels), and playback from multiple IP cameras. The VioStor VS-12156U-RP Pro+ is a dependable NVR to safeguard your precious property and assets.

  • 450 Mbps for recording and playback from multiple megapixel cameras
  • HDMI output delivers up to 300fps Full HD local display
  • Simultaneously handles inputs from up to 56 megapixel cameras
  • Large capacity to ensure continuous high-resolution video recording
  • Install free QSCM Lite from App Center to enjoy advanced CMS features

Ultra high performance

Powered by Quad-core Intel Core i5 processor and 8GB DDR3 memory, the VS-12156U-RP Pro+ is capable of recording videos from up to 56 IP cameras, delivering exceptional performance with up to 450 Mbps throughput to ensure stable recording of multiple megapixel IP cameras.

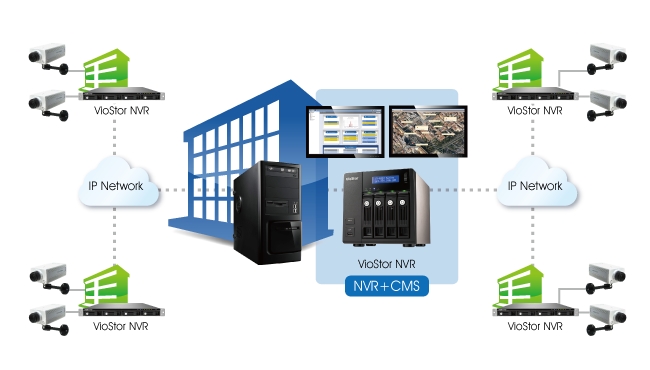

Turn your NVR into a CMS server

QSCM Lite is a free app provided by QVR that allows you to easily deploy up to 16 QNAP NVRs and 256 cameras and conduct central monitoring, playback, and management. With no extra server hardware required, QSCM Lite can easily turn the VS-12156U-RP Pro+ into a CMS server. The powerful and pioneering QSCM Lite can be freely downloaded from the integrated NVR App Center.

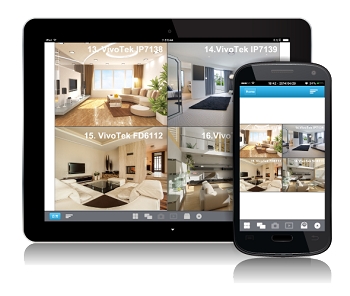

Anytime anywhere surveillance with a mobile app

Vmobile is an official mobile app that enables you to monitor QVR anytime, anywhere. Using iOS and Android devices, Vmobile provides camera live-view, PTZ control, instant event notifications, video snapshot, video playback, and searching for videos by date and time. Another mobile app, Vcam, allows you to turn your mobile device into a network camera and to directly save recordings to your VioStor NVR for portable surveillance options.

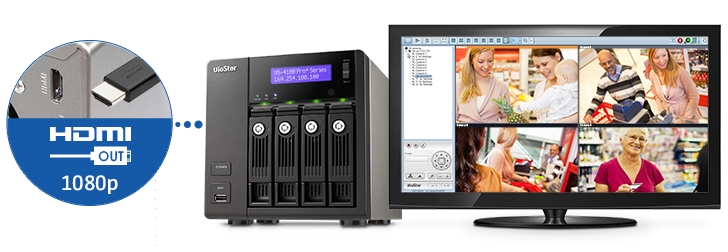

PC-less network surveillance by full HD local display via HDMI connector

Even without a PC, the VS-12156U-RP Pro+ can be configured and perform monitoring tasks with the local display technology by connecting a USB mouse, USB keyboard and HDMI monitor to deliver lag-free live video monitoring in Full HD (1920x1080) resolution. QNAP local display technology provides a straightforward way to reduce the total costs in your business environment.

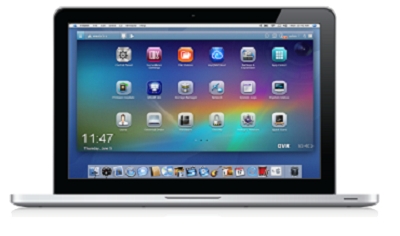

Intuitive, zero learning

Unlike traditional NVR software that can be hard to use, QVR 5.0 is free from complicated options and terminology, offering an innovative desktop design to compliment smooth working efficiency. The multi-window design allows concurrent multi-tasking, and enables administrators to easily switch between tasks to increase their productivity.

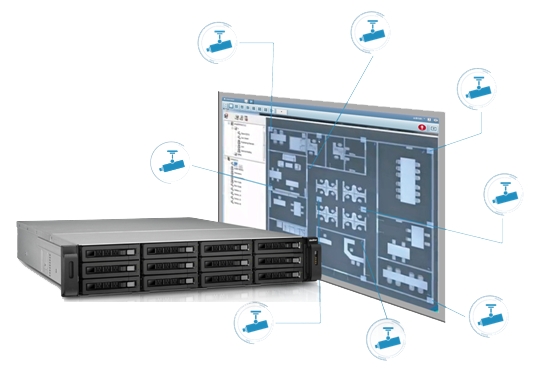

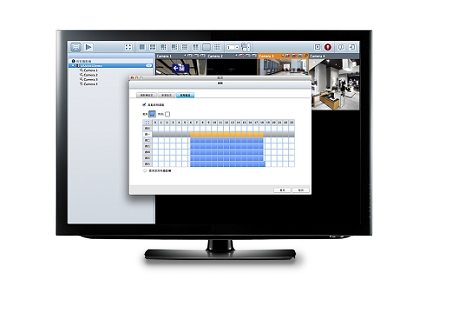

Multiple IP camera management comes easy

You can directly configure IP camera recording schedules when needed without leaving the Live-view page, maintain a seamless monitoring so you wont miss any suspicious events. You can also visualize IP camera deployment with the E-map function. Just upload the pictures of the monitored locations, drag and drop the IP camera icons to the right place on the E-map, and you can easily monitor your surveillance deployment at a glance.

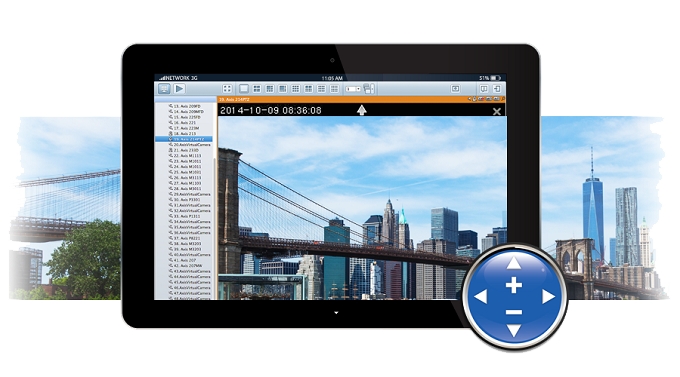

Cruise for wider areas, zoom in for greater detail

With QVR system, users can easily manage & monitor multiple IP cameras in a real-time basis using web browsers, and attain the first-hand status of monitored corners. You can directly adjust the PTZ (Pan/Tilt/Zoom) functions of supported cameras, flexibly monitoring every desired corner and detail. Auto-cruising is also supported to allow you to define preset positions for PTZ cameras to automatically adjust their monitoring angles to preset positions by the time interval.

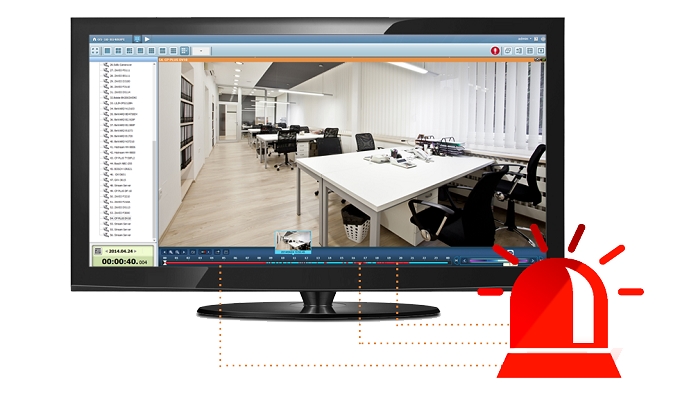

Find out the critical recordings without the hassle

How to find suspicious alarm recordings from huge amount of recordings can be a challenge. QVR 5.0 provides an intuitive playback interface to you to easily distinguish between regular and alarm recordings in the timeline bar. For greater efficiency, you can also enable Intelligent Video Analytics (IVA) to quickly search videos corresponding to particular modes (includes motion detection, foreign/ missing object, out of focus, and camera occlusion) to screen for critical recordings.

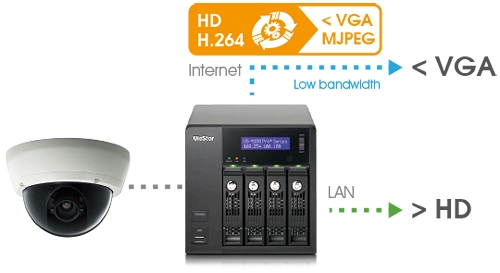

Optimize your video watching experience with video transcoding

The transcoding capabilities of the VS-12156U-RP Pro+ allows users a practical solution for watching videos stored in centralized locations via the Internet when they have low-bandwidth connections. This feature adapts to bandwidth limits and/ or devices that lack the hardware or codecs to play video files by converting a video file to a lower resolution before transferring it across the Internet. The original high definition video is still retained without any changes being made to it, balancing the whole surveillance system for local recordings and remote playback.


Flexible recording functions

QVR 5.0 provides flexible options to set up IP camera recording, including manual recording and scheduled recording. What can be even more convenient, you can set up the system to only record when motion is detected or other events occur. The smart recording function can also automatically switch the recording detail to a higher resolution when alarms are triggered. This greatly saves the cost spent on hard drives.


Economical expansion options

By installing the Storage Expansion app on a QNAP Turbo NAS, you can connect the VioStor NVR with the Turbo NAS via network to flexibly enlarge the total storage capacity of the VioStor NVR. If the expanded storage is not enough, QNAP REXP expansion enclosures can be used to expand the storage space on the connected Turbo NAS to support hundreds-of-terabytes raw capacity.

Availability: The storage expansion solution is available for VioStor NVR Pro(+) series with firmware v4.1.1 or newer and the Turbo NAS TS-x51, TS-x53, TS-x53U, TS-x63, TS-x70U, TVS-x71, TVS-x71U, TVS-ECx80, TVS-ECx80U series with QTS operating system v4.1.2.

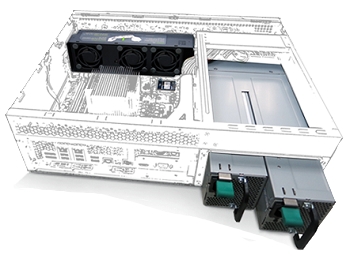

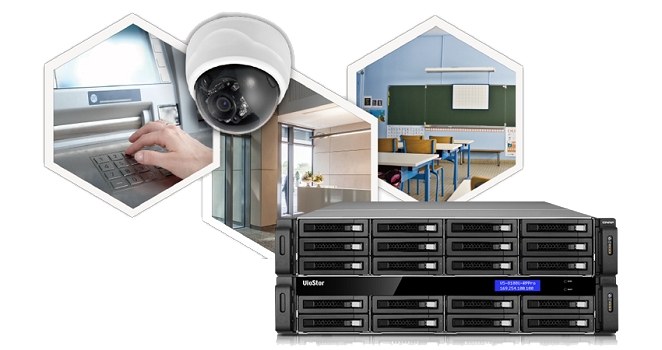

High stability, Built to last

The VS-12156U-RP Pro+ serves as a business-ready system, providing 24/7 operation and services. The dual OS embedded on the DOM architecture in the VS-12156U-RP Pro+ ensures that the system boots up and operates stably. The expertly-designed smart fan delivers great system heat dissipation with minimum vibration, and is easily replaceable without interrupting system operations. The VS-12156U-RP Pro+ also features a redundant power supply to ensure maximum system uptime.

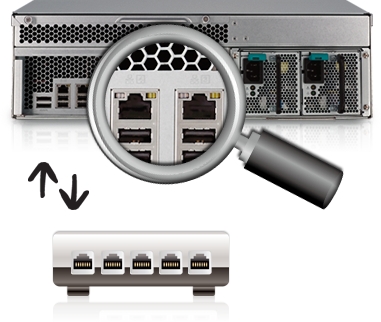

High efficiency with multiple LAN support

The VS-12156U-RP Pro+ supports multiple port-trunking modes, enabling IT administrators to set up link aggregation to increase total data transmission capability. Failover is also supported to ensure continuous system operations. The supported port-trunking modes include: Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing) and Balance-alb (Adaptive Load Balancing).


High reliability

The VS-12156U-RP Pro+ supports comprehensive RAID configurations and hot-swapping to allow replacing hard drives without interrupting system operations. QNAPs advanced RAID recovery technology also assists if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered to degraded mode by reinserting the wrongly removed hard drives so the data can still be accessible. The Global Hot Spare function also allows a drive to automatically replace a failed drive in a RAID volume, preventing data from being lost.


Software Spec.

Recording Performance
Max. number of HDD supported 12
Number of channels Supported Up to 56
* Max. 64CH for camera license expansion
Recording Performance Up to 30 fps at 1080P, 720P, VGA for each channel
* Real performance may vary by environment
Recording Throughput 450 Mbps
* Real performance may vary by environment
QVR Desktop
Multi-task Support Multiple tasks run on QVR desktop
Default Applications Control Panel (for system configuration), Surveillance Settings, File Station, myQNAPcloud, Backup & Expansion, App Center
Central Management System (QSCM Lite App)
QSCM Lite Download and install for free from the QVR App Center to turn your NVR into CMS server
Central Management Supports up to 256 channels and 16 servers
Dashboard An interface that shows the current status and historical trends of key information
Apply-to-All Configuration Some server settings can be synchronized by grouping identical NVR models, saving configuration time
Some recording settings can be synchronized by grouping identical camera models, saving configuration time
Event Management Centrally receive events from multiple NVRs
View Layout Centrally configure the view, adding the cameras from multiple NVRs
Multi-layer E-map Centrally setup unlimited-layer E-maps for multiple NVRs
Easily find out the event location
Easily see the ongoing event status
Manage multiple e-maps by hyperlink
User Management QSCM Lite users can be created and assigned to different user groups.
Each user group can have different permissions.
Quad-monitor Mode Primary monitor: Select to show the live view, E-map, playback, and configuration page
Sub monitor: Select to show the live view and E-map
View Content Flexibly view content from mixed camera videos and E-maps
Bookmark Place a vertical thin bar and text details on video footage for easier event investigation
Multi Web Browsers Support Supports Google Chrome, Internet Explorer, Mozilla Firefox on Windows
Full HD Local Display
Max. Resolution of HW Decode Supported per Ch. Resolution up to Full HD (1920x1080) per channel (H.264)
Local Display Performance Full HD 1080P 300FPS
Display Mode Local monitoring: Multi-channel, sequential and full screen display modes
Local playback: Multi-channel and full screen display modes
Max. Channel Supported per Page Local monitoring: Up to 36 channels per page
Local playback: Up to 4 channels per page
On-screen Event Alert Yes
Local Monitoring Control Dewarping function for fisheye cameras and Panomorph lens Manual recording, (two-way) audio*, PTZ control (including optical zoom, focus control and preset position control), digital zoom
Joystick Support Joystick support for PTZ and preset position control
Search Mode By date & time, timeline, and event
Local Playback Control Dewarping function for fisheye cameras and Panomorph lens Play, pause, rewind, fast forward, slow motion, frame by frame search, audio, digital zoom
Recordings Export Export multiple recordings to external USB storage as standard AVI files, optimized QNAP AVI files, QNAP encrypted AVI files
Local Configuration Quick configuration Can modify administration password, network settings, time settings, disk volume configuration, camera settings
Remote Monitoring (Windows)
Multi-server Monitoring QVR Client: Supports max. 128 channels
Display Mode Multi-channel, sequential and full screen display modes
dual display mode
Max. Channel Supported per Page Up to 64 channels per page
E-map Setup Multi-layer E-maps for multiple NVRs
Options to see the ongoing event status on QVR monitoring page (for dual display mode) or new window
On-screen Event Alert Yes
Interactive Control Buttons Manual recording, video snapshot, (two-way) audio*, dewarping function for fisheye cameras and Panomorph lens, PTZ mode (including click & go, PTZ control, and auto cruising by preset position), preset position control, digital zoom, instant playback, same-screen IP camera configurations, camera information
Options Video window highlight when an event is triggered
Joystick Support Joystick support for PTZ and preset position control
Remote Playback (Windows)
Multi-channel Playback Multi-channel, sequential display modes
Max. Channel Supported per Page Up to 16 channels per page
Search Mode By date & time, timeline, event, and intelligent video analytics (IVA)
On-screen Event Alert Yes
Playback and Speed Control with Shuttle Bar Play, pause, rewind, fast forward, slow motion, frame by frame search
Interactive Control Buttons Audio, low bandwidth mode, video snapshot, IVA settings, dewarping function for fisheye cameras and Panomorph lens, PTZ mode (including click & go, PTZ control, and auto cruising by preset position), digital zoom, averagely time-divided playback, camera information
Intelligent Video analytics (IVA) Motion detection, missing object, foreign object, out of focus, and camera occlusion
Control Preview videos with thumbnails
Drag an area on the video window to zoom in to see details
Recordings Export Export multiple recordings to a client PC or NVR as standard AVI/ MP4 file, different exporting resolutions supported
Options Add a digital watermark to exported recordings
QVR Client for Mac
QVR Client for Mac Free download from the QNAP Download Center and Mac App Store
Display Mode Monitoring: Multi-channel, sequential and full screen display modes
Playback: Single-channel and full screen display modes
Max. Channel Supported per Page Local monitoring: Up to 16 channels per page
Local playback: Single channel per page
On-screen Event Alert Yes
Monitoring Control Audio, PTZ control (including optical zoom, focus control and preset position control), digital zoom
Search Mode By date & time, timeline, and event
Playback Control Play, pause, rewind, different speed control, audio, digital zoom
Recordings Export Export multiple recordings to Mac
Configuration Open an additional browser window for configuration
Mobile Surveillance
Vmobile Free download from the App Center (iOS) and Google Play (Android)
NVR Search Yes, NVRs on the LAN can be easily searched
Display Mode Mobile Monitoring: Multi-channel, sequential display mode
Mobile Playback: Single-channel display mode
Mobile Monitoring Control PTZ control, digital zoom, pause, snapshot, stream selection, image share (ex. Mail, Facebook)
Event Notification Yes, event notifications will be sent from Multiple NVRs
Mobile Playback Control Digital zoom, snapshot Play, pause, fast forward, go to previous file, go to next file
Audio Yes
Recording
Supported Models
  • IP cameras
  • Generic cameras
  • Vcam App to turn your mobile phone into an IP camera
Video Compression H.264/ MPEG-4/ M-JPEG/ MxPEG (depending on the camera models)
Recording Mode
  • Continuous/ scheduled/ manual recording
  • Alarm recording by multiple events
  • Pre-alarm (up to 300 sec) and post-alarm (up to 300 sec) recording
  • Round-the-clock recording and smart recording when user-defined stream is supported on the camera model
  • Edge recording
  • Auto snapshot
Megapixel Recording Supports megapixel cameras (up to 40-megapixel)
File Format AVI (QNAP codec is required for playback)
Recording Enhancement Real-time digital watermarking
Download & Export Download recordings via the QVR File Station, FTP, SMB/CIFS Recordings export on local playback and remote playback (Windows and Mac)
Advanced Event Management
Events Motion detection, alarm input, connection failure, recording failure, and user-defined event
Actions Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action
Backup & Expansion
External Backup Copy recordings from the local disk volume to an external storage device
One Touch Video Backup Press the One Touch Video Backup button to backup recordings from external storage to USB storage
Remote Replication Schedule video data backup to a NAS on the local network
Storage Expansion Connect the VioStor NVR to a Turbo NAS via network to enlarge the total storage capacity of the VioStor NVR
Cloud Backup Easily upload the data from the NVR to Amazon S3 or download the data from Amazon S3 to the NVR
Easy Configuration and Management
QVR Desktop
  • Multi-window, multi-tasking
  • Intelligent desktop
    Main menu, smart dashboard, drag-and-drop icons
File Station
  • Access files using web browsers, anytime and anywhere
  • Securely share files by URL
  • Upload large files
myQNAPcloud
  • Unique host name for VioStor NVR
  • Automatic port forwarding on a UPnP router
  • Cloud Backup
App Center Download numerous free on-demand apps
License Upgrade Flexibly expand the number of channels to meet your demands by purchasing additional licenses
https://license.qnap.com/ModelBrowse.html?cid=93
Security Management
User Privilege Management Different user types and rights can be assigned to different QVR users
Network Access Protection Specify the connections to be allowed and denied to access the VioStor NVR
Auto Logoff Automatic user logoff from idling on configuration pages
Log System System event logs, system connection logs, online users
Digital Watermarking Can be used to authenticate videos and snapshots
Disk Management
RAID RAID 0, RAID 1, RAID 5 , RAID 5+ Hot spare , RAID 6 , RAID 6+ Hot spare , RAID 10 , RAID 10+ Hot spare
Single, JBOD/ Linear
RAID Features Online RAID Capacity Expansion, Online RAID Level Migration
HDD Utility HDD S.M.A.R.T., bad blocks scan
Reliability
Operation System Linux-embedded system, free from PC crash and virus attack
Intelligent Automatic System Startup When Power Recovery Yes
USB UPS device APC/ CyberPower/ Epson/ MGE/ YEC
Network Service
Protocol Support HTTP, HTTPS, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP
Built-in DHCP Server Yes
Multiple Gigabit LAN Failover, load-balancing, multi-IP settings
File Services Web, FTP, SMB/CIFS
Language Support
Language Czech/ Danish/ Dutch/ English/ French/ Finnish/ German/ Hungarian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Russian/ Spanish/ Swedish/ Simplified Chinese/ Traditional Chinese/ Turkish/ Greek/ Romanian/ Thai
Client PC Requirement (Suggested system requirement for better video performance)
CPU
  • M-JPEG format (up to 64 channels ):
    Quad core CPU 2.33GHz or above
  • MPEG-4/ H.264/ MxPEG format (up to 64 channels ):
    Core i7 CPU 2.8GHz or above

* * For higher surveillance performance, please select more advanced PC models.
Memory 4 GB or above
Operation System Microsoft Windows 7/ 8 or Mac OS X 10.7.x, 10.8.x, 10.9.x, 10.10.x
Web Browser Microsoft Internet Explorer 10/11 (Windows PC, desktop mode, 32-bit)
Google Chrome 38.0.2125.104 m (Windows PC)
Mozilla Firefox 33.0 (Windows PC)
Network Interface 10/100/1000 Mbps
Display Resolution 1280 x 800 pixels or higher for better user experience
Client QVR Client for Windows
QVR Client for Mac
Switch Requirement
Switch A gigabit switch is highly recommended
Utility
QNAP QFinder The client application to discovery and quick setup of the VioStor NVR
QNAP QVR Client For Windows The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on client PC.
*Watermark proof (Installed with QVR Client): Check if the exported videos and snapshots were modified
QNAP QVR Client For Mac The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on Mac.
Please note that multi-server monitoring and fisheye dewarping functions and QSCM Lite App are not supported
QNAP Codec The video codec to play the recording files on Windows Media Player (Windows PC, desktop mode, 32-bit).

Hardware Spec.

Processor Quad Core Intel Core i5 3.7GHz Processor
DRAM 8GB DDR3 RAM
HDD Capacity 12 x 3.5 SATA 6Gb/s, SATA 3Gb/s hard drive
NOTE:
  1. The system is shipped without HDD.
  2. For the HDD compatibility list, please visit here
HDD Tray 12 x hot-swappable and lockable tray
LAN Port 4 x Gigabit RJ-45 Ethernet port
LED Indicators Status, 10 GbE, LAN, eSATA, hard drives
*10 GbE (reserved), eSATA (reserved)
USB 2 x USB 3.0 port (rear)
4 x USB 2.0 port (rear)
Support USB pen drive, USB hub, and USB UPS etc.
Buttons System: Power button, reset button
Alarm Buzzer System warning
Form Factor 2U, Rackmount
Dimensions 88(H) x 439(W) x 520(D) mm
3.46(H) x 17.28(W) x 20.47(D) inch
Weight Net weight: 15.88 kg (35.01 lb)
Gross weight: 25.60 kg (56.44 lb)
Operation Environment Temperature 0~40C/ 32~104F
Humidity 5~95% RH non-condensing, wet bulb: 27C.
Power Supply Input: 100-240V AC, 50/60Hz, Output: 600W
Power Consumption 167W Write/Read (with 12 x 2TB HDD installed)
Expansion Slot 2 (reserved for network and storage expansion)
Video Output 1x HDMI
1x VGA
Fan 3 x 6 cm smart cooling fan
Certification CE, FCC, VCCI, BSMI, LVD

Remark:

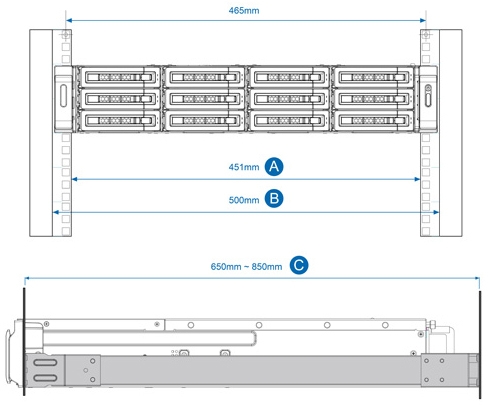

The VS-12100U-RP Pro+ rack mount series comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria:
1. Rack size
A. Mounting post width: 451mm
B . Panel width: 500mm
C. Mounting post depth: 650mm~850mm

2. The rack kits for the VS-12100U-RP Pro rack mount series are only compatible with square-hole server racks.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 1 | TM: 6 | LM: 14 | TY: 125 | T: 1062

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
