All stock codes associated to this product
SSTST65FPT, SST-ST65F-PT
Strider Platinum Series
ST65F-PT
Compact design with a depth of 140mm for easy integration
High efficiency with 80 PLUS Platinum certification
100% modular cables
24/7 continuous power output with 40? operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise

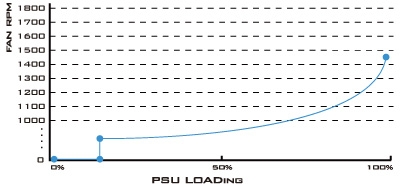

Ultra silent 120mm fan with intelligent semi-fanless operation
As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest fully modular ATX power supplies with 80 PLUS Platinum efficiency, they are also incredibly quiet with the ability to run in fanless mode. If the loading condition is below 20%, the fan in the power supply can remain off for silent operation during idle or low powered computing activities. Other great features inherited from previous Strider series include 3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build highly efficient systems in small footprints, the Strider Platinum is definitely the best choice.
Remark
Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.
100% moudlar cable design for use with short cable kit such as SilverStones PP05 or for easy removal in a case with cable routed and tied down.

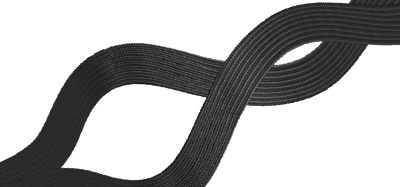

Flat cables have much greater flexibility to allow for tighter folding and management of cables.

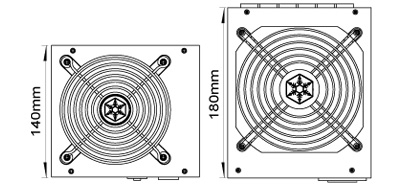

140mm depth sets new standard for high wattage PSUs with modular cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

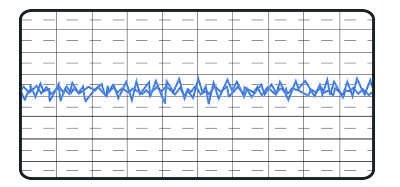

3% regulation and low ripple & noise performance for high stability
Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Specifications
| Model No. |
SST-ST65F-PT
|
| Max. DC Output |
650W
|
| Power density |
360W per liter
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
Max.(Amps)
|
22A |
22A |
54.2A |
3.0A |
0.3A |
|
Peak (Amps)
|
/ |
/ |
/ |
/ |
/ |
|
Min.(Amps)
|
0A |
0A |
0A |
0A |
0A |
|
Range (%)
|
3% |
3% |
3% |
5% |
10% |
|
Line Reg.(%)
|
1% |
1% |
1% |
1% |
1% |
|
Ripple(mVp-p)
|
50mV |
50mV |
120mV |
50mV |
120mV |
|
| Color |
BlackLead-Free Paint
|
| combined +3.3, +5V |
120W
|
| combined +12V |
650W
|
| Input Voltage |
90V~264V
|
| Input Frequency Range |
47Hz~63Hz
|
| PFC |
Active PFCPF>0.9 at full load
|
| Efficiency |
89%~92% at 20%~100% loading
|
| MTBF |
100,000 hours
|
| Operating temperature |
0C ~ 40C
|
| Protection |
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection
|

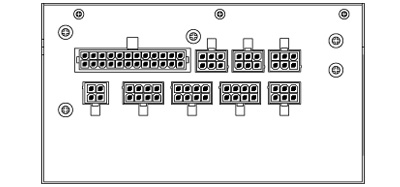

| Connectors |
1 x 24 / 20-Pin motherboard connector550mm
1 x 8 / 4-Pin EPS / ATX 12V connector750mm
4 x 8 / 6-Pin PCIE connector"550mm / 150mm"x2
8 x SATA connector"600mm / 150mm / 150mm /150mm"x2
6 x 4-Pin Peripheral connector"600mm / 150mm / 150mm"x2
2 x 4-Pin Floppy connector"600mm / 150mm / 150mm / 150mm"x2
|
| Cooling System |
Single 120mm silent fan
|
| Noise Level |
18 dBA minimum
|
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
|
| Weight |
2.18 kg
|
| Form factor |
ATX
|
| Certification |
80 PLUS Platinum
|
| Other |
GPU Support list
Compatible with ATX12V v2.4
|
