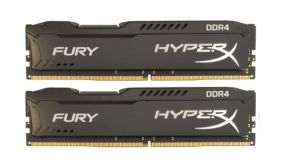

All stock codes associated to this product
, TBB3174148193
HX426C15FBK2/16
16GB (8GB 1G x 64-Bit x 2 pcs.)
DDR4-2666 CL15 288-Pin DIMM
Description
HyperX HX426C15FBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2666 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-2666 at a low latency timing of 15-17-17 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:
Note:
The PnP feature offers a range of speed and timing options to support the widest variety of processors and chipsets. Your maximum speed will be determined by your BIOS.
JEDEC/XMP TIMING PARAMETERS
JEDEC/PnP:
DDR4-2666 CL15-17-17 @1.2VDDR4-2400 CL14-16-16 @1.2V
DDR4-2133 CL12-14-14 @1.2V
XMP Profile #1:
DDR4-2666 CL15-17-17 @1.2V
FEATURES
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP - 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
Height 1.340 (34.04mm), w/heatsink
Specifications
CL(IDD): 15 cycles
Row Cycle Time (tRCmin): 45ns(min.)
Refresh to Active/Refresh, Command Time (tRFCmin): 260ns(min.)
Row Active Time (tRASmin): 26.25ns(min.)
Maximum Operating Power: TBD W*
UL Rating: 94 V - 0
Operating Temperature: 0oC to +85oC
Storage Temperature: -55oC to +100oC
This bundle is comprised of the following products:
| 421284 | 1 x | Kingston 16GB (2x8GB) PC4-21300 (2666MHz) DDR4 RAM - CL16 - HyperX Fury, Black
2666MHz, 288-Pin DIMM, 16-18-18, Non-ECC, 1.2V |
| 421284 | 1 x | Kingston 16GB (2x8GB) PC4-21300 (2666MHz) DDR4 RAM - CL16 - HyperX Fury, Black
2666MHz, 288-Pin DIMM, 16-18-18, Non-ECC, 1.2V |
 |
Kingston 16GB (2x8GB) PC4-21300 (2666MHz) DDR4 RAM - CL16 - HyperX Fury, Black- 2666MHz, 288-Pin DIMM, 16-18-18, Non-ECC, 1.2V
back to top
|
Product Description:
Kingston 16GB (2x8GB) PC4-21300 (2666MHz) DDR4 RAM - CL16 - HyperX Fury, Black
Automatic overclocking up to 2666MHz.
HyperX FURY DDR4 automatically recognizes the platform its plugged into and
automatically overclocks to the highest frequency published, up to 2666MHz, for
hassle-free, plug-and-play functionality. It delivers automatic top-level
performance for motherboards featuring Intels 200 series and X99 chipsets and
complements Intels 2, 4, 6, 8 and 10-core processors for faster video editing,
3D rendering, gaming and AI processing. Available in speeds from 2133MHz2666MHz,
CL1416 latencies and capacities of 4GB, 8GB and 16GB single modules and 8GB64GB
kits, HyperX FURY DDR4 is a minimal investment in premium components that
results in faster speeds, higher performance and enhanced reliability plus it
looks really cool. It stays cool, too, thanks to 1.2V power consumption
resulting in less heat, with a lower voltage specification than DDR3. Its
stylish, low-profile design complements the look of the latest PC hardware while
helping you stand out from the crowd of squared designs.
- Optimized for Intels 200 series and X99 chipsets.
- Cost-efficient high-performance DDR4 upgrade .
- At 1.2V, lower power consumption than DDR3.
- Stylish, low-profile heat spreader in signature FURY asymmetrical design
.
Features
- Plug and play Get the speed you want, hassle free. HyperX FURY DDR4 is the
first product line to offer automatic overclocking up to the highest frequency
published.
- Optimized for Intels 200 series and X99 chipsets HyperX FURY DDR4 memory
is 100% tested and optimized for compatibility and easy overclocking. To
complete a motherboard featuring 200 Series or X99 chipsets, you need the
latest generation of DRAM technology DDR4 memory.
- Low power consumption DDR4s lower power requirements mean less heat and
higher reliability. Low 1.2 volts draw less power from your system, which
results in a cooler and quieter PC.
- > Low profile stylish heat spreader Stand out from the crowd and show
your style with FURYs asymmetrical signature heat spreader. Available in
black, red and white with black PCB, FURY DDR4s low profile heat spreader will
fit under oversized CPU coolers while enhancing heat dissipation for lasting
reliability.
Specifications
|
Capacities |
16GB |
|
Frequency Speeds |
2133MHz, 2400MHz, 2666MHz1 |
|
CAS Latency |
CL14-CL16 |
|
Voltage |
1.2V |
|
Operating Temperature |
0C to 85C |
|
Dimensions |
133.35mm x 34.04mm |
|
Kingston 16GB (2x8GB) PC4-21300 (2666MHz) DDR4 RAM - CL16 - HyperX Fury, Black- 2666MHz, 288-Pin DIMM, 16-18-18, Non-ECC, 1.2V
back to top
|
Product Description:
Kingston 16GB (2x8GB) PC4-21300 (2666MHz) DDR4 RAM - CL16 - HyperX Fury, Black
Automatic overclocking up to 2666MHz.
HyperX FURY DDR4 automatically recognizes the platform its plugged into and
automatically overclocks to the highest frequency published, up to 2666MHz, for
hassle-free, plug-and-play functionality. It delivers automatic top-level
performance for motherboards featuring Intels 200 series and X99 chipsets and
complements Intels 2, 4, 6, 8 and 10-core processors for faster video editing,
3D rendering, gaming and AI processing. Available in speeds from 2133MHz2666MHz,
CL1416 latencies and capacities of 4GB, 8GB and 16GB single modules and 8GB64GB
kits, HyperX FURY DDR4 is a minimal investment in premium components that
results in faster speeds, higher performance and enhanced reliability plus it
looks really cool. It stays cool, too, thanks to 1.2V power consumption
resulting in less heat, with a lower voltage specification than DDR3. Its
stylish, low-profile design complements the look of the latest PC hardware while
helping you stand out from the crowd of squared designs.
- Optimized for Intels 200 series and X99 chipsets.
- Cost-efficient high-performance DDR4 upgrade .
- At 1.2V, lower power consumption than DDR3.
- Stylish, low-profile heat spreader in signature FURY asymmetrical design
.
Features
- Plug and play Get the speed you want, hassle free. HyperX FURY DDR4 is the
first product line to offer automatic overclocking up to the highest frequency
published.
- Optimized for Intels 200 series and X99 chipsets HyperX FURY DDR4 memory
is 100% tested and optimized for compatibility and easy overclocking. To
complete a motherboard featuring 200 Series or X99 chipsets, you need the
latest generation of DRAM technology DDR4 memory.
- Low power consumption DDR4s lower power requirements mean less heat and
higher reliability. Low 1.2 volts draw less power from your system, which
results in a cooler and quieter PC.
- > Low profile stylish heat spreader Stand out from the crowd and show
your style with FURYs asymmetrical signature heat spreader. Available in
black, red and white with black PCB, FURY DDR4s low profile heat spreader will
fit under oversized CPU coolers while enhancing heat dissipation for lasting
reliability.
Specifications
|
Capacities |
16GB |
|
Frequency Speeds |
2133MHz, 2400MHz, 2666MHz1 |
|
CAS Latency |
CL14-CL16 |
|
Voltage |
1.2V |
|
Operating Temperature |
0C to 85C |
|
Dimensions |
133.35mm x 34.04mm |
