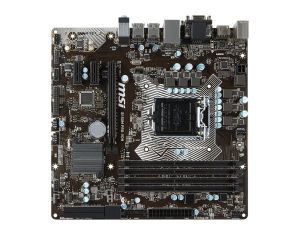

B150M PRO-VDH
- Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
- Supports DDR4-2133 Memory
- DDR4 Boost: Give your DDR4 memory a performance boost
- SATA Express 16Gb/s + SATA 6Gb/s
- VGA Armor: Reinforced Armor slot
- Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
- Audio Boost: Reward your ears with studio grade sound quality
- Military Class 4: Top Quality & Stability
- Guard-Pro: Improved Protection and Power Efficiency
- EZ Debug LED: Easiest way to troubleshoot
- Overvoltage Protection:Prevent Unforeseen Damage
- 4K UHD Support: Ultra-high Definition Visual Experience
- COM/LPT support (pin header): Perfect for Industrial and Commercial use
- Intel SBA Support: Improves Productivity, Management and Security
- WHQL CERTIFIED.WINDOWS 10 READY.
Overview
Pro Series
MAKING YOUR LIFE EASIER IS OUR BUSINESS
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.
Unmatched memory performance and stability
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

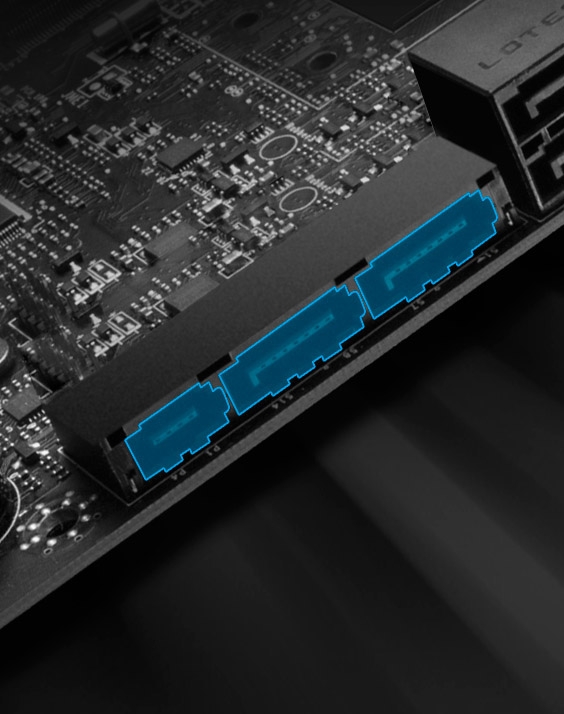

FAST STORAGE WITH SATA EXPRESS
SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.
DATA TRANSFER SPEED
SATA3 - 6Gbps
SATA-Express - 16Gbps

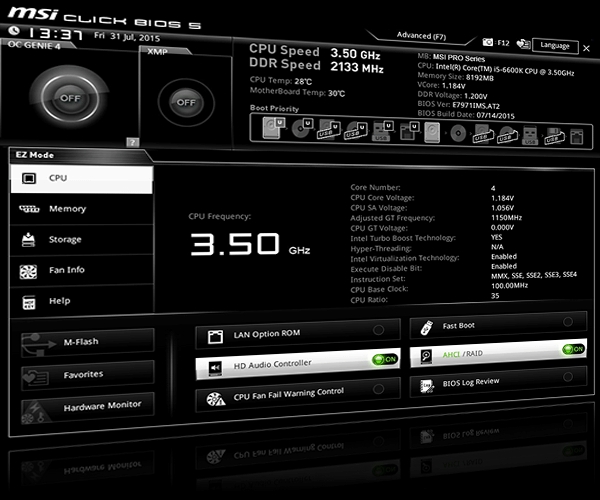

THE ALL NEW, AWARD-WINNING CLICK BIOS 5
Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.
Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your systems performance.
- Variety of options to boost your game performance
- Next gen UEFI BIOS with award winning design
- High-resolution multi language scalable font
- Easy to use
- Advanced overclocking
OTHERS
Low res, non-scalable
CLICK BIOS 5
Sharp, hi-res, scalable design
M-CLOUD

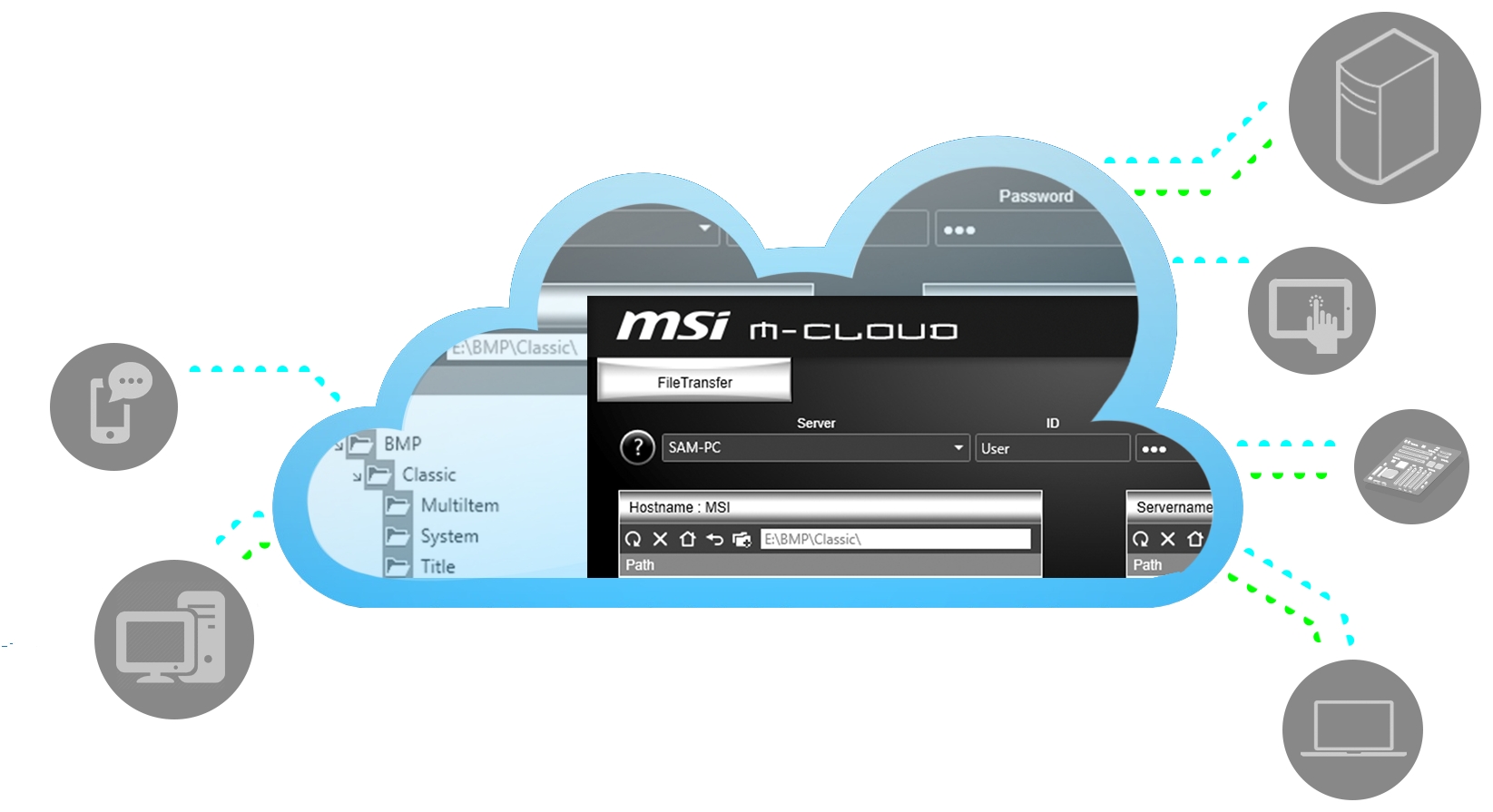

MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.
Wi-Fi sharing
Data Sharing
RELIABILITY
MILITARY CLASS 4 COMPONENTS
DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
HIGH TEMPERATURE
PROTECTION
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.
EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.

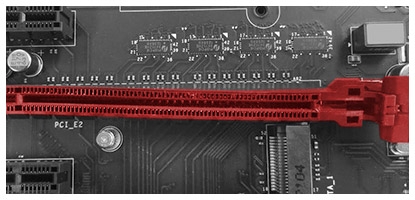

VGA ARMOR: REINFORCED PCI EXPRESS SLOT

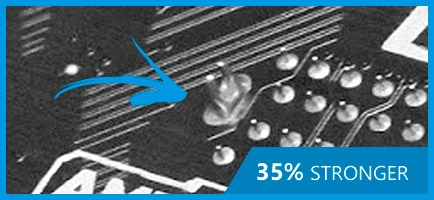

With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.
PREVENT DAMAGE
NO STRENGHTENING
OTHER BRANDS
NO STRENGHTENING
MSI VGA ARMOR
REINFORCED, HEAVY SOLDERED CONNECTIONS
TOTAL
FAN CONTROL

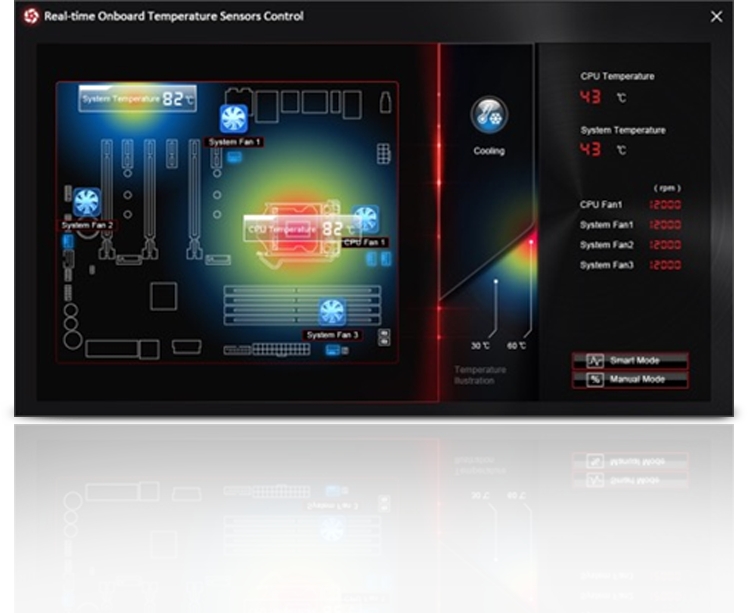

Total Fan Control gives you complete control of all your fans connected to the motherboard, through a revolutionary and easy to use interface.
Full control of fans through 4-pin fan headers
Real-time monitor fan speeds & temperatures
Intuitive, easy to use application design
Set profiles
Log fan speed, voltage and temperature status
BENEFIT FROM THE NEW
INTEL® SMALL BUSINESS ADVANTAGE SOLUTION with MSI ® MOTHERBOARDS
Intel® SBA is a unique, customizable solution that helps improve small businesses data security, maximizes employee productivity and boosts overall office computers’ performance.
A simple and intuitive interface offering hardware-based security and improves productivity – With software monitoring, health center, data backup and restore, USB blocker, screen sharing, file sharing, and chatting.
CONNECT
Remote file access Remote desktop
HEALTH
Health Center After-hours maintenance
SECURITY
Software Monitor Data Backup & Restore USB Blocker
SHARE
File Sharing Screen Sharing Chat
WHQL CERTIFIED.WINDOWS 10 READY.

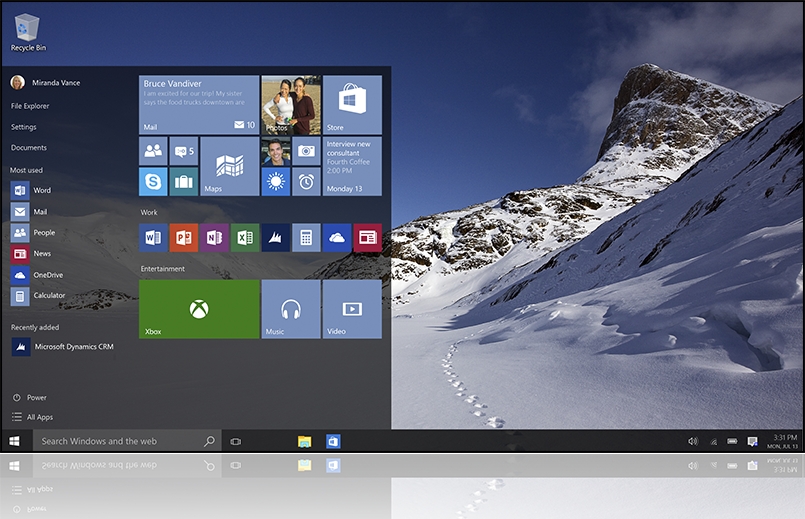

Benefit from great compatibility and a worry-free user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with MSI PRO Series motherboards.
MSI is worlds first motherboard manufacturer to receive official Microsoft Windows 10 WHQL certification. With a true testament to compatibility and performance, the MSI R&D team ensures a worry-free experience when using the latest version of Microsoft Windows on any MSI PRO Series motherboard.
- 100% Compatibility
- 100% Performance
- 100% Trusted & Certified
Studio grade sound with AUDIO BOOST
With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.
Isolated Audio PCB
Audio Boost acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.
Chemi-Con Audio Capacitors
Delivering high fidelity crystal clear sound with exceptional acoustics and realism.
Separated Audio Layers
Equal and perfect sound quality for left & right channel audio through the use of seperated layers in the PCB.
Anti-popcorn Noise
Audio Boost protects your ears against annoying loud popping sounds when you plug devices in or out or turn your PC on/off.
5.1 Audio Jacks
7.1 via front
With high quality audio connectors you get the best possible signal output with less chance of distortion.
Front Dedicated Headphone Out
Convenient use of the front panel audio output while retaining high quality amplified sound.
X FRONT USB 3.1 GEN1
With a clever placed USB 3.1 Gen1 front pin header, available on MSI motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports on the rear.
DOUBLE ESD PROTECTION
The front USB 3.1 Gen1 ports on MSI motherboards are protected by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.
PERFECT FOR INDUSTRIAL
AND COMMERCIAL USE
Thanks to its flexibility in connectivity through the availability of a COM and LPT port, this MSI motherboard is suitable for an endless variety of applications in your business or in commercial markets.
The COM/LPT port found on this MSI motherboard ensures high compatibility through support of a wide variety of legacy devices.
COM
LPT
LEGACY DVI / VGA VIDEO SUPPORT
To support professional monitors, TV's, beamers and other displays, this MSI motherboard features DVI and a VGA video output. No matter what screen type you want to connect, using a dedicated graphics card or an onboard connector, MSI motherboards have you covered.
DVI-D
VGA-OUT
4K UHD
Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards.
HDMI
This motherboard is equipped with a HDMI port supporting the latest 4K Ultra-HD 40962160p resolution @ 30Hz to provide a breathtaking visual experience.

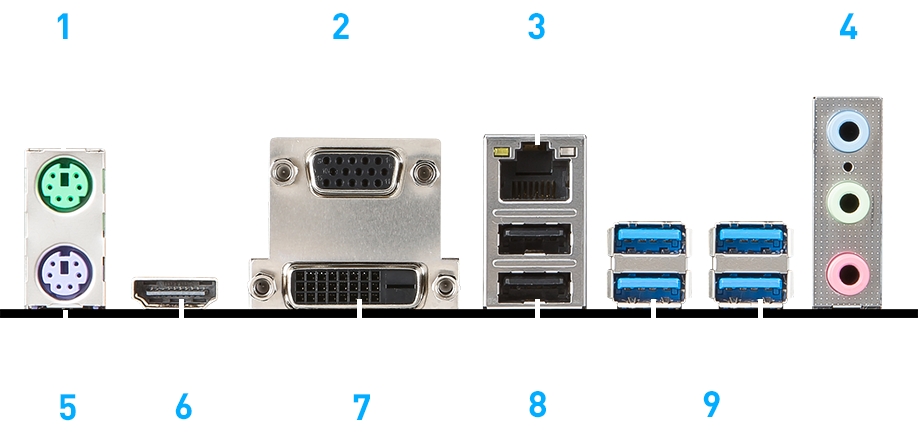

Connectivity
Be sure to take full advantage by connecting your devices to the optimized ports.
- Mouse
- VGA port
- LAN port
- Audio connectors
- Keyboard
- HDMI port
- DVI port
- USB 2.0 ports
- USB 3.1 Gen1 ports
Specifications
Socket
1151
CPU (Max Support)
i7
Chipset
Intel® B150
DDR4 Memory
2133 MHz
Memory Channel
Dual
DIMM Slots
4
Max Memory (GB)
64
PCI-Ex16
1
PCI-E Gen
Gen3
PCI-Ex1
2
SATA Express
1
SATAIII
6
TPM (header)
1
LAN
10/100/1000*1
USB 3.1 ports(Front)
2(Gen1)
USB 3.1 ports (Rear)
4(Gen1)
USB 2.0 ports (Front)
4
USB 2.0 ports (Rear)
2
Audio ports (Rear)
3
VGA
1
HDMI
1
DVI
1
DirectX
DX12
Form Factor
m-ATX
CPU
Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
 |
|
Chipset
Intel B150 Chipset
|
|
Main Memory
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 2133 MHz
Dual channel memory architecture
Supports ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
|
|
|
Slots
1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots
|
|
Onboard Graphics
1 x HDMI ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
|
|
On-Board SATA
Intel B150 Express Chipset
6 x SATA 6Gb/s ports
1 x SATAe port (PCIe 3.0 x2)*
* SATAe port is backward compatible with SATA.
|
|
|
USB
Intel B150 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
|
|
|
Audio
Realtek ALC887 Codec
7.1-Channel High Definition Audio
|
|
LAN
1 x Realtek RTL8111H Gigabit LAN controller
|
|
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x HDMI port
- 1 x DVI-D port
- 1 x VGA port
- 2 x USB 2.0 ports
- 4 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 3 x audio jacks
|
|
|
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
|
|
Dimension
9.3 in. x 9.0 in. (23.5 cm x 22.8 cm) m-ATX Form Factor
|
|
Mounting
6 mounting holes |
