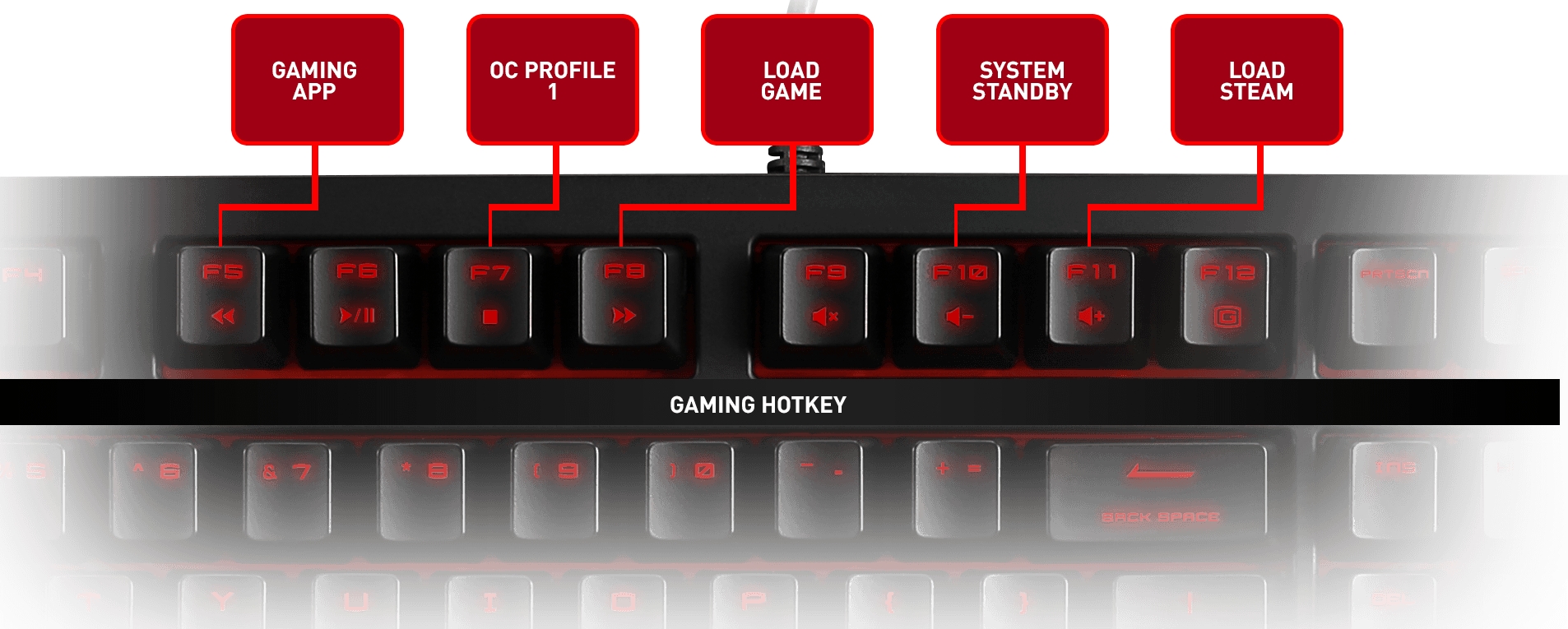

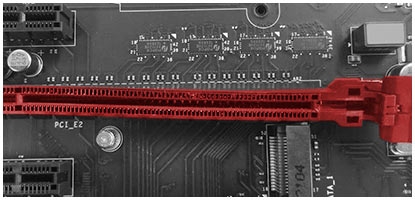

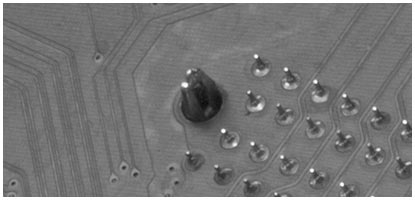

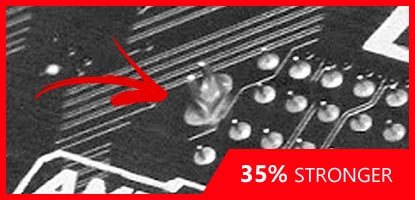

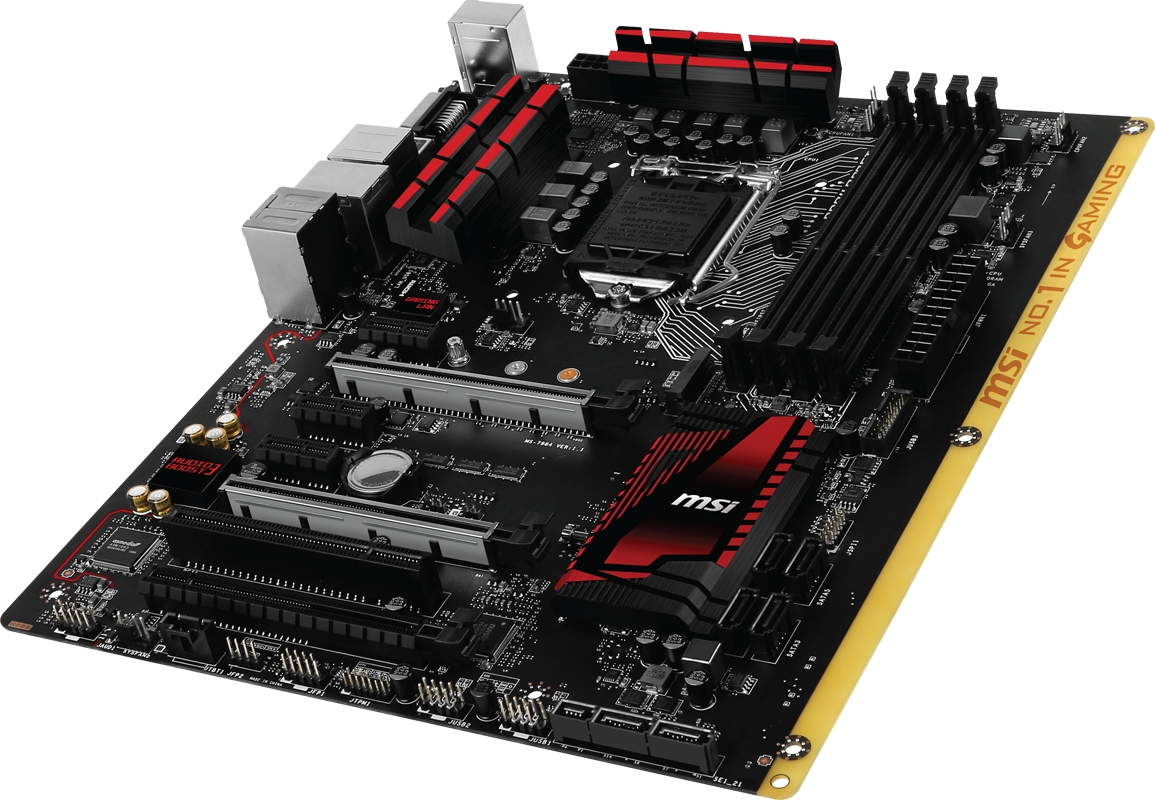

MSI VGA Armor Reinforced, heavy soldered connections
THE ALL NEW, AWARD-WINNING CLICK BIOS 5
Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance to get the most out of your games. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.

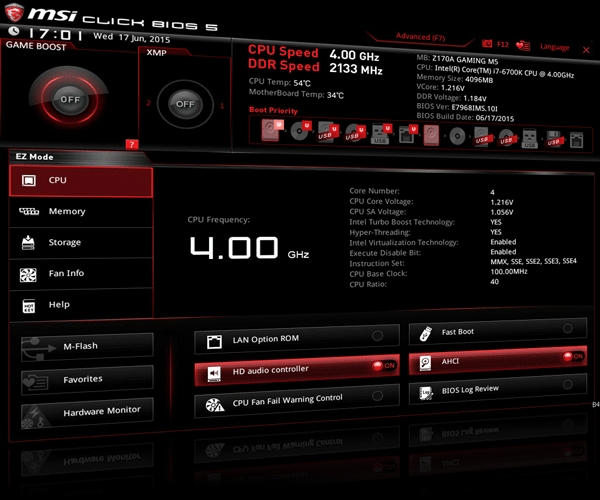

Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your systems performance.
- Variety of options to boost your game performance
- Next gen UEFI BIOS with award winning design
- High-resolution multi language scalable font
- Easy to use
- Advanced overclocking
OTHERS
Low res, non-scalable
CLICK BIOS 5
Sharp, hi-res, scalable design
GAMING DEVICE PORT

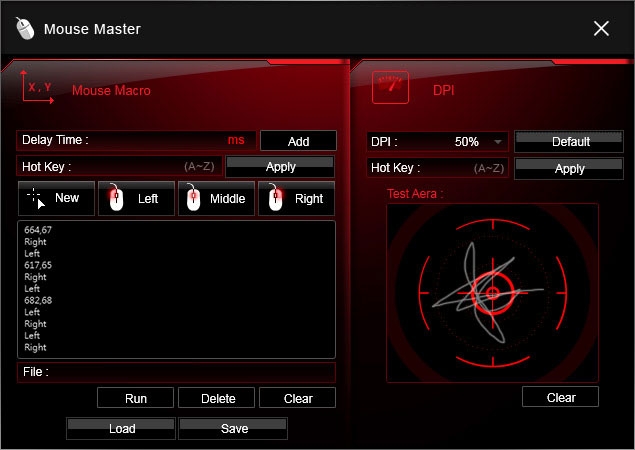

MSI Gaming Device Port is optimized to deliver the best connectivity for high end gaming mice to fully utilize its speed. You can customize your mouse DPI to change accuracy and program macro combinations using the easy to use Mouse Master software to perform multiple commands with just one click.
Gaming benefits
- More responsive, faster reactions
- Customizable mouse settings
- Customizable mouse accuracy (DPI)
- Program macros for multiple actions in 1 click
- Smoother gameplay
Technical benefits
- 3x more gold than regular connectors
- 10x longer lifetime when plugging/un-plugging
- Prevents oxidation
OBS STREAMING SOFTWARE

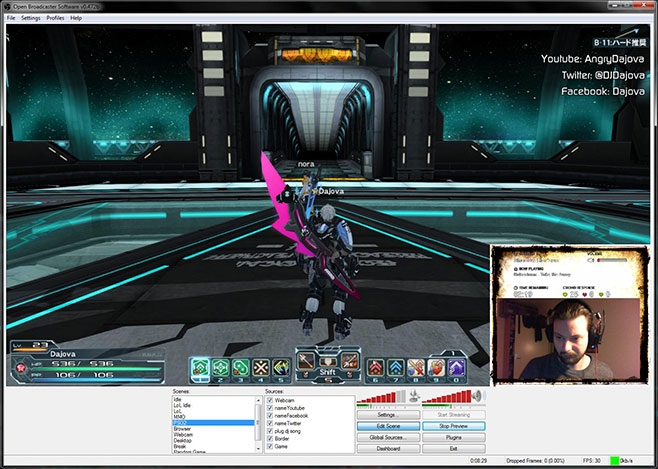

Share your gaming achievements with the world! Open Broadcaster Software (OBS) is world’s most popular open source software for video recording and live streaming. Show your friends your gaming progress live.
Optimized video quality
OBS records videos using small file size,but with perfect image and sound quality, without lag.
Easy to share

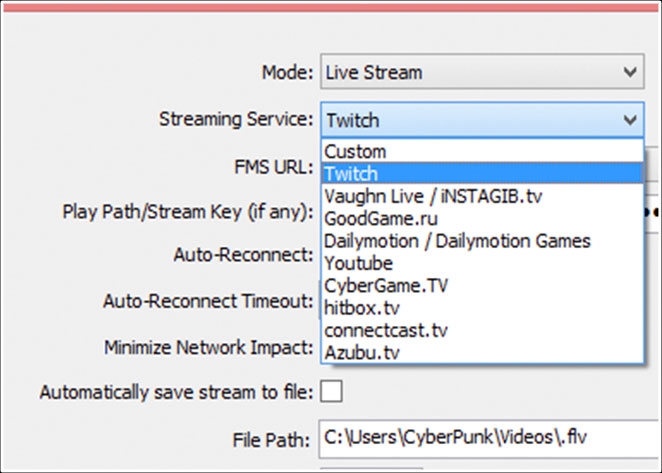

Live streaming to your favorite video sharing websites such as Twitch, YouTube, DailyMotion, Hitbox and many more.
Webcam supported

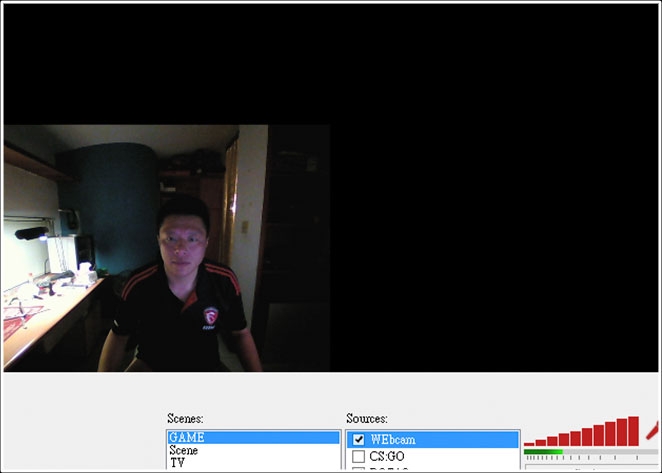

OBS supports almost any webcam. DirectShow capture device support (webcams, capture cards, etc).
Multiple profiles

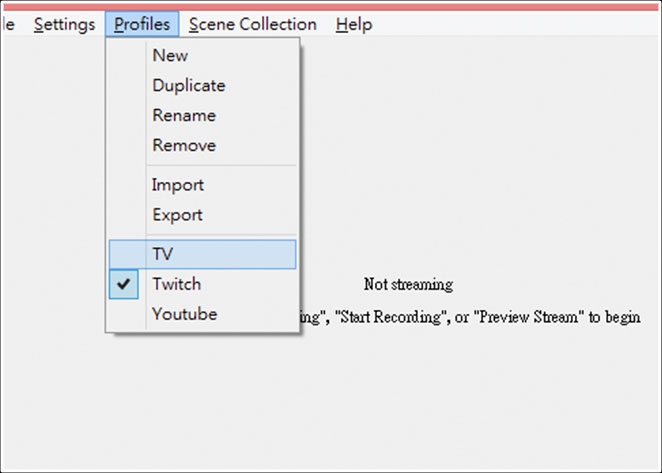

Add different profiles, each of them with its own settings. Easy to use OBS for anyone, in any situation.
Plenty of plugins

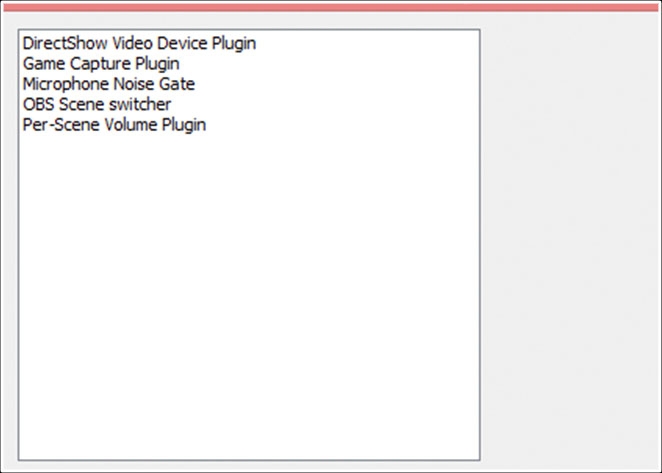

Allowing developers to create their own unique plugins and complete control of their streaming experience.
OVERCLOCKING MADE EASY

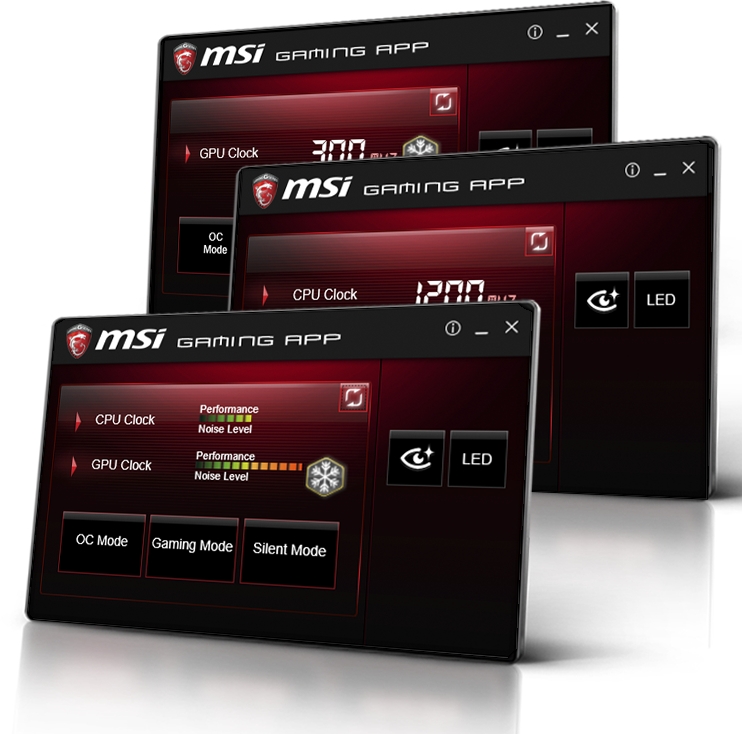

Outperform your competition with the MSI GAMING APP which allows simultaneous control of both your Motherboard and Graphics Card's overclocking.
Simply select your preferred mode with the click of a button:
Silent / Gaming / OC
ON-SCREEN SPEED & TEMPERATURES

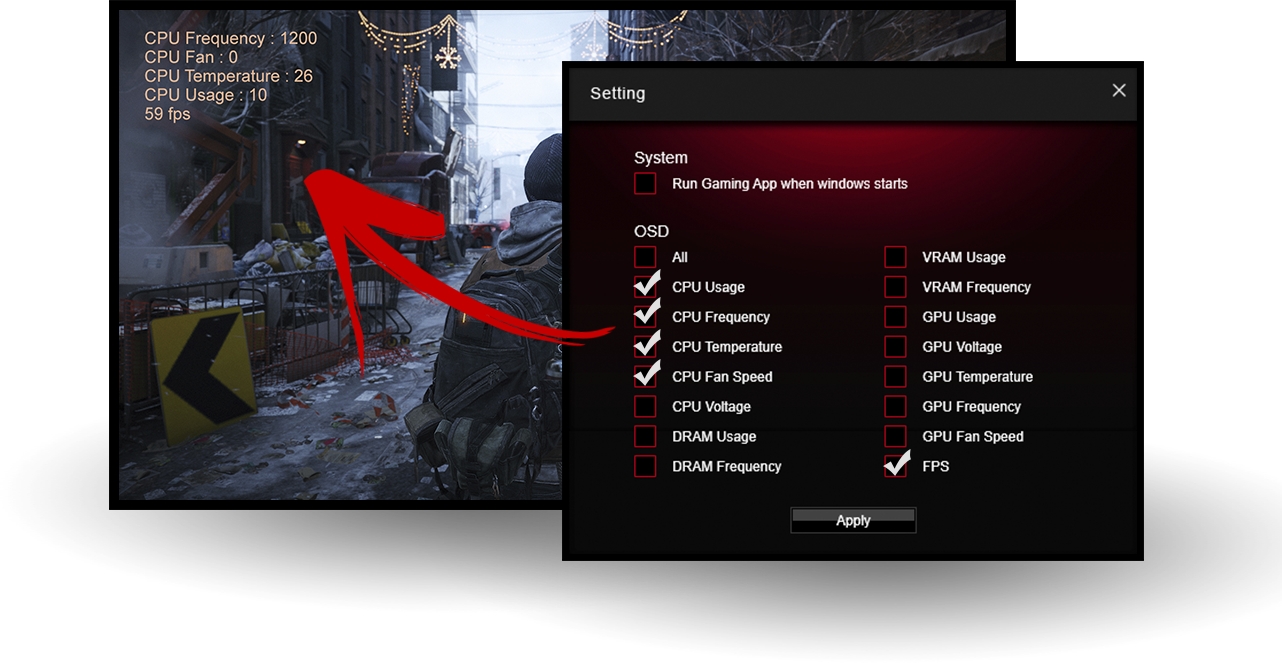

Real-time monitor GPU Core, DRAM Frequency, GPU & CPU Temperatures and much more, in game or in other fullscreen applications, customizable to your preference.
CPU-Z MSI GAMING EDITION

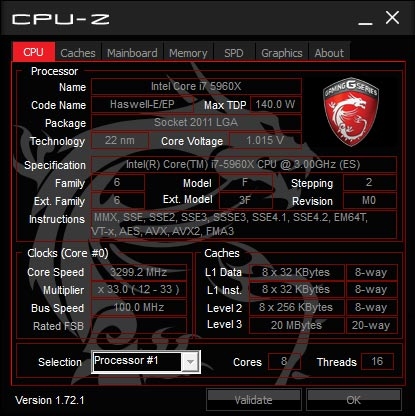

MSI has worked closely with CPUID to develop this special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information on the main devices of your system, such as your CPU speed, Memory speed and timings, motherboard BIOS version and much more.

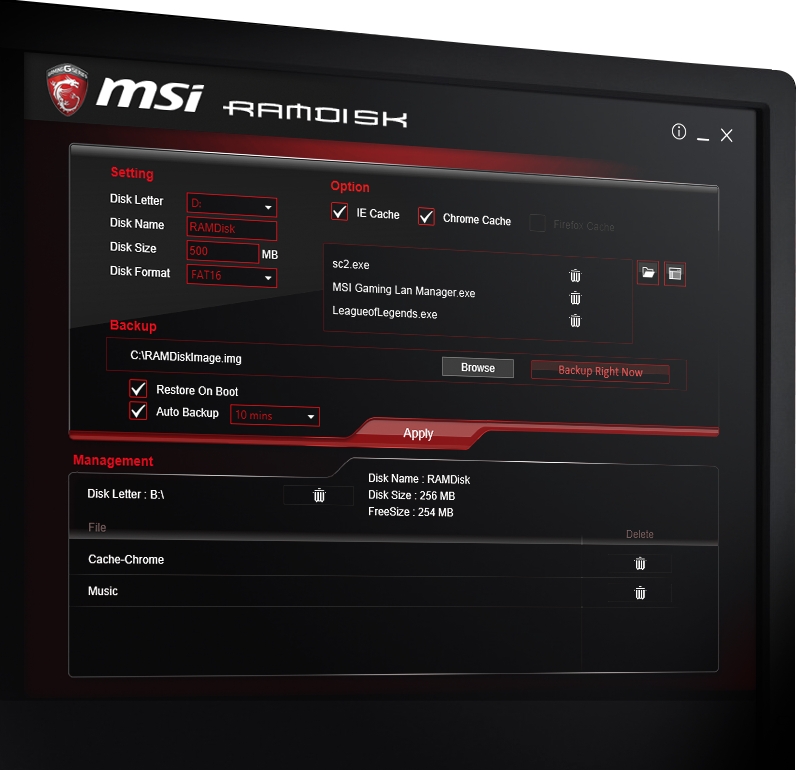

SSD not fast enough? Try MSI RAMDisk!
Get an unlimited RAMDisk for free (worth $35) with MSI GAMING motherboards. RAMDisk allows you to create a virtual drive from your system memory, enabling speeds up to 25x faster than a modern SSD. You can load complete games, speed up your browser or your page file significantly increasing system performance! You even increase your SSD's lifespan by using RAMDisk as it reduces unnecessary read and write operations to your SSD.
- Speed up system performance
- Speed up games, apps and browser
- Increase SSD lifespan
25x Faster
$35 Value
PACKAGE CONTENT
What's in the box? Check it out for yourself! Besides an abundance of necessary cables and connectors, a stylish all black GAMING I/O shield.
FRONT SIDE OF I/O PANEL
- I/O Panel Ports Label
- Dark coating

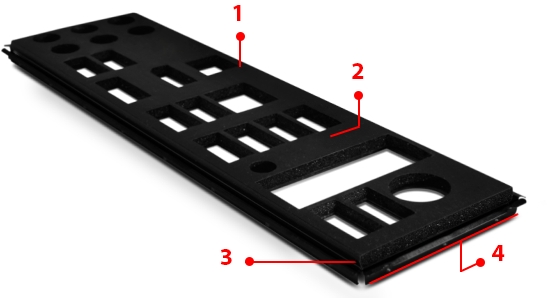

BACK SIDE OF I/O PANEL
Force Absorbing Layer (NEW)
Aluminium Interference Shielding
Steel Shielding
CABLE LABELS

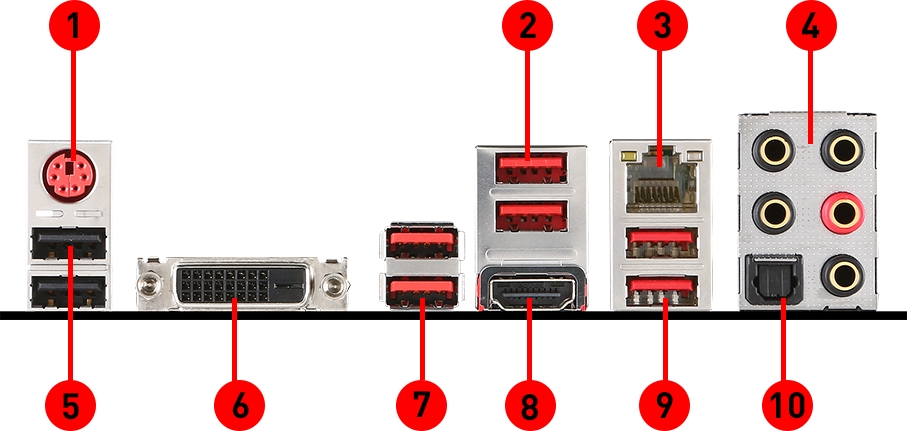

Connectivity
Be sure to take full advantage of all the GAMING weapons by connecting your devices to the optimized ports.
Gaming Device Port
USB 3.1 Gen1
MSI GAMING LAN
Audio connectors
USB 2.0
DVI Port
USB 3.1 Gen2
HDMI Port
USB 3.1 Gen1
Optical S/PDIF Out

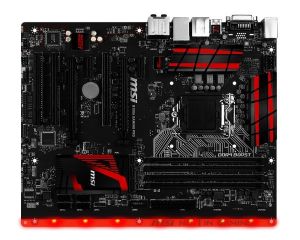

Specifications
Socket
1151
CPU (Max Support)
i7
Chipset
Intel® B150
DDR4 Memory
2133 MHz
Memory Channel
Dual
DIMM Slots
4
Max Memory (GB)
64
PCI-Ex16
2
PCI-E Gen
Gen3
PCI-Ex1
2
PCI
3
SATA Express
1
SATAIII
6
TPM (header)
1
LAN
10/100/1000*1
USB 3.1 ports(Front)
2(Gen1)
USB 3.1 ports (Rear)
4(Gen1), 2(Gen2)
USB 2.0 ports (Front)
2
USB 2.0 ports (Rear)
2
Audio ports (Rear)
5+Optical SPDIF
HDMI
1
DVI
1
DirectX
DX12
Form Factor
ATX
CrossFire
Y
CPU
Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
 |
Chipset
Intel B150 Chipset
|
|
|
Main Memory
4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2133 MHz
Dual channel memory architecture
Supports ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
|
|
Slots
2 x PCIe 3.0 x16 slots*
2 x PCIe 3.0 x1 slots
3 x PCI slot
* The PCI_E4 slot will only run PCIe 3.0 x1 speed when the PCI_E1 or PCI_E3slot is installed a device.
|
|
|
Onboard Graphics
1 x HDMI port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
|
|
|
Multi-GPUSupports 2-Way AMD CrossFire Technology
Supports 2-Way AMD CrossFire Technology
|
| |
Storage
Intel B150 Chipset

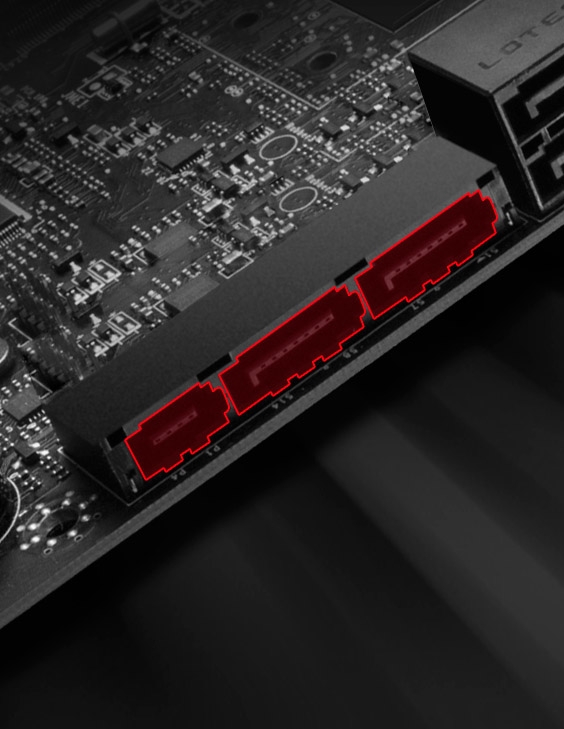

6 x SATA 6Gb/s ports*
1 x SATAe port (PCIe 3.0 x2)**
* SATA and SATAe ports maximum support 6x SATAs or 1x SATAe + 4x SATAs.
** SATAe port is backward compatible with SATA.
|
|
USB
ASMedia ASM1142 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports on the back panel
Intel B150 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector)
- 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB 2.0 connectors)
|
|

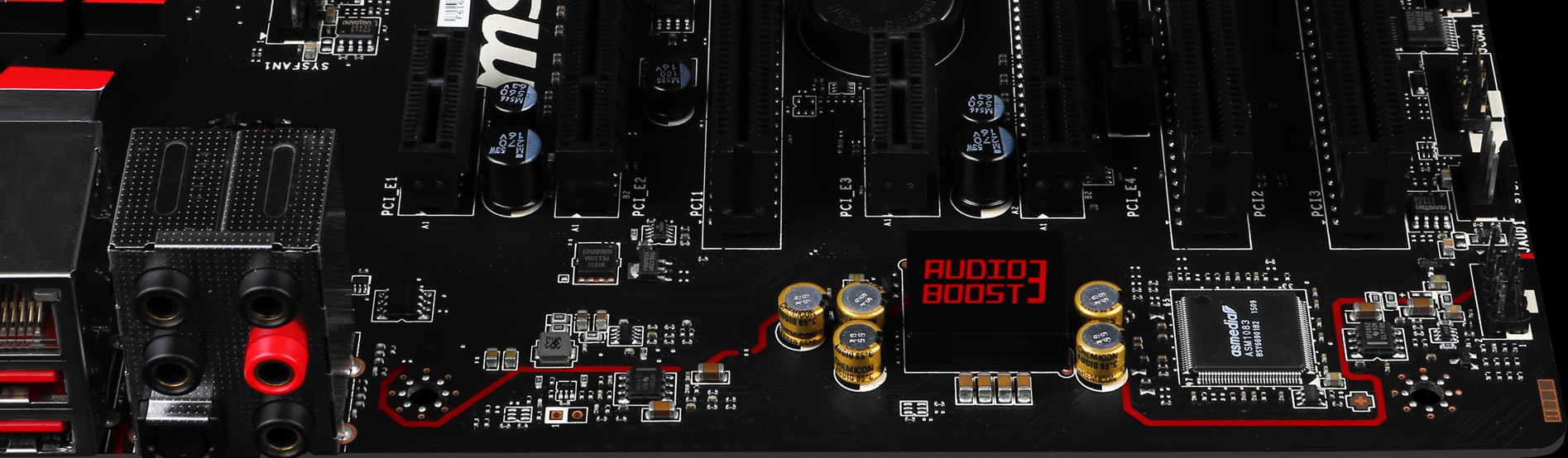

Audio
Realtek ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
|

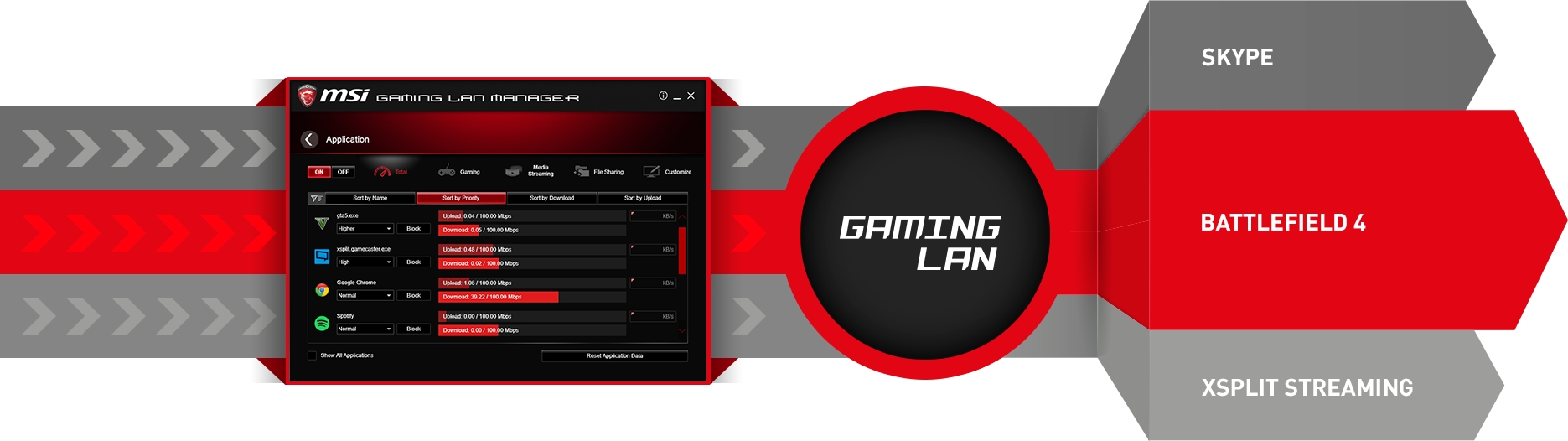

LAN
1 x Intel I219-V Gigabit LAN controller
|
|
Internal I/O Connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 1x SATAe connector
- 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2x 4-pin CPU fan connectors
- 3x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x Front panel connectors
- 1x TPM module connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x Serial port connector
- 1x Parallel port connector
|
|
Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 2 x USB 3.1 Gen2 ports
- 4 x USB 3.1 Gen1 ports
- 1 x HDMI port
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks
|
|
|
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
- 1x 128 Mb flash
- UEFI AMI BIOS
- ACPI 5.0, PnP 1.0a, SM BIOS 2.8
- Multi-language
|
|
|
Dimension
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
|
|
|
Mounting
9 mounting holes
|
