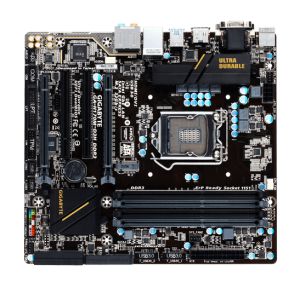

GAH170MD3H, GA-H170M-D3H, 4719331829407
- Supports 6th Generation Intel Core Processor
- Dual Channel DDR4, 4 DIMMs
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 2 SATA Express Connectors for up to 16Gb/s Data Transfer
- 8-channel HD Audio with High Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- Intel GbE LAN with cFosSpeed Internet Accelerator Software
- APP Center Including EasyTune and Cloud Station Utilities
- GIGABYTE UEFI DualBIOS Technology
- Support Intel Small Business Advantage
GIGABYTE Ultra Durable Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

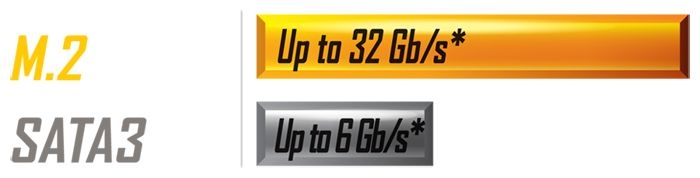

Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.
Next Generation SATA Express

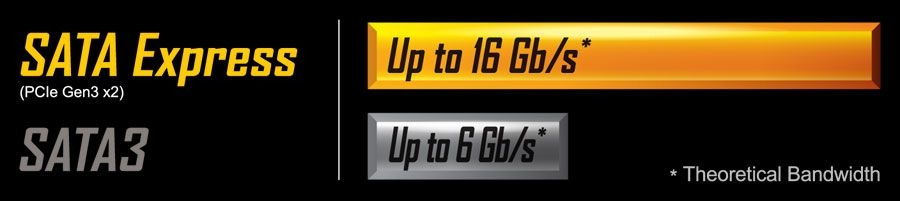

SATA Express combines the benefits of PCI Express and SATA to provide
much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
2-Way CrossFire Multi-Graphics
Multi-graphics configuration offers better graphics performance for
gaming enthusiasts who demand the highest frame rates without
compromising on resolution.
Intel GbE LAN with CFosSpeed
Intel GbE LAN features cFosSpeed, a network traffic
management application which helps to improve network latency and
maintain low ping times to deliver better responsiveness in a crowded
LAN environments.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to
create the most realistic sound effects for professional gamers.
All New GIGABYTE App Center Including EasyTune, Cloud Station Utilities and More...
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows
users to fine-tune their system settings or adjust system and memory
clocks and voltages in a Windows environment. With Smart Quick Boost,
one click is all it takes to automatically overclock your system, giving
an added performance boost when you need it the most.
App Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs
that help you get the most from your GIGABYTE motherboard. Using a
simple, unified user interface, GIGABYTE APP Center allows you to launch
all GIGABYTE APPs installed on your system.
Easy Tune
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station
GIGABYTE Cloud Station is composed of several GIGABYTE unique apps
that allow your smart phones/tablet devices to communicate, share
resources, and control your desktop PC via a wireless connection.

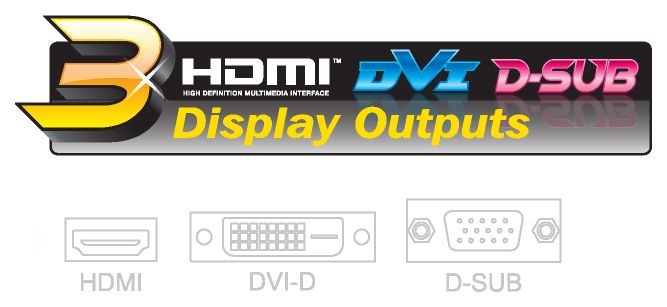

High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
15 micron Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a 15 micron thick gold plated
CPU socket, which means that enthusiasts can enjoy absolute reliability
and longevity for the CPU socket overtime, without having any concerns
about corroded pins or bad contacts.
GIGABYTE Patented DualBIOS (UEFI) Design
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS , an
exclusive technology from GIGABYTE that protects arguably one of your
PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that
your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making
users protected from BIOS failure due to virus attack, hardware
malfunction, improper OC settings or power failure during the update
process.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition
content delivery, utilizing approximately 4,000 pixels on the horizontal
axis, more than four times today's standard HD pixel density. GIGABYTE
motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
HDMI - The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia
Interface which provides up to 5Gb/s video transmitting bandwidth and
8-channel high quality audio all through a single cable. Able to
transmit superior, uncompressed digital video and audio, HDMI ensures
the crispest rendering of digital content up to 1080p without the
quality losses associated with analog interfaces and their
digital-to-analog conversion. In addition, HDMI is compatible with HDCP
(High-bandwidth Digital Content Protection), allowing the playback of
Blu-ray/HD DVD and other protected media content.
Specifications
| CPU |
- Support for Intel Core i7 processors/Intel Core i5 processors/
Intel Core i3 processors/Intel Pentium processors/
Intel Celeron processors
in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
| Chipset |
- Intel H170 Express Chipset
|
| Memory |
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB
of physical memory is installed, the actual memory size displayed will be less than
the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR4 2133 MHz memory modules
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
- Support for up to 3 displays at the same time
- Maximum shared memory of 1024 MB
|
| Audio |
- Realtek ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
| LAN |
- Intel GbE LAN chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 2 x PCI slots
|
| Multi-Graphics Technology |
- Support for 2-Way AMD CrossFire technology
|
| Storage Interface | Chipset:
- 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1
SSD support)
- 2 x SATA Express connectors
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the supported configurations with the M.2,
SATA Express, and SATA connectors.
|
| USB | Chipset:
- 8 x USB 3.0/2.0 ports (4 ports on the back panel,
4 ports available through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel,
4 ports available through the internal USB headers)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 2 x SATA Express connectors
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 3.0/2.0 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x Thunderbolt add-in card connector
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper
|
| Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out,
Line In, Line Out, Mic In)
|
| I/O Controller |
- iTE I/O Controller Chip
|
| H/W Monitoring |
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
- Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install
|
| Bundle Software |
- Norton Internet Security (OEM version)
- Intel Smart Response Technology
- Intel Small Business Advantage
- cFosSpeed
|
| Operating System |
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7.
|
| Form Factor |
- Micro ATX Form Factor; 24.4cm x 22.5cm
|
| Box Contents |
- GA-H170M-D3H motherboard
- Two SATA cables
- Motherboard driver disk
- I/O Shield
- User's Manual
|
| Remark | - Due
to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website.
- Most hardware/software vendors may no longer offer
drivers to support Win9X/ME/2000/XP. If drivers are available from the
vendors, we will update them on the GIGABYTE website.
|
