GXV3611IR_HD

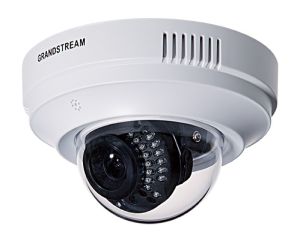

Grandstream GXV3611IR_HD
HD indoor Infrared 2MP Fixed Dome IP Camera, 720p, PoE, Mic and Speaker
The GXV3611IR_HD is an indoor Infrared (IR) fixed dome IP camera with a high-definition 2.8mm lens making it ideal for wide angle monitoring of nearby subjects in environments such as banks, hotels, retail, offices or building entrances.
The cameras advanced Image Sensor Processor (ISP) is powered by a state of the art auto-exposure/auto-white-balance algorithm which allows for exceptional performance in all lighting conditions. Pair the GXV3611IR_HD with Grandstreams GVR3550 Network Video Recorder (NVR), which supports plug-n-play with all Grandstream IP cameras, to create a powerful recording and monitoring solution. The GXV3611IR_HD can also be managed by GSURF Pro (Grandstreams FREE Video Management Software that allows simultaneous control of up to 72 cameras) along with other ONVIF-compliant video management systems. The GXV3611IR_HD IP camera features industry-leading SIP/VoIP for 2-way audio and video streaming to both video and smart phones. It contains integrated PoE, IR-CUT for day and night mode, microphone, speaker, and a flexible HTTP API for easy integration with other surveillance systems.
Features
High quality Megapixel CMOS sensor and 2.8mm HD lens
Advanced multi-streaming real-time H.264, Motion JPEG at full frame rate
Firmware Update and Factory Reset performed using the GS_Search utility tool
Supports Time-lapse photography
Embedded Video Analytics and SIP/VoIP/IMS support
Integrated micro SDHC interface for local embedded storage
Full ONVIF conformance with extensions
Smart IR for optimal White Balance and Exposure
High-performance streaming server allowing multiple simultaneous viewers
Automatic discovery by Windows “Network” (UPnP) or Apple Mac (Bonjour) with Safari native support if MJPEG is selected
Supports both variable bit rate and variable frame rate
Enhanced H.264 encoder for lower bit rate
Automatic Provisioning via DHCP Option 66
Supports Privacy Masks, Disable Telnet to enhance security
Specifications
Video Compression
H.264, MJPEG
Image Sensor Resolution
Megapixel Progressive Scan CMOS, 1280H x 720V
Image Sensor Sensitivity
Day & Night mode, exceptionally low noise levels and low-light sensitivity Shutter: 1/10000 – 1/30 second
Focal Length
2.8mm
Aperture
F1.8
IR Cut Filter
Yes, Mechanical
Day & Night Mode
IR LED with Smart IR software control
Minimum Illumination
0 lux
Pan
176°
Tilt
60°
Supported Maximum Video Resolution and Frame Rate
1280x720 (30fps)
Video Bit Rate
32 Kbps ~ 8Mbps, Multi-rate for Preview and Recording
SIP/VoIP Support
Yes
Power over Ethernet (PoE)
IEEE 802.3af Class 2; 10M/100M Auto-sensing; 2KV Lighting Surge Protection
Micro SDHC Card Support
Yes, up to 32GB
Dimensions (D x L)
138mm(D) x 86mm (H)
Weight
0.4kg
Temperature / Humidity
Operating: 0°C ~ +45°C (32°F ~ 113°F)
Storage: -20°C ~ +60°C (-4°F ~ 140°F)
10 ~ 90% RH (non-condensing)
Power Adapter
Output: 12VDC/0.5A
Input 100 ~ 240 VAC, 50 ~ 60 Hz
Casing
Plastic case for indoor use only
