All stock codes associated to this product
GWHDSTX
Wireless HDMI Transmitter
GWHDSTX
Description
Wireless HDMI
IOGEAR's Wireless HDMI Transmitter (GWHDSTX) is the perfect companion for the Wireless 5x2 HD Matrix's receiver (GWHDMS52); sending uncompressed Full HD 1080p from your laptop, computer, game console and or other HDMI device. It adds an additional HDMI device to your exsiting Wireless 5x2 HD Matrix set up. Add up to a total of 3 Wireless HDMI Transmiters to one (1) GWHDMS52 set up.
The simplified Wireless Transmitter does not require any drivers or software, just plug it into the HDMI port of your HDMI device and you are sending wireless audio/video up to 30 from the Wireless 5x2 HD Matrix receiver.
Wireless PC to TV
Take advantage of your large screen HDTV and send your computers screen wirelessly for all your internet browsing, favorite video sites, shopping, reviewing and sharing of your photos and videos.
Wireless Gaming
With less than 1ms latency you can set your computer or game console up for wireless gaming!
The Wireless HDMI Transmitter does not require a line-of-sight placement enabling a quick, simple, and flexible wireless audio/video solution.
Features
- Wireless HDMI Transmitter companion for the IOGEAR Wireless 5x2 HD Matrix (GWHDMS52) and Wireless HDMI Transmitter and Receiver Kit (GWHD11) wireless receiver*
- Wireless uncompressed Full HD 1080p audio/video streaming with 3D support up to 30ft**
- Connect and wirelessly transmit content from a Laptop, Game Console, Blu-ray / DVD player and or Set-top box/DVR/Cable box with HDMI output
- Wireless Full HD 1080p and 5.1 channel digital audio
- Video Resolutions: 480p, 720p, 1080i and 1080p
- No software or driver installation needed
- Based on WHDI Technology - Low latency < 1ms; great for wireless gaming
Required: IOGEAR Wireless 5x2 HD Matrix (GWHDMS52) or Wireless HDMI Transmitter and Receiver Kit (GWHD11)
Distances may vary depending on environment; solid objects such as steel, concrete and brick may cause shorter viewing distances or loss of signal
Warranty: 1-YEAR

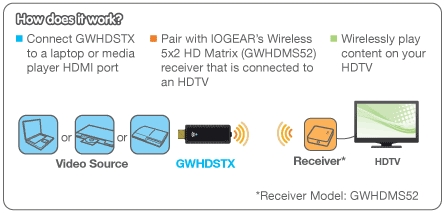

Function Diagram
Requirements
Hardware:
- Wireless 5x2 HD Matrix (Part# GWHDMS52)
Display:
Media Source:
Package Content
- 1 x Wireless HDMI Transmitter
- 1 x Mini USB to USB Cable
- 1 x Mini USB Power Adapter
- 1 x Quick Start Guide
- 1 x Warranty Card
Specifications
UPC: 881317511843
|
GWHDSTX
|
|
Connectors
|
| Power |
1 x Mini USB Power Jack |
| Video Input |
1 x HDMI (Type A, male) |
| Video Resolution |
up to 1080p (50 / 60Hz) and 3D support |
| Video Streaming |
<1ms Latency |
| Audio |
| Audio Output |
Digital 6Mbps, 2 to 8 channels 16~ 24 bits/s by I2S and S/P DIF bus over WHDI transmission (Dolby Digtial & DTS) |
| Frequency |
4.9 ~ 5.9 GHz (Includes Non-DFS and DFS Frequency Bands) |
| Antenna Type |
High Performance Internal |
| Range |
Maximum video transmission range is 30ft (10m) |
| Power Switch |
1 x Button |
|
Power
|
| Voltage |
5V DC Mini USB |
| Amps |
1.5A |
|
Housing
|
| Case |
Plastic |
|
Cable Connections
|
| Input |
1 x Mini USB (female) |
|
LEDs
|
| Port Status |
1 x Blue LED |
|
Dimensions
|
GWHDSTX |
|
Unit Dimensions
|
| Height |
0.66" (1.68 cm) |
| Depth |
1.19" (3.02 cm) |
| Length |
3.25" (8.26 cm) |
|
Unit Package Dimensions
|
| Width |
4.25" (10.8 cm) |
| Height |
3.63" (9.22 cm) |
| Depth |
2.93" (7.44 cm) |
|
Master Carton
|
| Width |
16.02" (40.69 cm) |
| Height |
13.88" (35.3 cm) |
| Depth |
7.38" (18.7 cm) |
| Master Carton Qty. |
24 |
|
Weight
|
| Master Carton Wt. |
14.05lbs (6.37kg) |
| Unit Pack Wt. |
0.50lbs (0.23 kg) |
| Unit Wt. |
0.05lbs (0.023kg) |
