All stock codes associated to this product
CP9020093AU, CP-9020093-AU, CP-9020093-AU , 843591050777

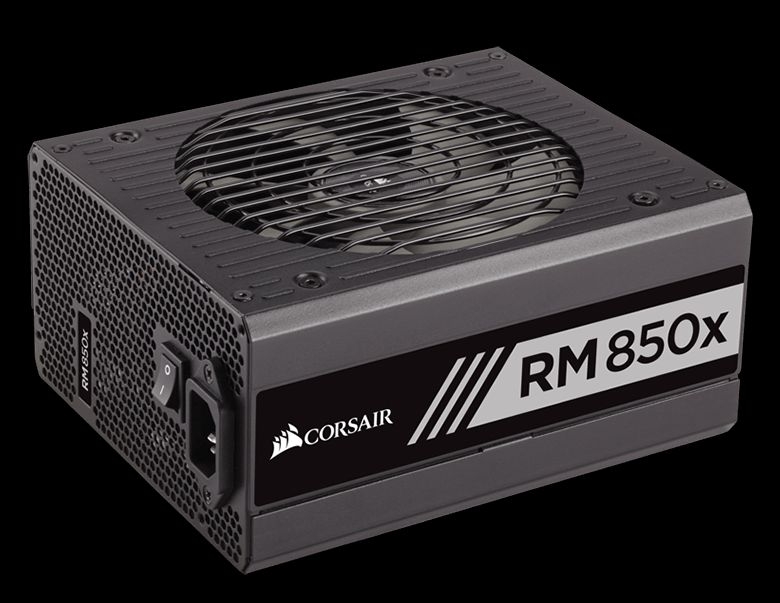

RMx Series™ RM850x — 850 Watt 80 PLUS® Gold Certified Fully Modular PSU (AU)
Corsair RMx series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results.
80 PLUS Gold certified
Gold certification ensures high efficiency operation for less excess heat and lower operating costs.
100% Japanese 105°C capacitors
Premium internal components ensure solid power delivery and long term reliability.
Zero RPM Fan Mode
Since the fan doesn’t turn on until it’s needed, you’ll enjoy virtually silent operation at low and medium loads.
Seven year warranty
Your guarantee of reliable operation that will last across several system builds.

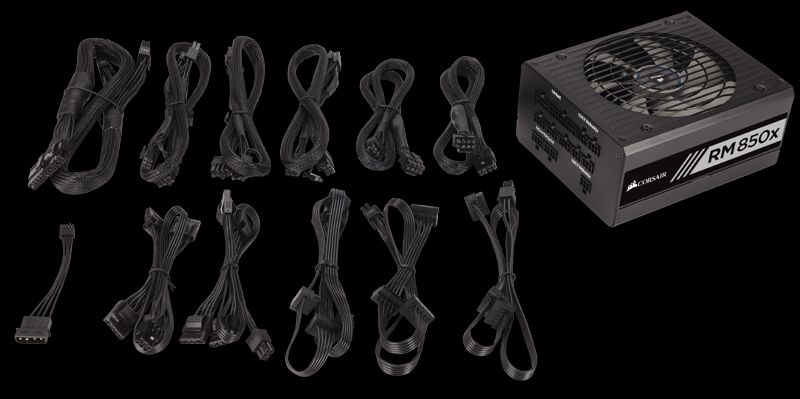

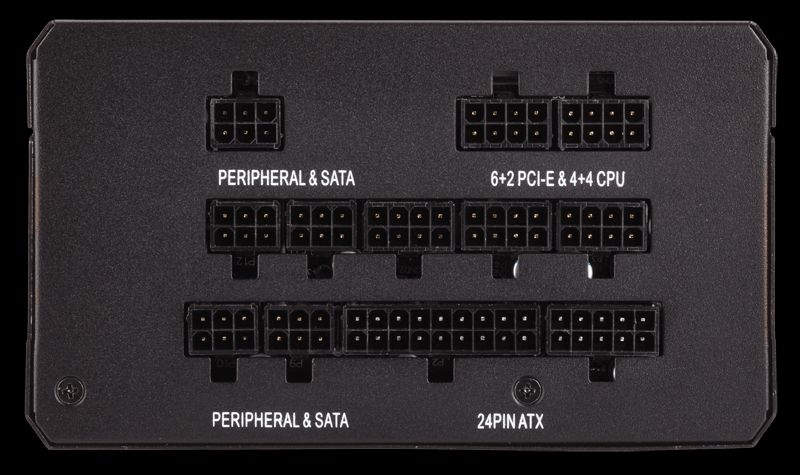

Fully modular cable set
Installation is faster, since you can mount the power supply in the case first, and then attach only the cables you need.
Contents and Specifications
Package contents
- RMx Series High-Performance ATX Power Supply
- AC power cord
- DC Modular cable set
- DC Modular cable storage bag
- Cable ties
- Corsair case badge
- User Manual
Compatibility
- 6th generation Intel® Core™ processor Ready (Intel Skylake and Z170 motherboards)
- ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems
Features
- 80 PLUS® Gold efficiency, delivering 90% energy efficiency at real world load conditions.
- ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.

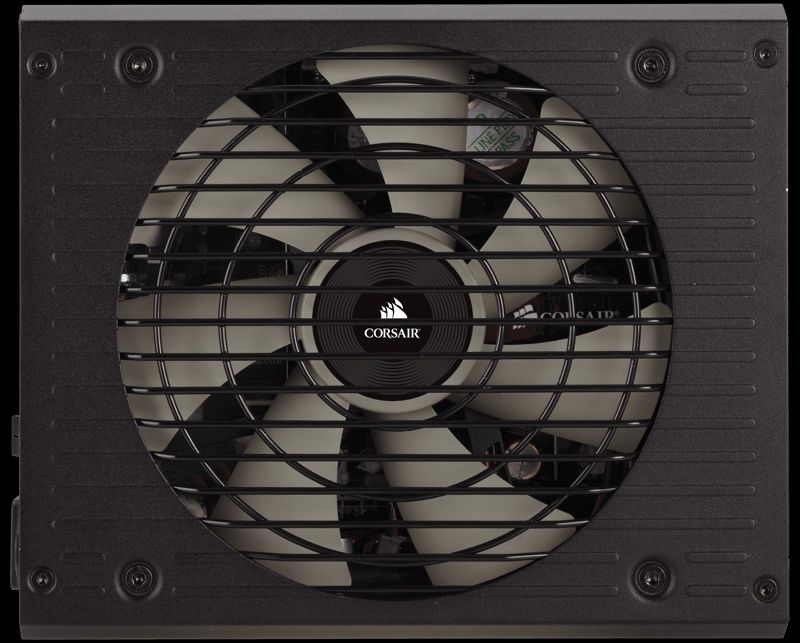

- 135mm thermally controlled fan spins up as needed.
- Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.
- Engineered to meet maximum power output at a server-grade 50°C temperature rating.
- Over-voltage protection, under-voltage protection, short circuit
protection, over power protection, and over temperature protection
provide maximum safety to your critical system components.
- Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
Specifications
Fan bearing technology:
Rifle
Fan size (mm):
135mm
C-Link Digital:
No
Continuous output rated temperature (°C):
50°C
ATX Connector:
150mm x 86mm x 180mm
Sleeved cables:
Sleeved and Flat Black Cables
Four Pin Peripheral Connector:
4
Plug Type:
AU
| Corsair RM850x Fully Modular Power Supply |
| AC Input Rating |
DC Output Rating |
| AC Input: 100V - 240V |
DC Output |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| Current: 12A - 6A |
Max Load |
25A |
25A |
70.8A |
0.8A |
3A |
| Frequency: 47Hz - 63Hz |
Maximum Combined Wattage |
150W |
850W |
9.6W |
15W |
| Total Power: 850W |
