Asrock N3050M Motherboard

N3050M

Don’t be Fooled by its Size!

1. Intel^® Dual-Core Processor N3050
2. Solid Capacitor design
3. Supports DDR3/DDR3L 1600 memory, 2 DIMM slots
4. 1 PCIe 2.0 x16, 2 PCIe 2.0 x1
5. Graphics Output Options : D-Sub, DVI, HDMI
6. Built-in Intel^® 8th generation (Gen 8) graphics, DirectX 11.1, Pixel Shader 5.0
7. 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
8. 2 SATA3, 4 USB 3.0 (2 Front, 2 Rear), 6 USB 2.0 (4 Front, 2 Rear)
9. 1 x TPM Header, 2 x COM Port Headers, 1 x Print Port Header
10. Supports ASRock APP Shop, Full Spike Protection



Features



Intel® Dual-Core Processor N3050 (Up to 2.16 GHz)

Improved performance, lower power consumption, and new multimedia capabilities.

14nm CPU Core Inside SoC Motherboards

Built around an Intel® N3000 Series processor, this motherboard packs plenty of expandability, superb integrated performance, and abundant graphics outputs. With its excellent hardware configuration and software support, it is your ideal solution to do business work, play games, or enjoy video and music entertainment. ASRock presents you the best motherboard to build your own mini PC!





Power Gear

Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.





Supports Standard & Low Voltage Long DIMMs

Capable of supporting both standard and low-voltage Long DIMMs.



16GB Memory Support

Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.



HEVC (H.265) Decoding + 4K

Supports HEVC (H.265) decoding to provide substantially improved video quality. Plus a minimum of 3840 x 2160 pixels with 4K resolution.



DDR3 LONG DIMMs

Two standard DDR3 dual channel long DIMM slots onboard! Compared to the default SO-DIMM slots, long DIMM design provides more DRAM module choices and also reserves huge potential for future upgrades.



Passive Heatsink Design

The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.



Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.



Micro ATX

This motherboard is uniquely based on the micro ATX form factor and therefore offers more expandability and choices for choosing a chassis.



ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.





Orbweb ME

Your Personal Cloud, Easy and Always Connects

ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously! We offer a one-year subscription to Orbweb.ME Professional version, a personal cloud service. It allows you to get connected with your PC's files, music, photos, and video clips remotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function is also available. Now, download Orbweb Me Host, enter ASRock Cloud promotion code "ASR2014B", ASRock's users are allowed to enjoy all services above.

Cloud service should be simple and personal. Don't take time to upload the files to the public cloud again. Stop spending money on setting up another NAS device you don't know. Orbweb ME's file browser is your solution to zero adaption, managing your folders and files in the cloud. Accessing and exchanging files instantly among all of your PC and storages. All your folders and files are sitting just where you know they are.

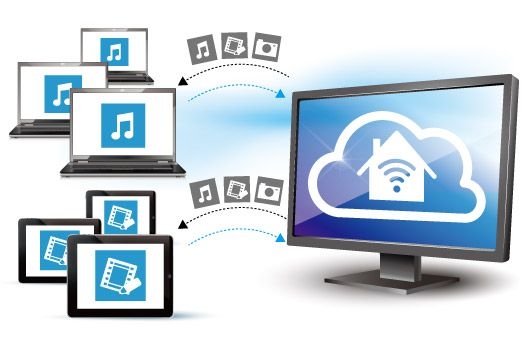

Orbweb Personal's media library takes care of your media content. Organize all your photos, videos and music across your PCs and online storages. Diverse, intuitive and smart sorting help finding desired movies in few clicks. Progressive streaming lets you enjoy your music collection almost no download time. Web browser based and mobile app portal keep you connected in any device any time.

Orbweb ME allows you to access your own personal File Explorer from multiple devices, bringing your tablets, laptops and PC together. Forgot an important file in your computer at home which you need for the next meeting? Another hard day hiding in the office bathroom, missing your massive collection of funny videos and music clips? You can get it all by connecting your tablets or laptops to access File Explorer and immerse into the paradise in few seconds.



Remote Desktop Anywhere

Laying in the bedroom or sitting in the office, tablet in your hands just becomes smarter. Pick up any work sheet left in office or start any application from you home PC. Orbweb ME's remote desktop not only mobilized your PC but also empower your tablet. No matter the device, No matter the location, Orbweb ME always keeps your PC by you.

Remote Desktop comes with the Ultimate package which is only free for the first month.



Wake On WAN

The latest technology that WOWs you with the ability to wake up your PC remotely over the internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time.

Only for certain motherboards that support wake on wan

Orbweb ME is provided by Kloudian Systems Inc. Restriction may apply and the offer is subject to change, termination or discontinuation by Kloudian Systems Inc. without prior notice. Please visit the website for further details : https://www.asrock.com/feature/cloud/index.Html



High Expandability

Four USB 3.0 5Gb/s ports (Two in the front and two on the rear) for supporting all of your peripherals with fast data transfer speed.

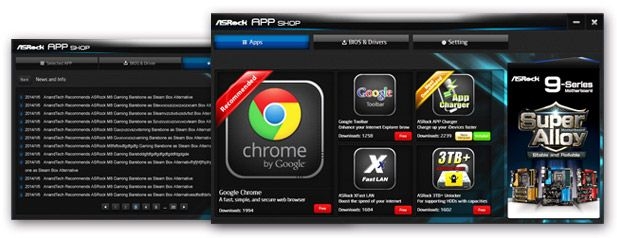

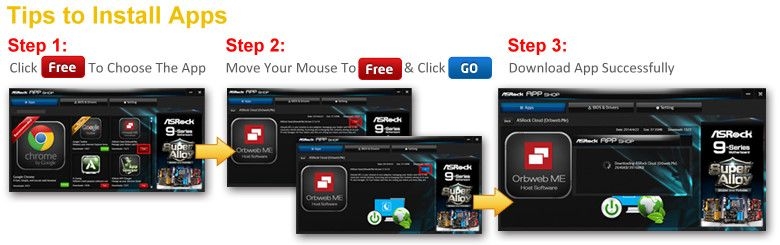

ASRock APP Shop

ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.



ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.

Orbweb ME :
Get Connected with ASRock Cloud Anytime, Anywhere
App Charger :
Fast Charge & Charge Anytime
Google Chrome :
Better Browsing with Google Options
XFast LAN :
Your Smartest Internet Access Manager





Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Surge Protection
Protects the motherboard from excessive surges from the power supply unit.

Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.

ESD Protection
USB : Added ICs to protect the onboard USB ports from electrostatic discharges.

LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.



USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!



Restart to UEFI

Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.



ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.





When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.



This motherboard supports HDMIâ„¢ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMIâ„¢ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.

Specifications

Product Specifications

General
Unique Feature	ASRock Full Spike Protection ASRock APP Shop
CPU	- Intel® Dual-Core Processor N3050 (up to 2.16 GHz)
Memory	- Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L DIMM Slots - Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. **If only one DIMM module is installed, please install it into DDR3_A1.
BIOS	- 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 Compliant wake up events - Supports jumperfree - SMBIOS 2.7 Support
Audio, Video and Networking
Graphics	- Intel® 8th generation (Gen 8) graphics: up to 12 EUs inside - DirectX 11.1, Pixel Shader 5.0 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode) - 2 x PCI Express 2.0 x1 Slots
Storage	- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x Print Port Header - 2 x COM Port Headers - 1 x TPM Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))* *USB3_2_3 is shared with USB_45.
Rear Panel I/O	- 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Software and BIOS	Software - ASRock USB Key - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI* UEFI - ASRock Power Gear - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS *These utilities can be downloaded from the APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	- Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm - Solid Capacitor design - High Density Glass Fabric PCB
OS	- Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 64-bit* *To install Windows® 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows® 10 driver, please visit ASRock's website for details.
Certifications	- FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
